Automatic Transaxle Shift Control: Removal

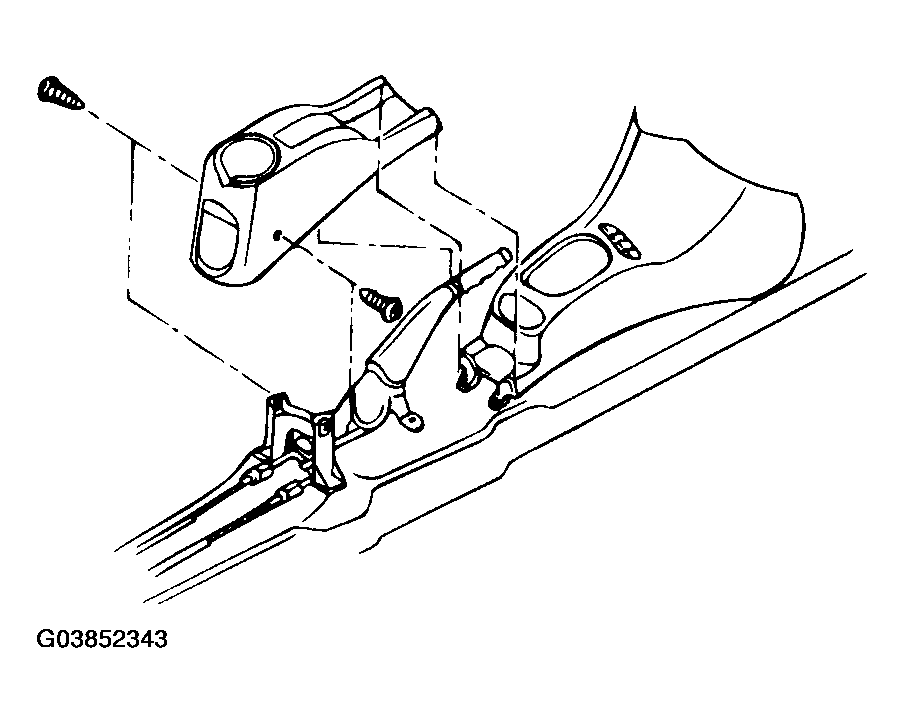

Remove the rear console.

Fig 1: Removing Rear Console
Courtesy of HYUNDAI MOTOR CO.

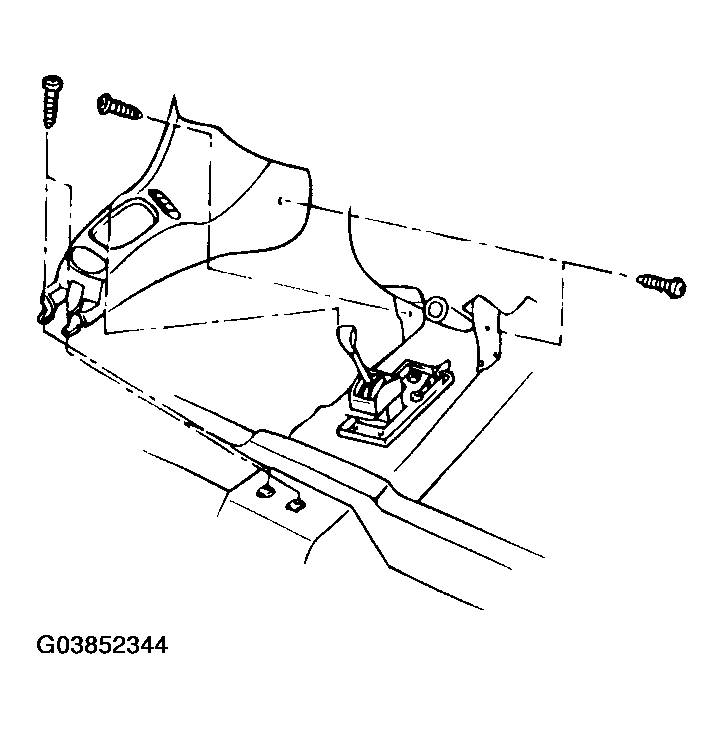

Remove the front console

Fig 2: Removing Front Console
Courtesy of HYUNDAI MOTOR CO.

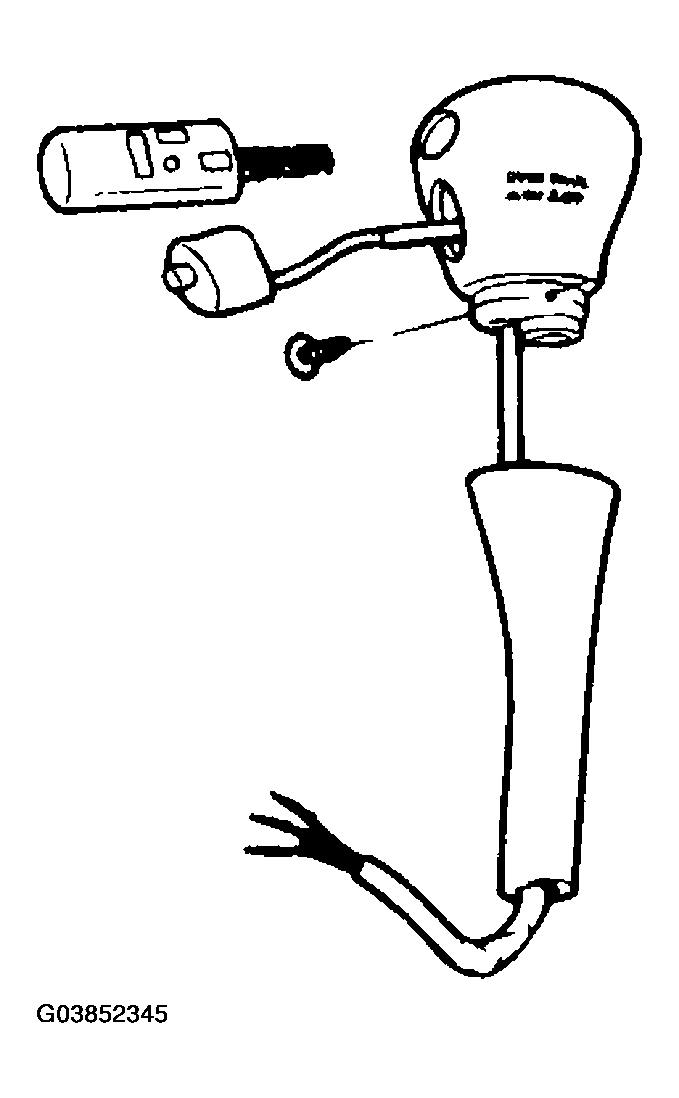

Remove the knob installation screws.
Disconnect the overdrive switch connector, remove the 3 connector pins from connector with small driver, and then remove selector knob assembly.

Fig 3: Disconnecting Overdrive Switch Connector, Removing 3 Connector Pins And Selector Knob Assembly
Courtesy of HYUNDAI MOTOR CO.

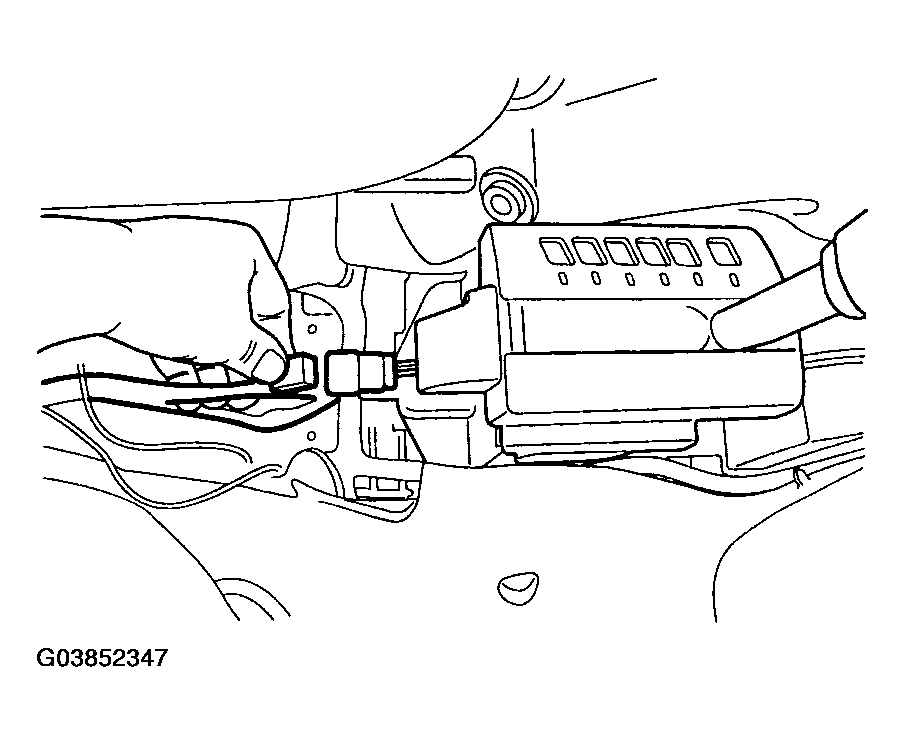

Disconnect the position indicator light connector.

Fig 4: Disconnecting Position Indicator Light Connector
Courtesy of HYUNDAI MOTOR CO.

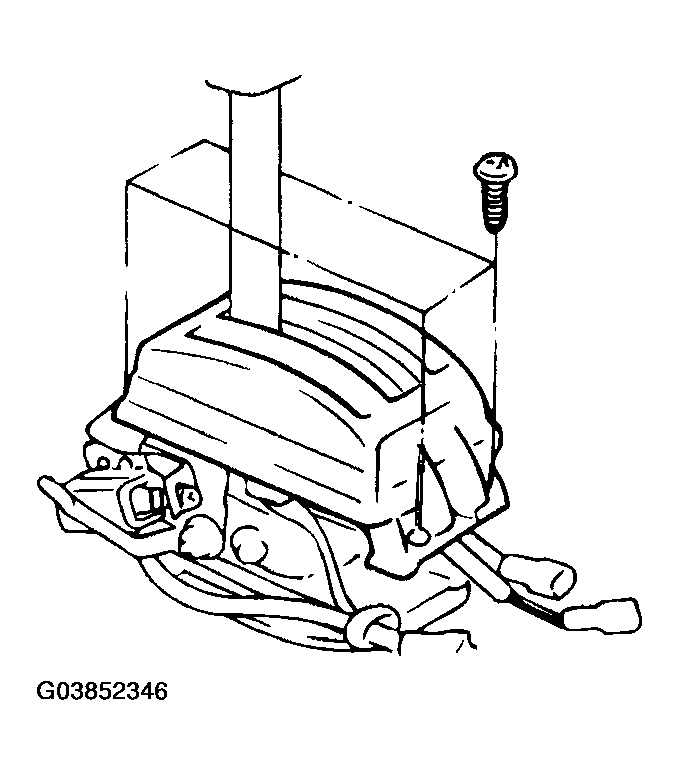

Remove the shift lever indicator assembly.

Fig 5: Removing Shift Lever Indicator Assembly
Courtesy of HYUNDAI MOTOR CO.

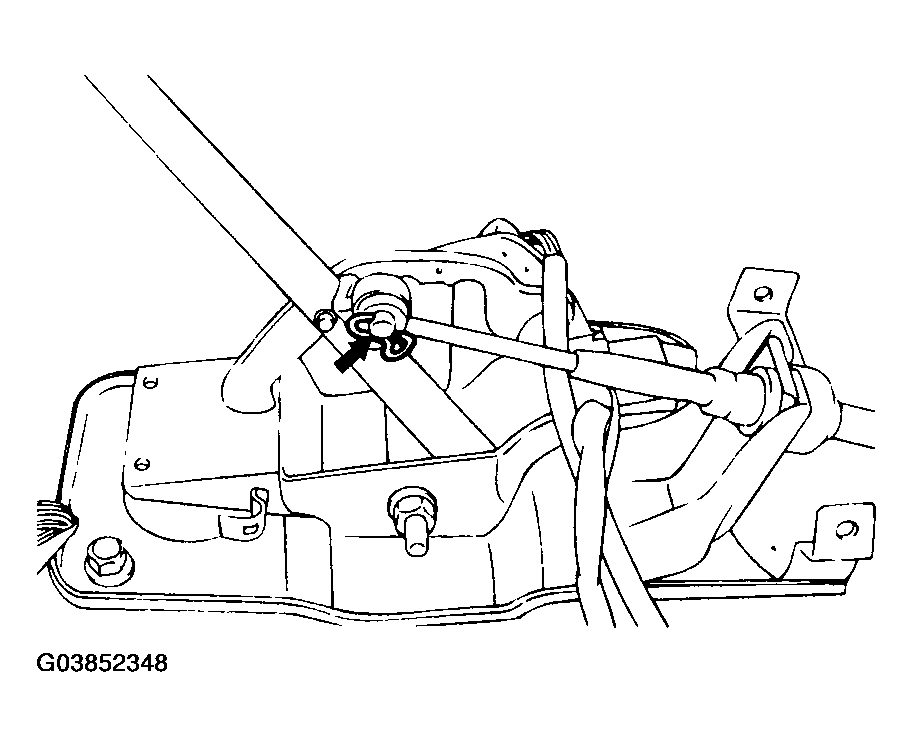

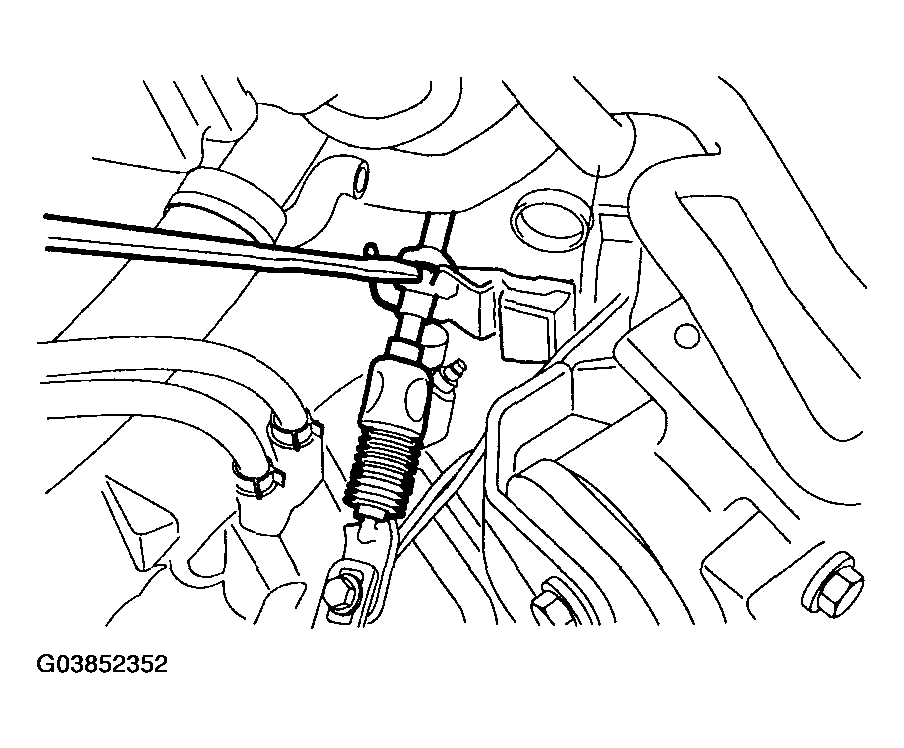

Remove the cotter pin.

Fig 6: Removing Cotter Pin
Courtesy of HYUNDAI MOTOR CO.

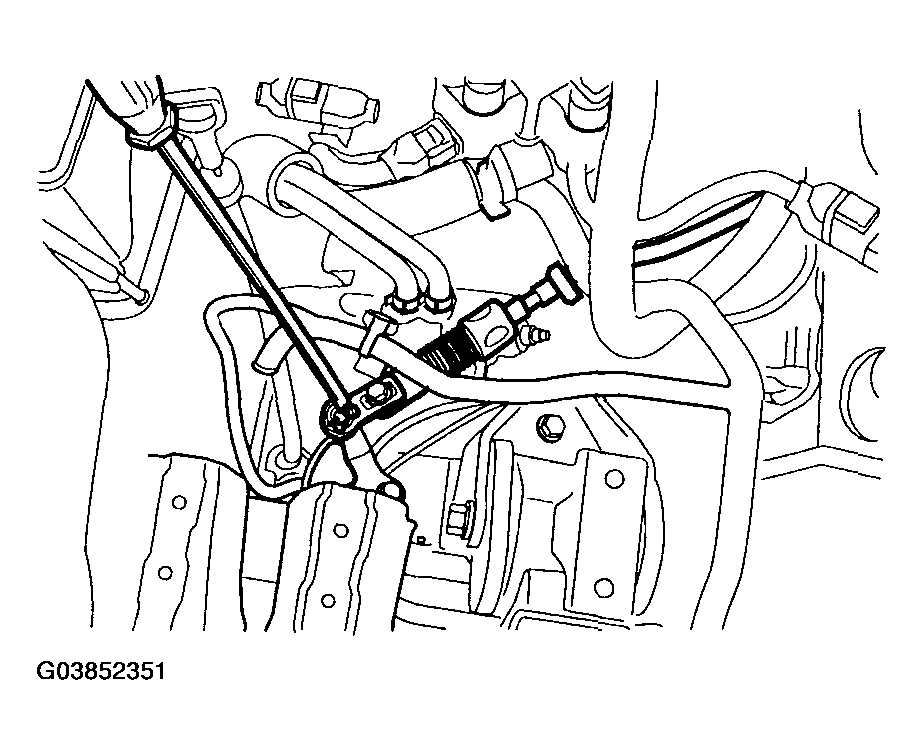

Remove the clip from the shift lever side.

Fig 7: Removing Clip From Shift Lever Side
Courtesy of HYUNDAI MOTOR CO.

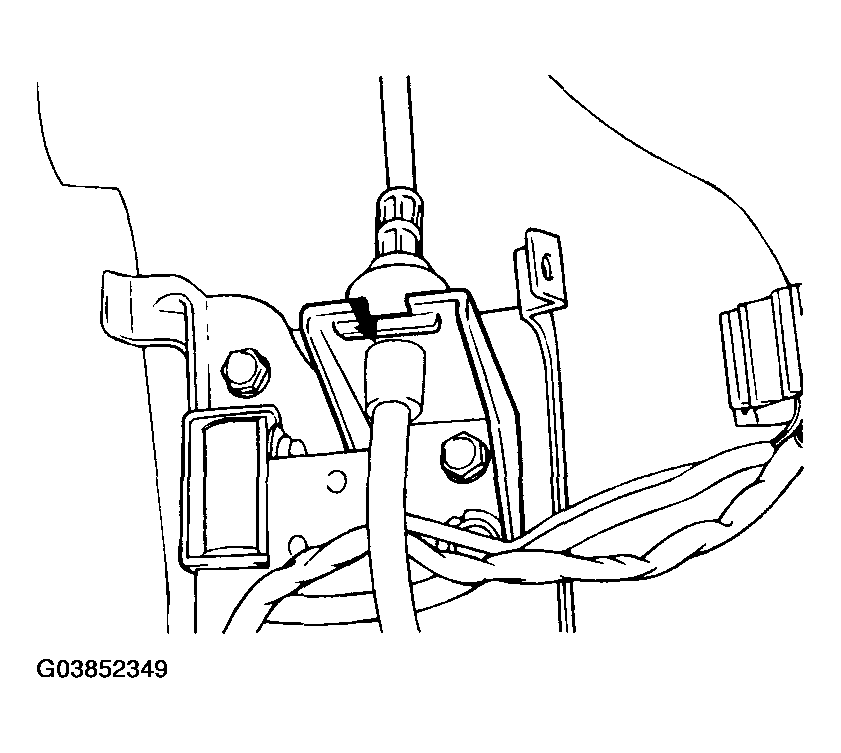

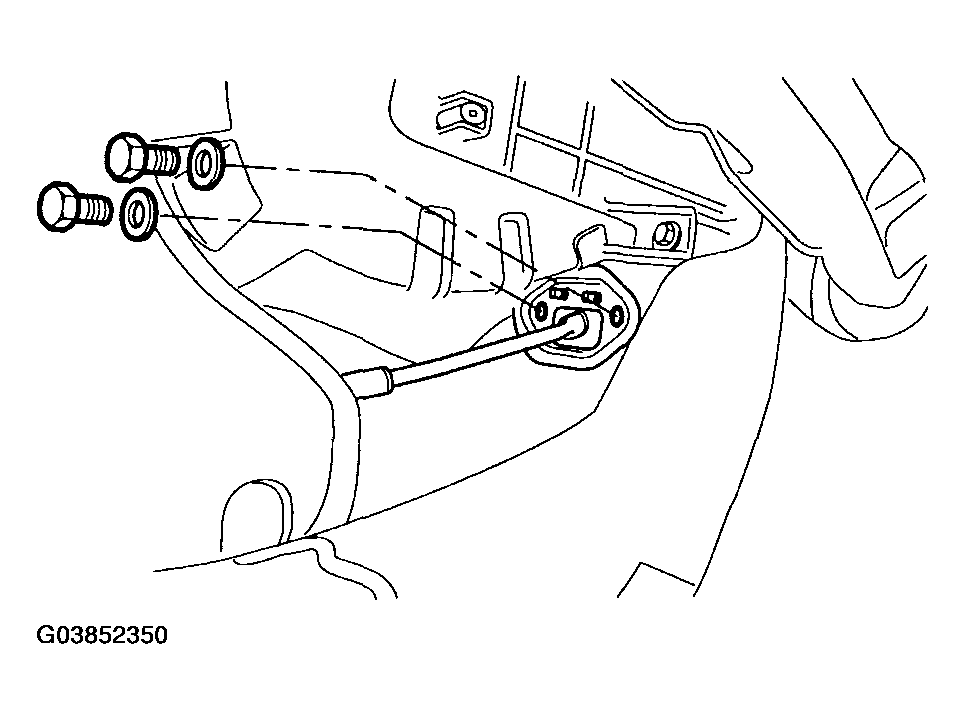

Remove the bolt-washer assembly located on dash panel.

Fig 8: Removing Bolt-Washer Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly.

Fig 9: Removing Shift Lever Assembly

Courtesy of HYUNDAI MOTOR CO.

Remove the transaxle control cable assembly.

Fig 10: Removing Transaxle Control Cable Assembly
Courtesy of HYUNDAI MOTOR CO.
