Automatic Transaxle: Components

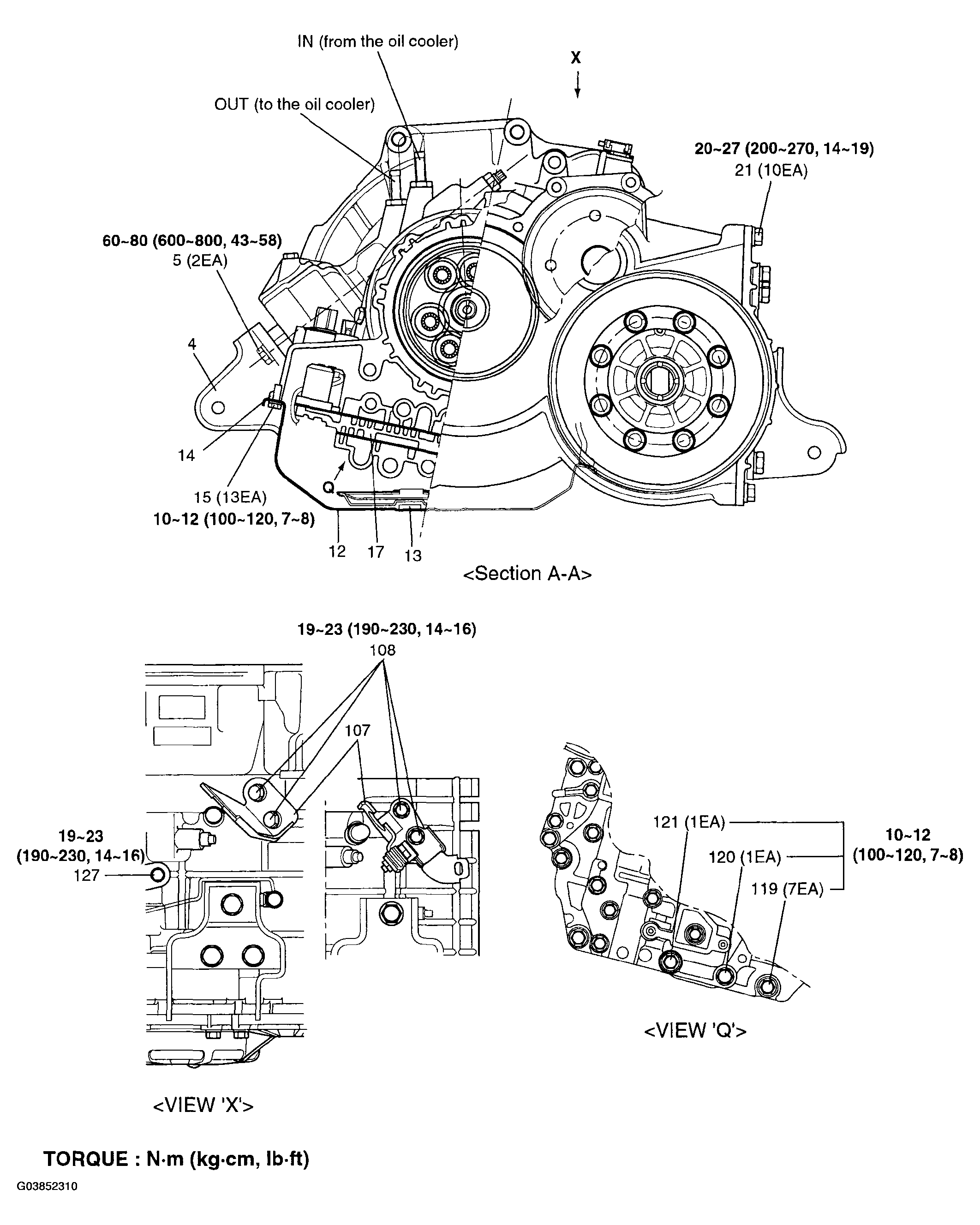

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (1 Of 6)

Courtesy of HYUNDAI MOTOR CO.

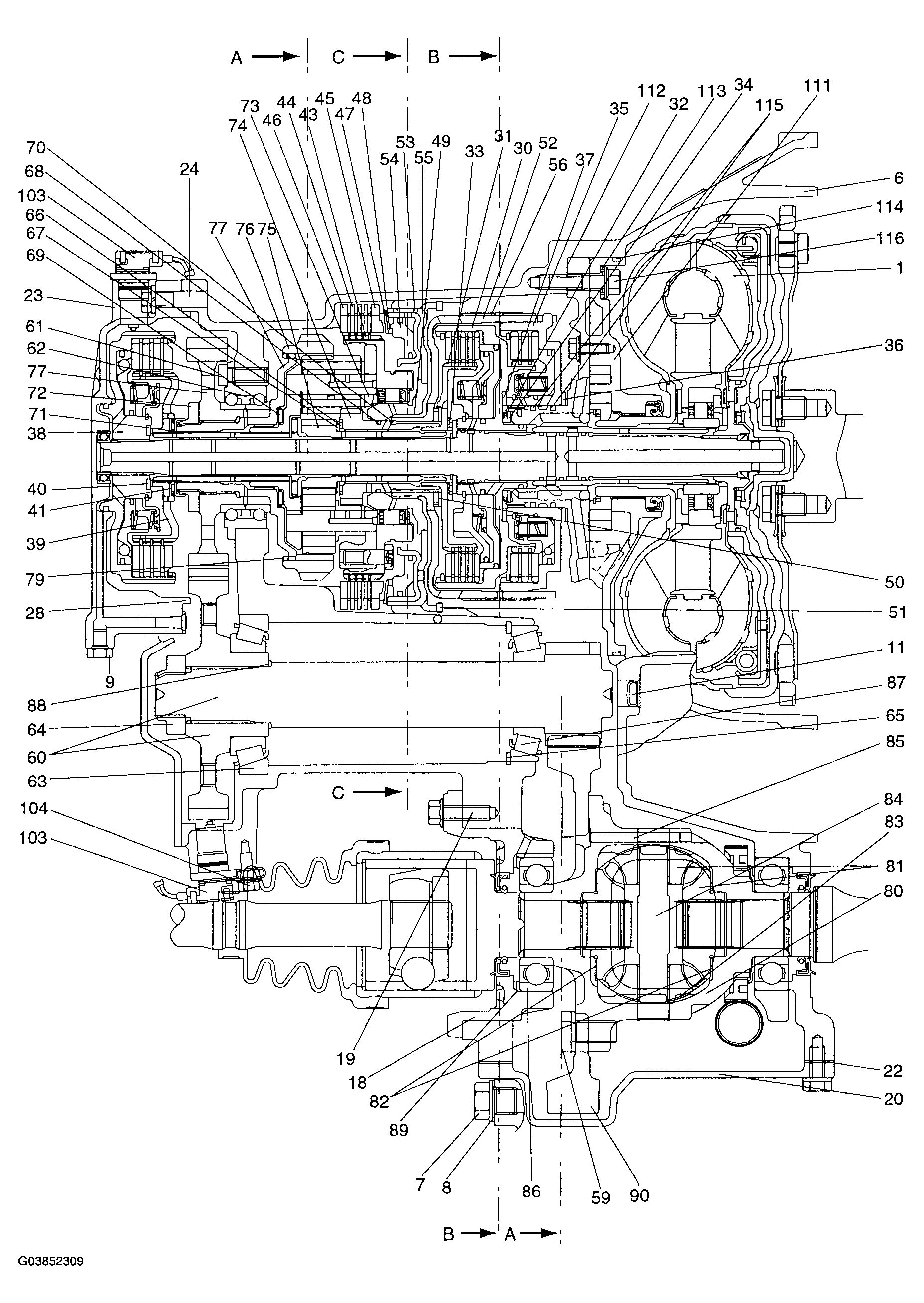

Fig 2: Automatic Transaxle Replacement Components With Torque Specifications (2 Of 6)

Courtesy of HYUNDAI MOTOR CO.

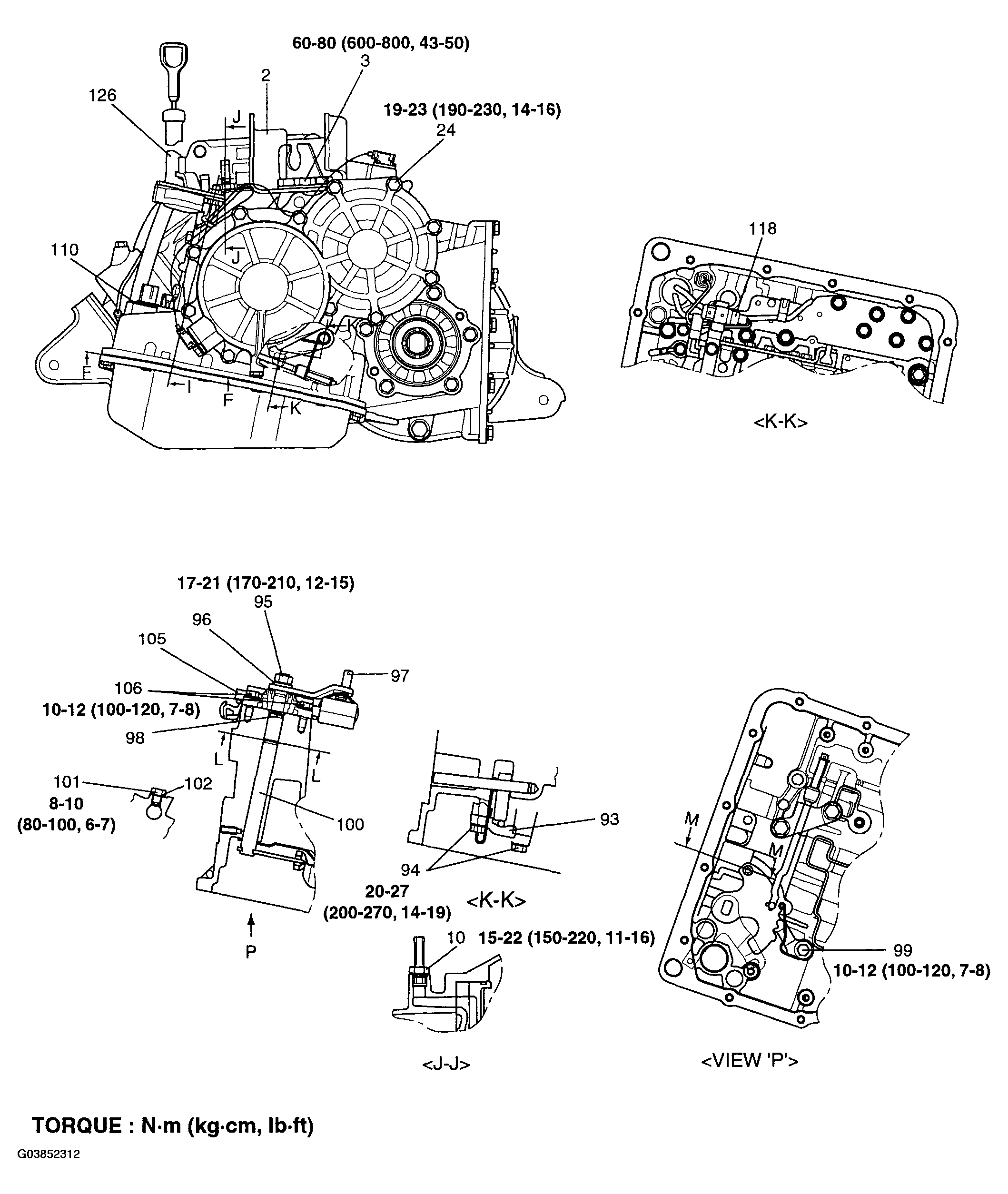

Fig 3: Automatic Transaxle Replacement Components With Torque Specifications (3 Of 6)

Courtesy of HYUNDAI MOTOR CO.

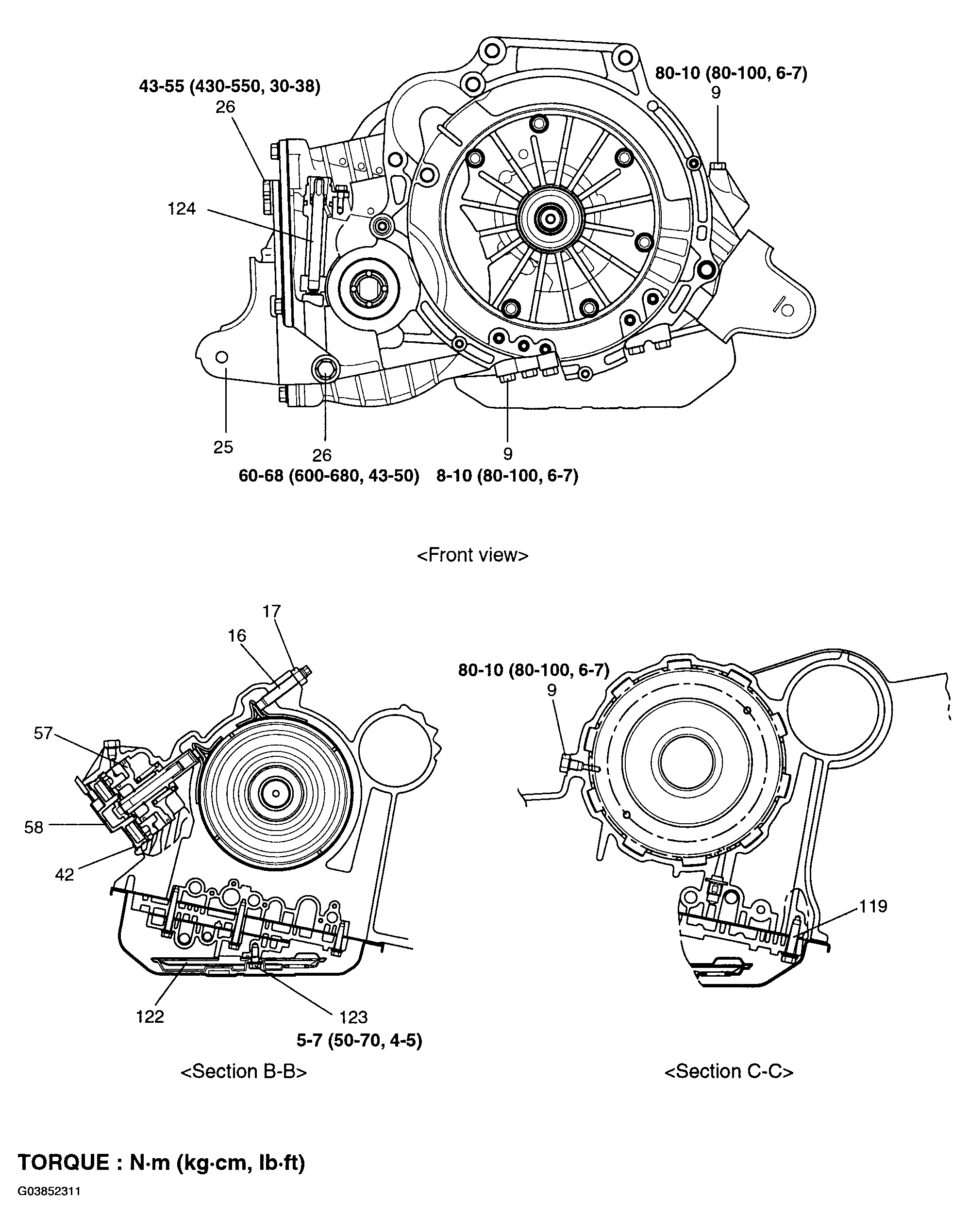

Fig 4: Automatic Transaxle Replacement Components With Torque Specifications (4 Of 6)

Courtesy of HYUNDAI MOTOR CO.

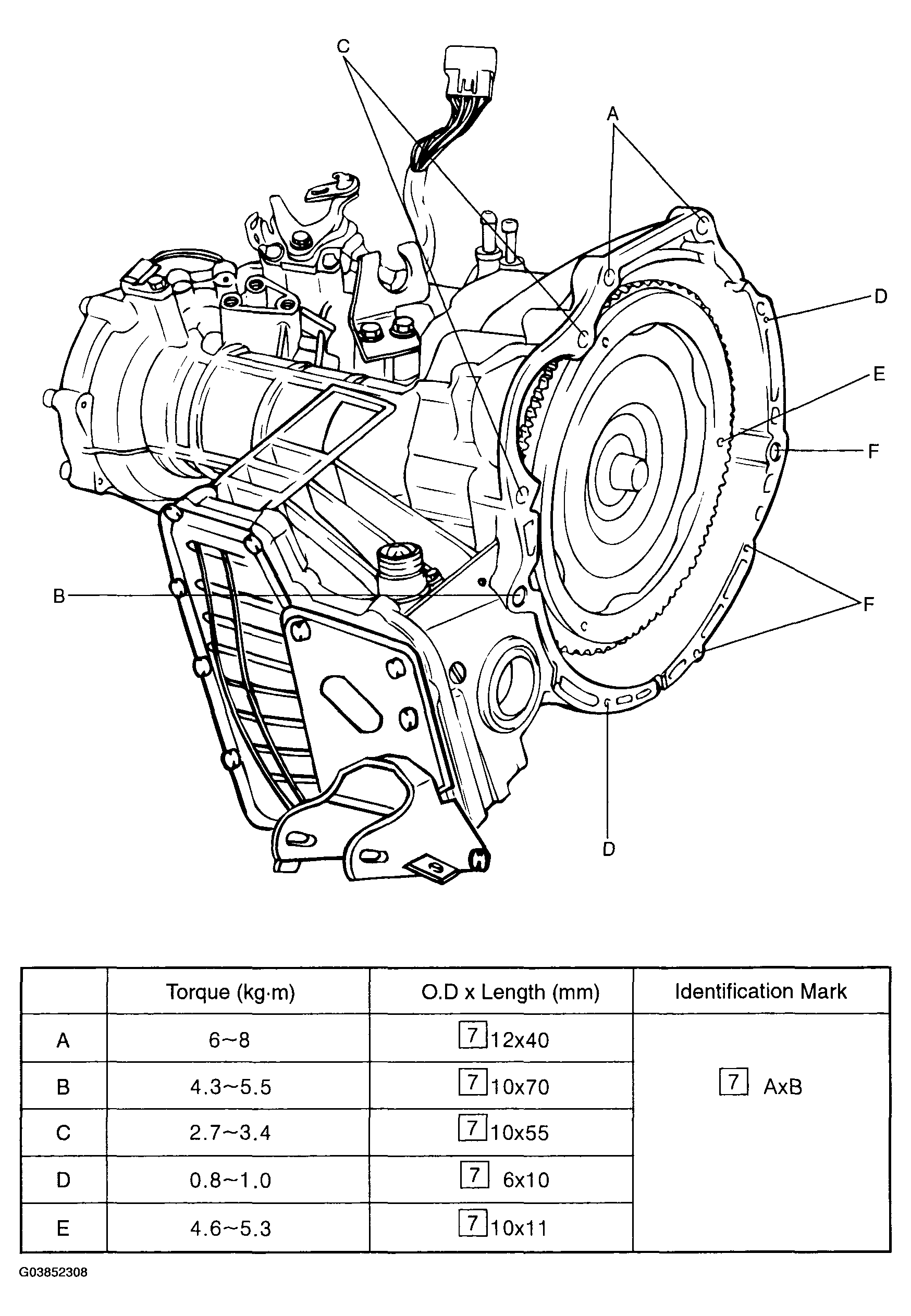

Fig 5: Automatic Transaxle Replacement Components With Torque Specifications (5 Of 6)

Courtesy of HYUNDAI MOTOR CO.

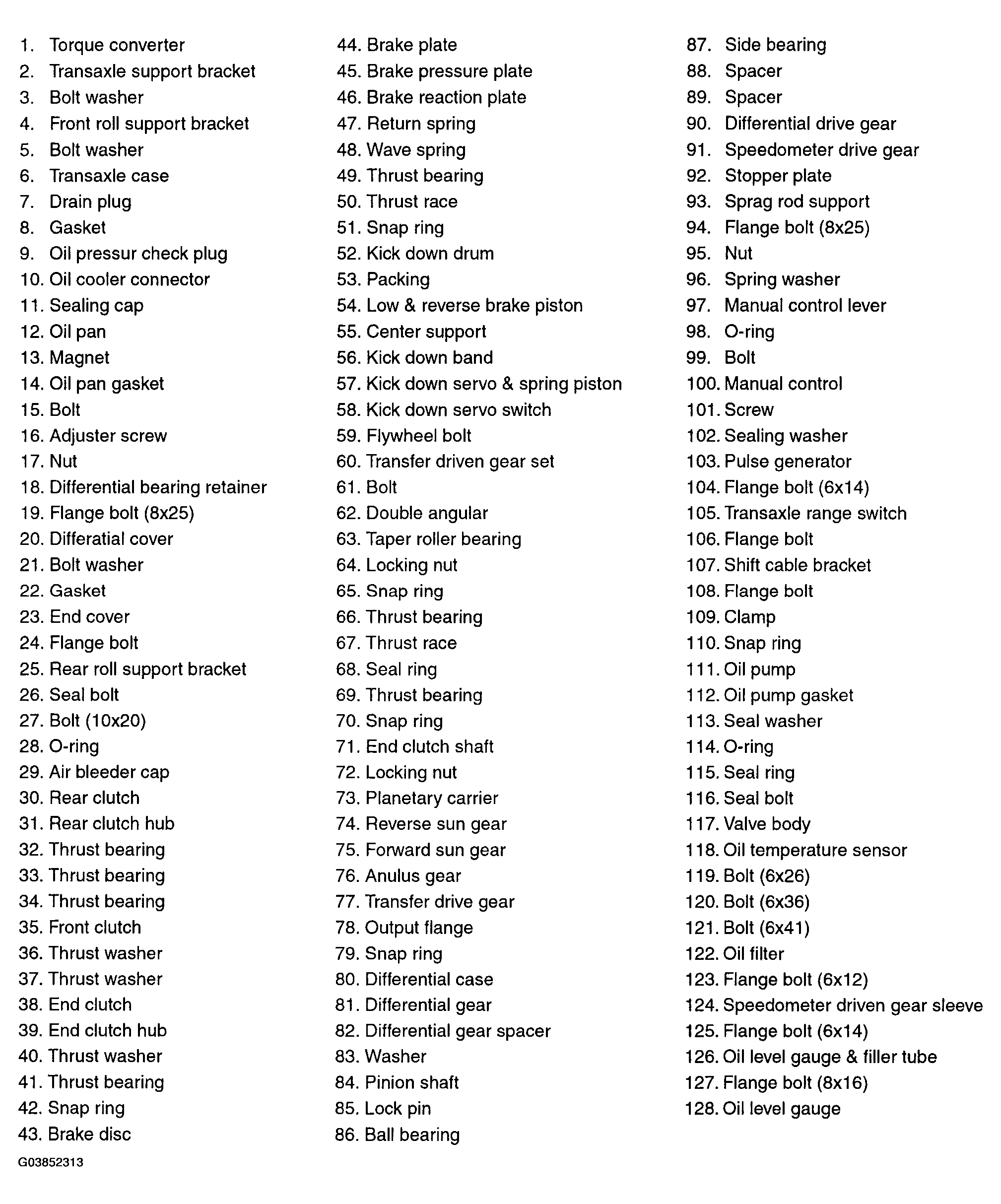

Fig 6: Automatic Transaxle Replacement Components With Torque Specifications (6 Of 6)

Courtesy of HYUNDAI MOTOR CO.
