Key Lock System

Check that the ignition key cannot be turned to "LOCK (OFF)" position, when the position of the shift lever is not in "P" position.

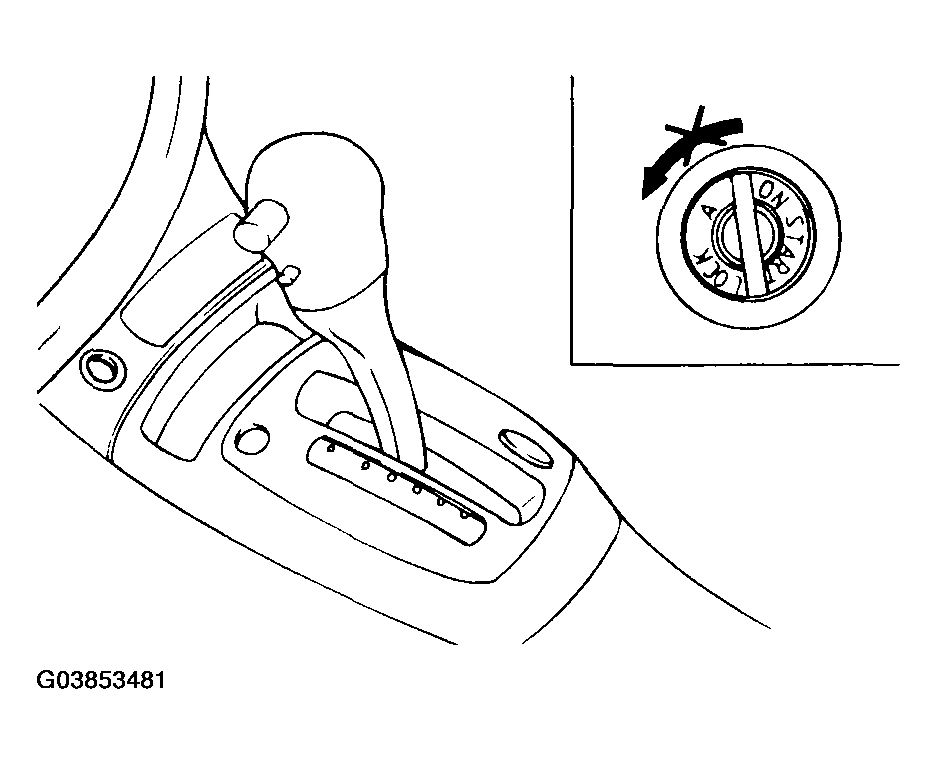

Fig 1: Checking Ignition Key Cannot Be Turned To "Lock (Off)" Position When The Position Of Shift Lever Is Not In "P" Position
Courtesy of HYUNDAI MOTOR CO.
Check that the ignition key turns to the "LOCK (OFF)" position, when the shift lever is set to the "P" position.

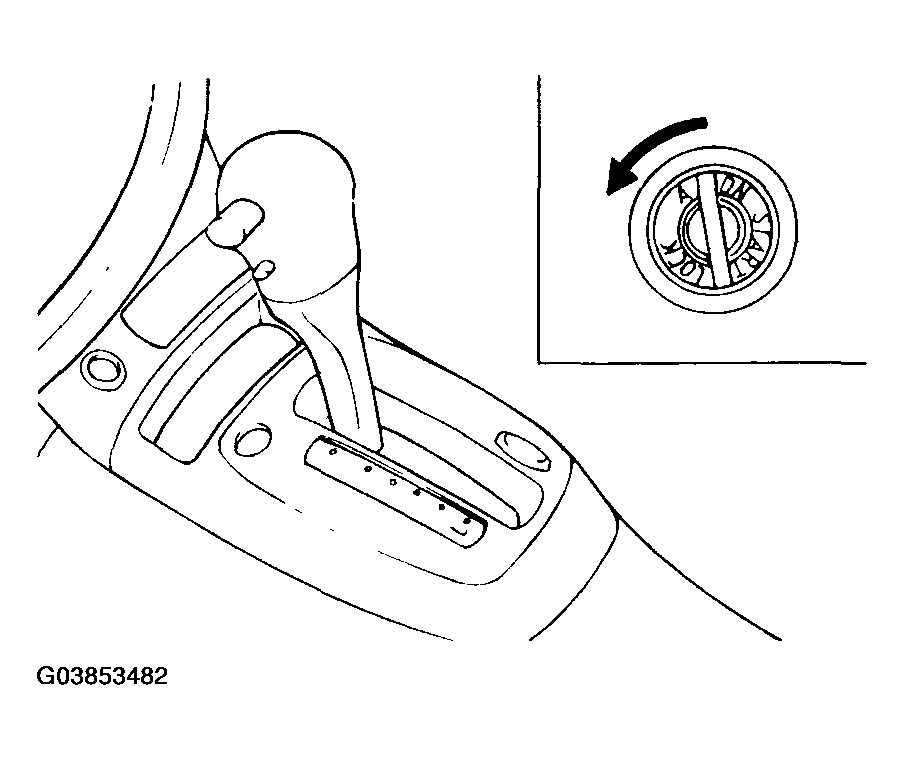

Fig 2: Checking Ignition Key Turns To "Lock (Off)" Position When The Shift Lever Is Set To The "P" Position
Courtesy of HYUNDAI MOTOR CO.
