Shift Lock System

Check that under the following conditions, the shift lever cannot be moved from the "P" position to any other position.
IGNITION KEY POSITION: "ON"

BRAKE PEDAL: NOT DEPRESSED

BUTTON: PRESSED

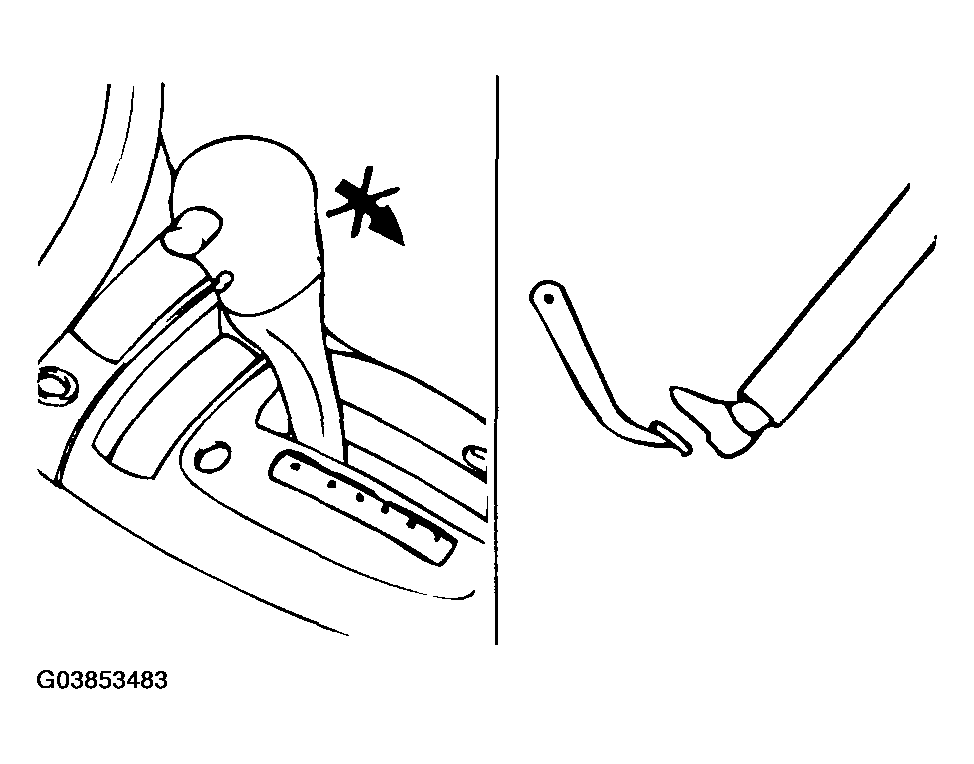

Fig 1: Checking That Shift Lever Cannot Be Moved From "P" Position To Any Other Position
Courtesy of HYUNDAI MOTOR CO.
Check that under the following conditions, the shift lever can be moved from the "P" position to other position.
IGNITION KEY POSITION: "ON"

BRAKE PEDAL: DEPRESSED

BUTTON: PRESSED

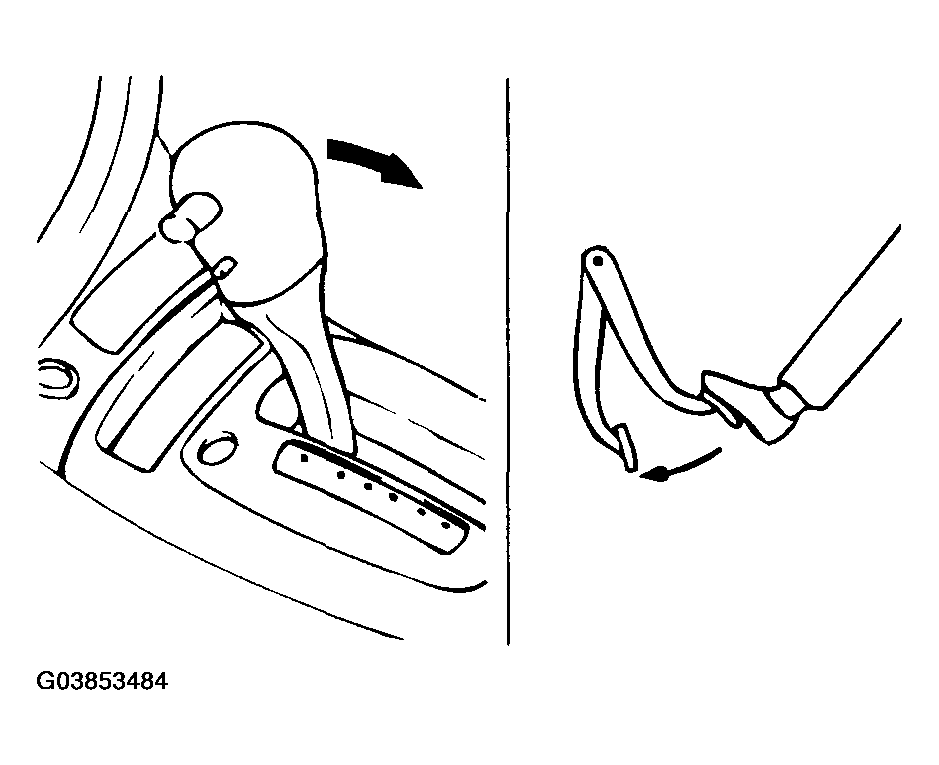

Fig 2: Checking That Shift Lever Can Be Moved From The "P" Position To Another Position
Courtesy of HYUNDAI MOTOR CO.
