Accelerator Pedal: Removal

  1. Disconnect the accelerator cable from the accelerator pedal by removing the 2 bolts(A).

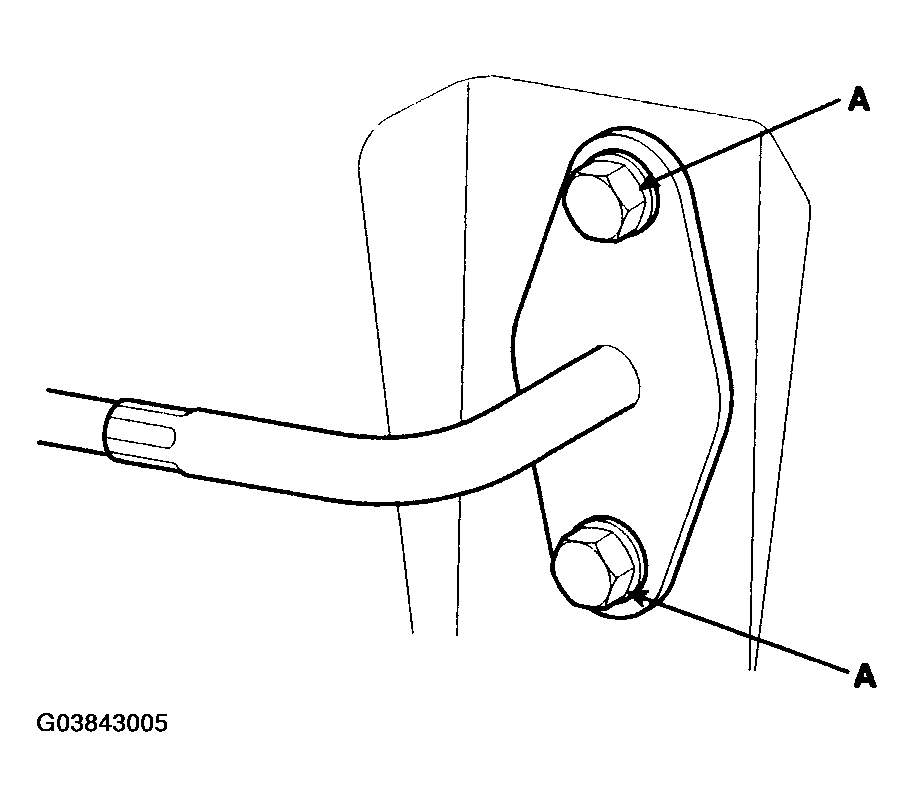

    Fig 1: Removing Bolts
    G03843005Courtesy of HYUNDAI MOTOR CO.
  2. After disconnecting the accelerator cable, loosen the bolts(A) of the accelerator arm bracket and remove

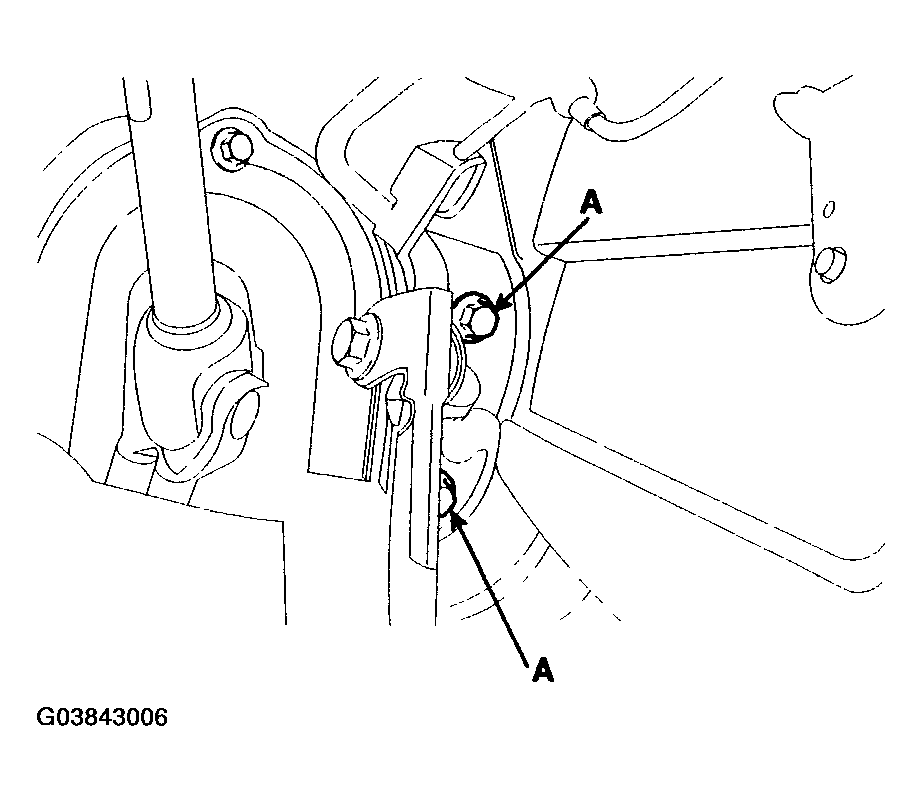

    Fig 2: Removing Bolts Of Accelerator Arm Bracket
    G03843006Courtesy of HYUNDAI MOTOR CO.
