Fuel Tank: Installation

Confirm that the pad is fully bonded to the fuel tank, and install the fuel tank by tightening the self-locking nuts.

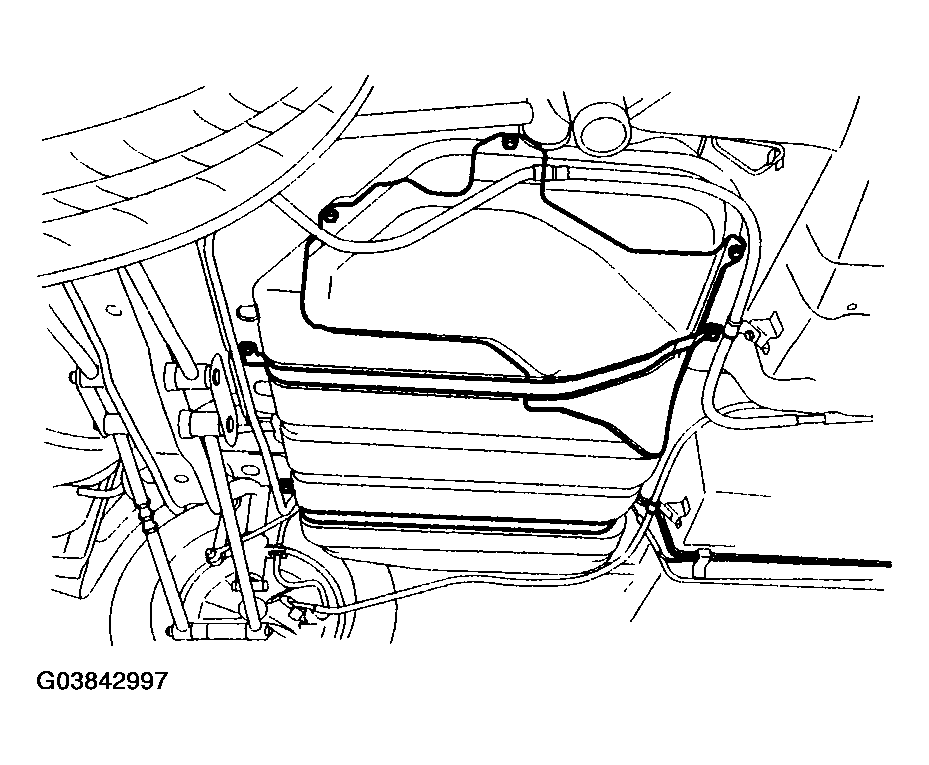

Fig 1: Installing Fuel Tank
Courtesy of HYUNDAI MOTOR CO.
Connect the leveling hose to the tank and the filler neck. Insert approximately 40 mm (1.6 in.).
When connecting the filler hose(A), the end with the shorter straight pipe should be connected to the tank side.

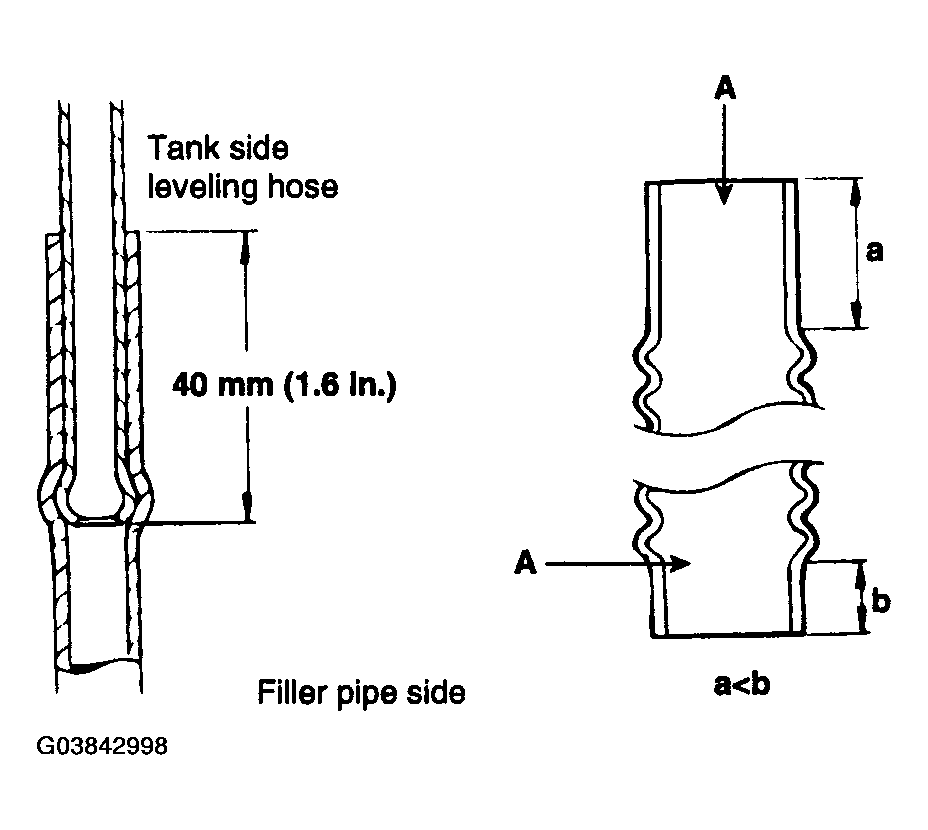

Fig 2: Identifying Hose And Filler Dimensions
Courtesy of HYUNDAI MOTOR CO.
Connect the vapor hose. When attaching the vapor hose to the line, be sure that the hose is attached as shown in Fig 3.

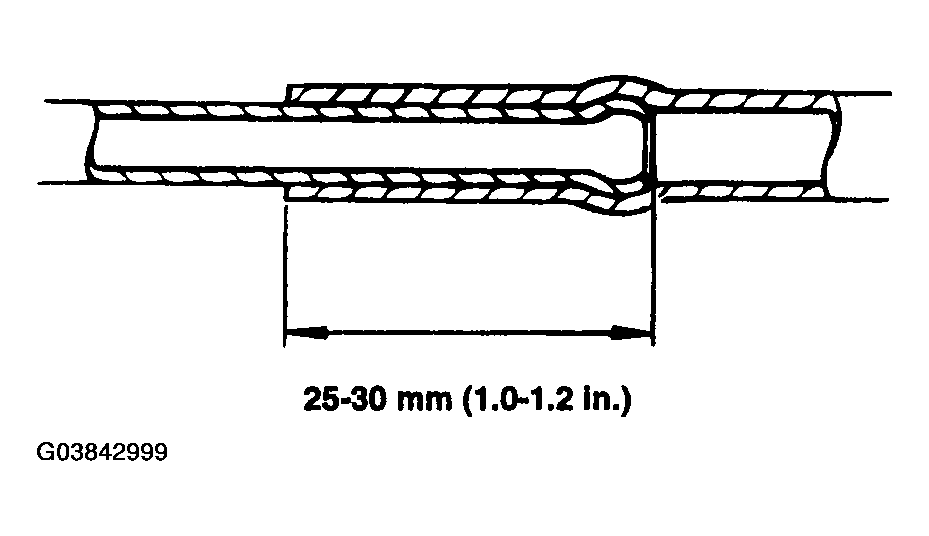

Fig 3: Identifying Vapor Hose To Line Dimensions
Courtesy of HYUNDAI MOTOR CO.
Connect the high pressure hose to the fuel pump. Make sure that the fuel hose does not twist.
Connect the electrical fuel pump connector.
