Home >> Hyundai >> 2005 >> Santa Fe LX, FWD >> Repair and Diagnosis >> Transmission >> Transfer Case Assembly >> Coupling Assembly >> Components

Coupling Assembly: Components

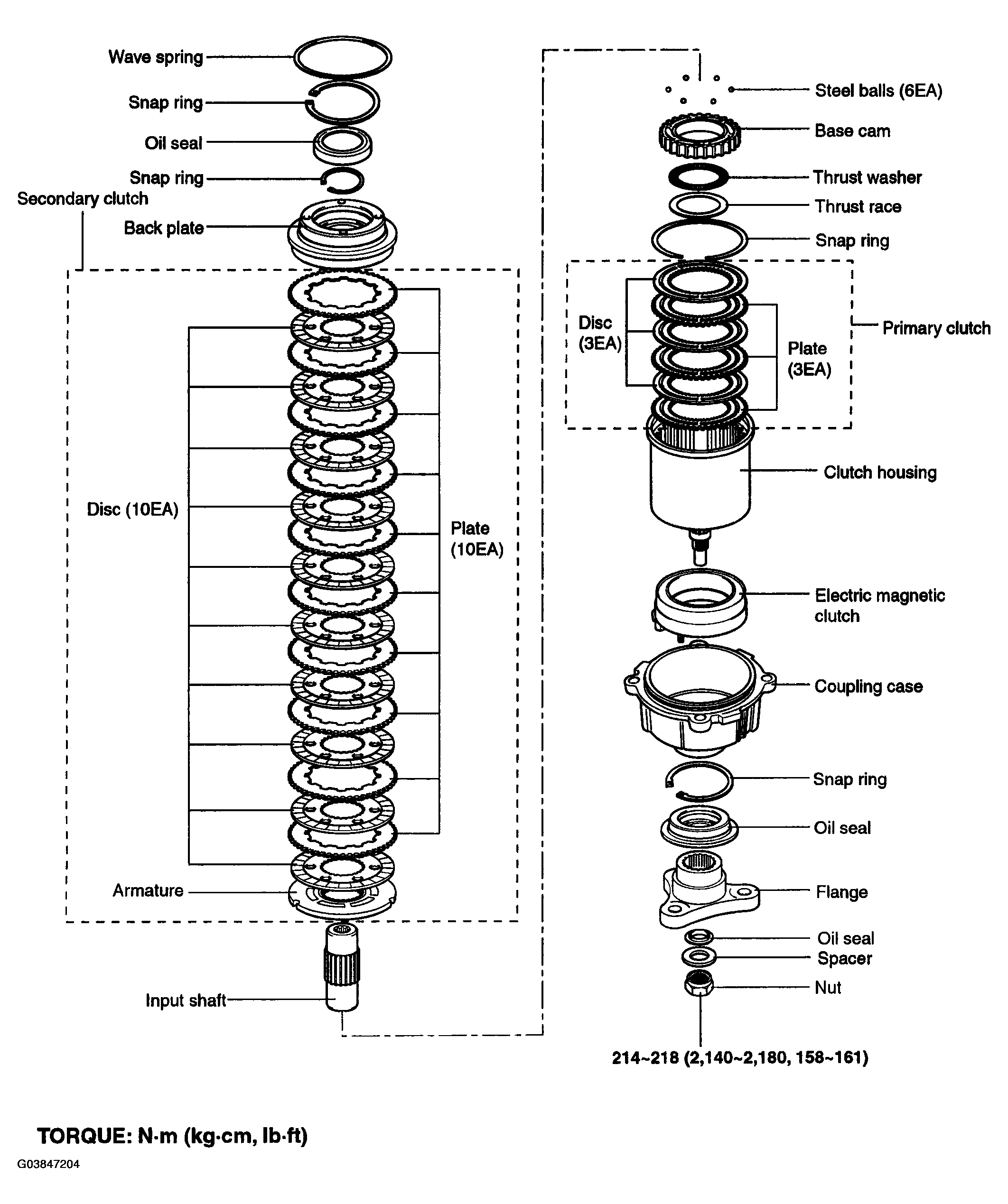

Fig 1: Exploded View Of Coupling Assembly And Torque Specifications

G03847204

Courtesy of HYUNDAI MOTOR CO.
