Coupling Assembly: Disassembly

  1. Remove the coupling flange mounting nut.
    Fig 1: Removing Coupling Flange Mounting Nut
    G03847212Courtesy of HYUNDAI MOTOR CO.
  2. Remove the flange spacer.

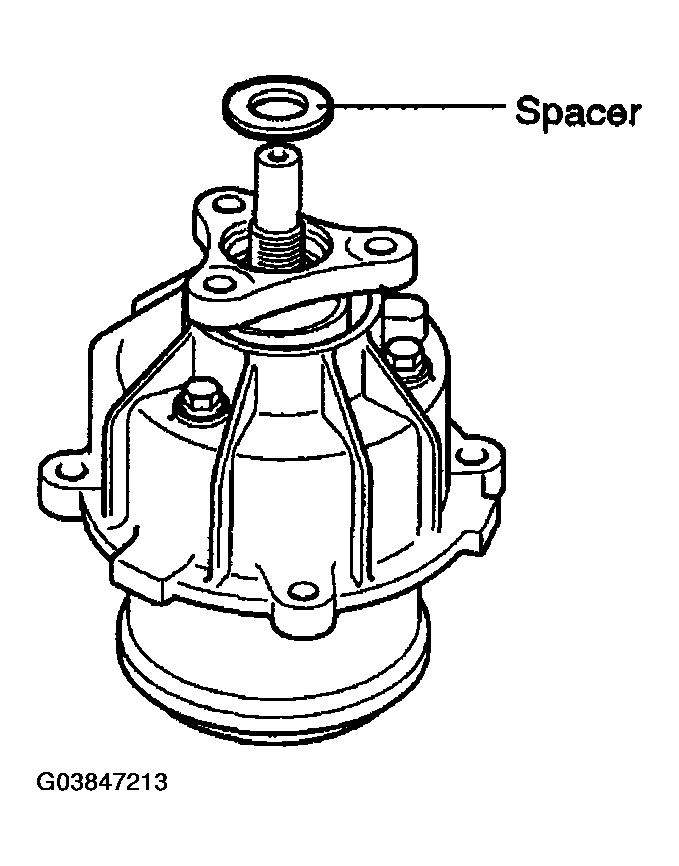

    Fig 2: Removing Flange Spacer
    G03847213Courtesy of HYUNDAI MOTOR CO.
  3. Remove the coupling flange oil seal.

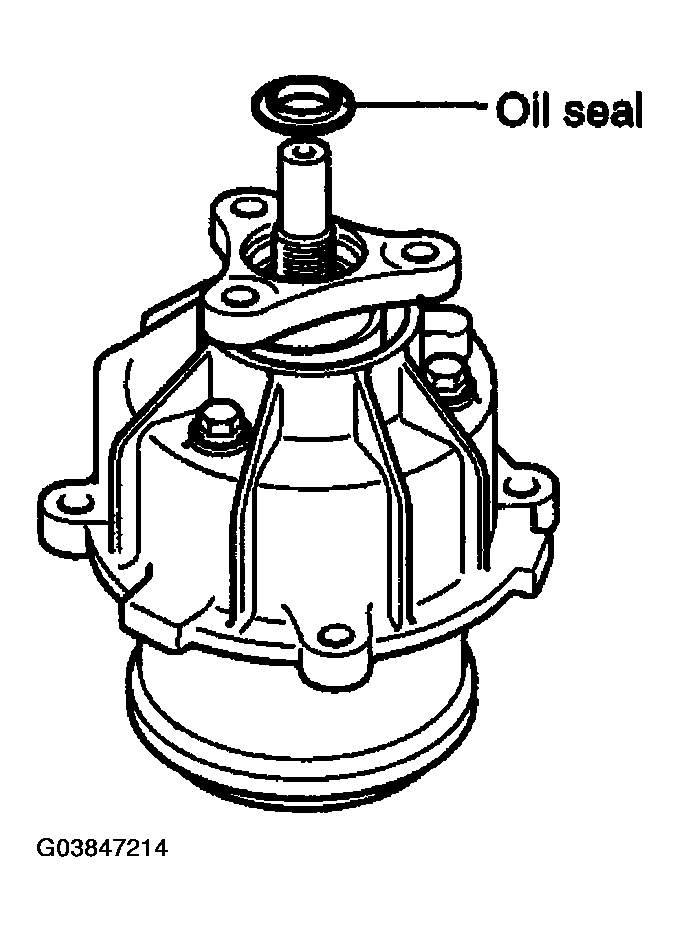

    Fig 3: Removing Coupling Flange Oil Seal
    G03847214Courtesy of HYUNDAI MOTOR CO.
  4. Using a general tool, 3-way puller, remove the flange assembly.
    Fig 4: Removing Flange Assembly
    G03847215Courtesy of HYUNDAI MOTOR CO.
  5. Remove the flange oil seal using special tool (09432-33200).
    Fig 5: Removing Flange Oil Seal
    G03847216Courtesy of HYUNDAI MOTOR CO.
  6. Remove the coupling case assembly.
    Fig 6: Removing Coupling Case Assembly
    G03847217Courtesy of HYUNDAI MOTOR CO.
    1. Remove the coupling case oil seal.

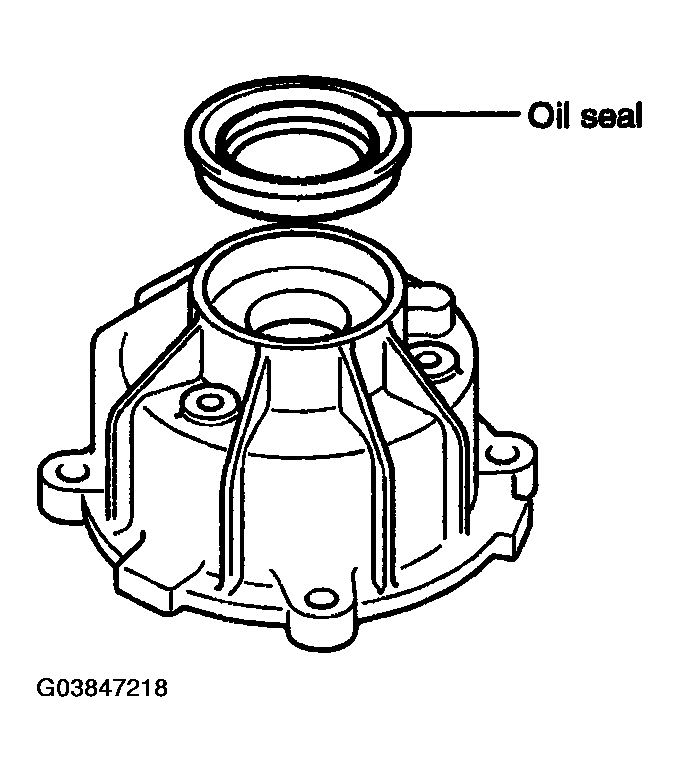

      Fig 7: Removing Coupling Case Oil Seal
      G03847218Courtesy of HYUNDAI MOTOR CO.
      NOTE: Insert the (-) driver between the oil seal and the clutch housing, then remove the oil seal.
    2. Remove the snap ring.
    3. Remove the Electric Magnetic clutch mounting nuts (3EA).

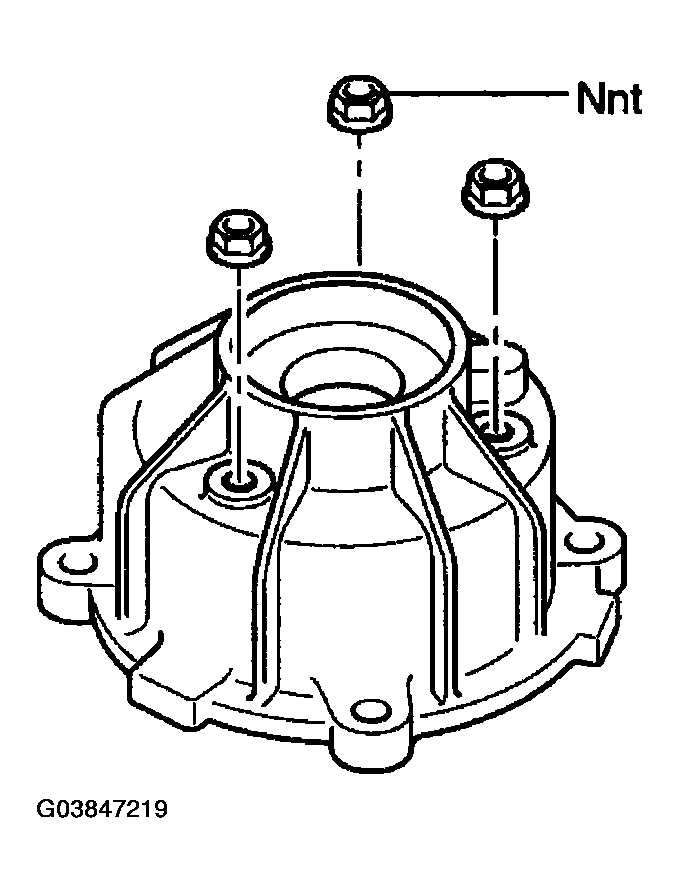

      Fig 8: Removing Electric Magnetic Clutch Mounting Nuts
      G03847219Courtesy of HYUNDAI MOTOR CO.

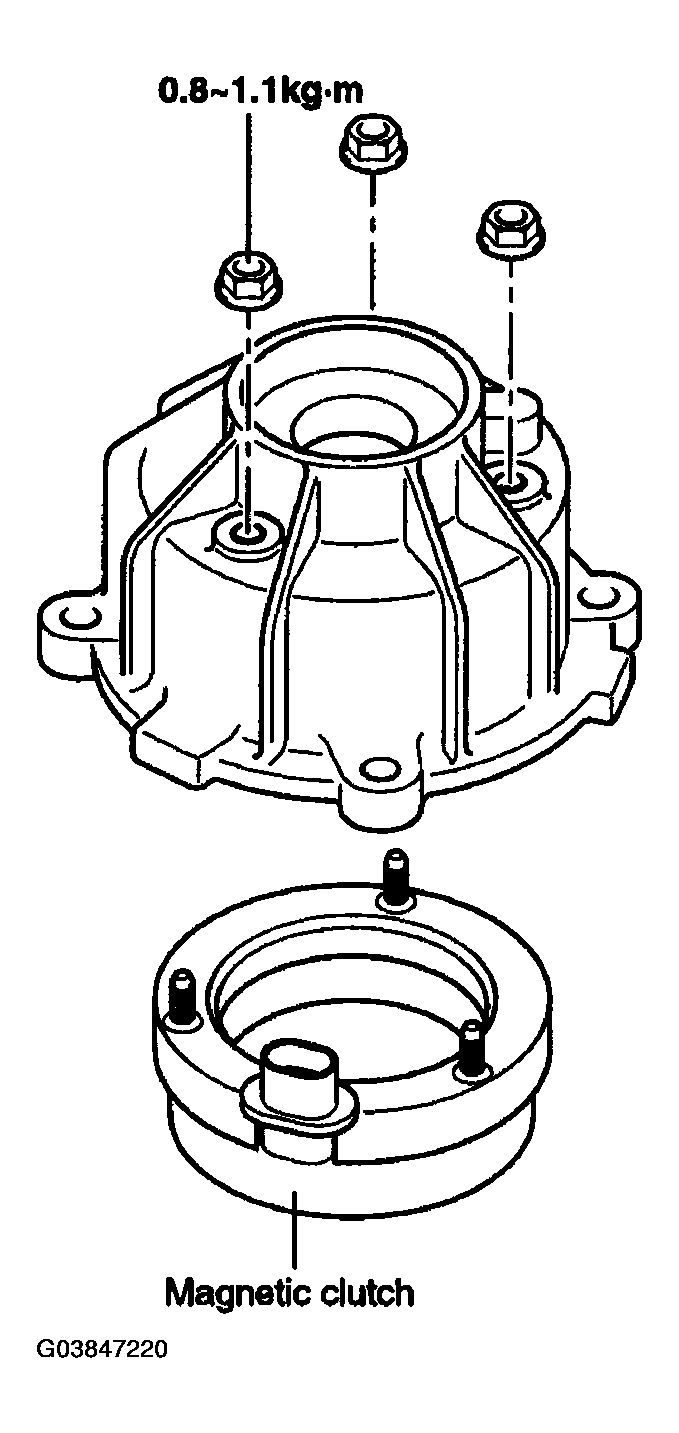

      Fig 9: Electric Magnetic Clutch Mounting Nuts With Torque Specifications
      G03847220Courtesy of HYUNDAI MOTOR CO.
  7. Remove the wave spring for fixing the back plate and the secondary clutch assembly.
    Fig 10: Removing Wave Spring For Fixing Back Plate And Secondary Clutch Assembly
    G03847221Courtesy of HYUNDAI MOTOR CO.
  8. Remove the snap ring.
    Fig 11: Removing Snap Ring
    G03847222Courtesy of HYUNDAI MOTOR CO.
  9. After removing the oil seal, remove the snap ring.
    Fig 12: Removing Snap Ring
    G03847223Courtesy of HYUNDAI MOTOR CO.
  10. Remove the back plate and the secondary clutch assembly simultaneously using special tool (09478-26100).
    Fig 13: Removing Back Plate And Secondary Clutch Assembly
    G03847224Courtesy of HYUNDAI MOTOR CO.
    1. Separate the back plate from the input shaft.
      Fig 14: Separating Back Plate From Input Shaft
      G03847225Courtesy of HYUNDAI MOTOR CO.
    2. Remove the plates (10EA) and the discs (10EA).
      Fig 15: Removing Plates And Discs
      G03847226Courtesy of HYUNDAI MOTOR CO.
    3. Remove the armature.
      Fig 16: Removing Armature
      G03847227Courtesy of HYUNDAI MOTOR CO.
    4. Remove the input shaft.
      Fig 17: Removing Input Shaft
      G03847228Courtesy of HYUNDAI MOTOR CO.
  11. Remove the steel balls (6EA) on the base cam.
    Fig 18: Removing Steel Balls On Base Cam
    G03847229Courtesy of HYUNDAI MOTOR CO.
  12. Remove the base cam.
    Fig 19: Removing Base Cam
    G03847230Courtesy of HYUNDAI MOTOR CO.
  13. Remove the thrust washer.
    Fig 20: Removing Thrust Washer
    G03847231Courtesy of HYUNDAI MOTOR CO.
  14. Remove the thrust race.
    Fig 21: Removing Thrust Race
    G03847232Courtesy of HYUNDAI MOTOR CO.
  15. Remove the snap ring.
    Fig 22: Removing Snap Ring
    G03847233Courtesy of HYUNDAI MOTOR CO.
  16. Remove the clutch of the primary clutch.
    Fig 23: Removing Clutch Of Primary Clutch
    G03847234Courtesy of HYUNDAI MOTOR CO.
  17. Remove the plate of the primary clutch.
    Fig 24: Removing Plate Of Primary Clutch
    G03847235Courtesy of HYUNDAI MOTOR CO.
NOTE: Additionally remove each (2EA) disc and plate alternately.
