Coupling Assembly: Removal

Remove the 4WD coupling bolts (3EA) mounted to the rear propeller shaft.

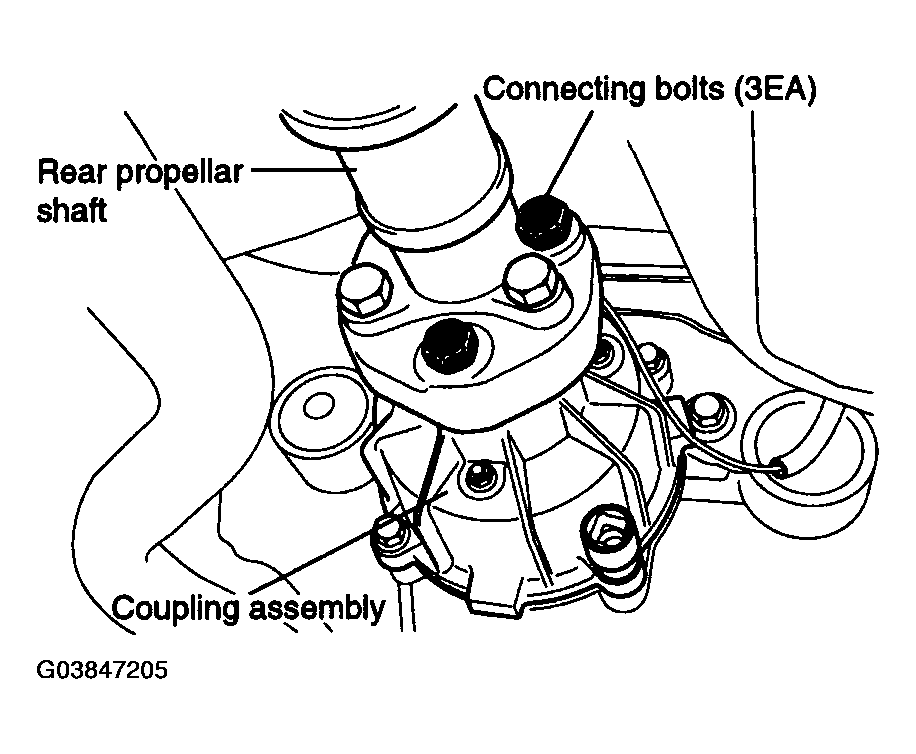

Fig 1: Removing 4WD Coupling Bolts
Courtesy of HYUNDAI MOTOR CO.
Using a flat tool, separate the propeller shaft from 4WD coupling.

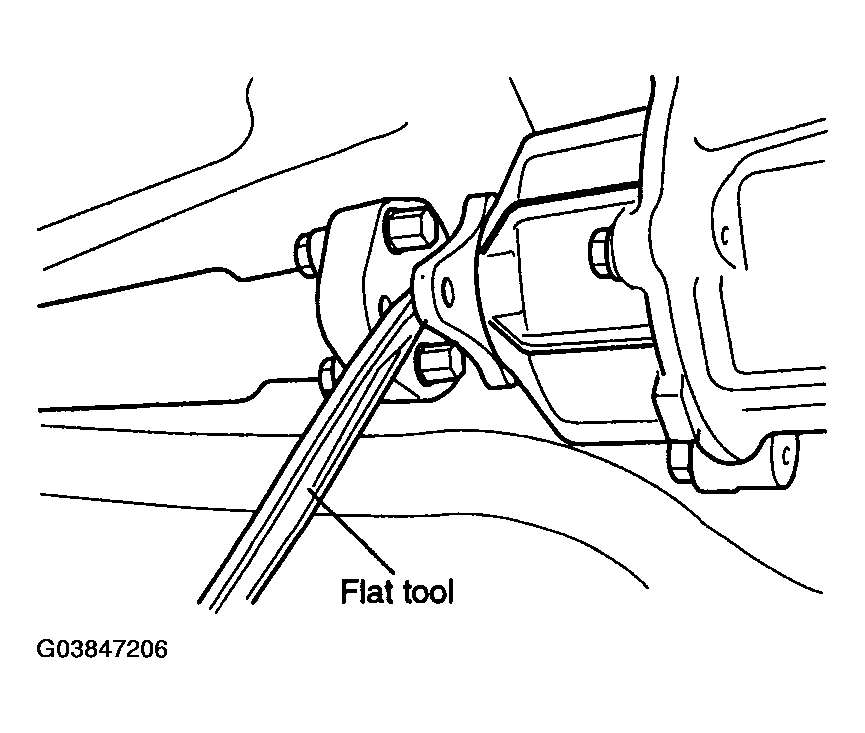

Fig 2: Separating Propeller Shaft From 4WD Coupling (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Separating Propeller Shaft From 4WD Coupling (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Remove the rear axle (Differential carrier) bolts mounted to the 4WD coupling.

Fig 4: Removing Rear Axle Bolts
Courtesy of HYUNDAI MOTOR CO.

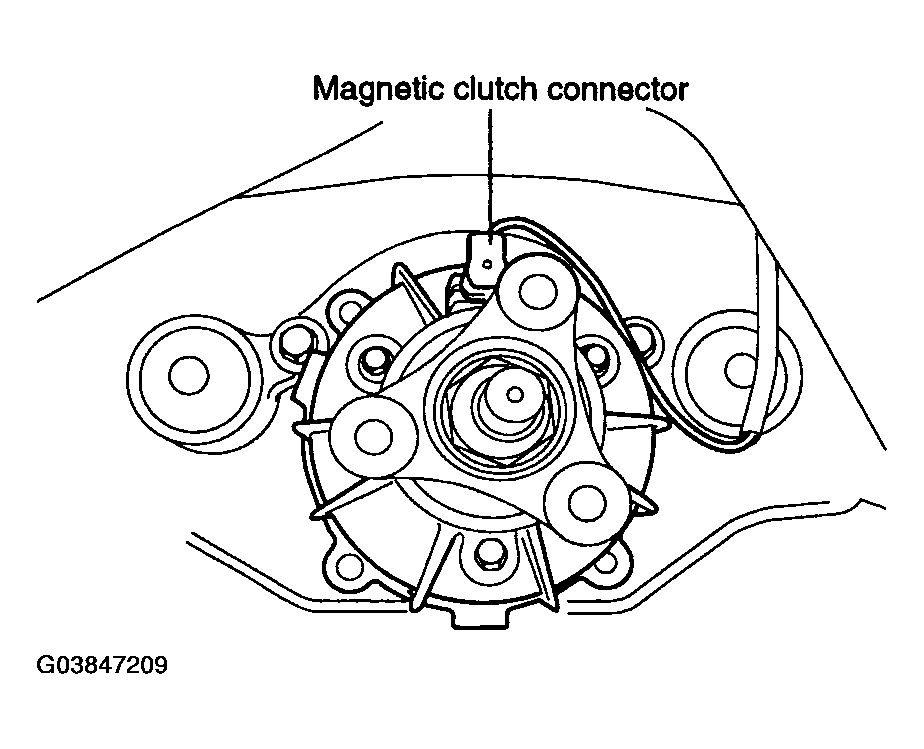

Remove the electric magnetic clutch connector.

Fig 5: Removing Electric Magnetic Clutch Connector
Courtesy of HYUNDAI MOTOR CO.

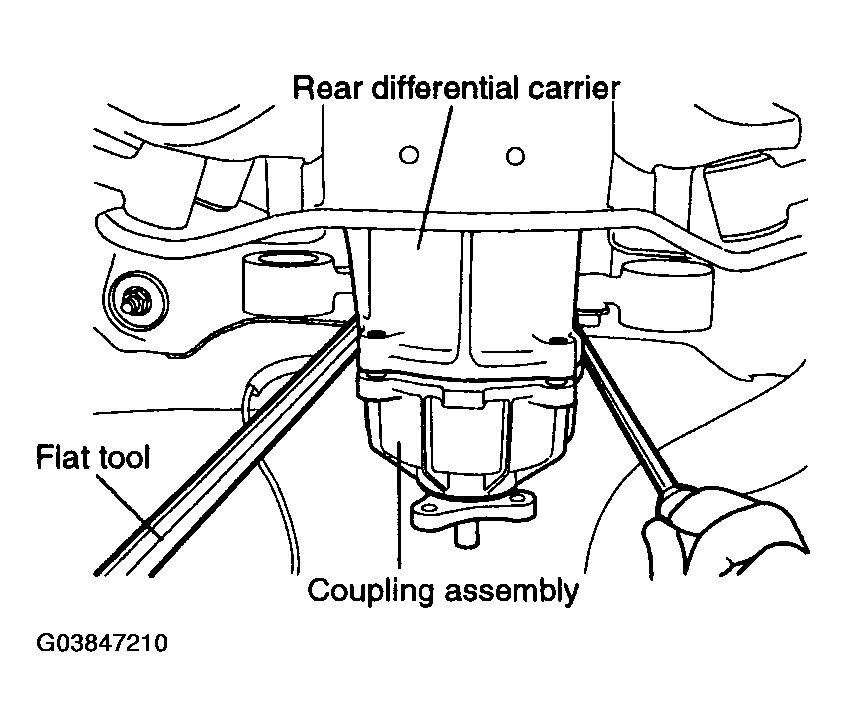

Using a flat tool, separate the 4WD coupling assembly from the rear differential carrier.

Fig 6: Separating 4WD Coupling Assembly From Rear Differential Carrier
Courtesy of HYUNDAI MOTOR CO.
Remove the 4WD coupling assembly.

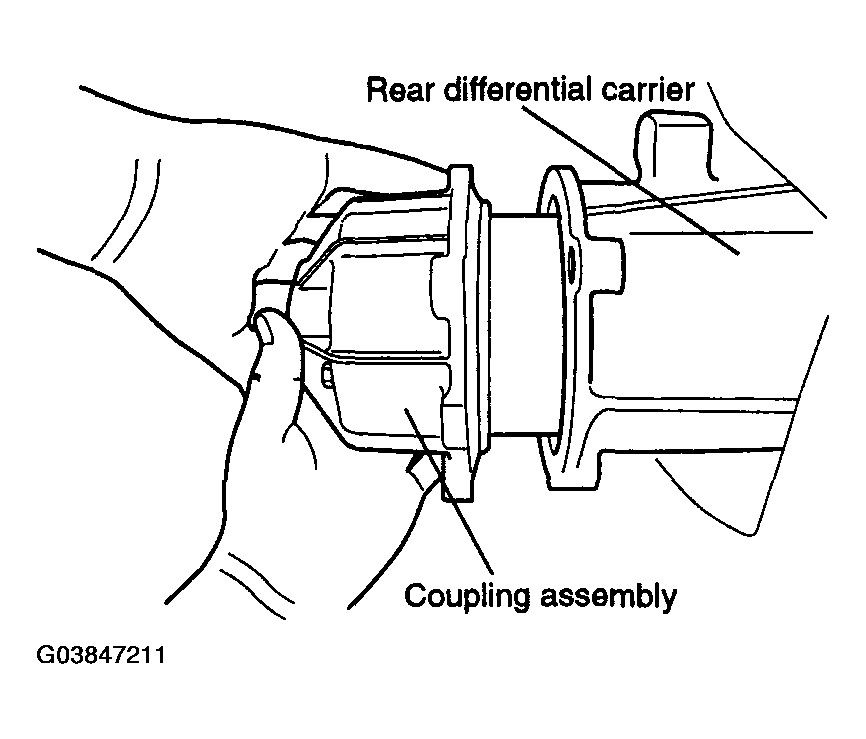

Fig 7: Removing 4WD Coupling Assembly
Courtesy of HYUNDAI MOTOR CO.
