Home >> Hyundai >> 2005 >> Sonata GLS >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter >> Components

Starting System: Starter: Components

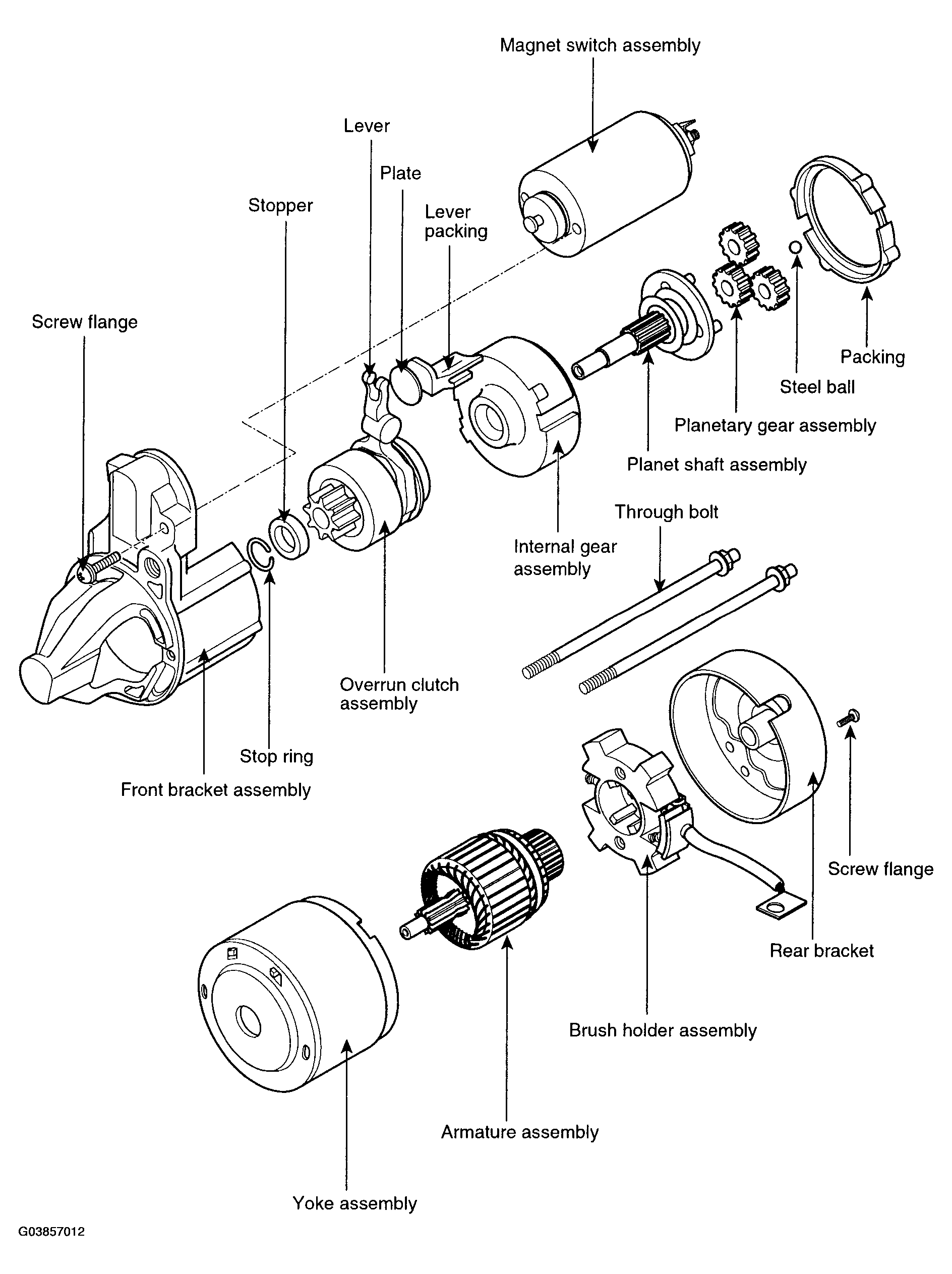

Fig 1: Identifying Starter Components

G03857012

Courtesy of HYUNDAI MOTOR CO.
