Home >> Hyundai >> 2005 >> Sonata GLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Automatic Transaxle Shift Control >> Components

Automatic Transaxle Shift Control: Components

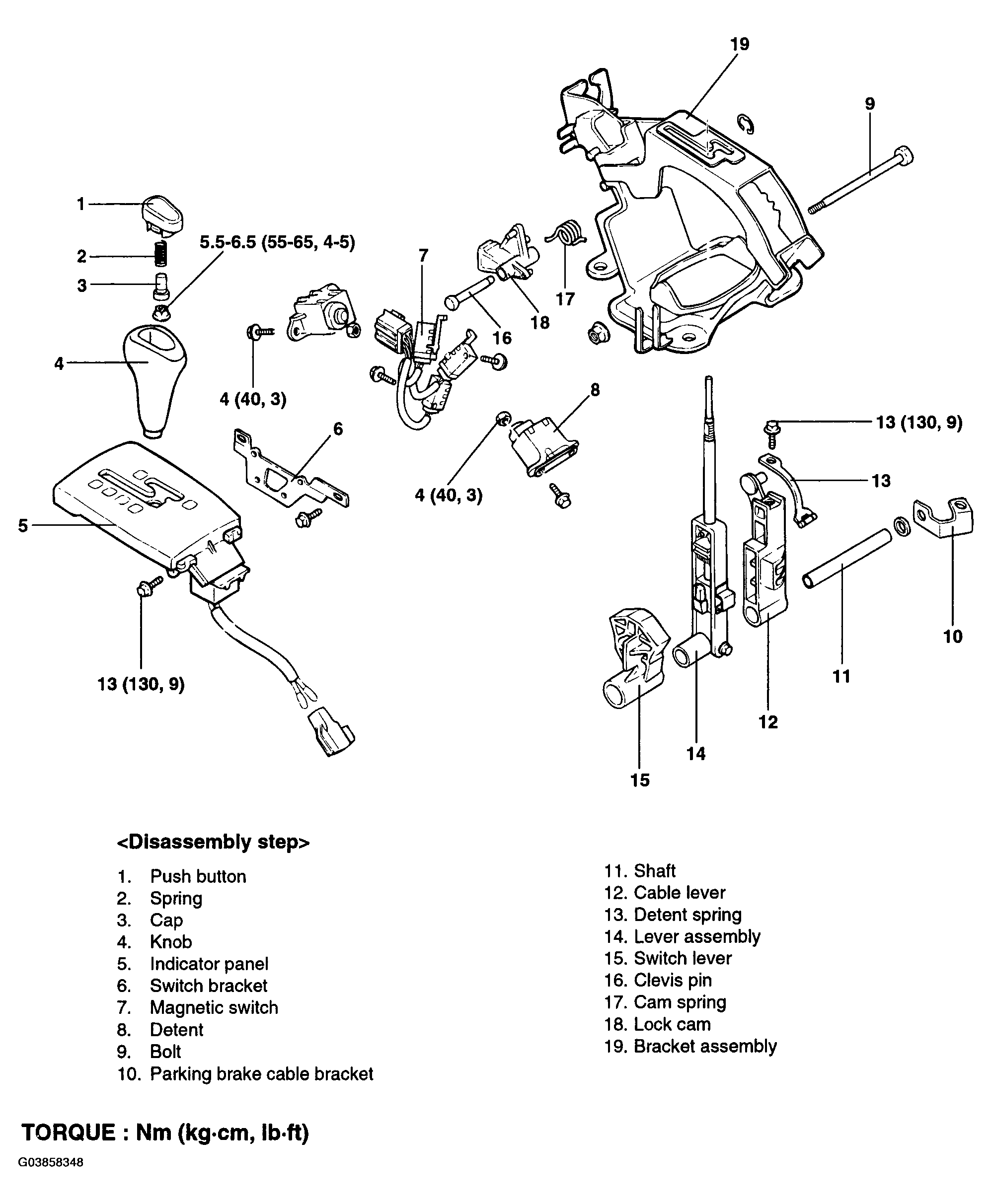

Fig 1: Identifying Automatic Transaxle Shift Control Components

G03858348

Courtesy of HYUNDAI MOTOR CO.
