Home >> Hyundai >> 2005 >> Sonata GLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System >> Automatic Transaxle >> Components

Automatic Transaxle: Components

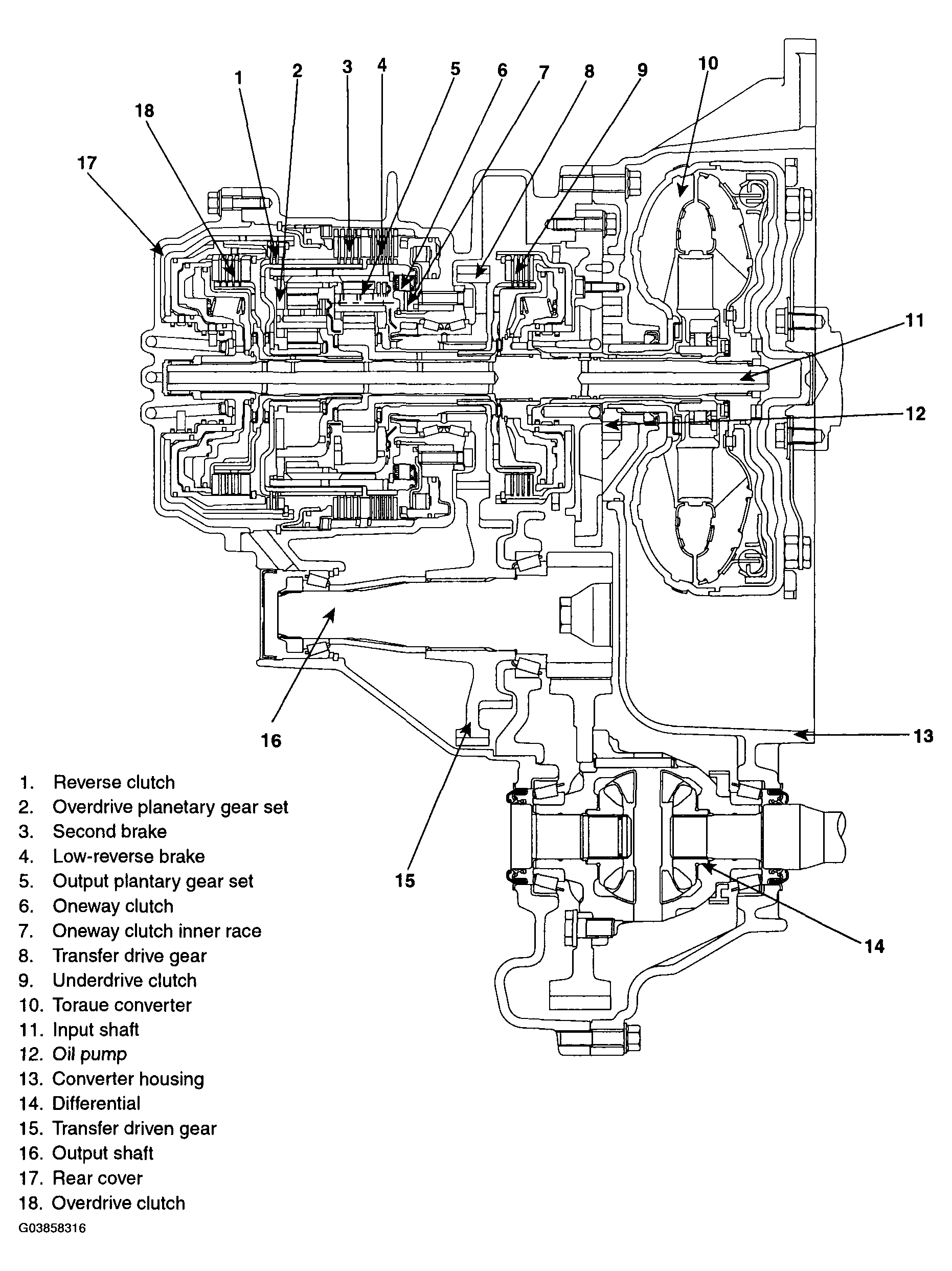

Fig 1: Identifying Automatic Transaxle Components

G03858316

Courtesy of HYUNDAI MOTOR CO.
