Coupling Assembly: Disassembly

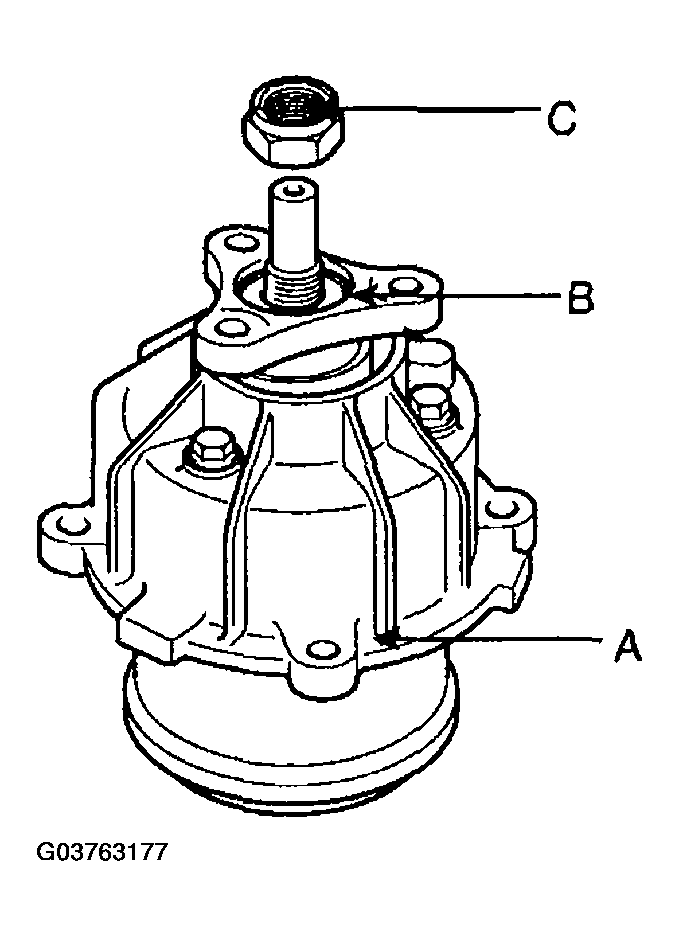

Remove the coupling (A) flange (B) mounting nut (C)

Fig 1: Removing Coupling Flange Mounting Nut
Courtesy of HYUNDAI MOTOR CO.

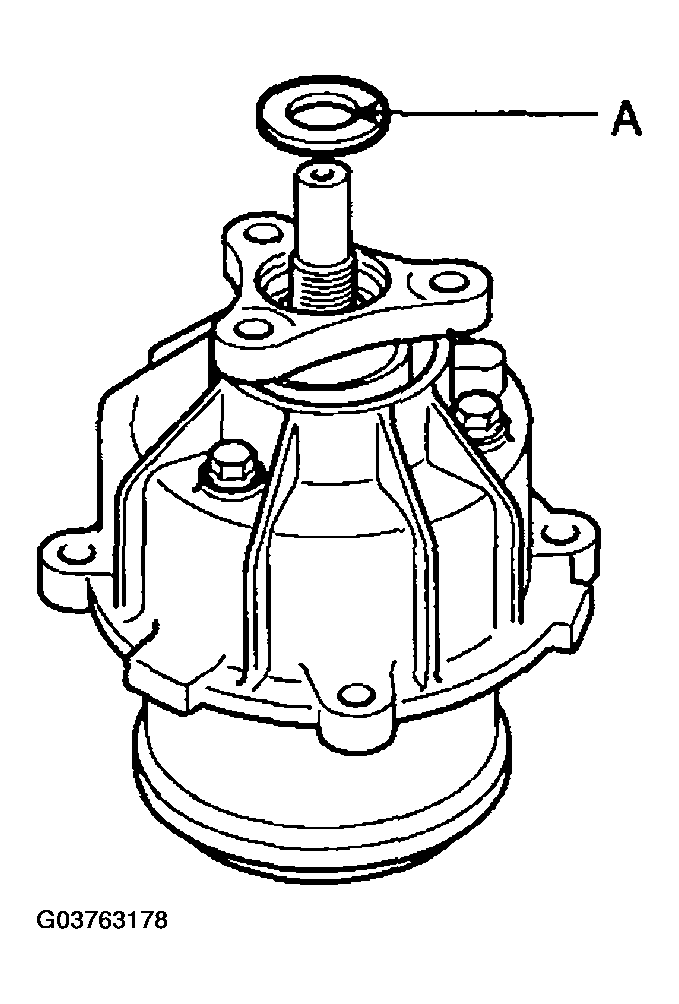

Remove the flange spacer (A).

Fig 2: Removing Flange Spacer
Courtesy of HYUNDAI MOTOR CO.

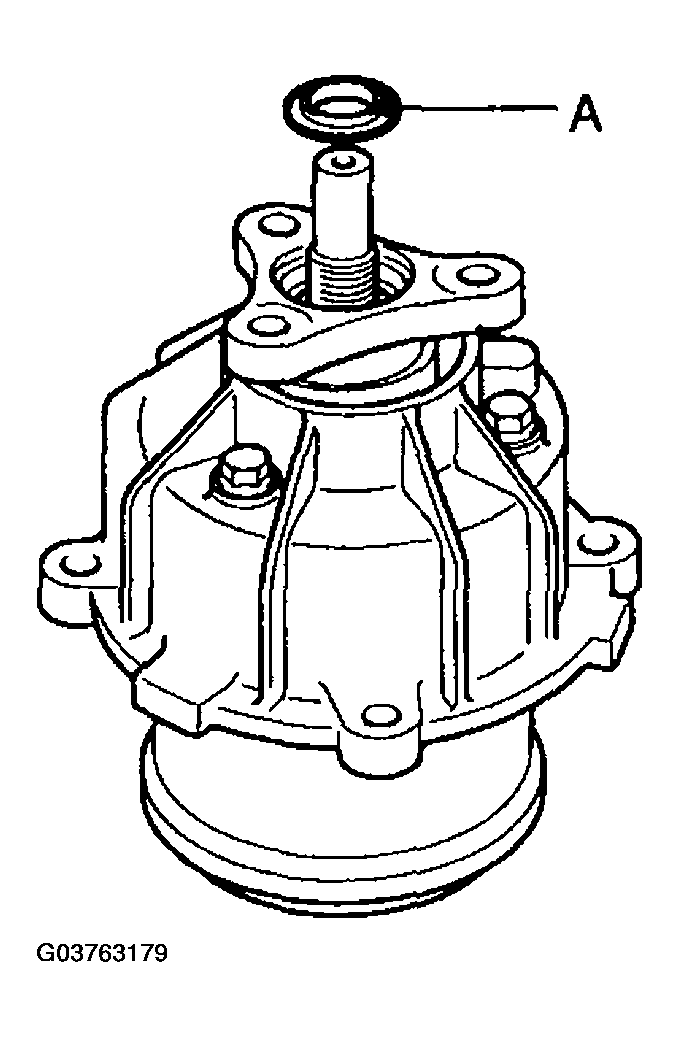

Remove the coupling flange oil seal (A).

Fig 3: Removing Coupling Flange Oil Seal
Courtesy of HYUNDAI MOTOR CO.

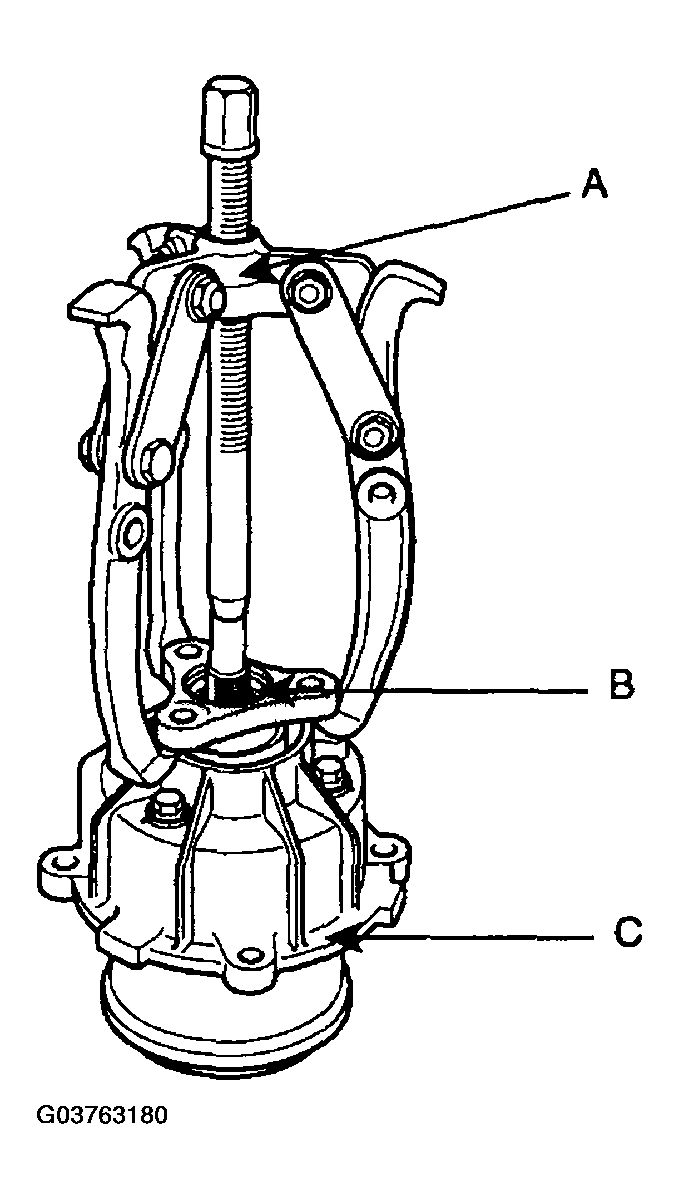

Using a general tool, 3-way puller (A), remove the flange assembly (B) from the coupling (C).

Fig 4: Removing Flange Assembly From Coupling
Courtesy of HYUNDAI MOTOR CO.

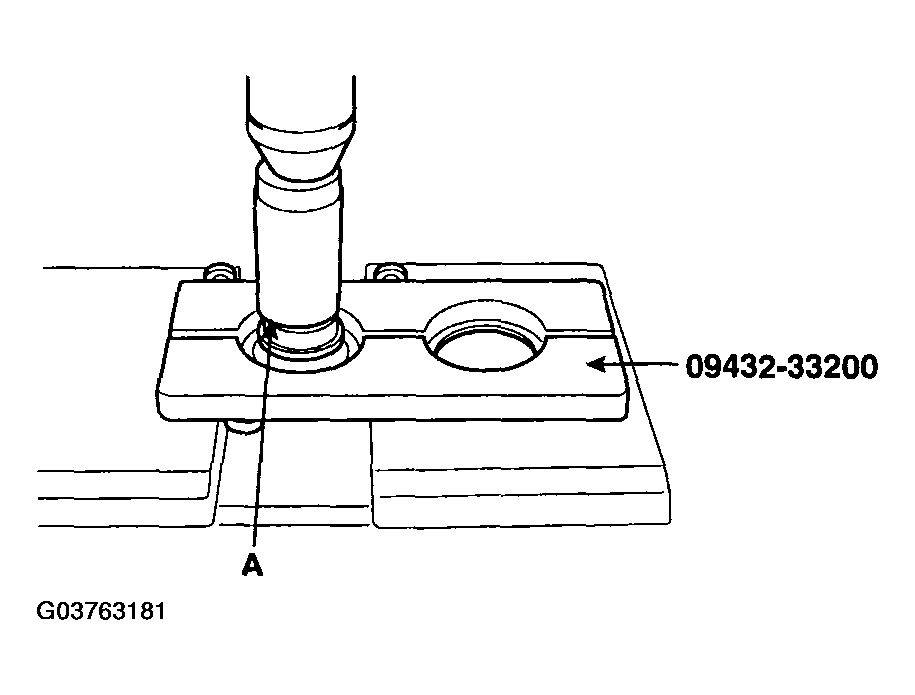

Remove the flange oil seal (A) using special tool (09-432-33200).

Fig 5: Removing Flange Oil Seal Using Special Tool (09-432-33200)
Courtesy of HYUNDAI MOTOR CO.

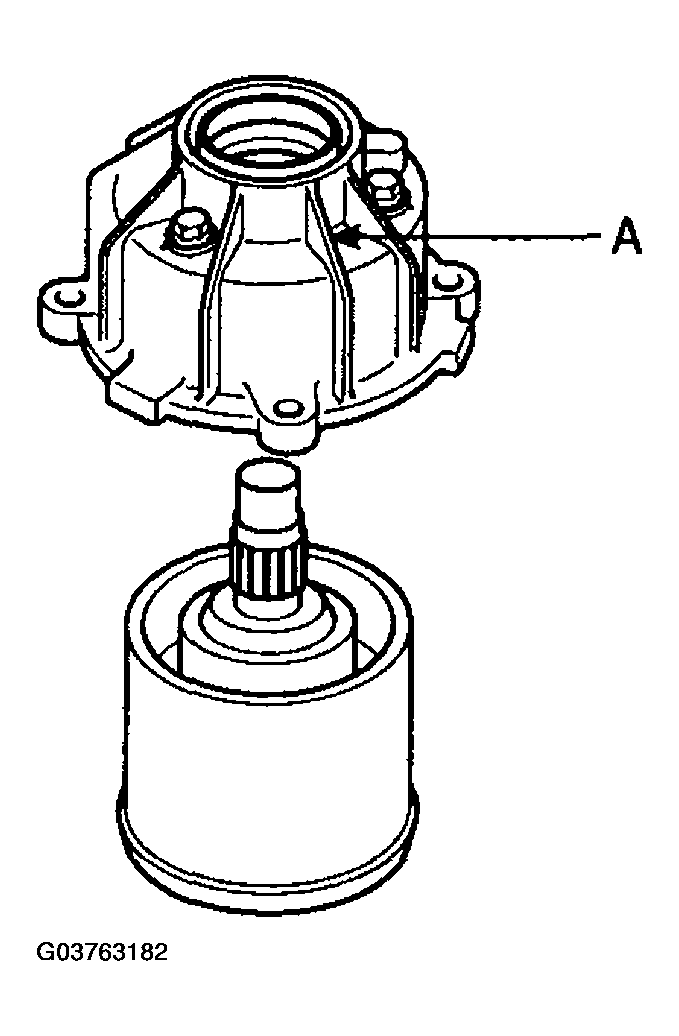

Remove the coupling case assembly (A).

Fig 6: Removing Coupling Case Assembly
Courtesy of HYUNDAI MOTOR CO.

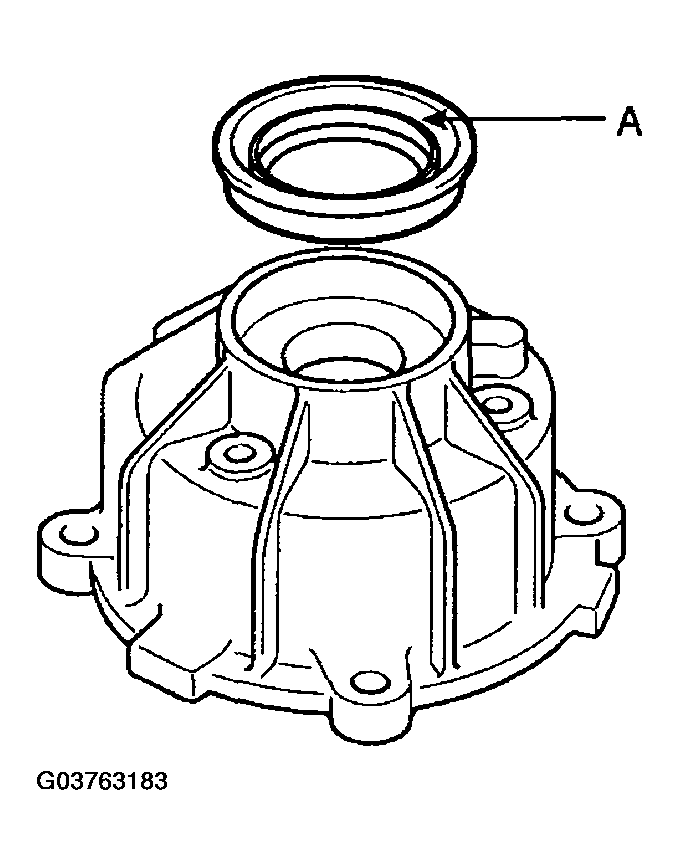

1. Remove the coupling case oil seal (A)
  NOTE: Insert the (-) driver between the oil seal and the clutch housing, then remove the oil seal

  Fig 7: Removing Coupling Case Oil Seal
  Courtesy of HYUNDAI MOTOR CO.
2. Remove the snap ring.

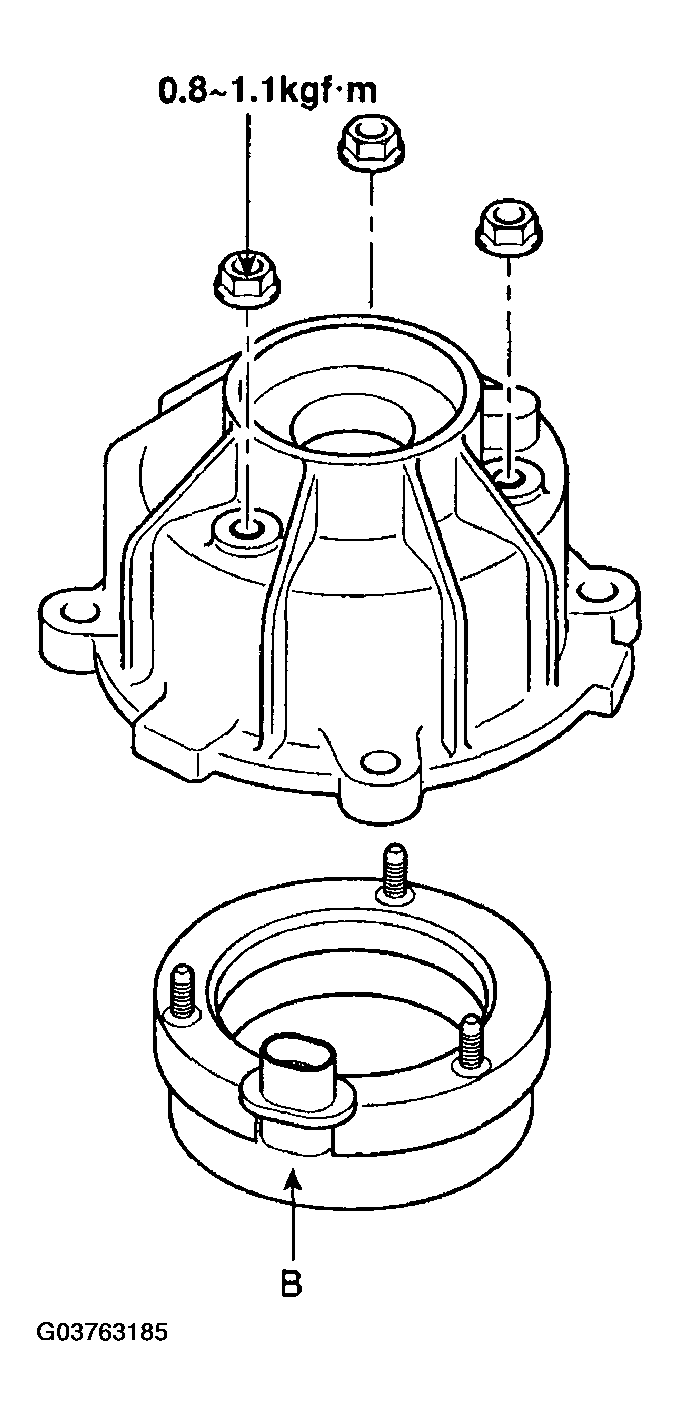

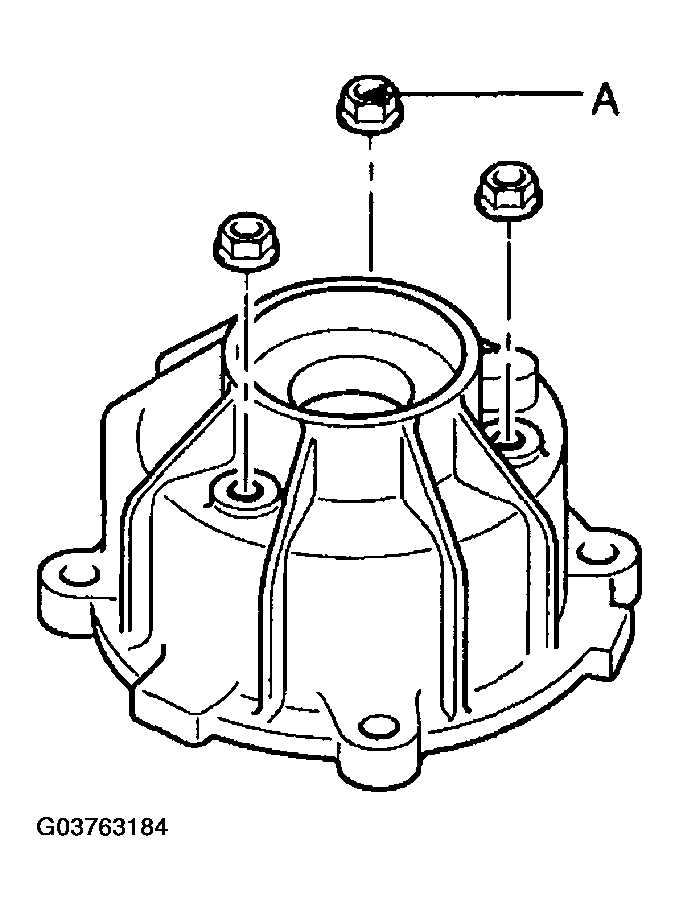

3. Remove the Electric Magnetic clutch mounting nuts (A-3EA).

  Fig 8: Removing Electric Magnetic Clutch Mounting Nuts (1 Of 2)
  Courtesy of HYUNDAI MOTOR CO.

  Fig 9: Removing Electric Magnetic Clutch Mounting Nuts (2 Of 2)
  Courtesy of HYUNDAI MOTOR CO.

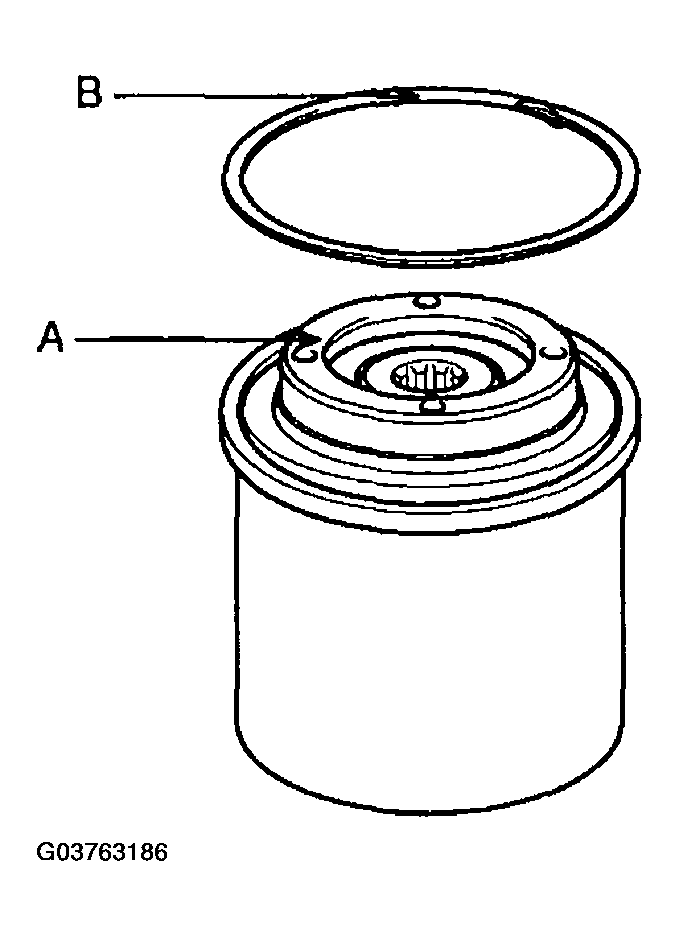

Remove the wave spring (B) for fixing the back plate (A) and the secondary clutch assembly.

Fig 10: Removing Wave Spring
Courtesy of HYUNDAI MOTOR CO.

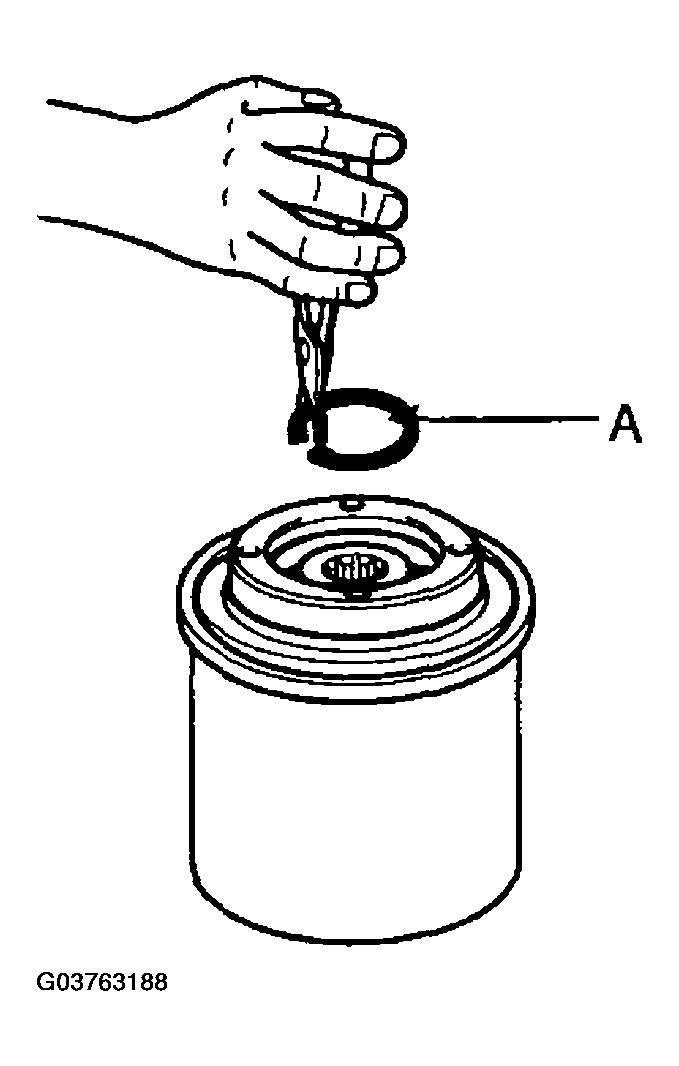

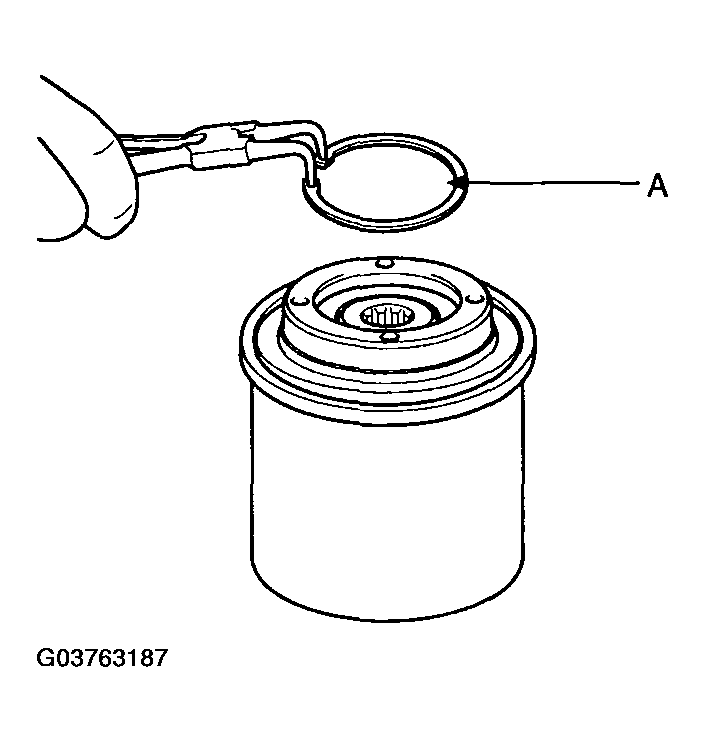

Remove the snap ring (A).

Fig 11: Removing Snap Ring
Courtesy of HYUNDAI MOTOR CO.
After removing the oil seal, remove the snap ring (A).

Fig 12: Removing Snap Ring
Courtesy of HYUNDAI MOTOR CO.

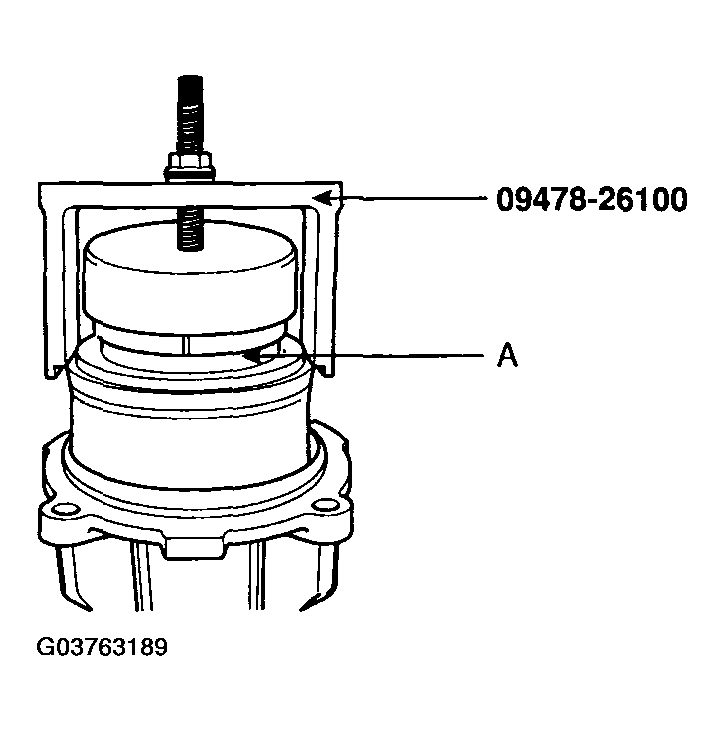

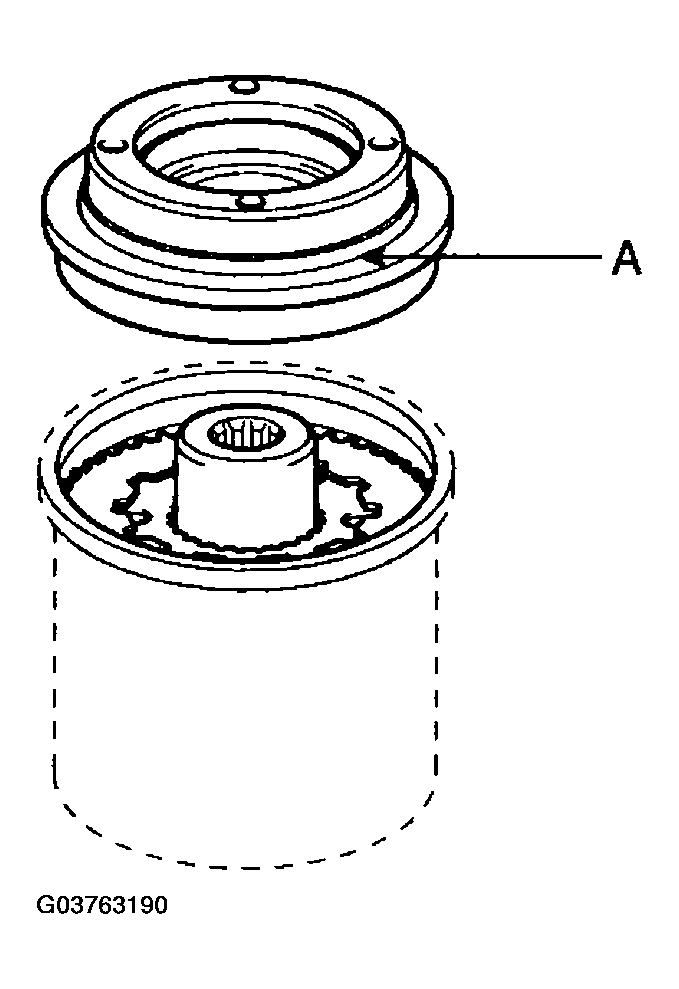

Remove the back plate and the secondary clutch (A) assembly simultaneously using special tool (09478-26100).

Fig 13: Removing Back Plate And Secondary Clutch Assembly
Courtesy of HYUNDAI MOTOR CO.
1. Separate the back plate (A) from the input shaft.

  Fig 14: Separating Back Plate From Input Shaft
  Courtesy of HYUNDAI MOTOR CO.

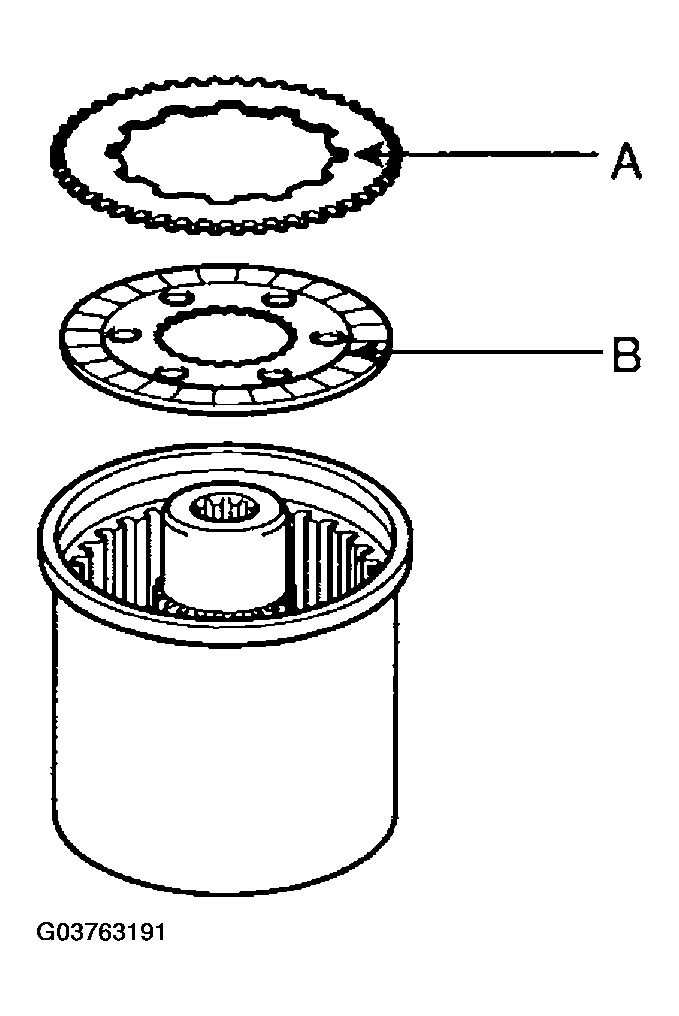

2. Remove the plates (A-10EA) and the discs (B-1-OEA).

  Fig 15: Removing Plates And Discs
  Courtesy of HYUNDAI MOTOR CO.

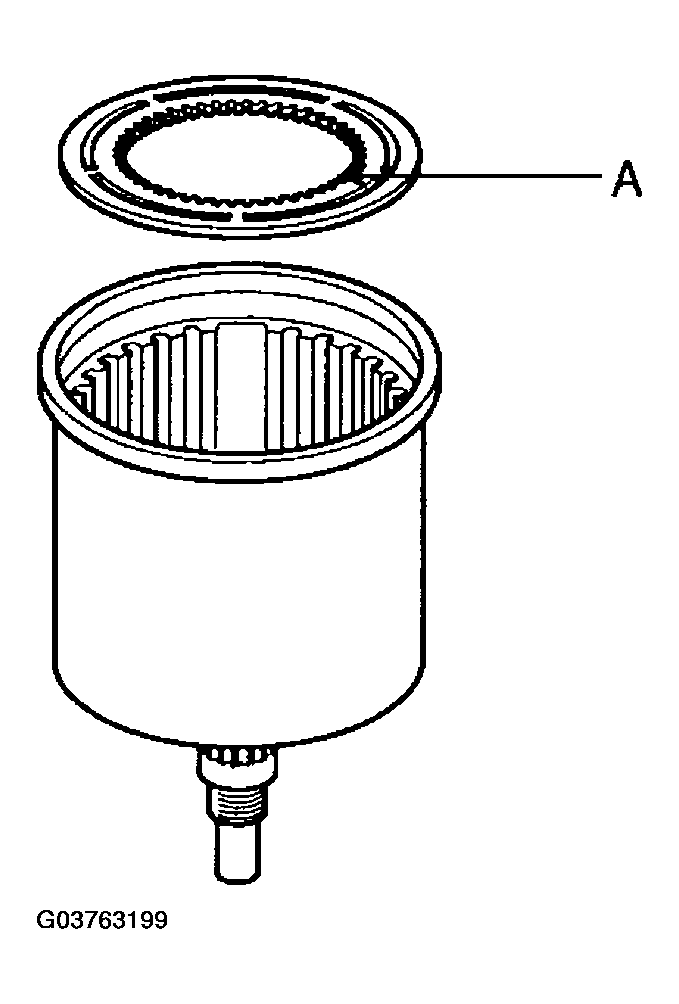

3. Remove the armature (A).

  Fig 16: Removing Armature
  Courtesy of HYUNDAI MOTOR CO.

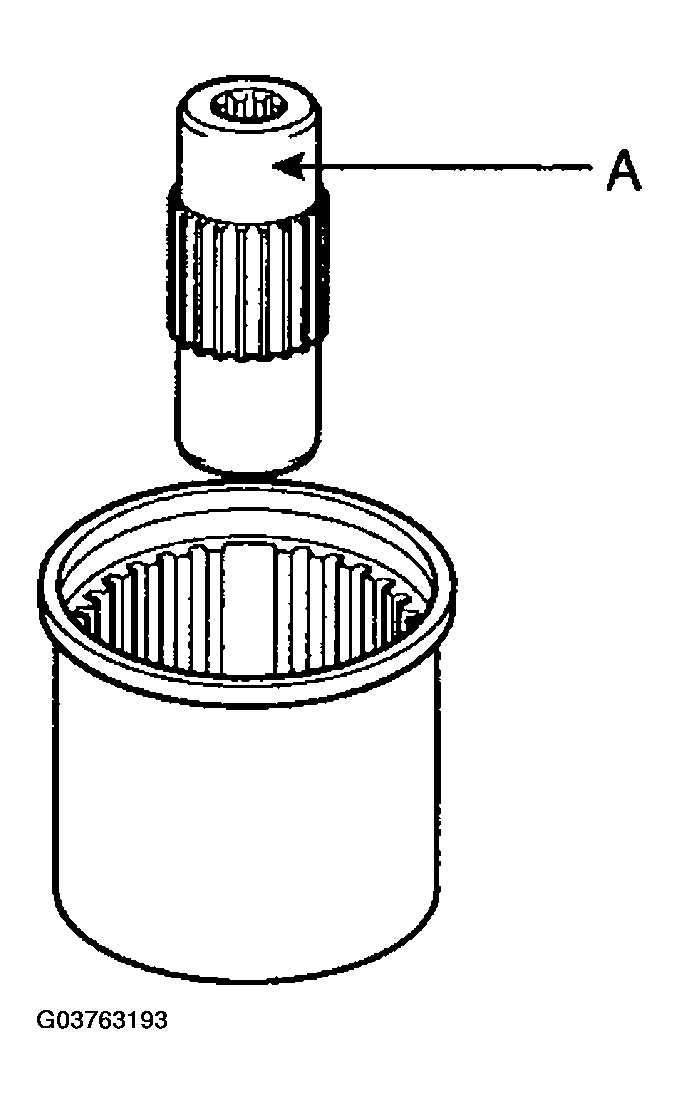

4. Remove the input shaft (A).

  Fig 17: Removing Input Shaft
  Courtesy of HYUNDAI MOTOR CO.

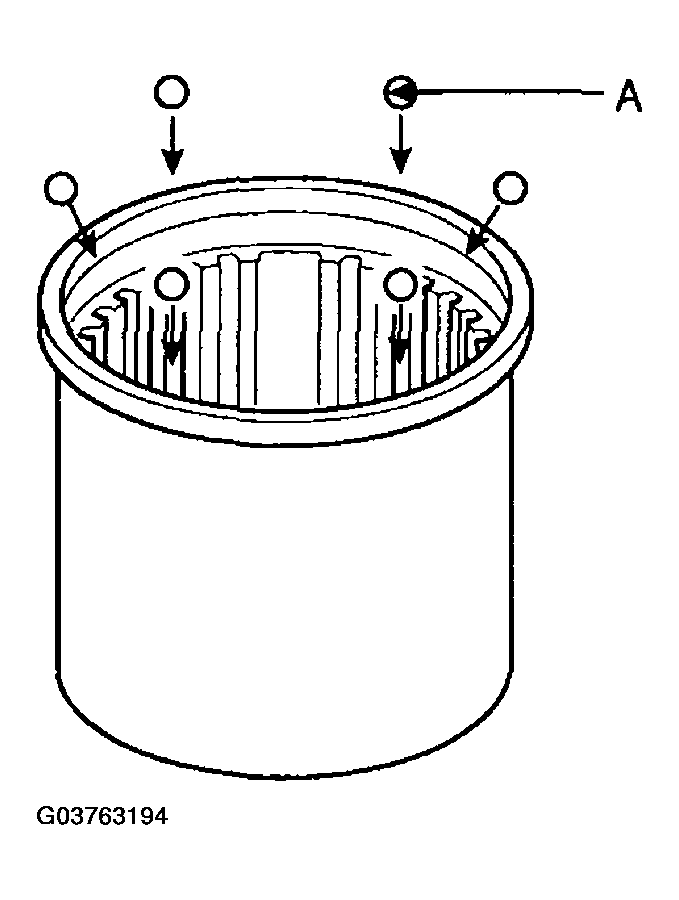

Remove the steel balls (A-6EA) on the base cam.

Fig 18: Removing Steel Balls On Base Cam
Courtesy of HYUNDAI MOTOR CO.
Remove the base cam (A).

Fig 19: Removing Base Cam
Courtesy of HYUNDAI MOTOR CO.

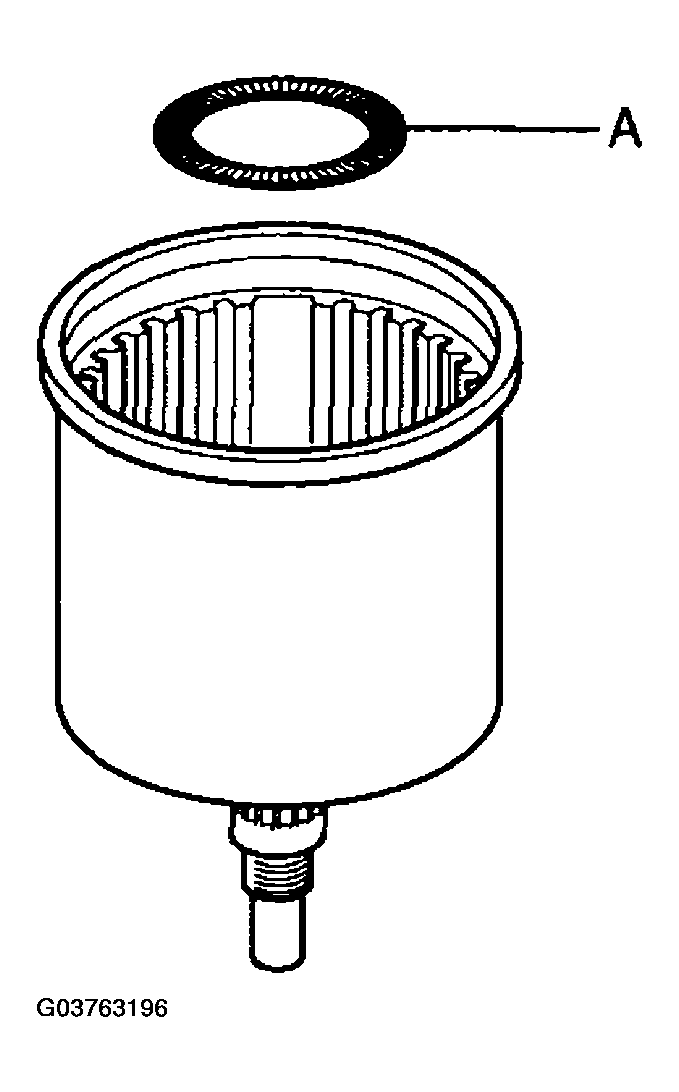

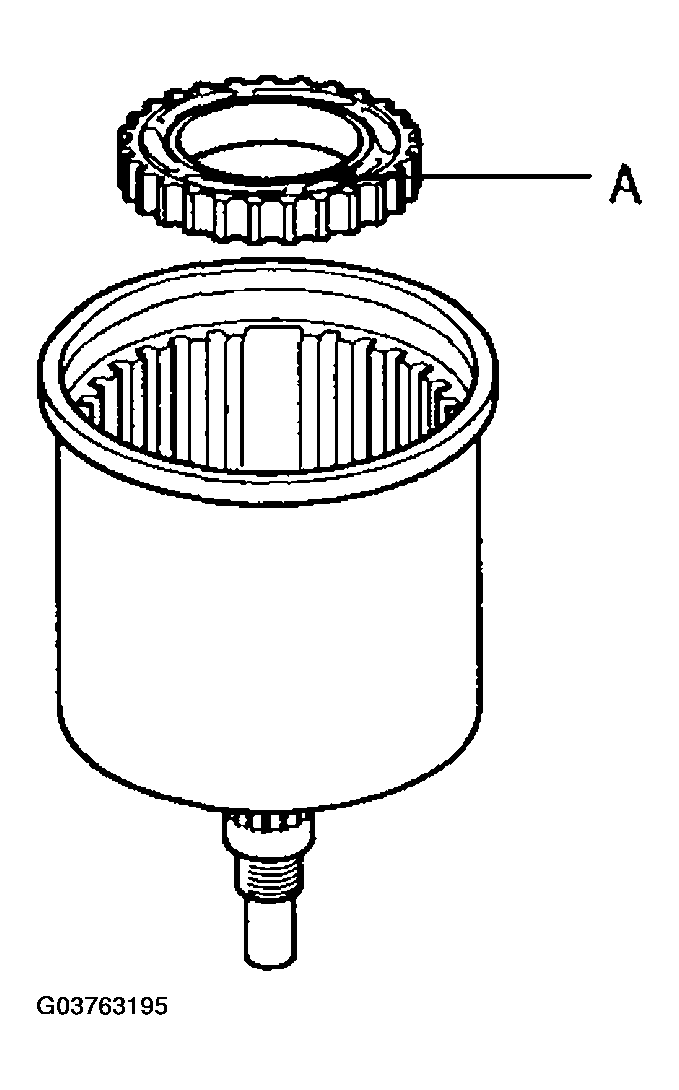

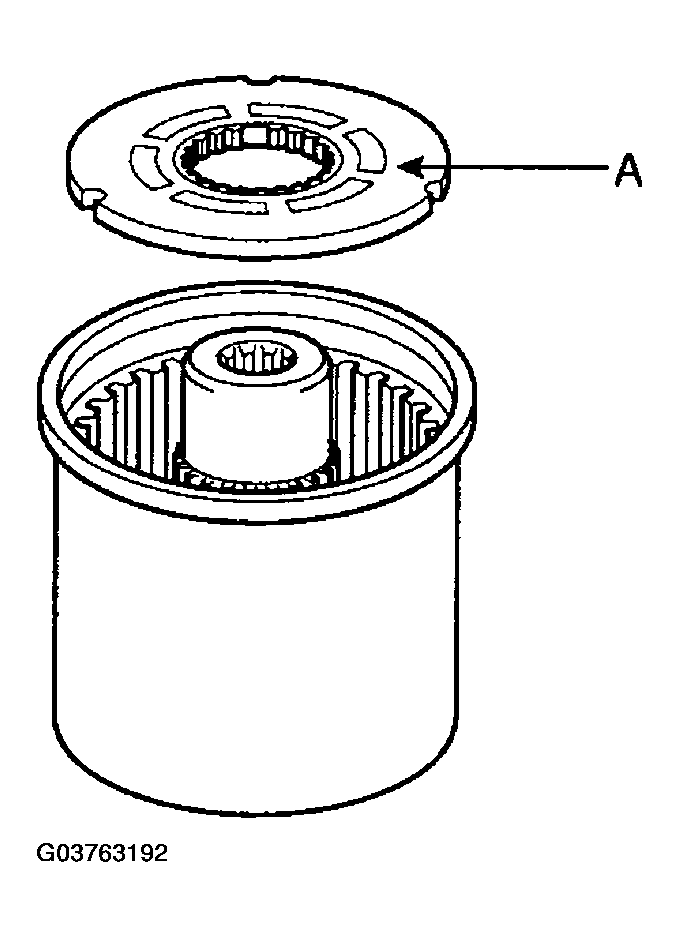

Remove the thrust washer (A).

Fig 20: Removing Thrust Washer
Courtesy of HYUNDAI MOTOR CO.

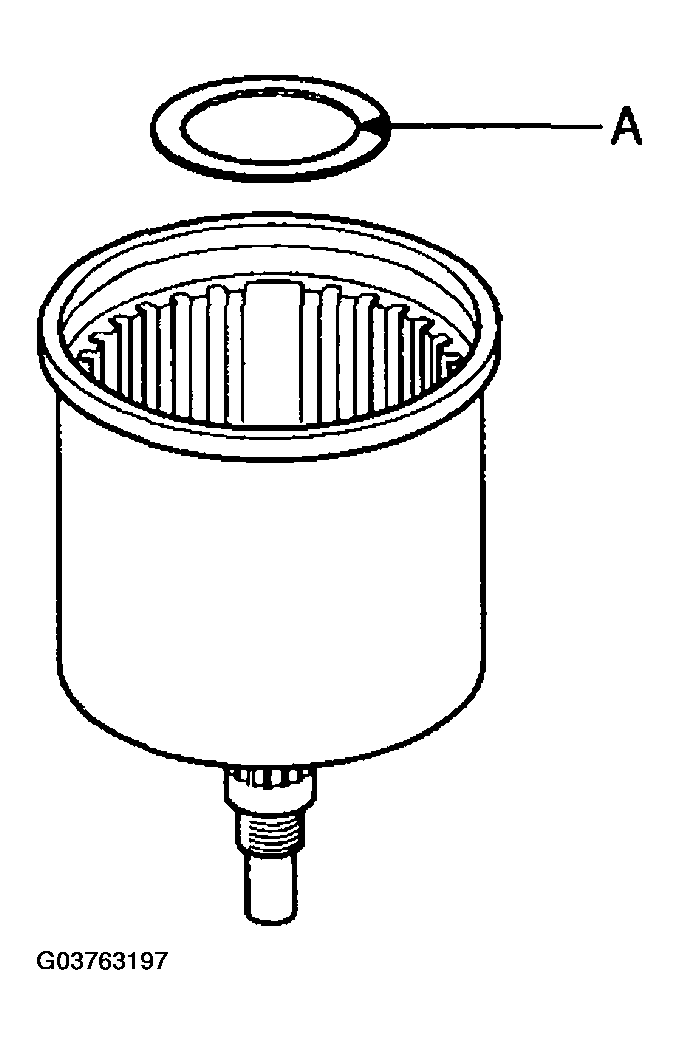

Remove the thrust race.

Fig 21: Removing Thrust Race
Courtesy of HYUNDAI MOTOR CO.

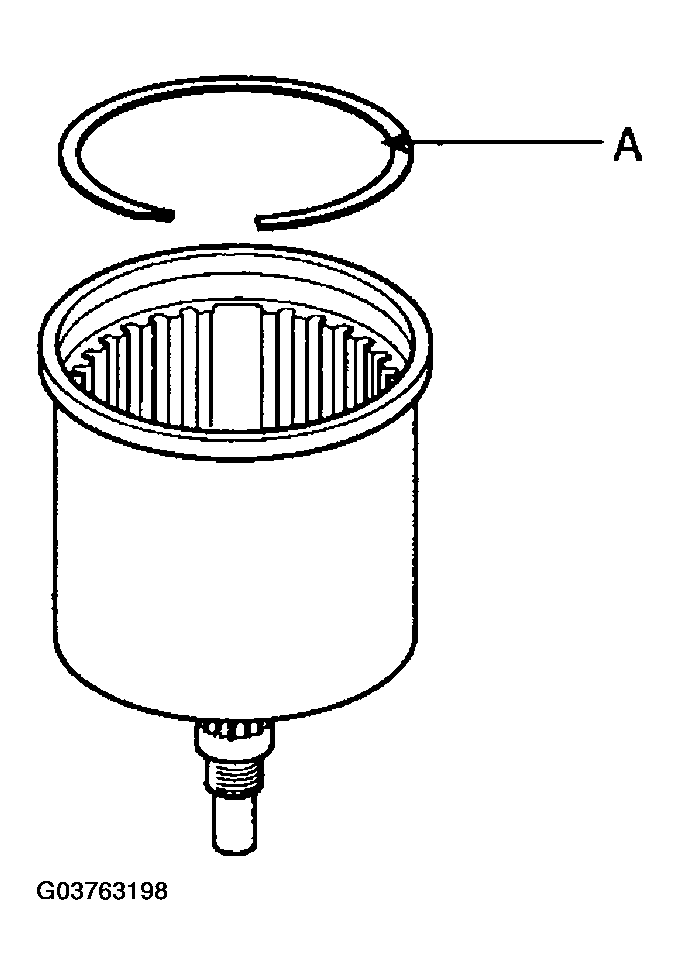

Remove the snap ring (A).

Fig 22: Removing Snap Ring
Courtesy of HYUNDAI MOTOR CO.
Remove the disk (A) of the primary clutch.

Fig 23: Removing Disk Of Primary Clutch
Courtesy of HYUNDAI MOTOR CO.
Remove the plate (A) of the primary clutch.

Fig 24: Removing Plate Of Primary Clutch
Courtesy of HYUNDAI MOTOR CO.

NOTE: Additionally remove each 2EA discs and plates alternately.
