Coupling Assembly: Removal

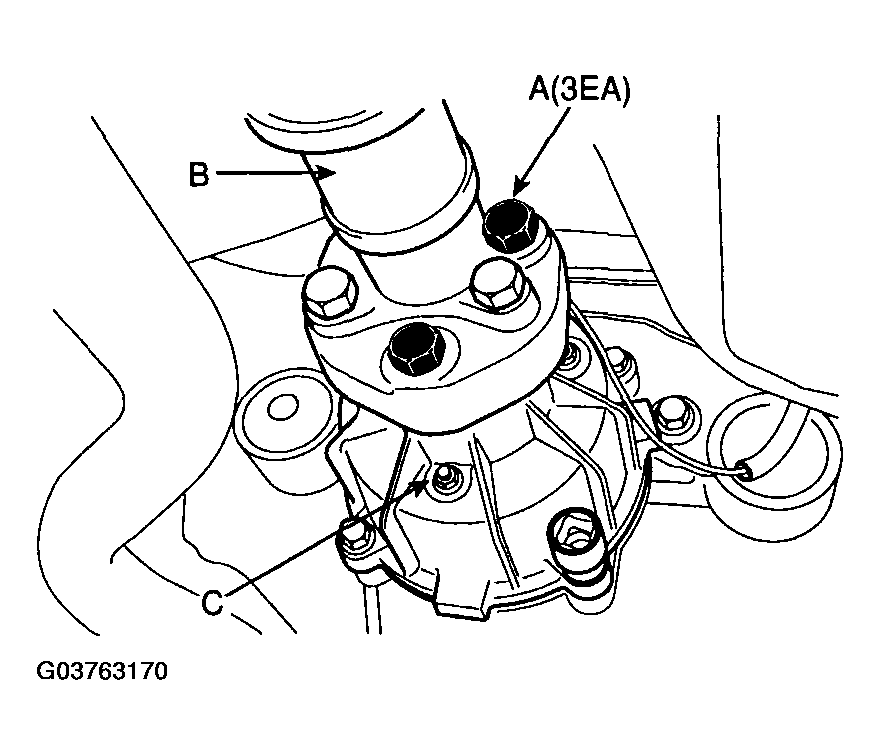

Remove the 4WD coupling bolts (A-3EA) mounted to the rear propeller shaft.

Fig 1: Identifying Coupling Bolts
Courtesy of HYUNDAI MOTOR CO.

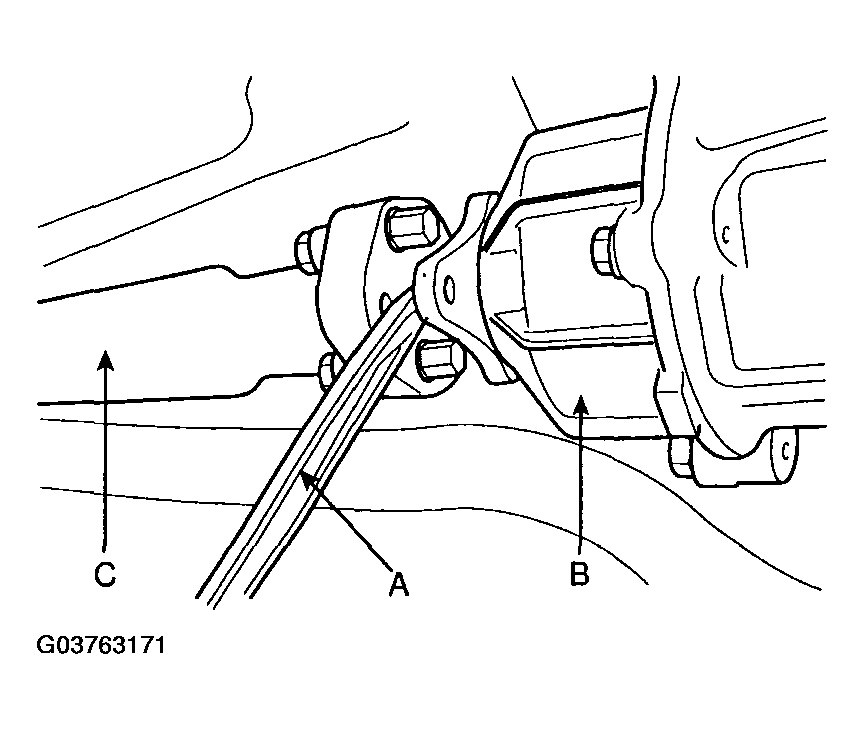

Using a flat tool (A), separate the propeller shaft (C) from 4WD coupling (B).

Fig 2: Separating Propeller Shaft Using Flat Tool (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Separating Propeller Shaft Using Flat Tool (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.

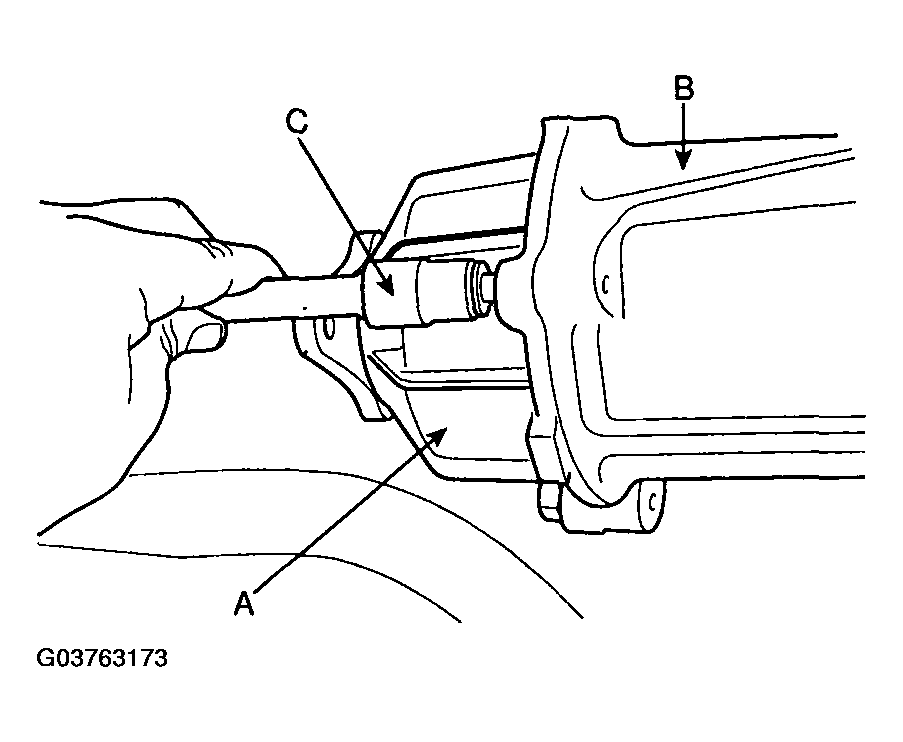

Remove the rear axle (B-Differential carrier) bolts mounted to the 4WD coupling (A) by a socket (C).

Fig 4: Removing Rear Axle Bolts Mounted To 4WD Coupling
Courtesy of HYUNDAI MOTOR CO.

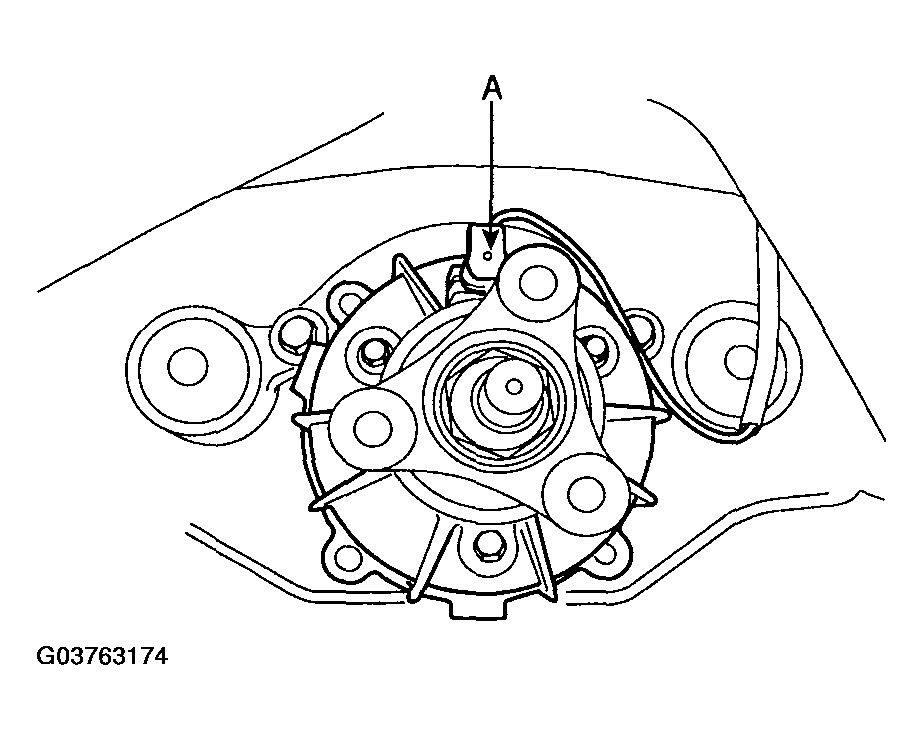

Remove the electric magnetic clutch connector (A).

Fig 5: Removing Electric Magnetic Clutch Connector
Courtesy of HYUNDAI MOTOR CO.

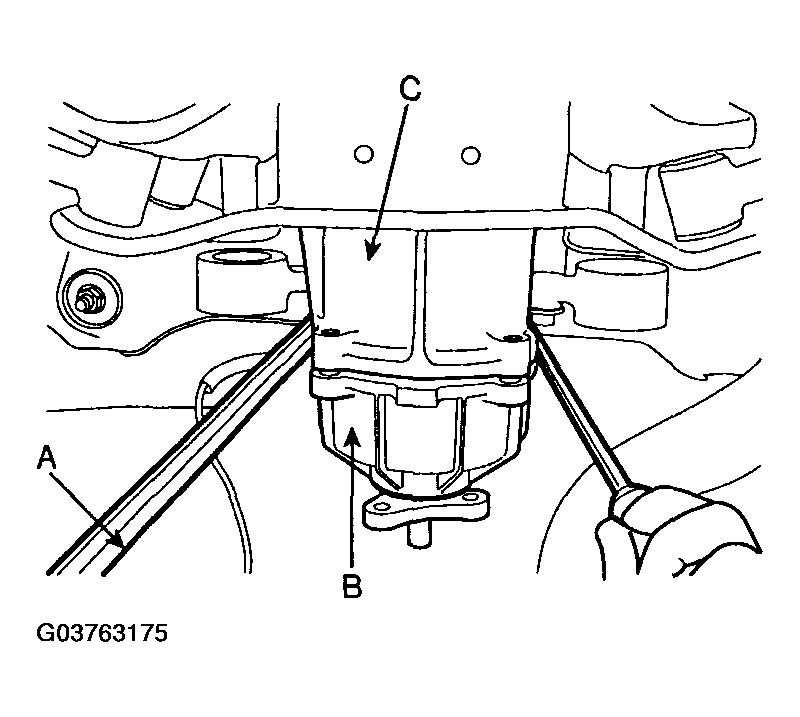

Using a flat tool (A), separate the 4WD coupling assembly (B) from the rear differential carrier (C).

Fig 6: Separating 4WD Coupling Assembly From Rear Differential Carrier
Courtesy of HYUNDAI MOTOR CO.

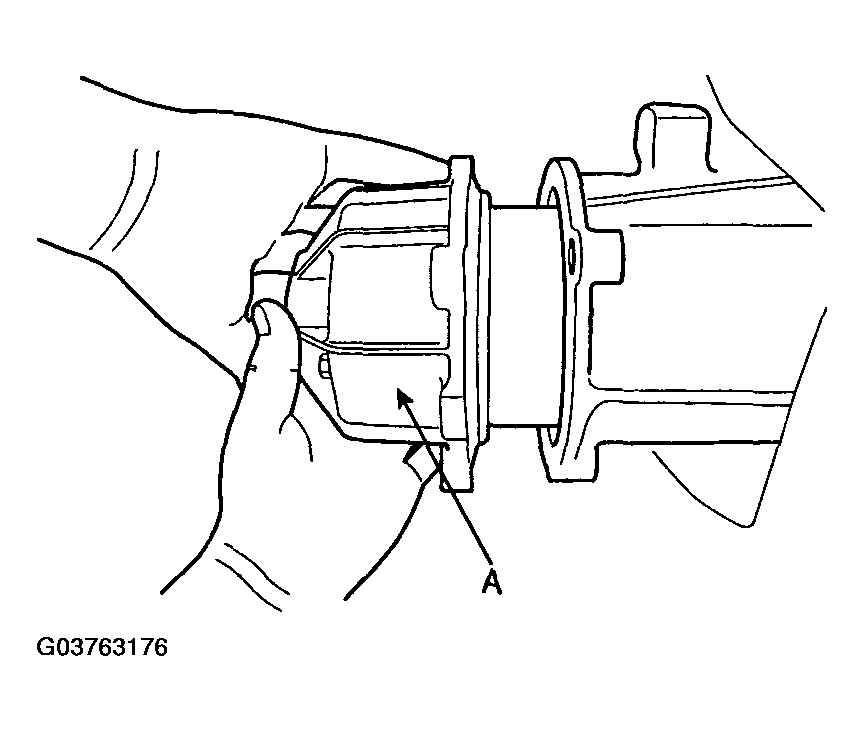

Remove the 4WD coupling assembly (A).

Fig 7: Removing 4WD Coupling Assembly
Courtesy of HYUNDAI MOTOR CO.
