Home >> Hyundai >> 2005 >> Tucson GLS, 4WD >> Repair and Diagnosis >> Transmission >> Transfer Case Assembly >> Transfer Case >> Components

Transfer Case: Components

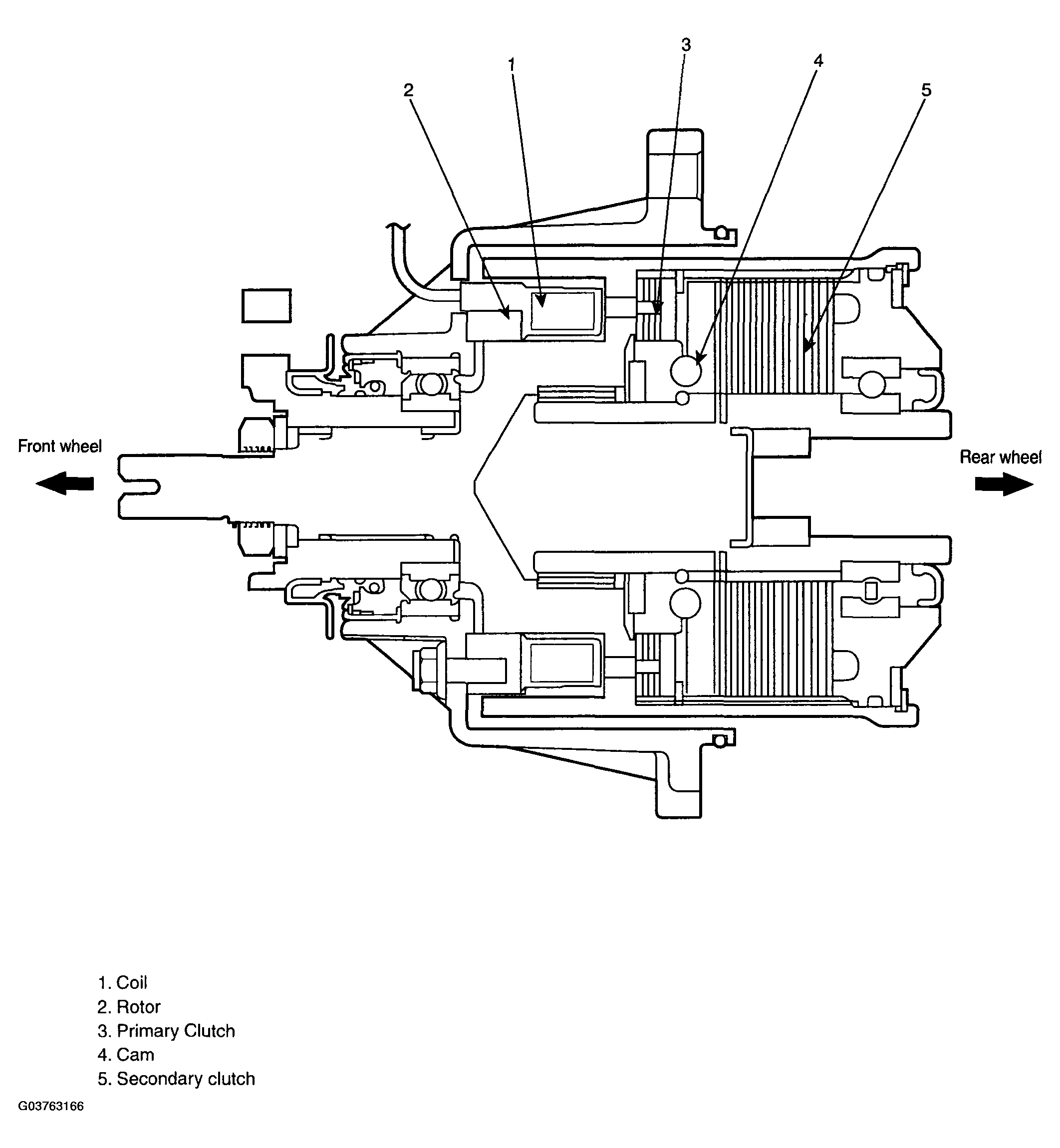

Fig 1: Identifying Transfer Case Components

G03763166

Courtesy of HYUNDAI MOTOR CO.
