Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

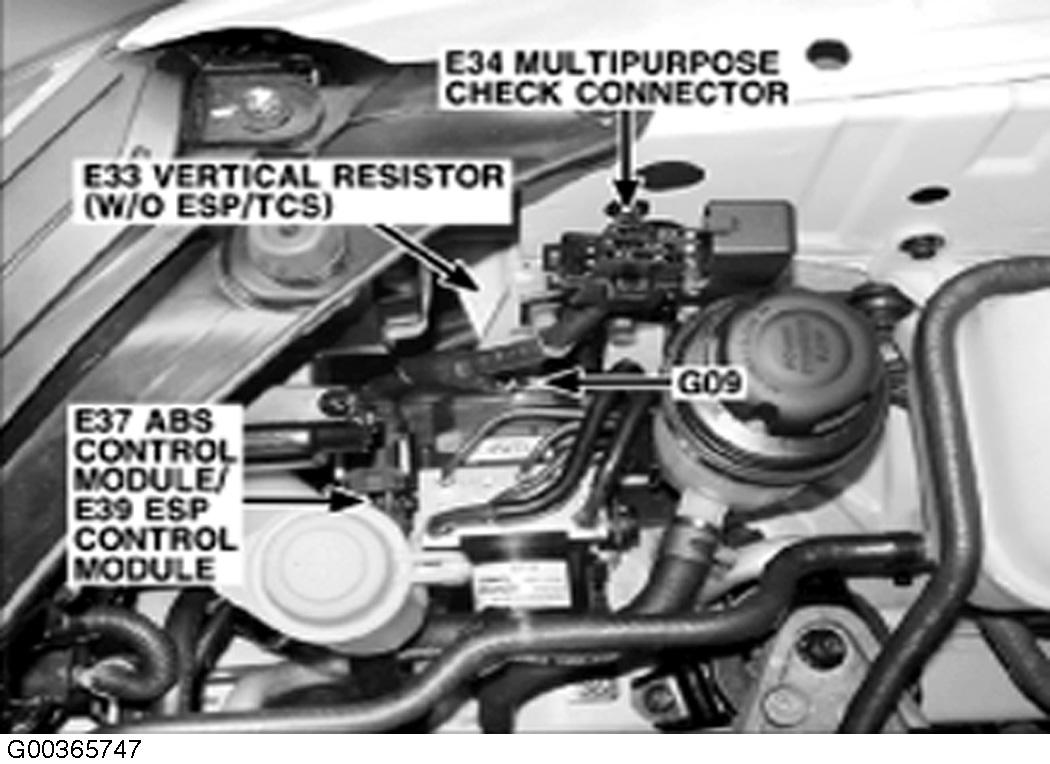

| ABS/ESP Control Module | In right front corner of engine compartment. See Figure . |

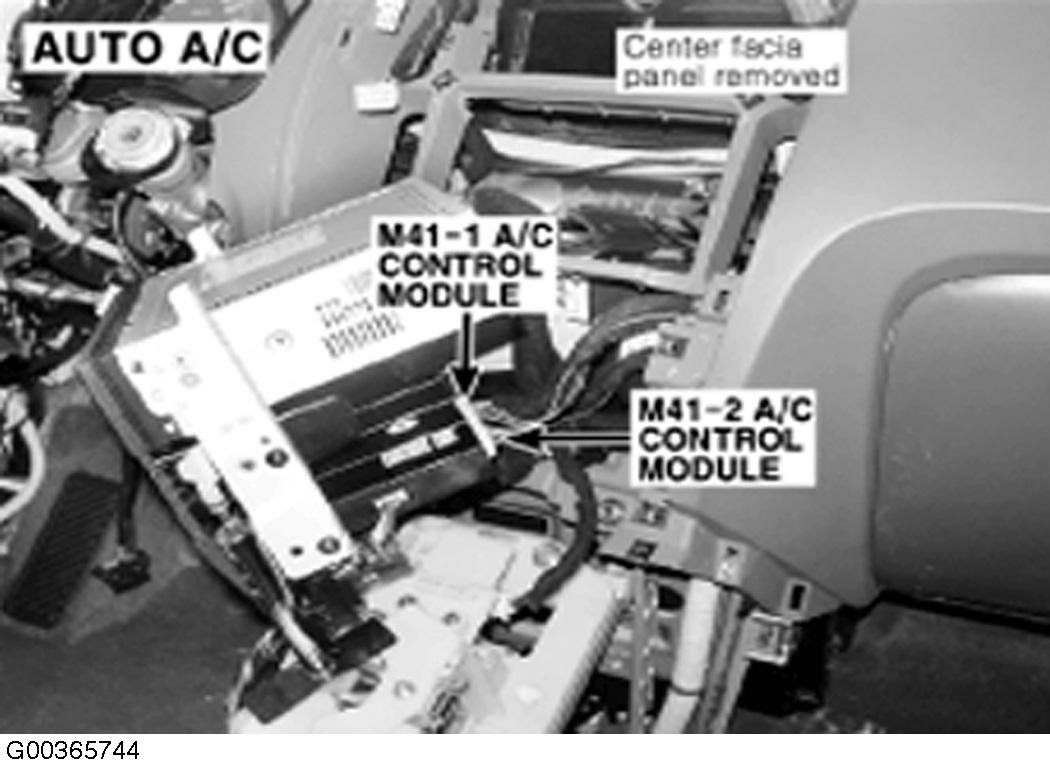

| A/C Control Module (Auto A/C) | Behind center of dash, forward of shift lever. See Figure . |

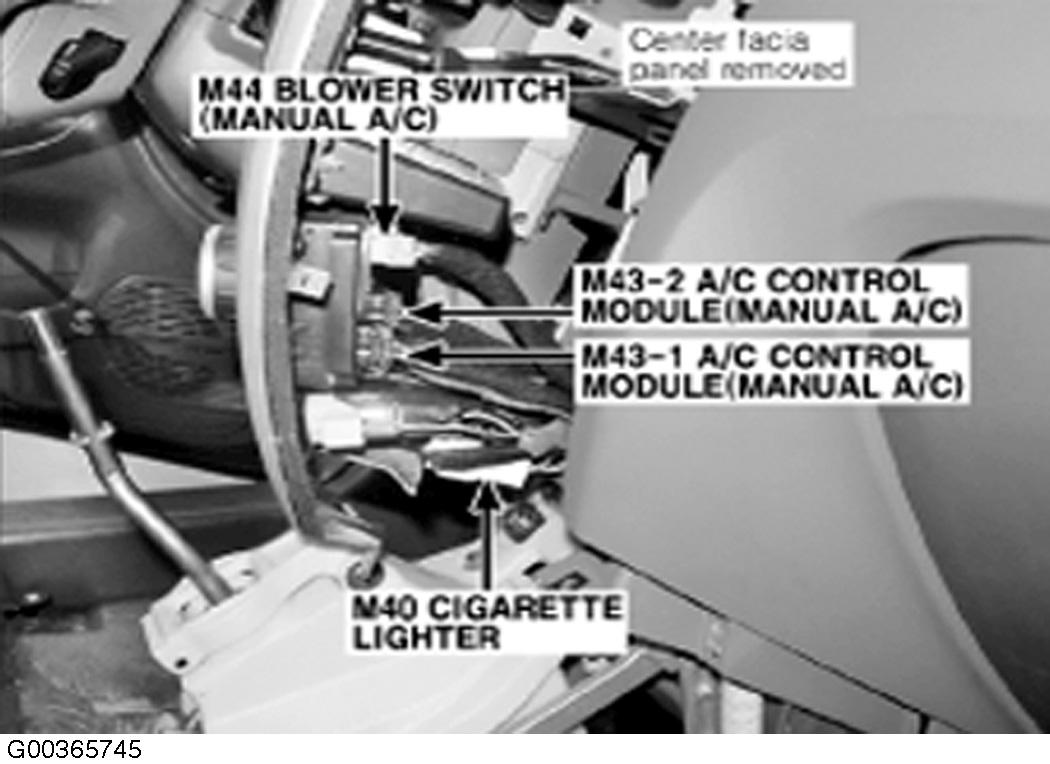

| A/C Control Module (Manual A/C) | Behind center of dash, forward of shift lever. See Figure . |

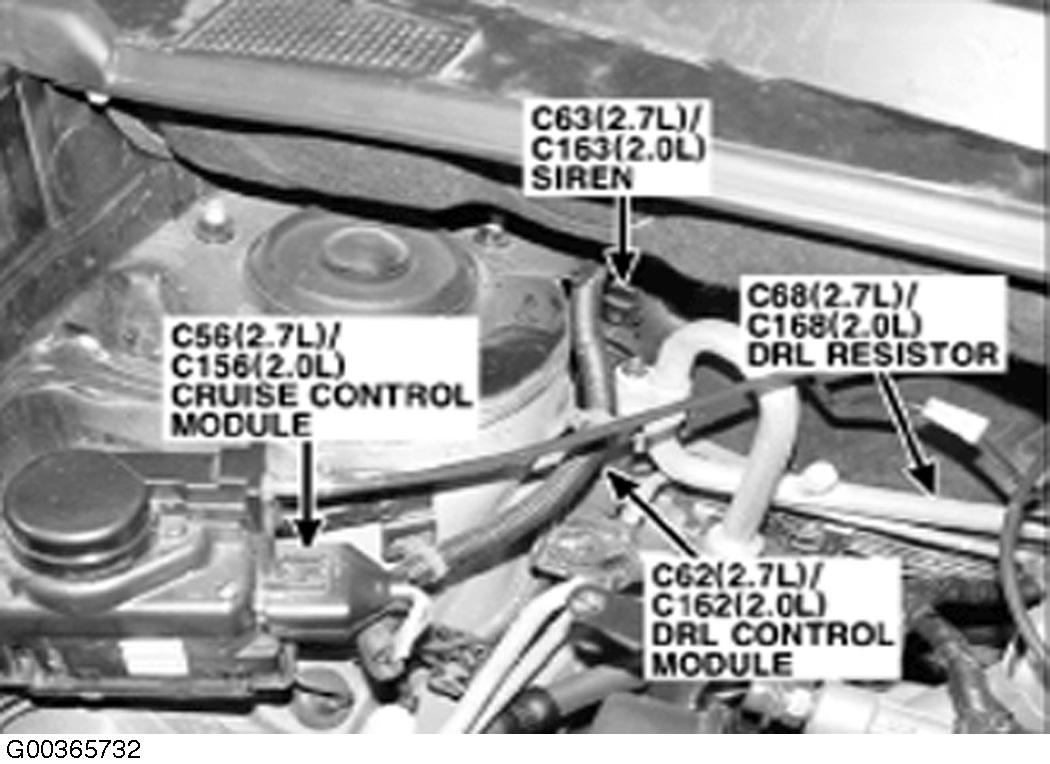

| Cruise Control Module | On right fender, behind strut tower. See Figure . |
| DRL Control Module | Right rear of engine compartment. See Figure . |

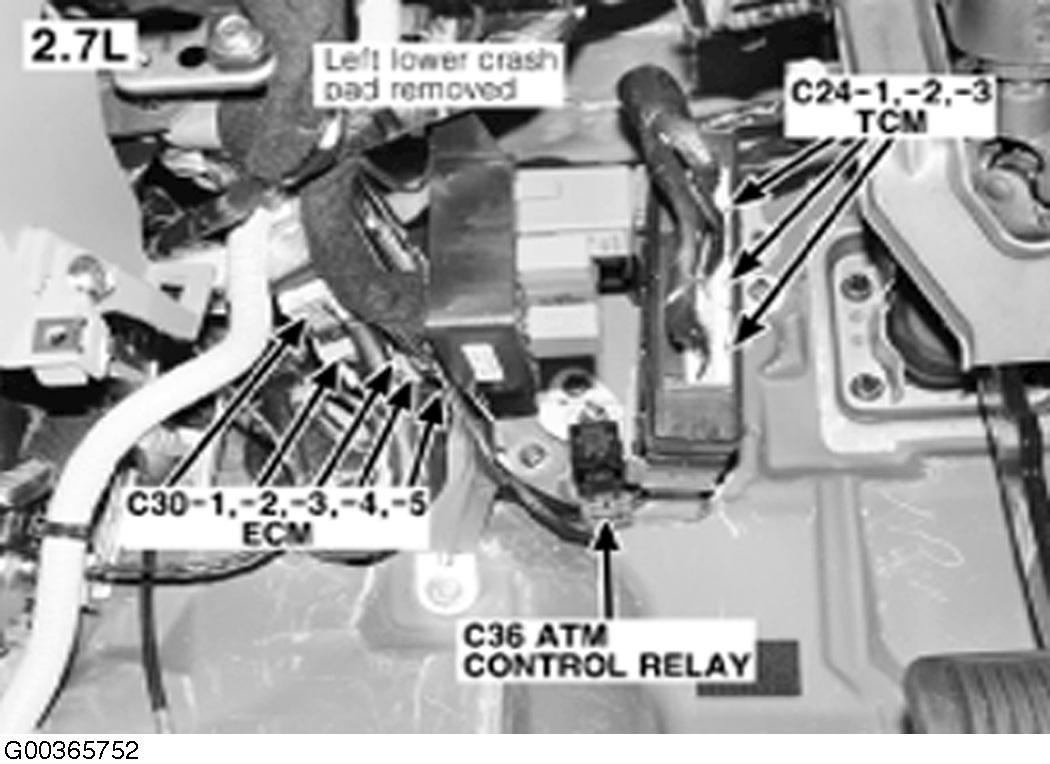

| ECM | Under left side of dash. See Figure . |

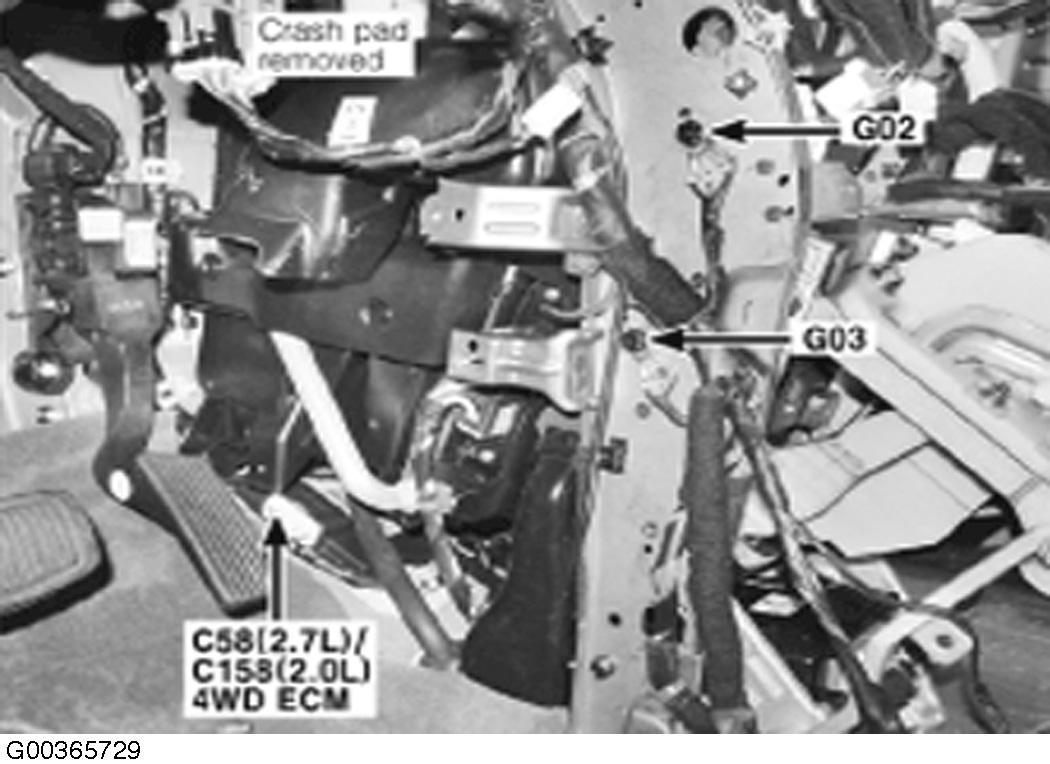

| ECM (4WD) | Below center console. See Figure . |

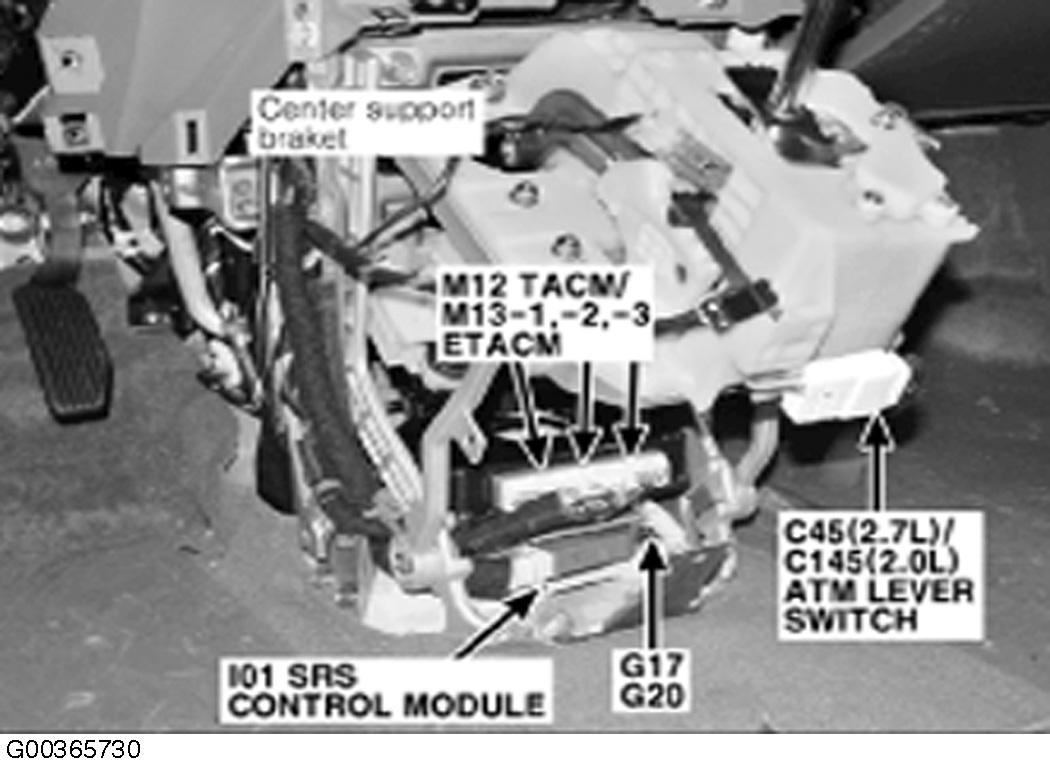

| ETACM | Under center console. See Figure . |

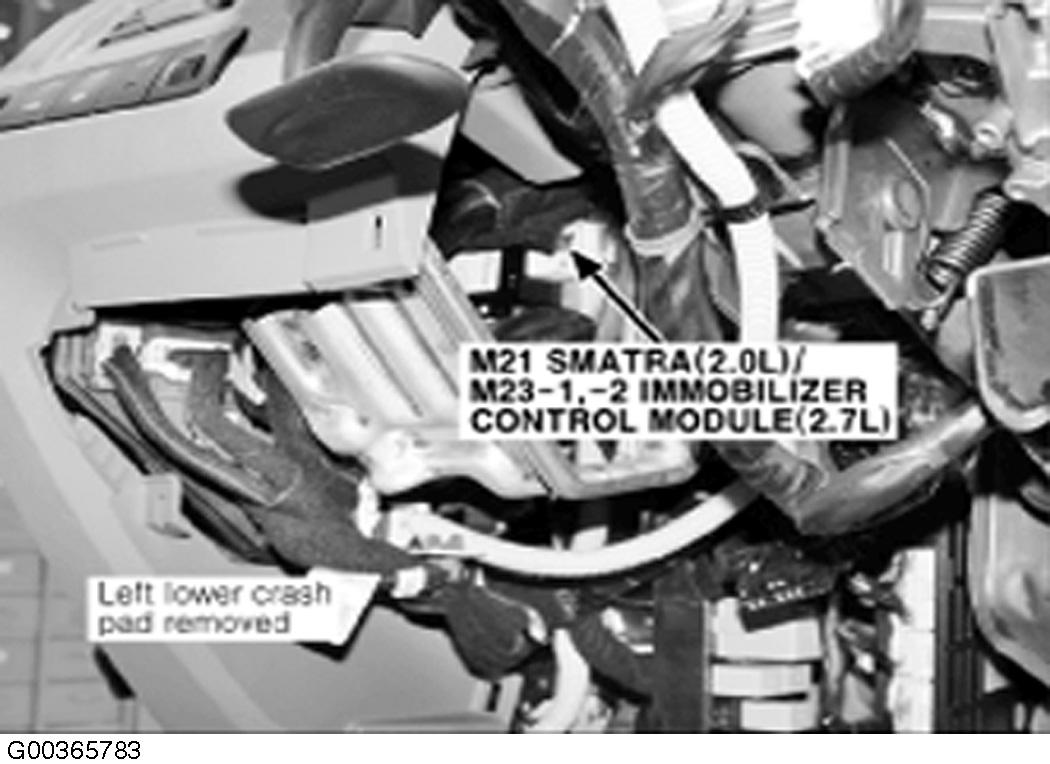

| Immobilizer Control Module | Under left side of dash. See Figure . |

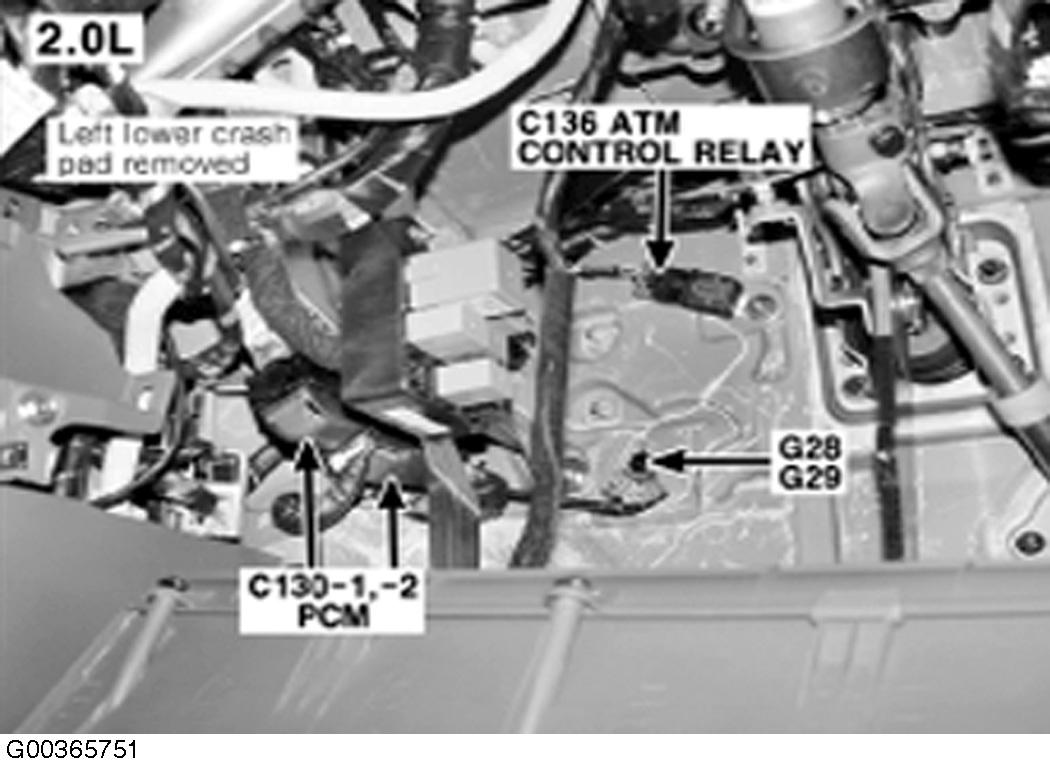

| PCM | Under left side of dash. See Figure . |

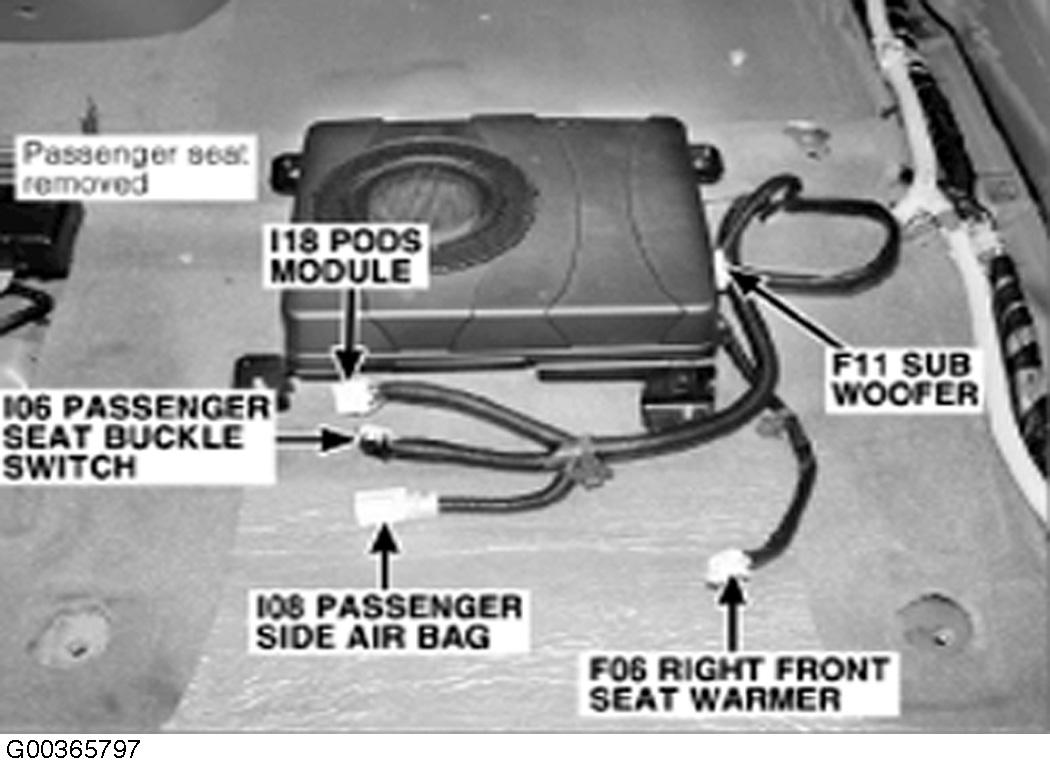

| Pods Module | Under front passenger seat. See Figure . |
| SMATRA | Under left side of dash.Figure . |
| SRS Control Module | Under center console. See Figure . |

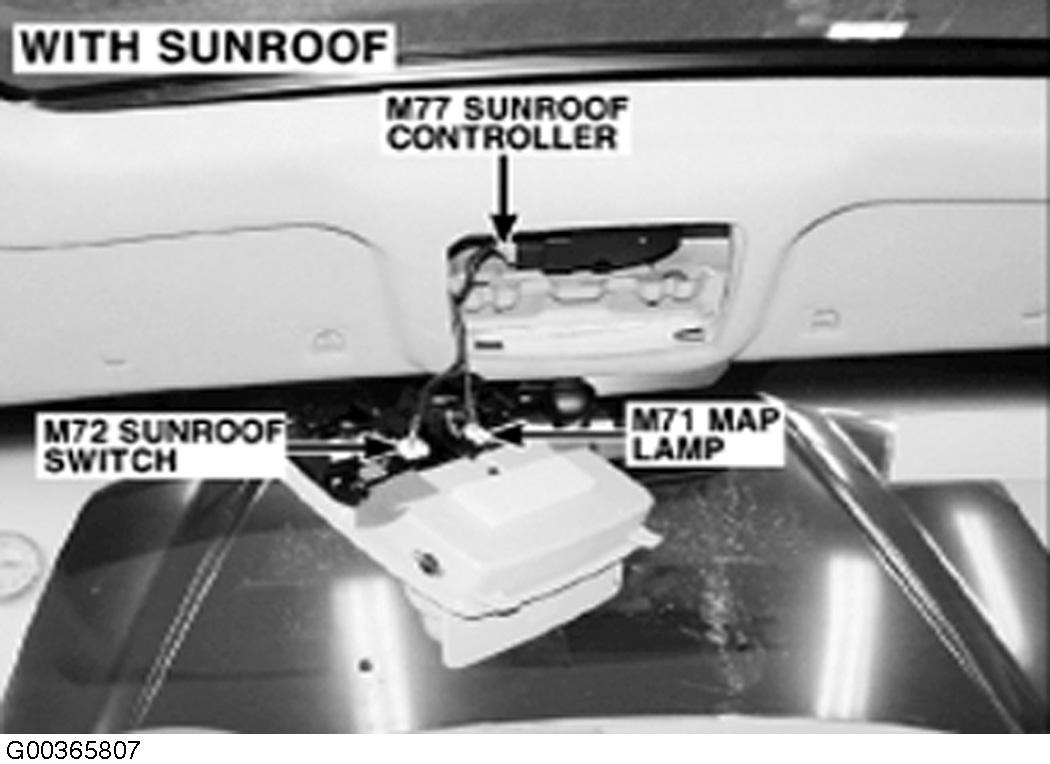

| Sunroof Controller | Center front of roof. See Figure . |
| TACM | Under center console. See Figure . |
| TCM | Under left side of dash. See Figure . |

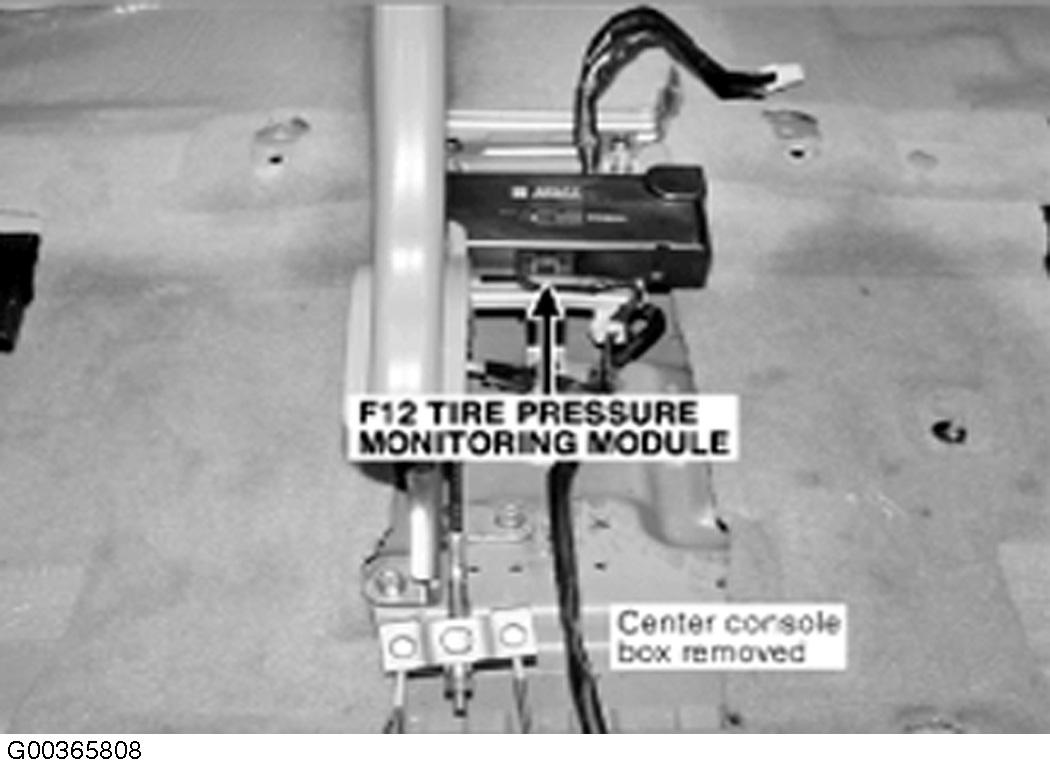

| Tire Pressure Monitoring Module | Under rear of center console. See Figure . |
