Automatic Transaxle: Removal: Notes

  1. Remove the air duct.
  2. Remove the battery.
  3. Remove the battery tray.
  4. Remove the air cleaner assembly.
  5. Remove the intercooler inlet pipe.
  6. Disconnect the connectors relevant to a transaxle.

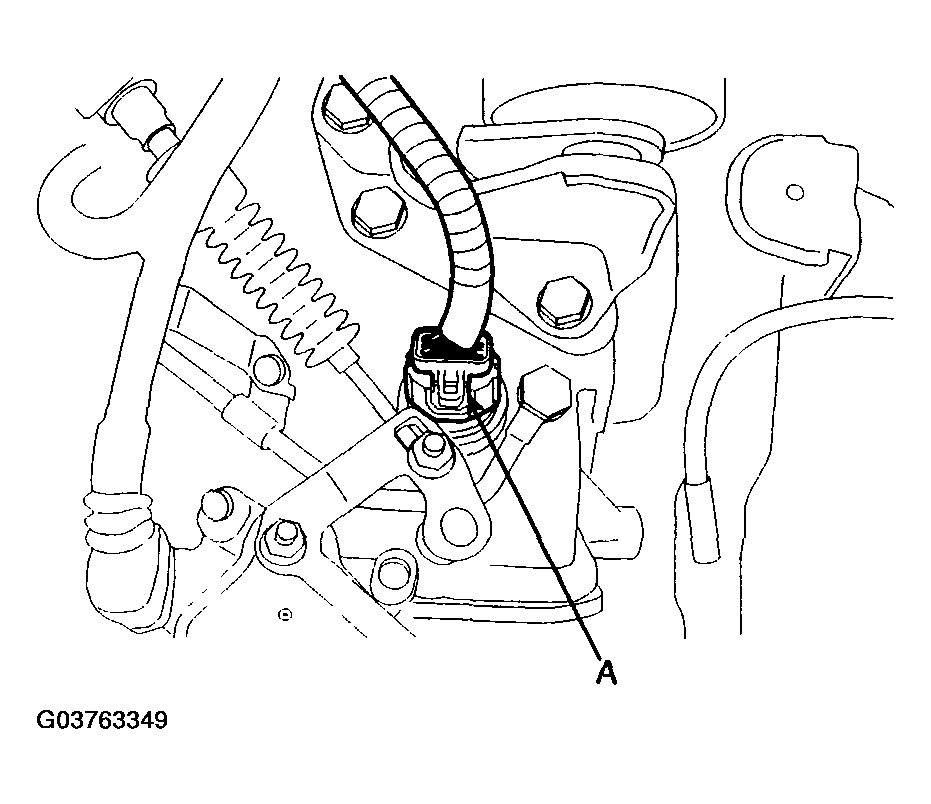

    Fig 1: Disconnecting Connectors Relevant To A Transaxle
    G03763349Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Removing Vehicle Speed Sensor
    G03763350Courtesy of HYUNDAI MOTOR CO.
  7. Disconnect the ground earth wire.
  8. Remove the bolt (B) which mounts the clutch release cylinder (A) to the inhibitor switch.

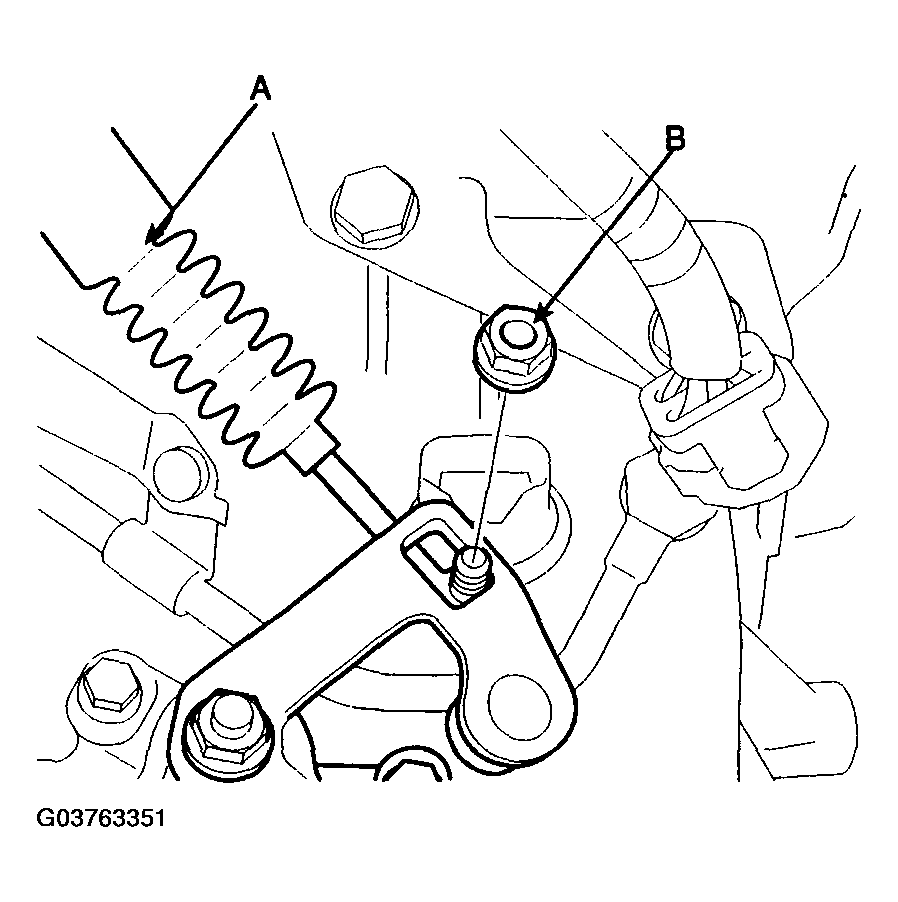

    Fig 3: Identifying Clutch Release Cylinder & Bolt
    G03763351Courtesy of HYUNDAI MOTOR CO.
  9. Detach the clutch release cylinder (B) clip (A).

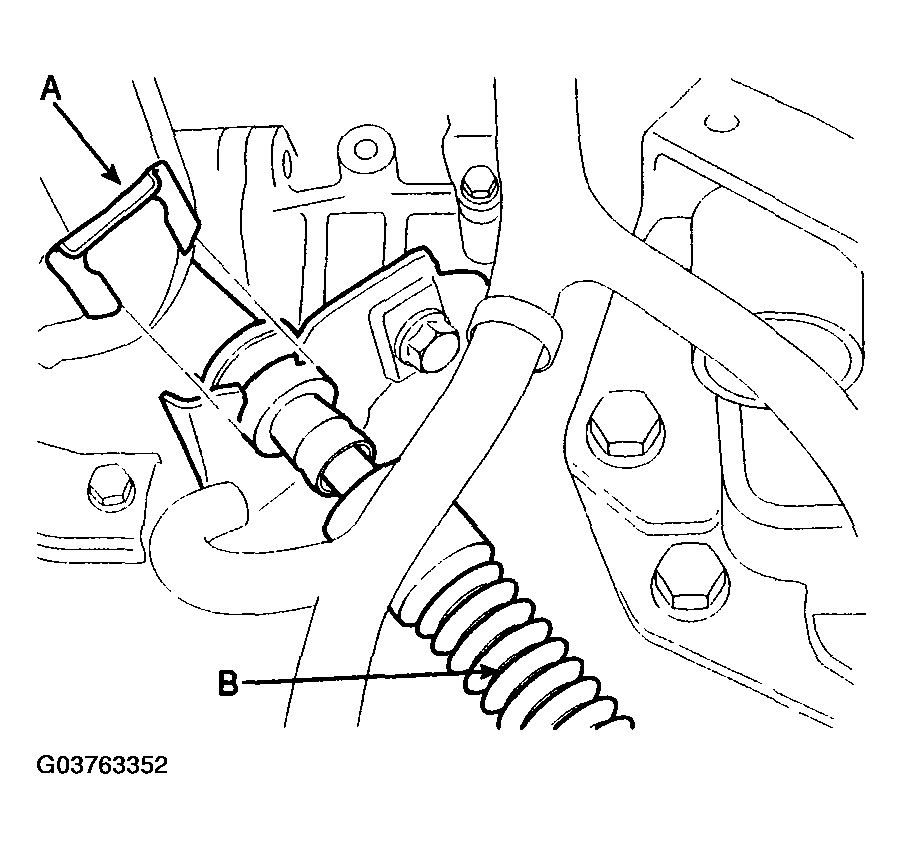

    Fig 4: Detaching Clutch Release Cylinder & Clip
    G03763352Courtesy of HYUNDAI MOTOR CO.
  10. Detach the hoses (A), loosening the oil cooler hose clamps.

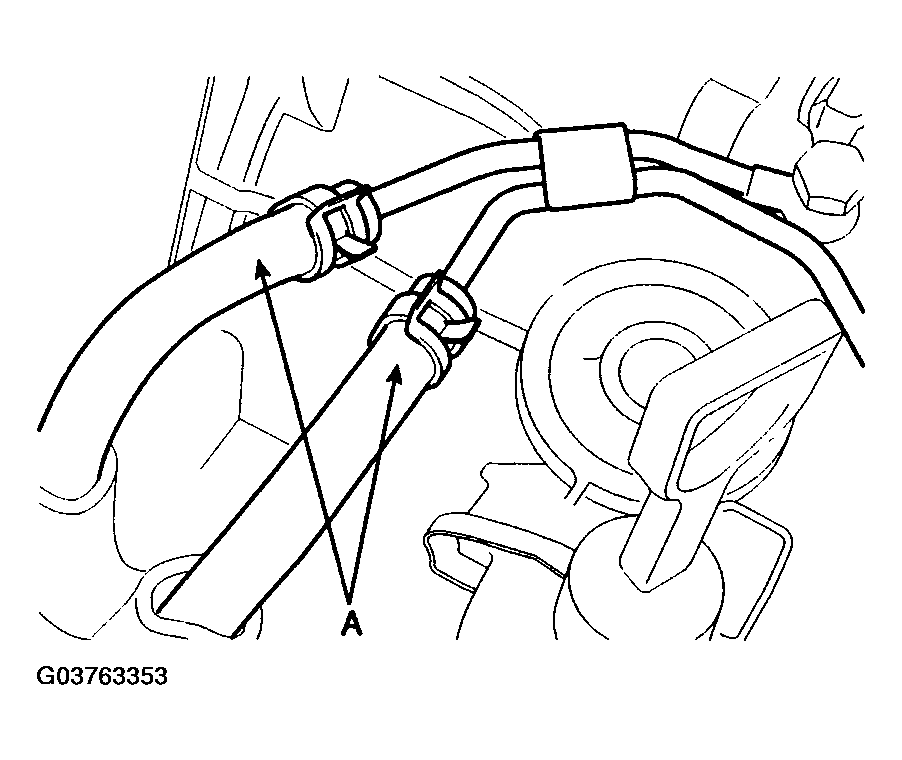

    Fig 5: Removing Hoses
    G03763353Courtesy of HYUNDAI MOTOR CO.
  11. Using SST (09200-38001), support the engine.

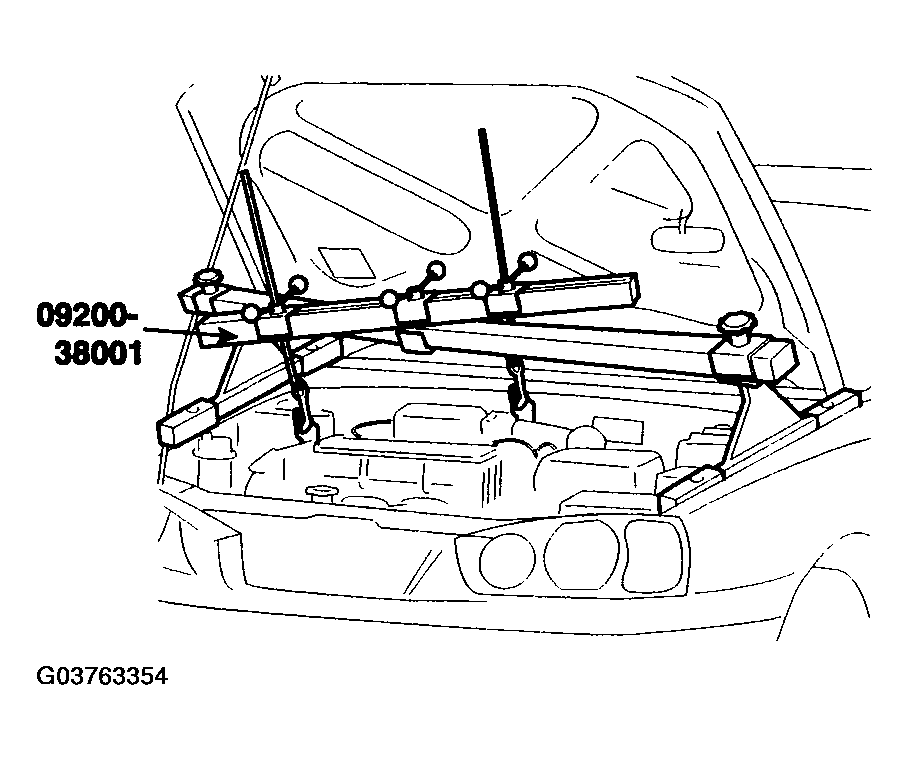

    Fig 6: Supporting Engine Using SST
    G03763354Courtesy of HYUNDAI MOTOR CO.
  12. Remove the transaxle mounting bracket bolts (A).

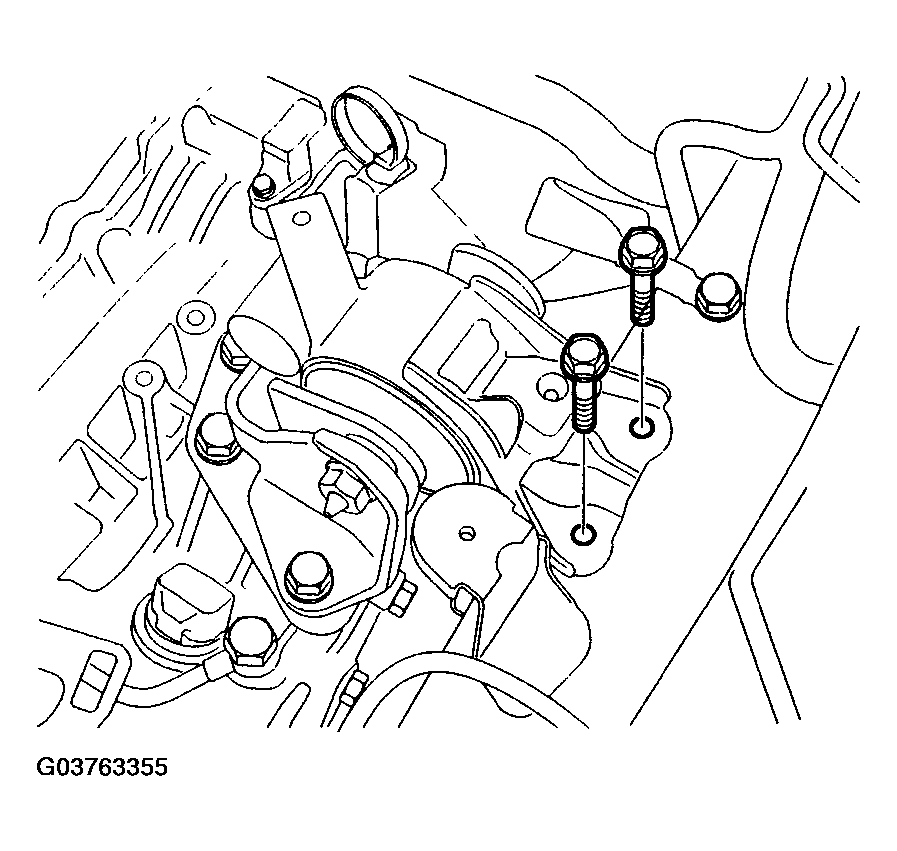

    Fig 7: Removing Transaxle Mounting Bracket Bolts
    G03763355Courtesy of HYUNDAI MOTOR CO.

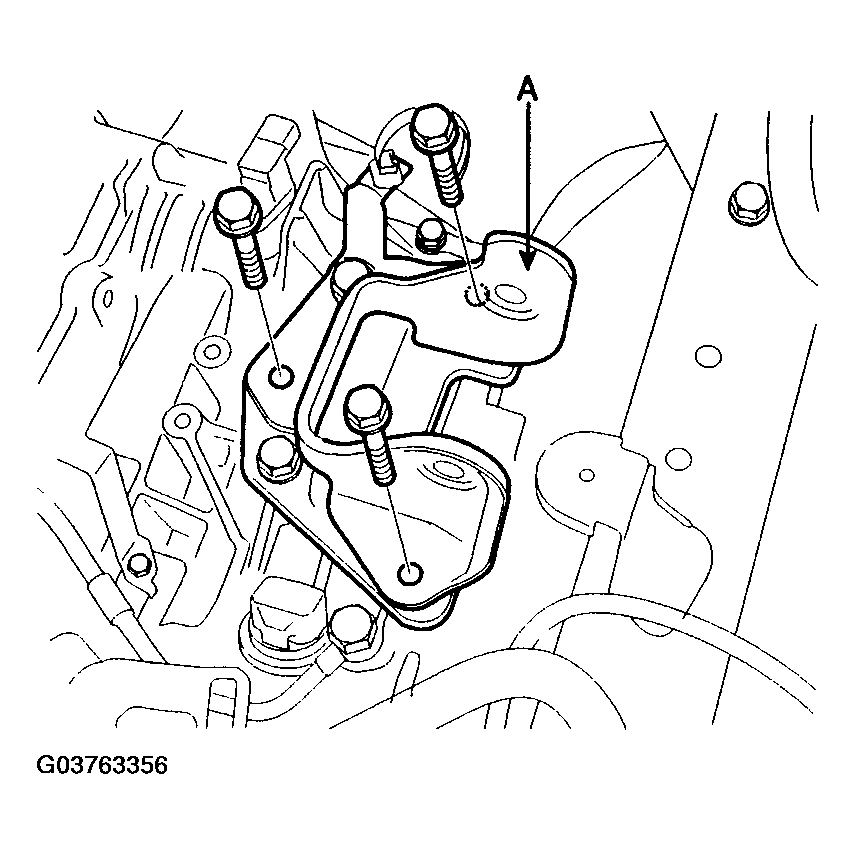

    Fig 8: Removing Transaxle Mounting Bracket
    G03763356Courtesy of HYUNDAI MOTOR CO.
  13. Remove the transaxle upper mounting bolts (A).

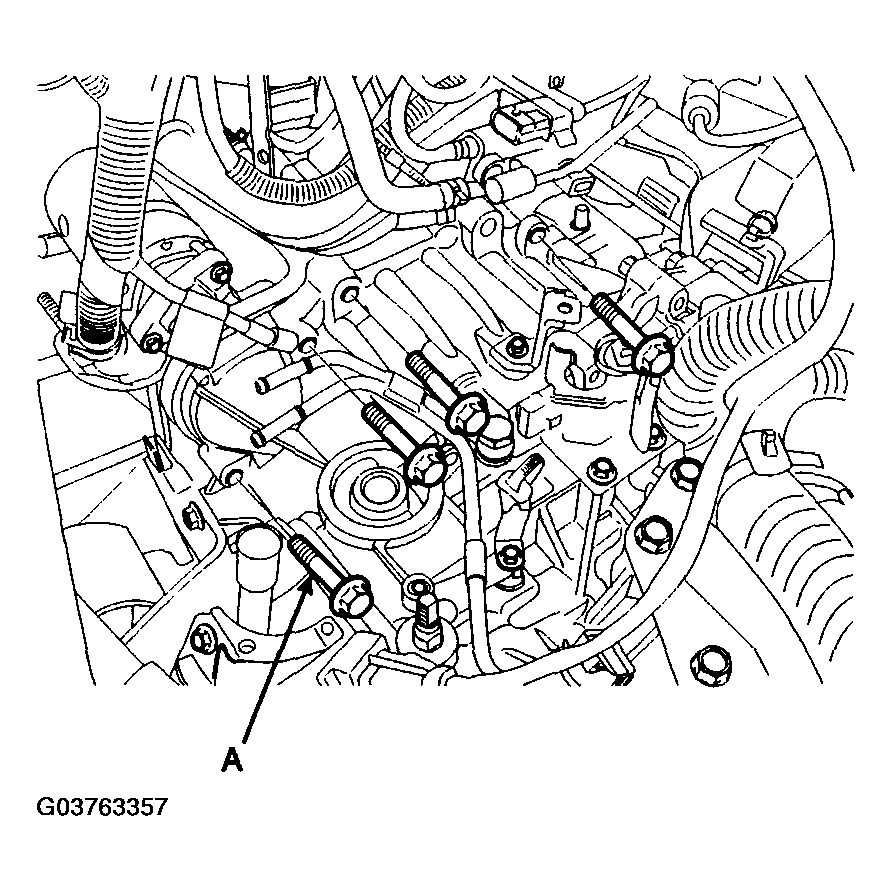

    Fig 9: Removing Transaxle Upper Mounting Bolts
    G03763357Courtesy of HYUNDAI MOTOR CO.
  14. Remove the bolts which mount the transaxle to the front sub frame.
  15. Lift up the vehicle.
  16. After removing the oil drain plug (A), Drain the fluid.

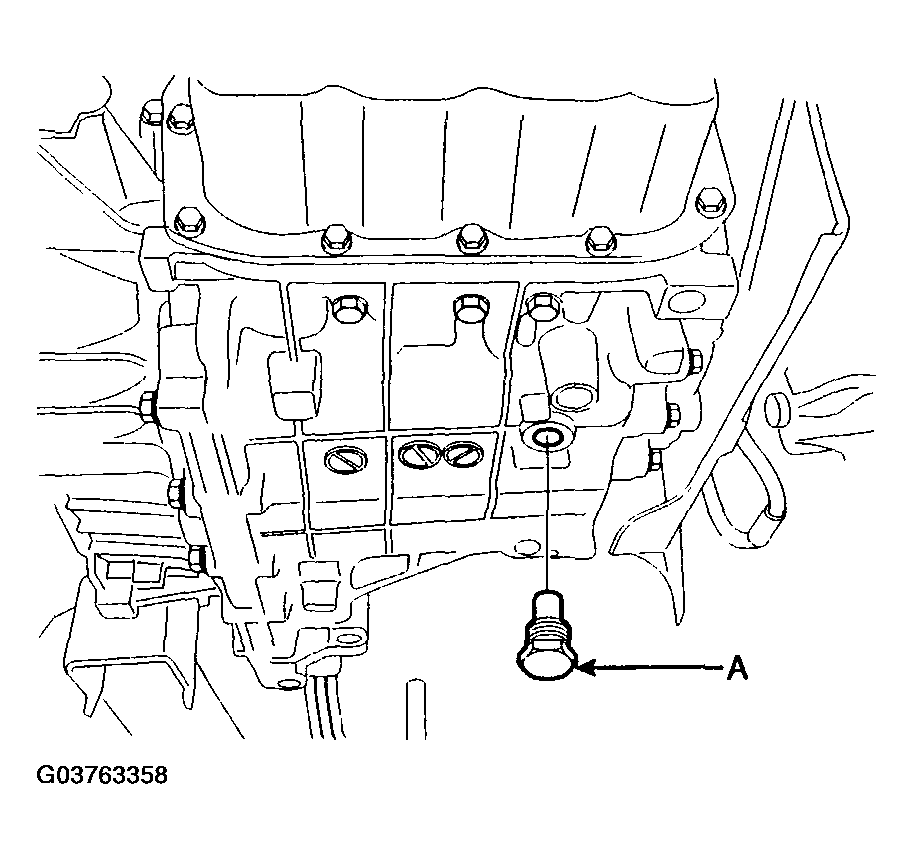

    Fig 10: Removing Oil Drain Plug
    G03763358Courtesy of HYUNDAI MOTOR CO.
  17. Support the transaxle with a jack.
  18. Remove the steering column bolt (See STEERING COLUMN AND SHAFT ).
  19. Remove the driveshaft (See DRIVESHAFT ).
  20. Remove the bolt (A) which mount the transaxle to the rear sub-frame.

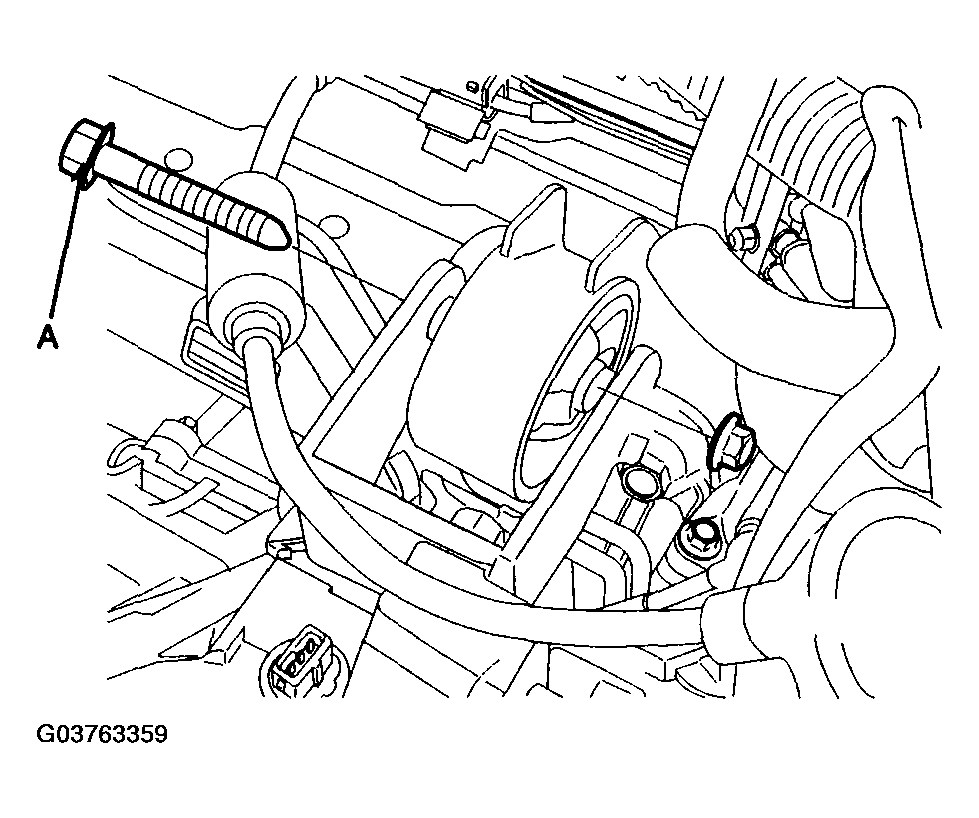

    Fig 11: Removing Bolt
    G03763359Courtesy of HYUNDAI MOTOR CO.
  21. Remove the sub-frame. If it is 4 wheel 1 drive vehicle- (4WD), remove the propeller shaft first (See PROPELLER SHAFT ASSEMBLY ).
    Fig 12: Removing Sub-Frame (1 Of 2)
    G03763360Courtesy of HYUNDAI MOTOR CO.

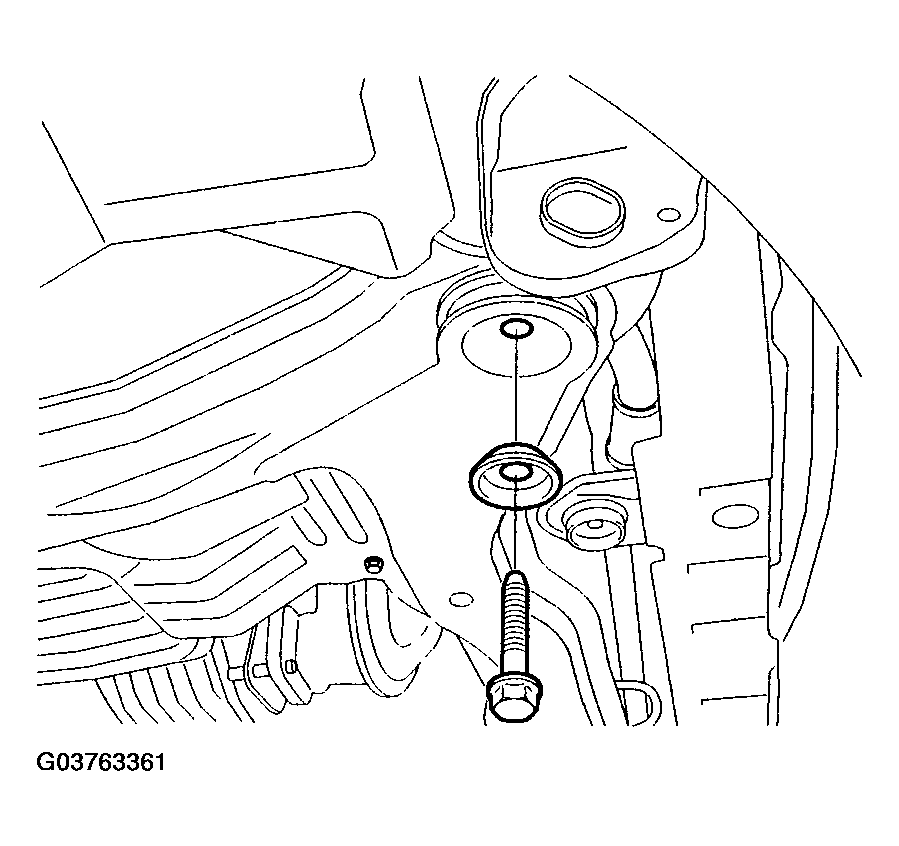

    Fig 13: Removing Sub-Frame (2 Of 2)
    G03763361Courtesy of HYUNDAI MOTOR CO.
  22. Remove the transaxle lower mounting bolts.
  23. Remove the transaxle assembly.
