Automatic Transaxle System: Description: Characteristics

HIVEC: Hyundai Intelligent Vehicle Electronic Control

It differs drastically compared to previous T/M such as alpha, beta or KM series automatic transaxles.

All vehicles with an engine volume of 2.0 liters or more has the HIVEC automatic transaxle developed and produced by Hyundai.

It differs drastically compared to conventional transaxle such as alpha, beta or KM series.

The frequent quality problems occurred in previous automatic transaxle was considered when this transaxle is designed and developed for better durability.

Some of the characteristics include:

• Different power transfer
• Different component layout
• New shift logic (HIVEC) to increase shift feeling
• Position of Valve Body
• Variable shift pattern
• Communication protocol and method

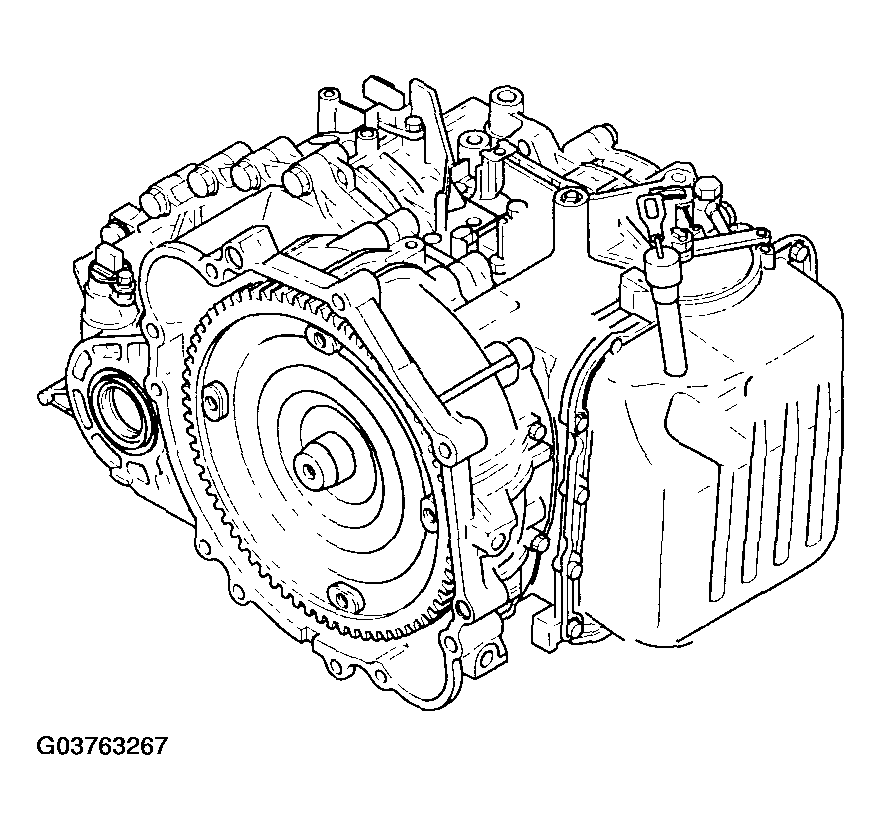

  Fig 1: Identifying Automatic Transaxle System

  Courtesy of HYUNDAI MOTOR CO.

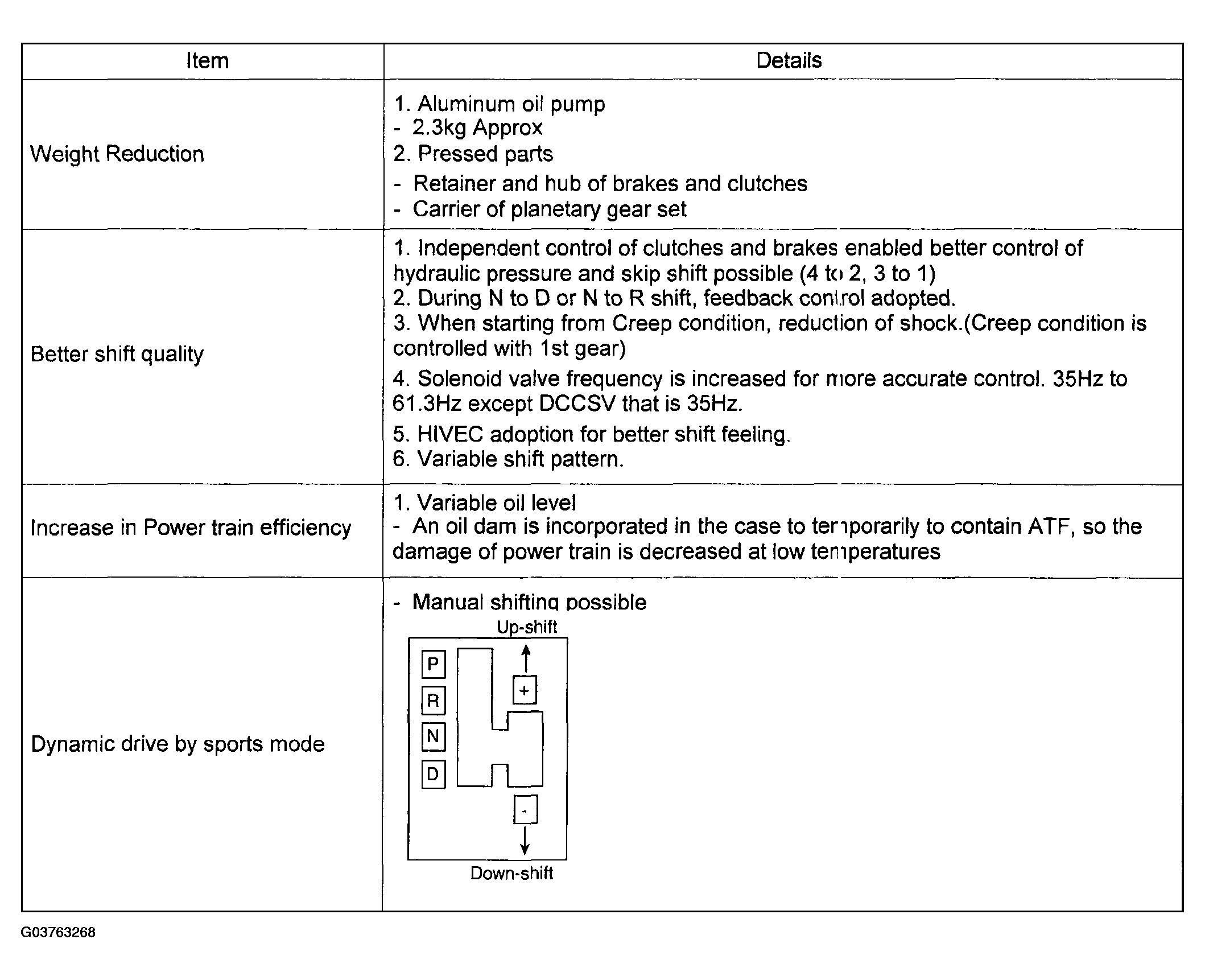

Fig 2: Automatic Transaxle System Item Table

Courtesy of HYUNDAI MOTOR CO.

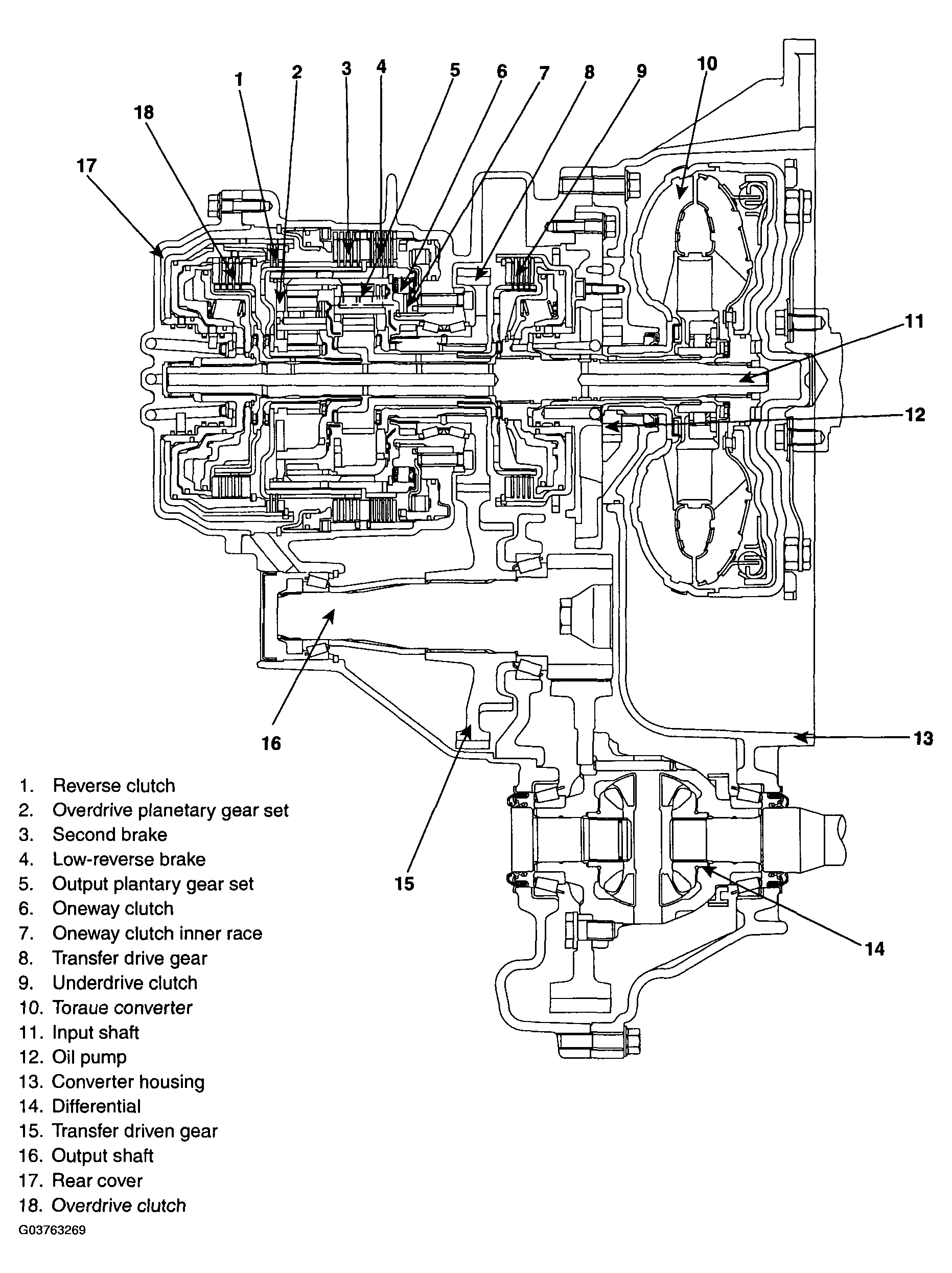

Fig 3: Identifying Automatic Transaxle System Components

Courtesy of HYUNDAI MOTOR CO.
