Sports Mode

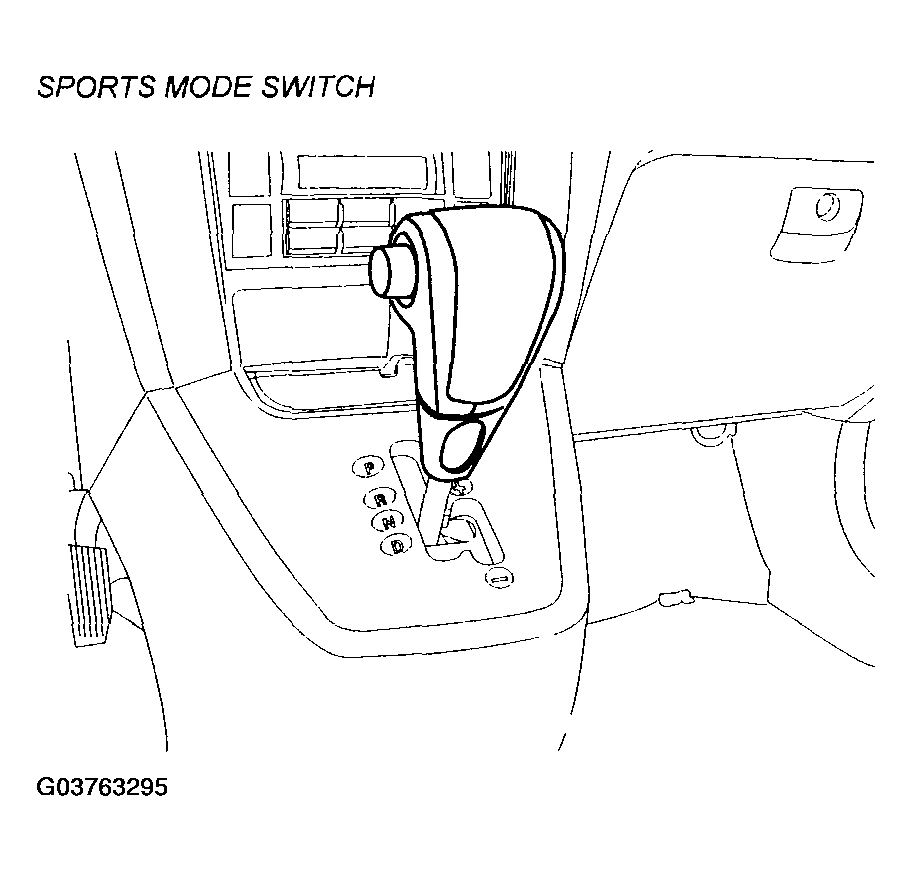

Fig 1: Identifying Sports Mode Switch

Courtesy of HYUNDAI MOTOR CO.

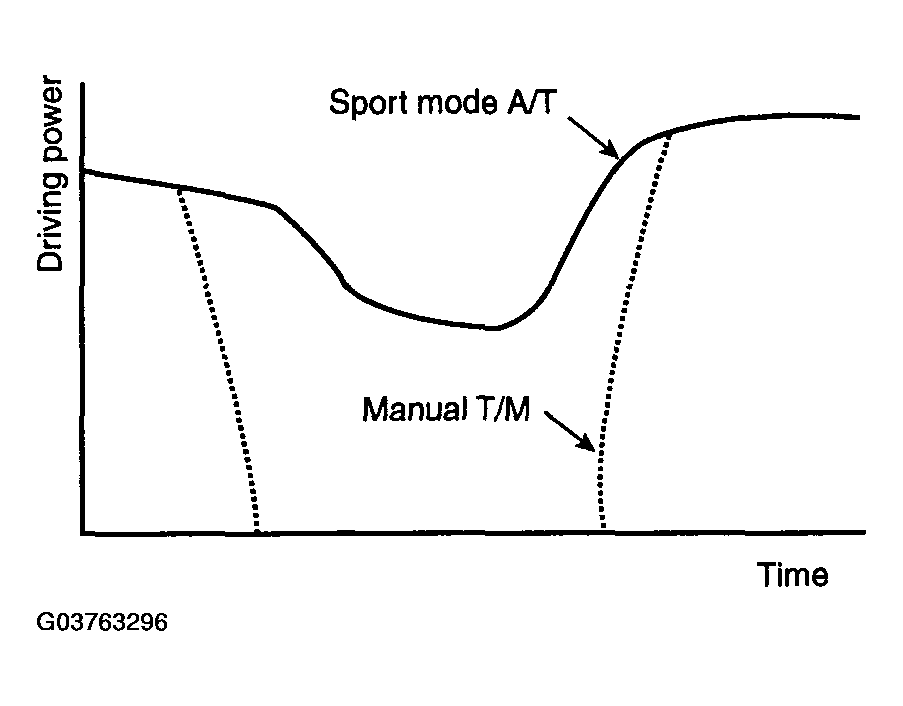

Fig 2: Driving Power To Shifting Time Graph

Courtesy of HYUNDAI MOTOR CO.

Sports mode allows the manual upshift and downshift with the accelerator pedal is depressed. The prompt response and shift would be obtained due to the continuous shifting without cutting of driving power. The shifting time is also decreased about 0.1 second during upshift, 0.2 second during downshift. As the selector lever is pushed upward or downward one time, the gear is up shifted or downshifted by one gear.
