Output Shaft Speed Sensor: Replacement

  1. Remove the battery and air cleaner, (see TRANSAXLE RANGE SWITCH REPLACEMENT )
  2. Remove the output shaft Speed sensor (A).

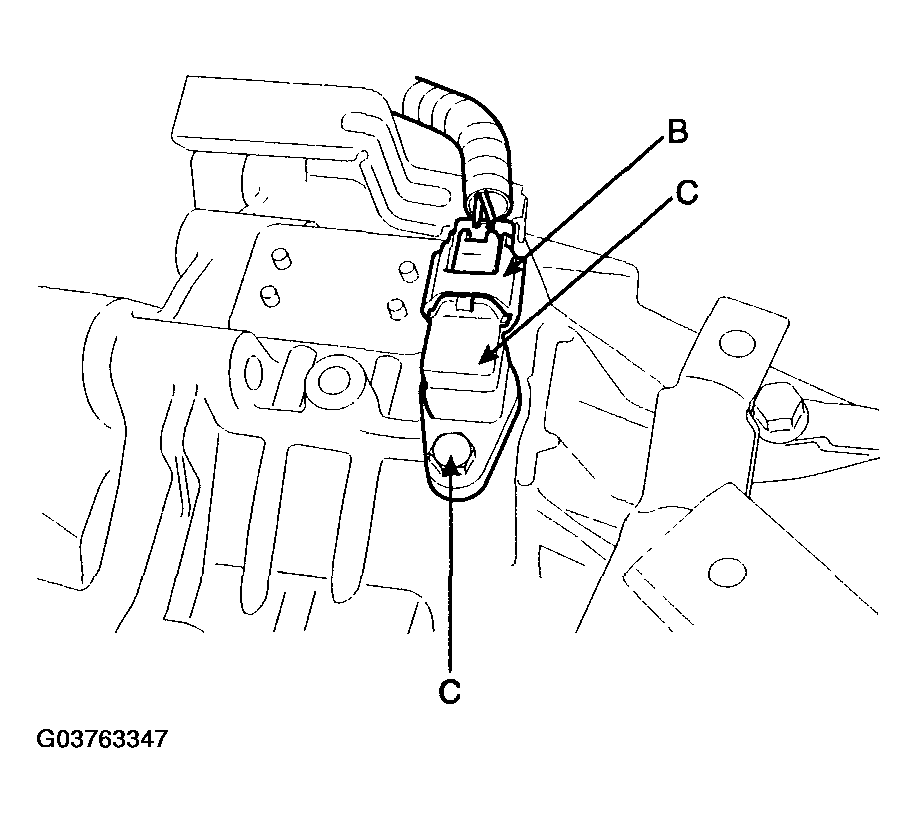

    Fig 1: Removing Output Shaft Speed Sensor, Output Shaft Speed Sensor Connector & Bolt
    G03763347Courtesy of HYUNDAI MOTOR CO.
    1. Disconnect the output shaft speed sensor connector (B).
    2. Remove the bolt (C).
    3. Inspect the output shaft speed sensor bore.
  3. Apply a light coat of automatic transaxle fluid to the O-ring seal before installation.
  4. Installation is the reverse of removal.
