Ignition Coil: Inspection

Connect the negative (-) terminal of a 3V power supply to terminal 2 of the power transistor; then check whether there is continuity between terminal 3 and terminal 2 when terminal 1 and the positive (+) terminal are connected and disconnected.

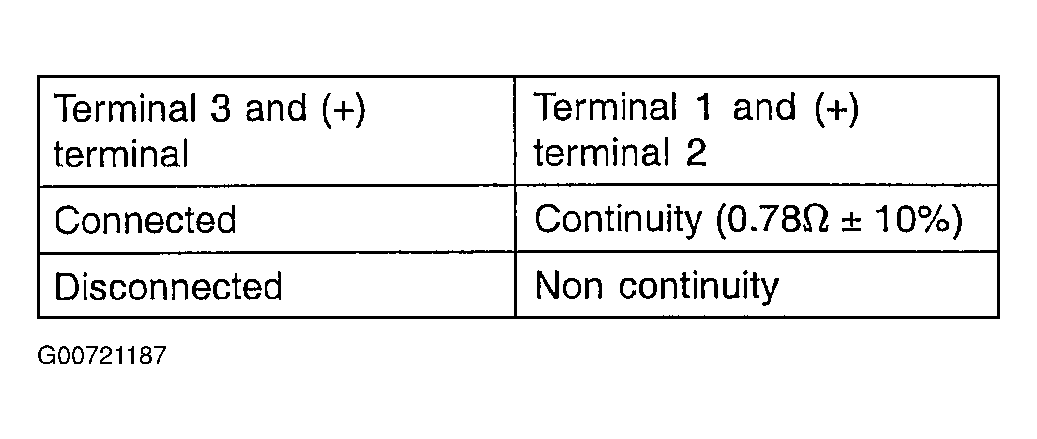

Fig 1: Primary Coil Resistance Specification Table

Courtesy of HYUNDAI MOTOR CO.

Replace the power transistor if there is malfunction.

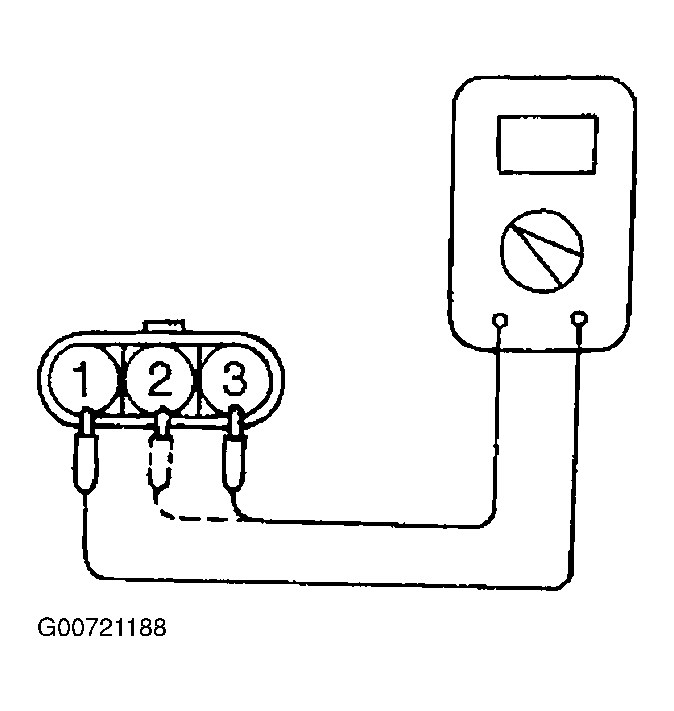

Fig 2: Checking Power Transistor

Courtesy of HYUNDAI MOTOR CO.

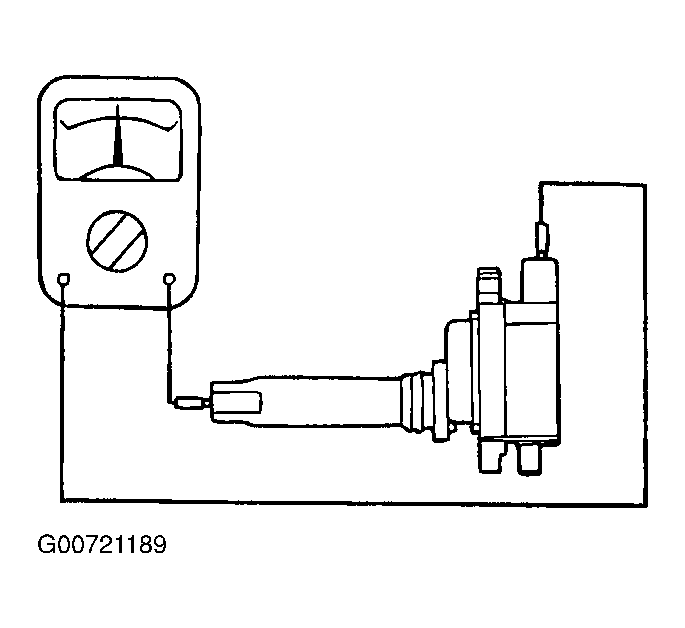

Measure the resistance between the high-voltage terminals of the ignition coil.

Standard value:  13.0 +/- 20% (kΩ)

Fig 3: Checking Secondary Coil Resistance

Courtesy of HYUNDAI MOTOR CO.
