Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver door.
    Fig 1: Troubleshooting Flow Chart
    G04803046Courtesy of HYUNDAI MOTOR CO.

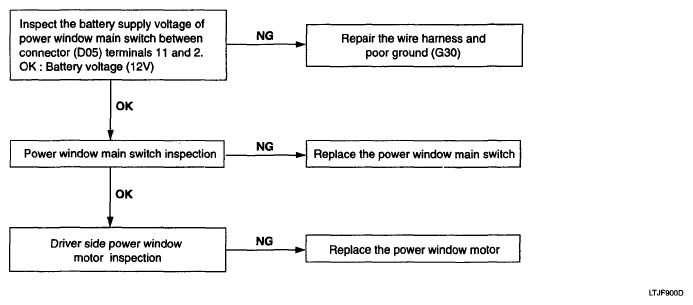

  2. Driver side window does not operate.
    Fig 2: Troubleshooting Flow Chart
    G04803047Courtesy of HYUNDAI MOTOR CO.

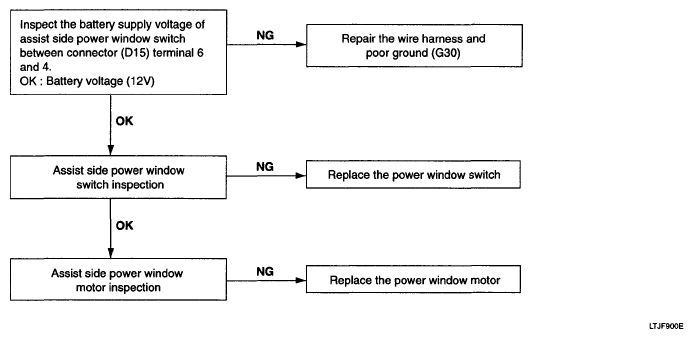

  3. Assist side window does not operate.
    Fig 3: Troubleshooting Flow Chart
    G04803048Courtesy of HYUNDAI MOTOR CO.
