Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

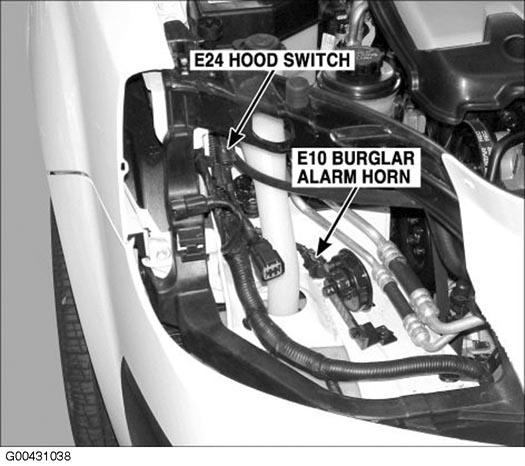

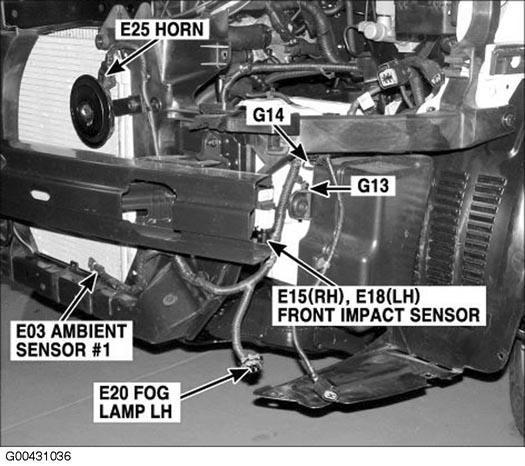

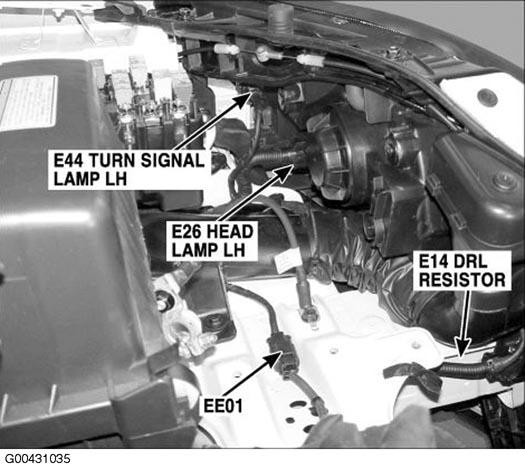

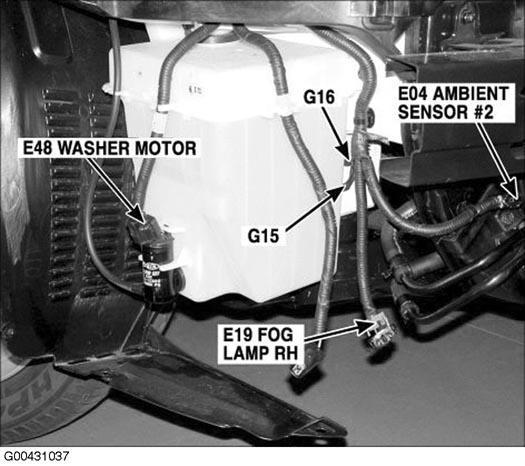

Fig 1: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Left Front Of Engine Compartment (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

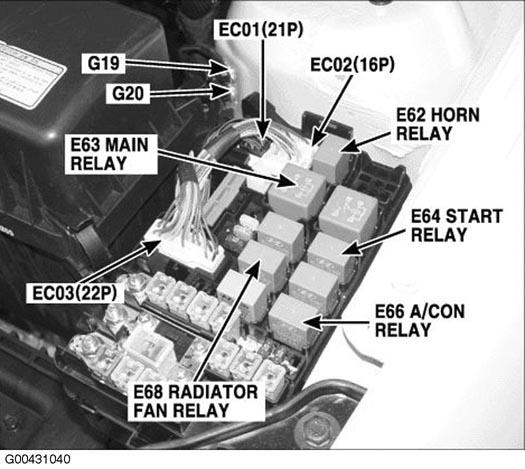

Fig 4: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

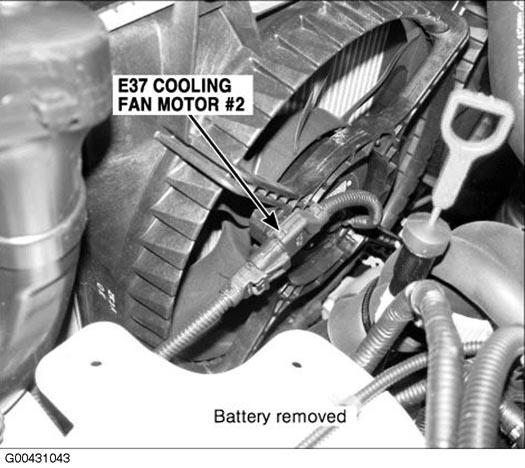

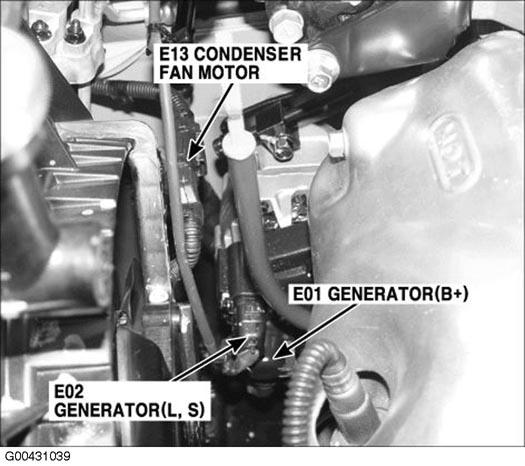

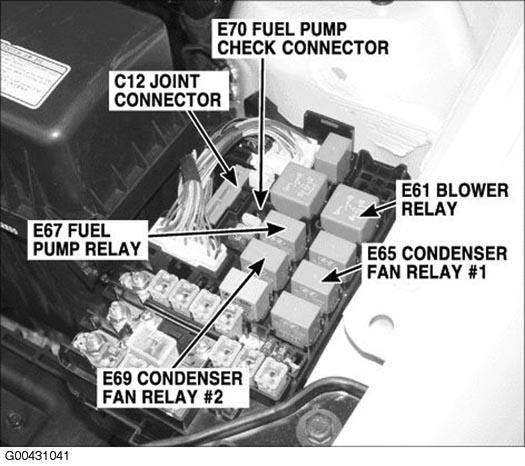

Fig 5: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

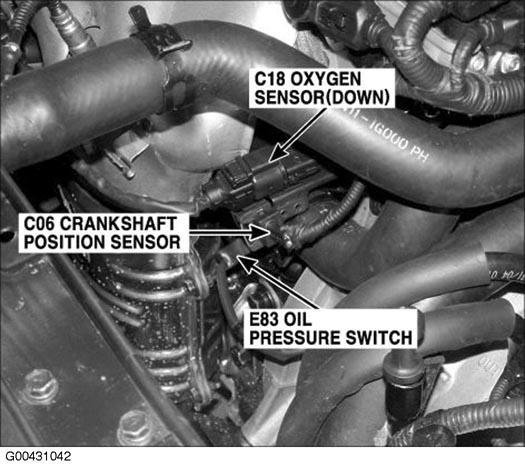

Fig 6: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 8: Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

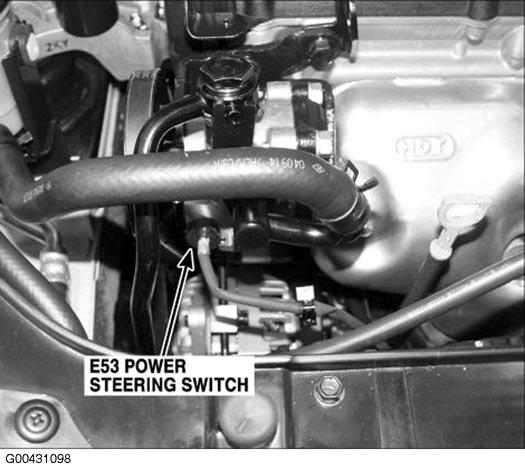

Fig 9: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

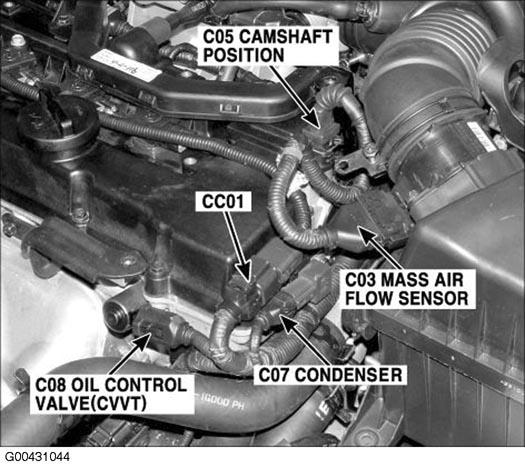

Fig 10: Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

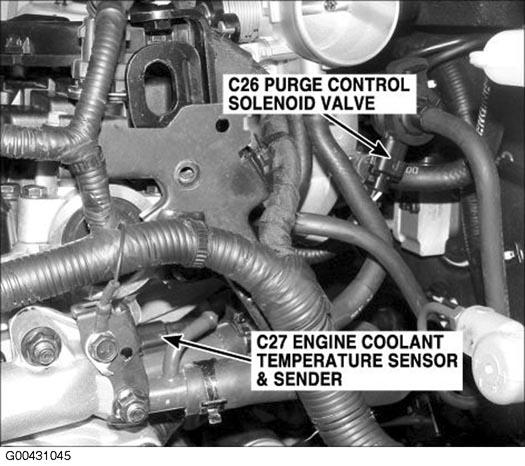

Fig 11: Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

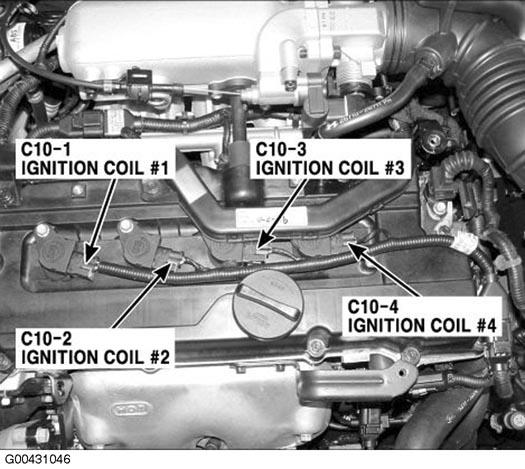

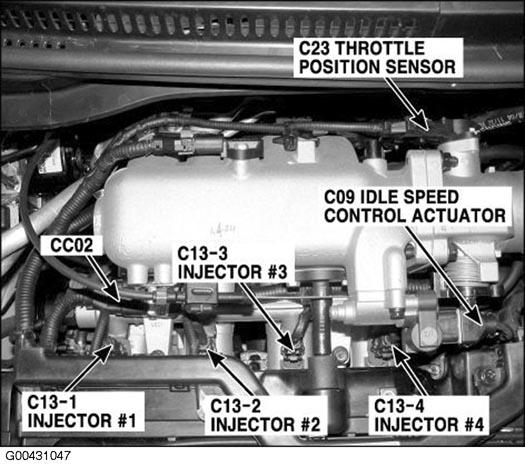

Fig 12: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 13: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.

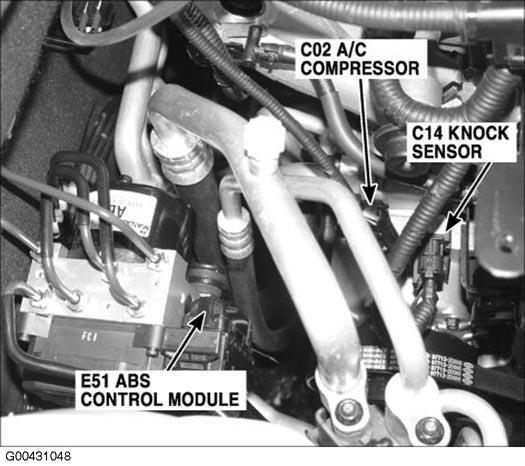

Fig 14: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

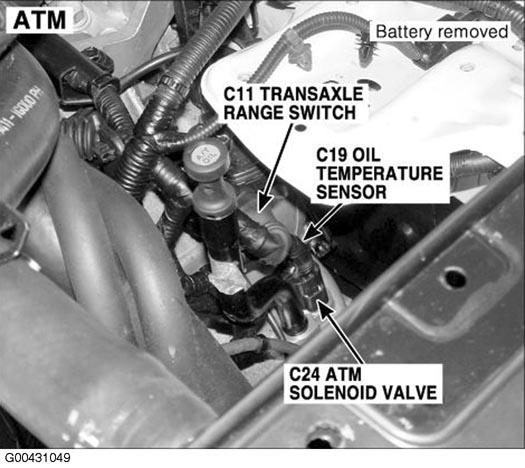

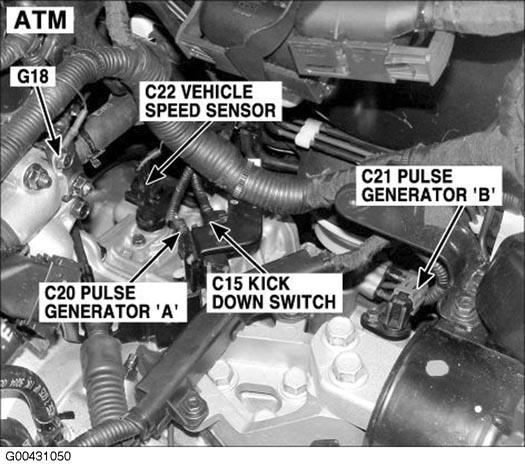

Fig 15: Top Of Transaxle (A/T)
Courtesy of HYUNDAI MOTOR CO.
Fig 16: Top Of Transaxle (A/T)
Courtesy of HYUNDAI MOTOR CO.

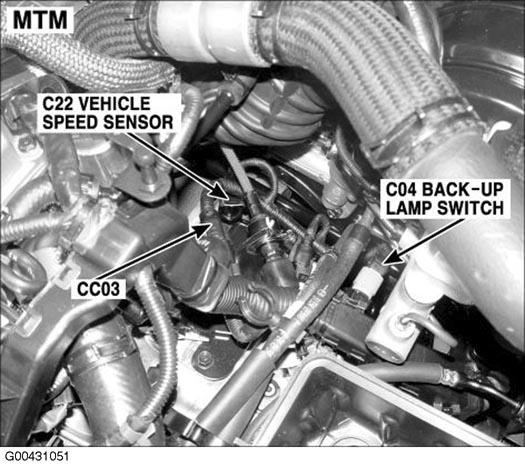

Fig 17: Top Of Transaxle (M/T)
Courtesy of HYUNDAI MOTOR CO.

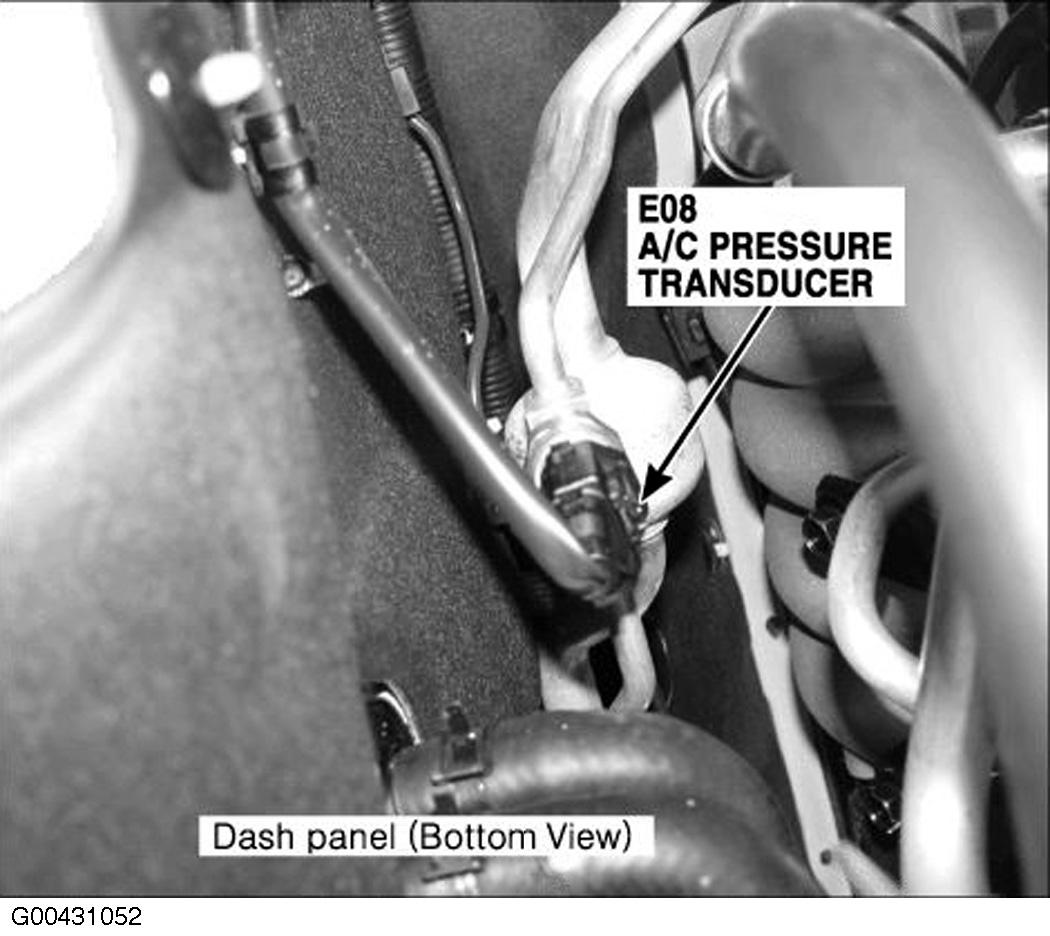

Fig 18: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

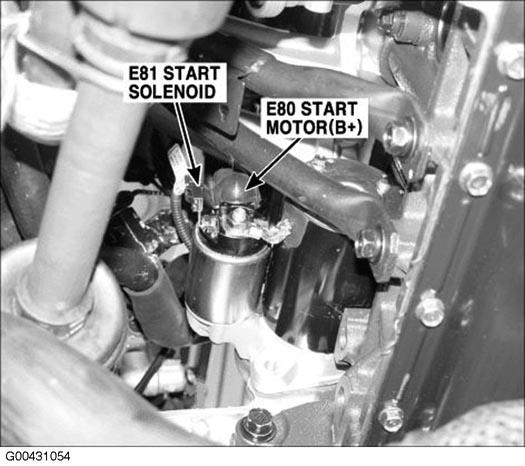

Fig 19: Lower Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 20: Right Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

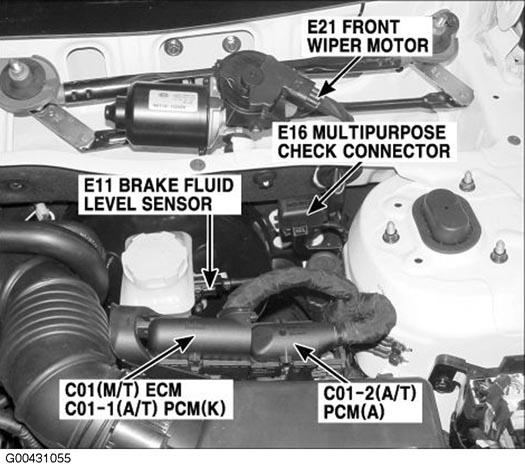

Fig 21: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

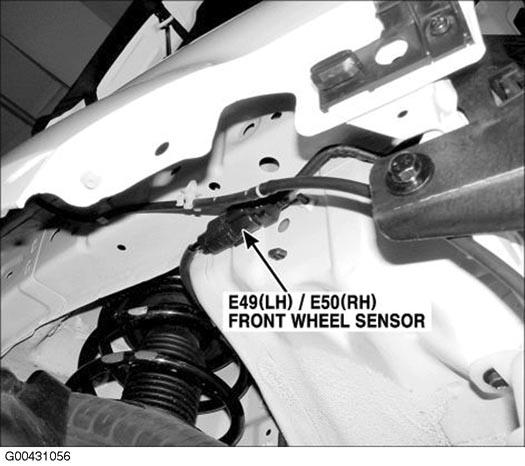

Fig 22: Left Front Wheelwell (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 23: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

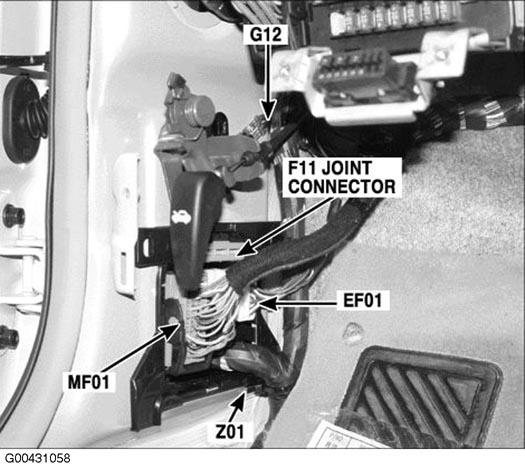

Fig 24: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.

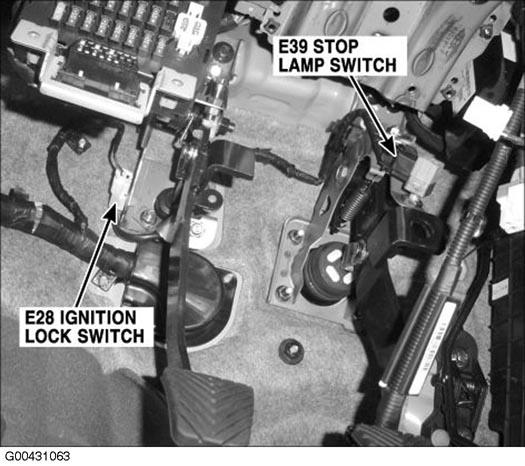

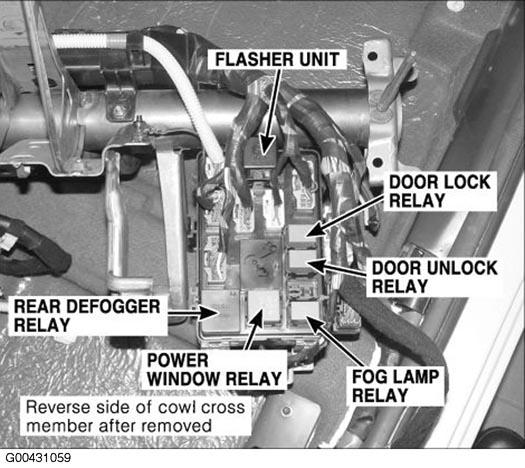

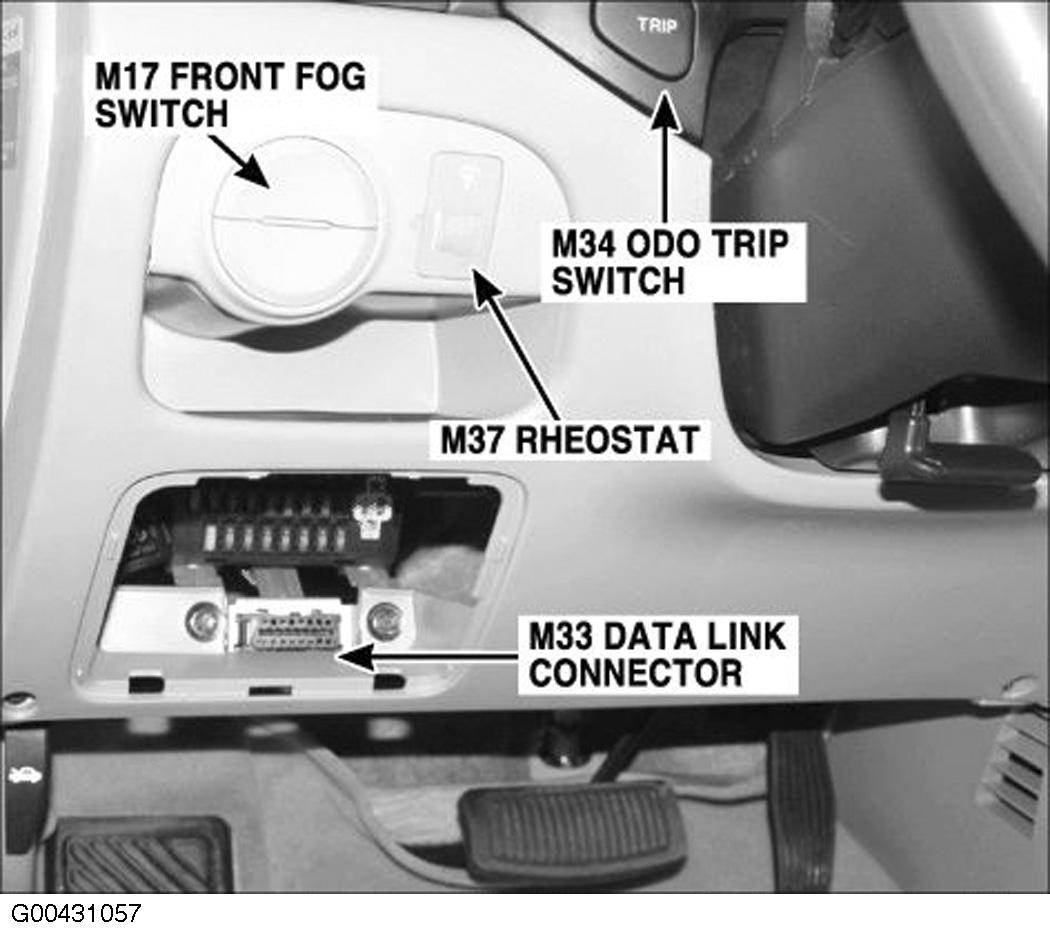

Fig 25: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

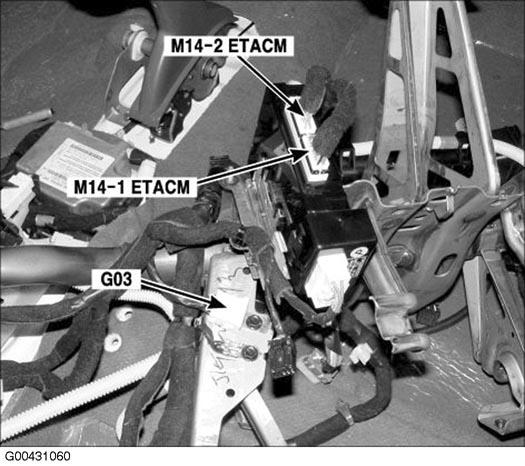

Fig 26: Behind Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

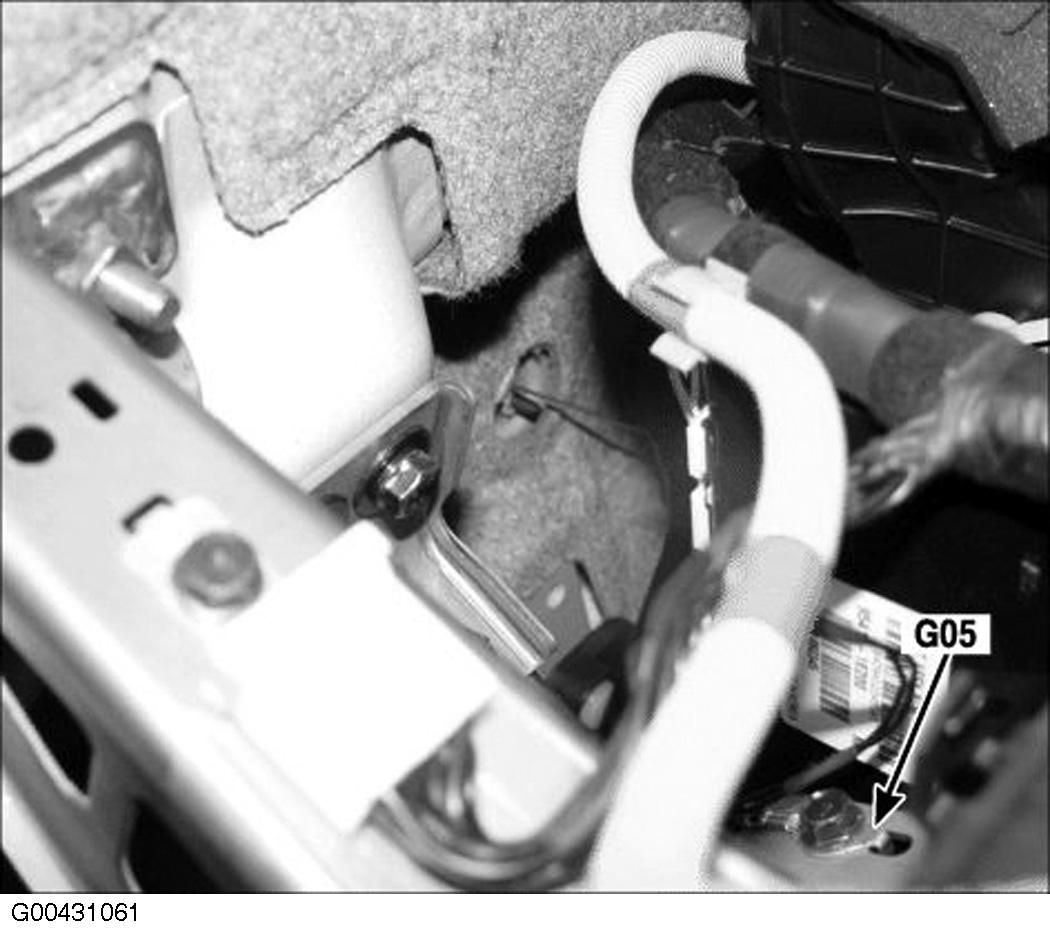

Fig 27: Under Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 28: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 29: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

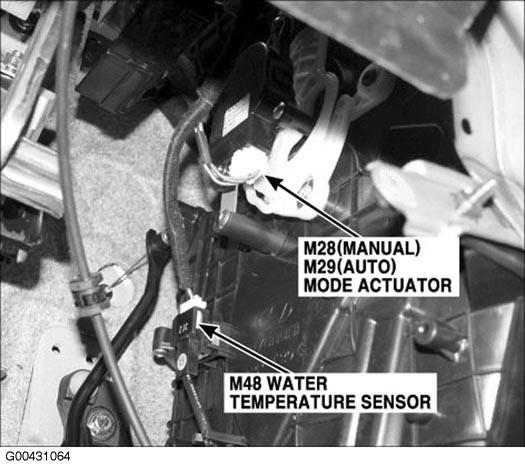

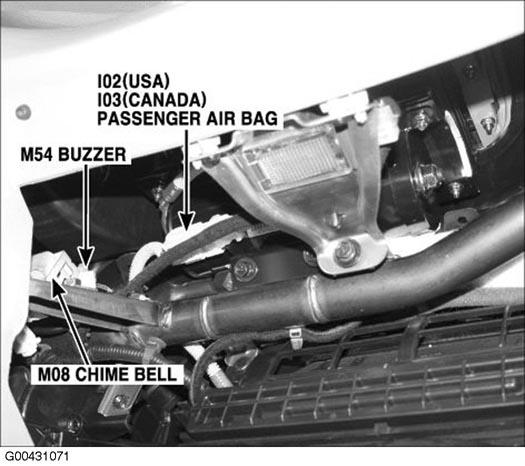

Fig 30: Behind Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

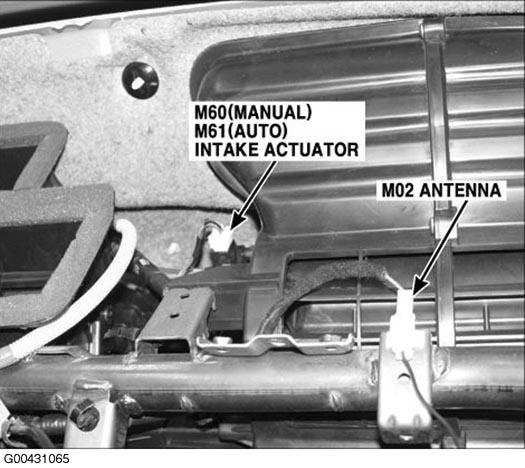

Fig 31: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

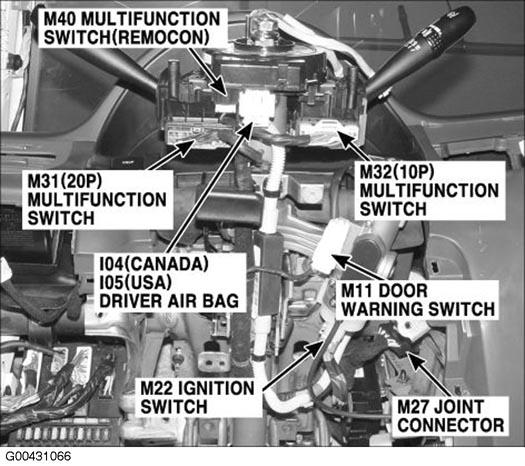

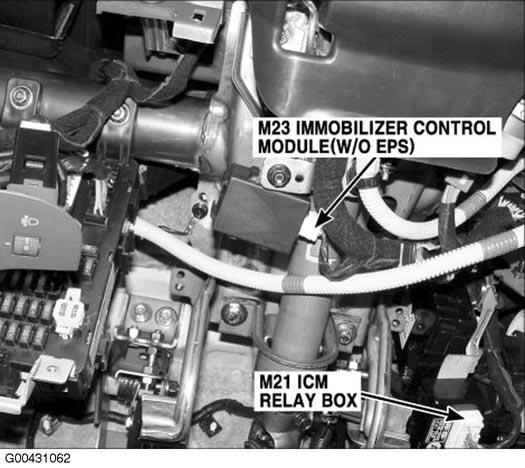

Fig 32: Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 33: Behind Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

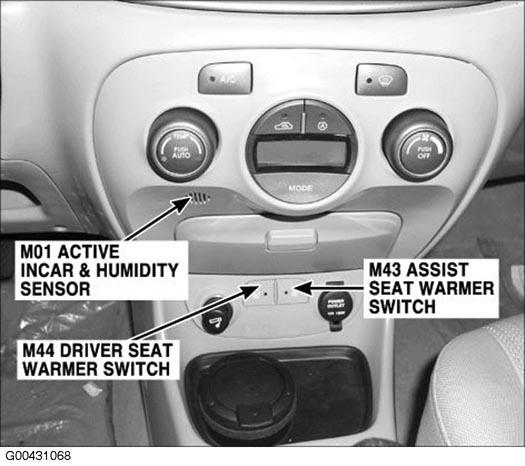

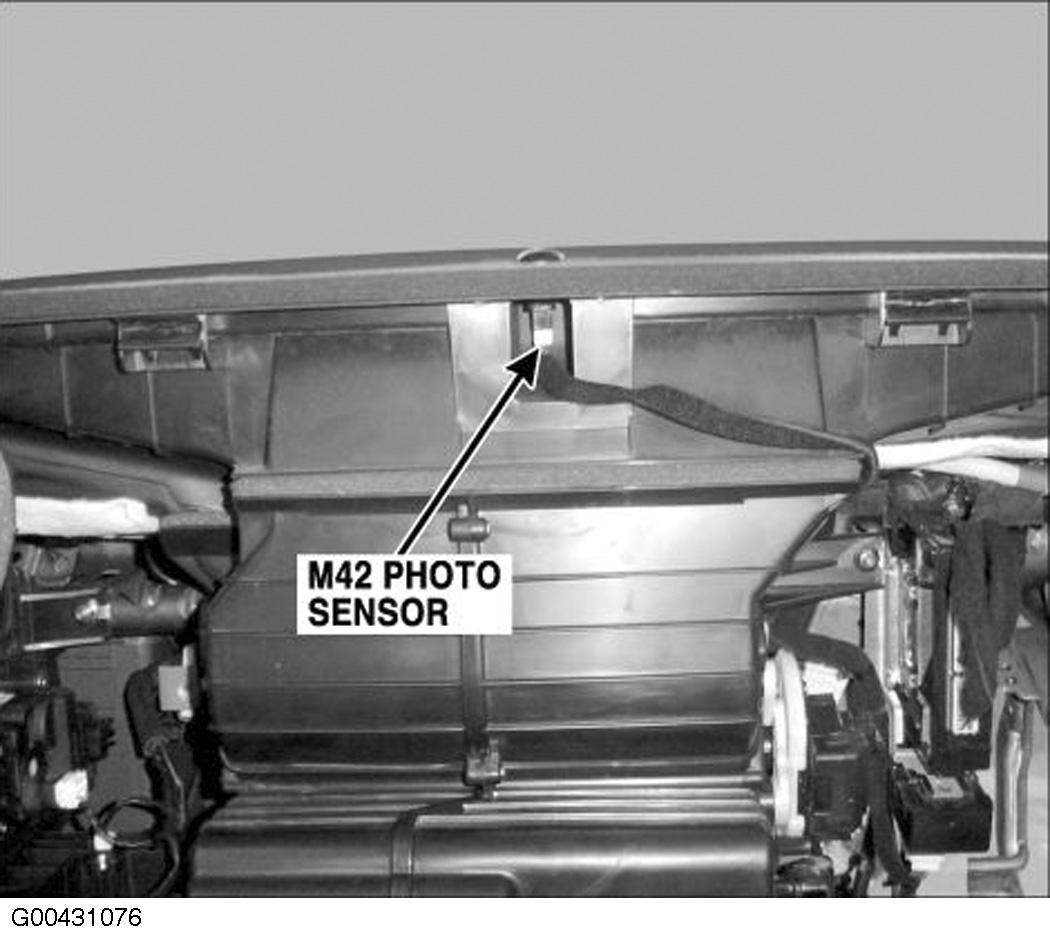

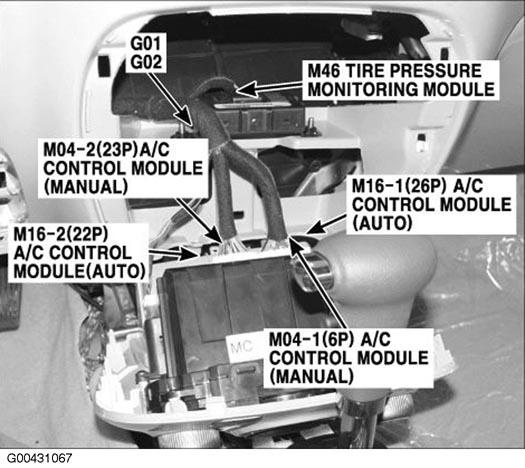

Fig 34: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

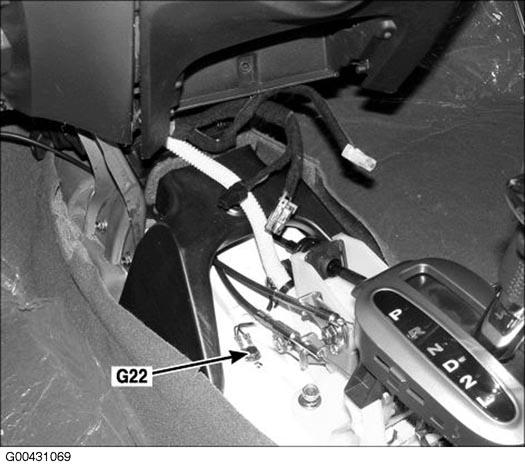

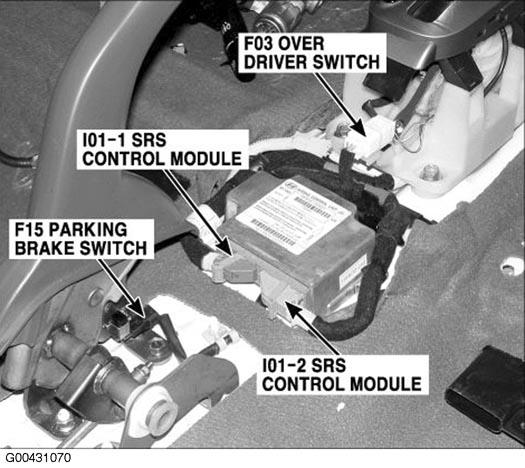

Fig 35: Under Front Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 37: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

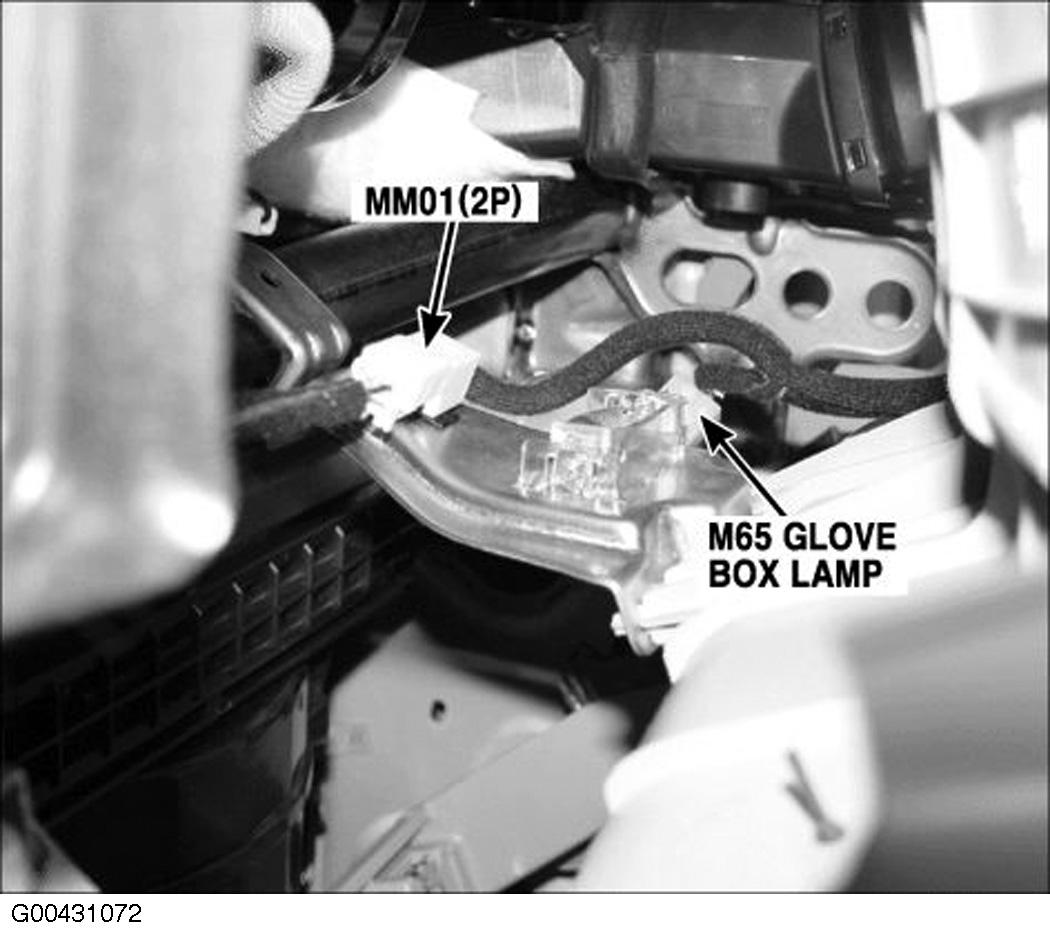

Fig 38: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 39: Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.

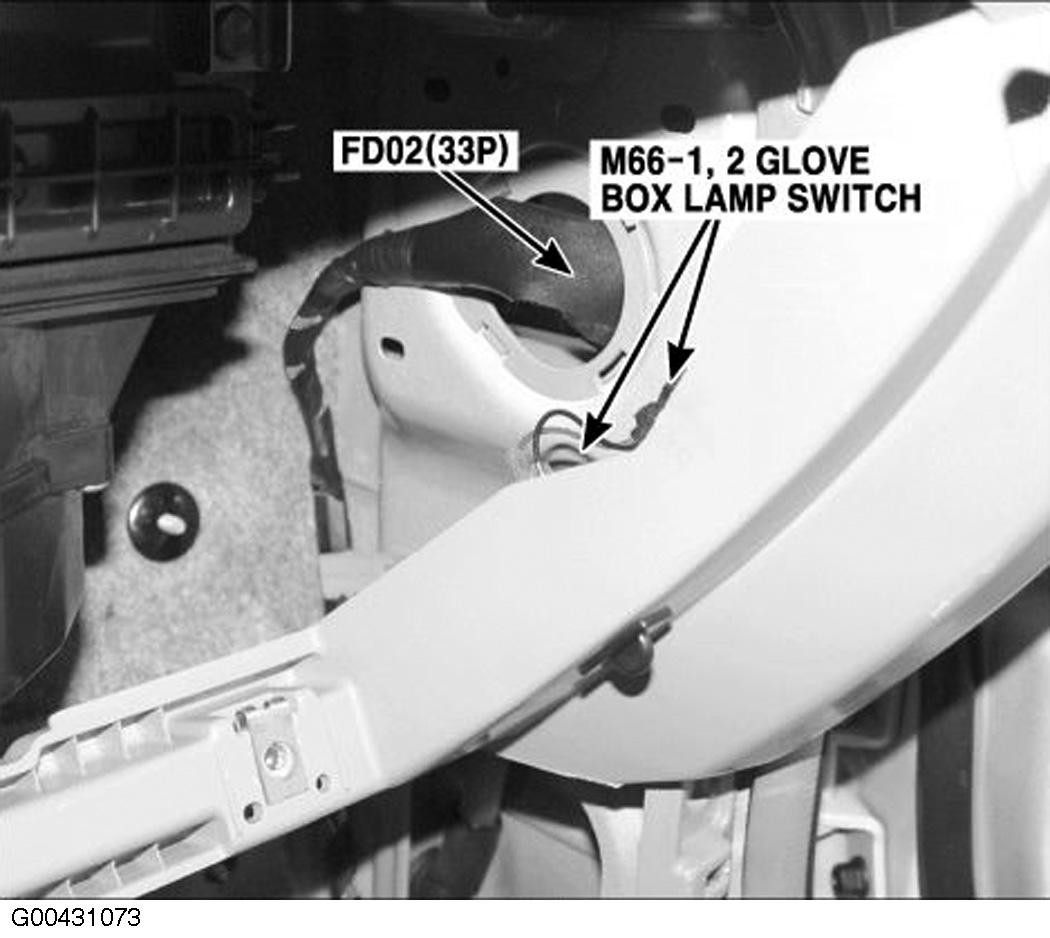

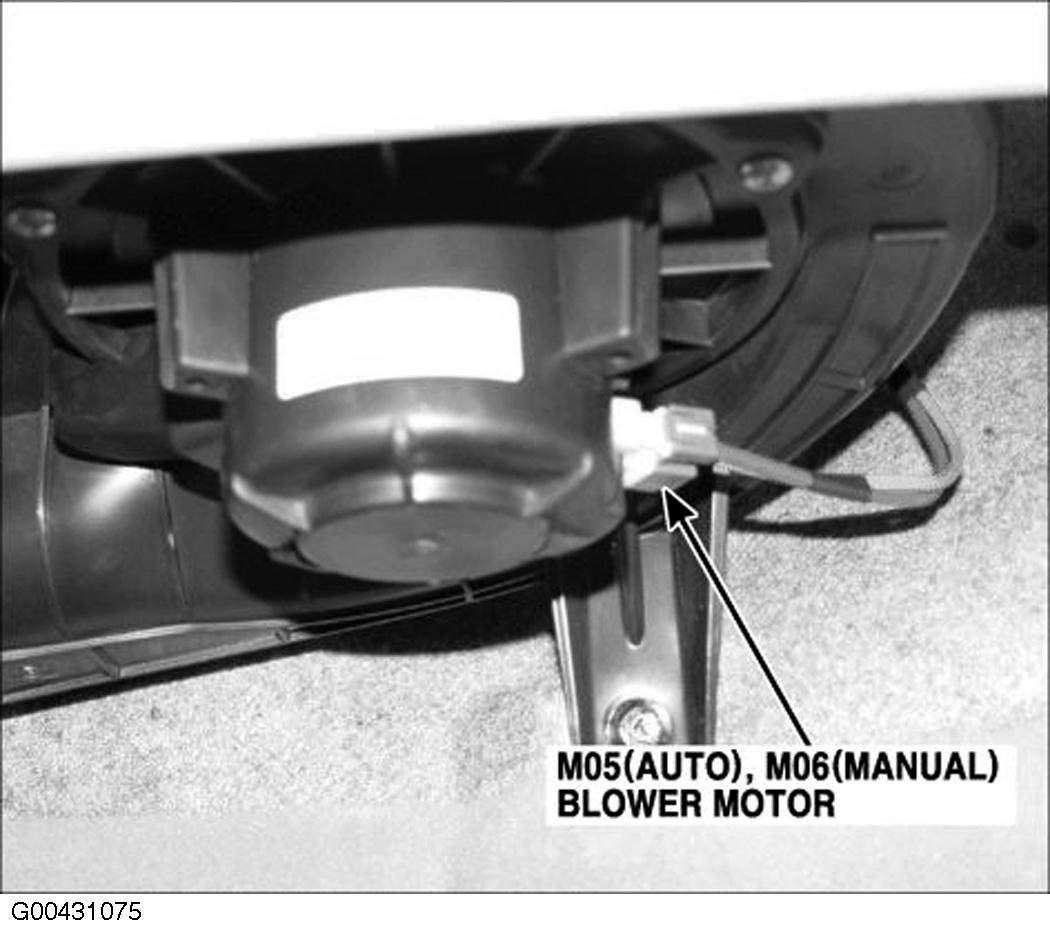

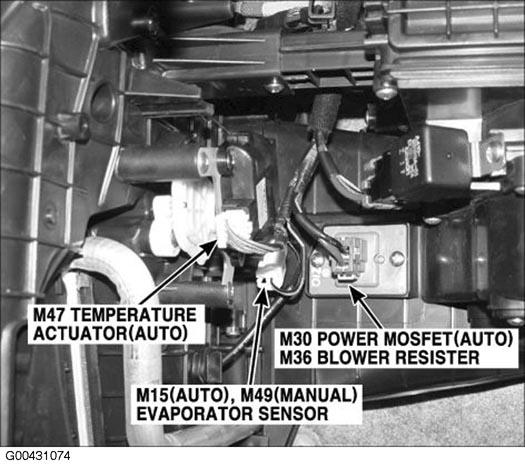

Fig 40: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 41: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 42: Top Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

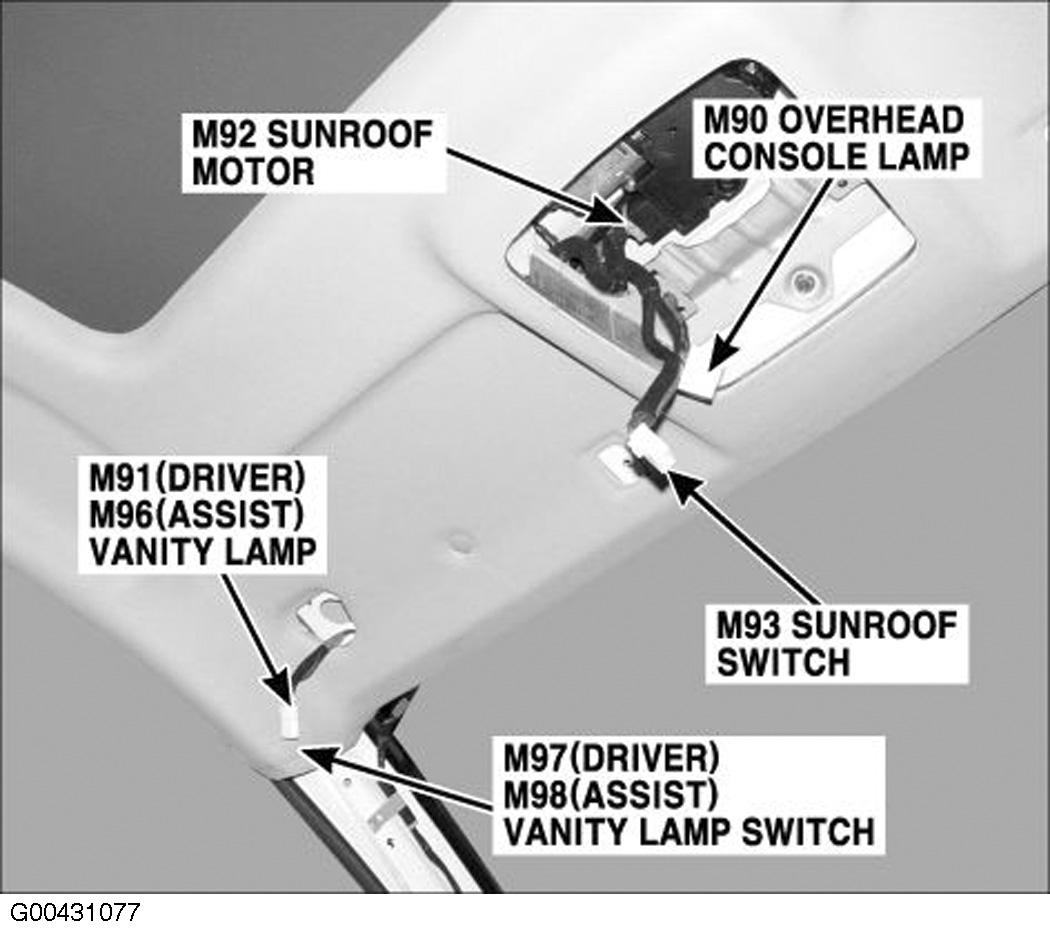

Fig 43: Center Front Of Roof
Courtesy of HYUNDAI MOTOR CO.

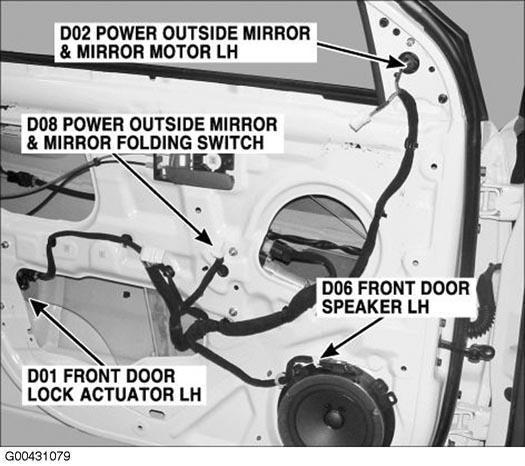

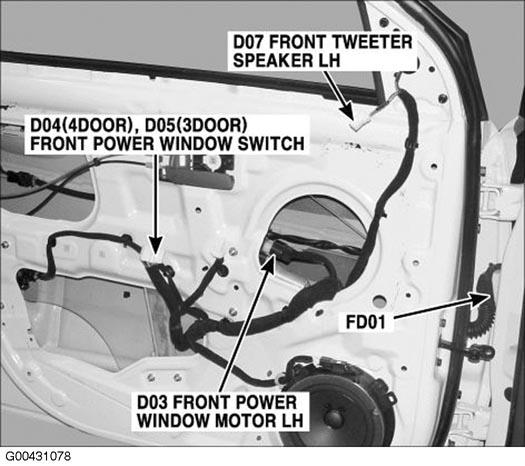

Fig 44: Left Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 45: Left Front Door
Courtesy of HYUNDAI MOTOR CO.

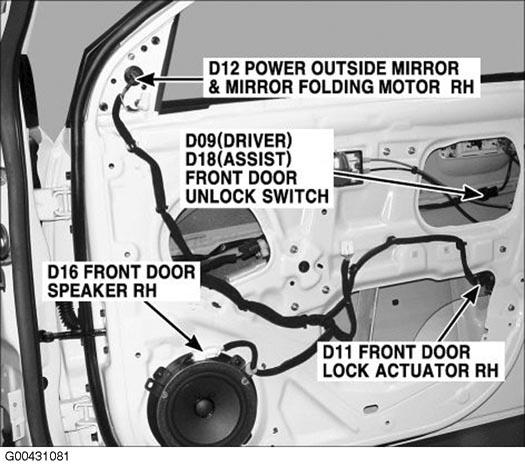

Fig 46: Right Front Door
Courtesy of HYUNDAI MOTOR CO.

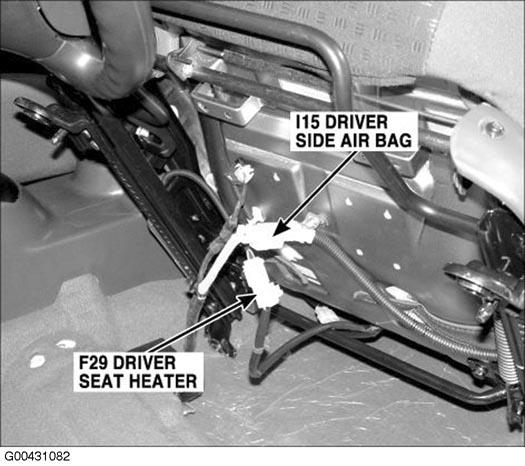

Fig 47: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.

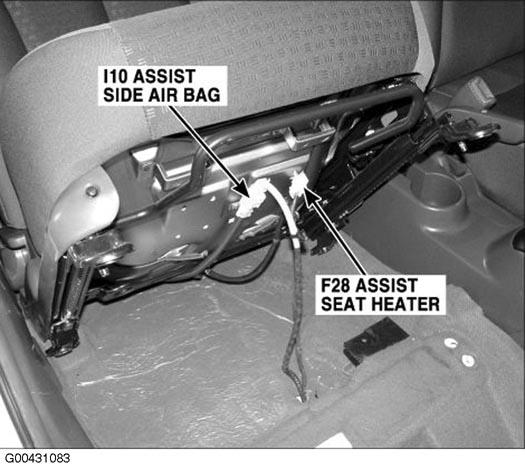

Fig 48: Under Assist Seat (Front Passenger)
Courtesy of HYUNDAI MOTOR CO.

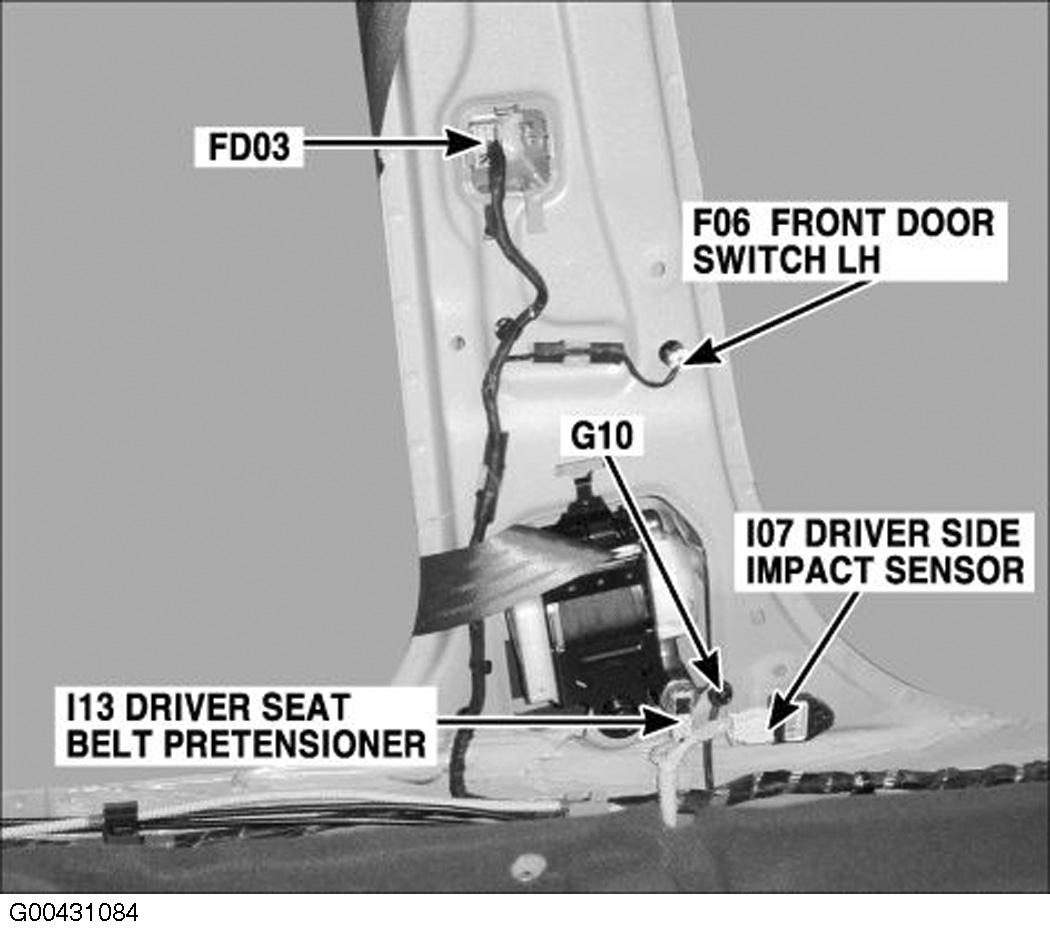

Fig 49: Left "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

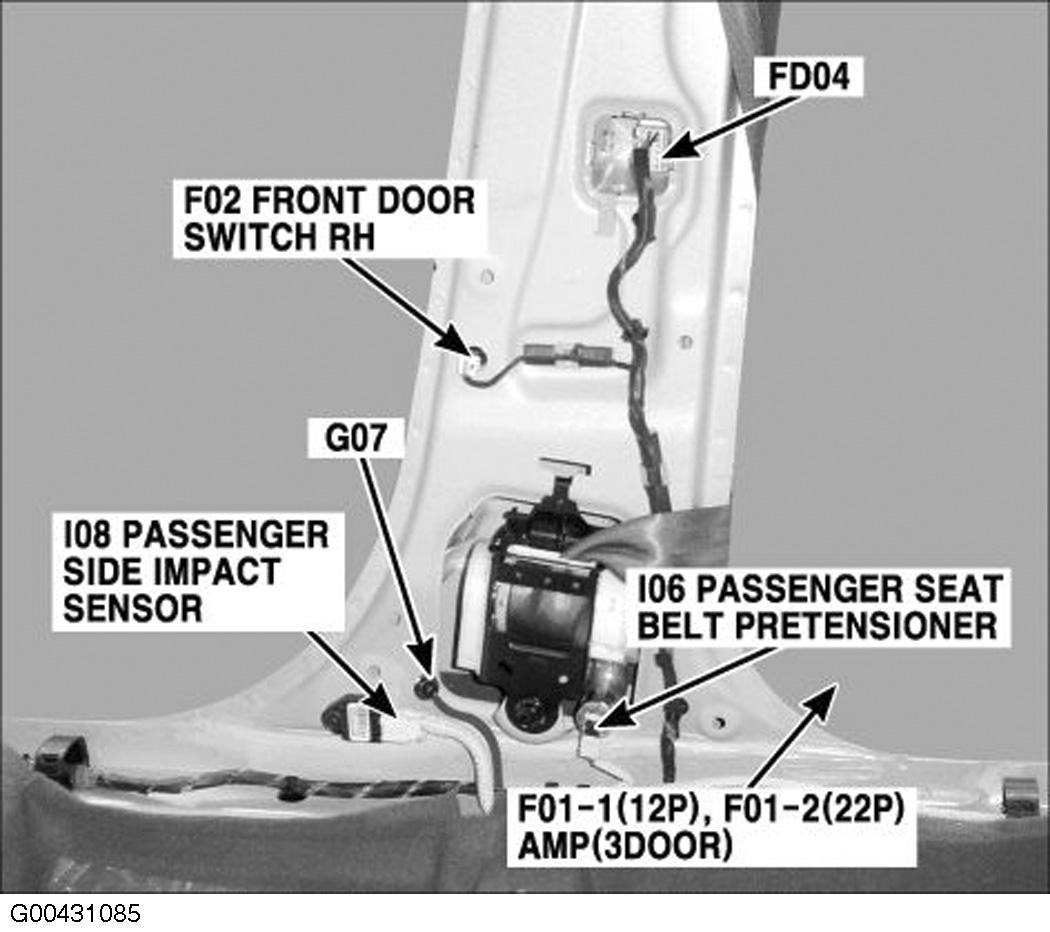

Fig 50: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

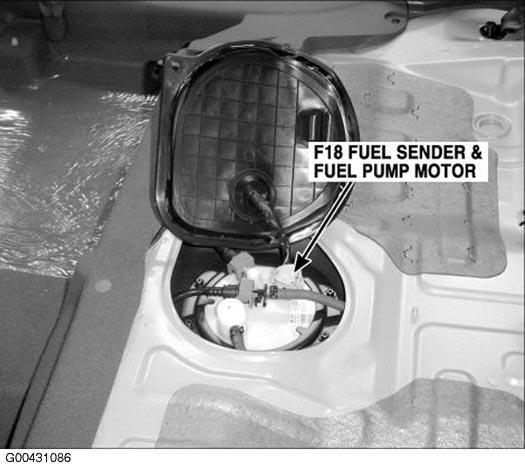

Fig 51: Under Rear Seats
Courtesy of HYUNDAI MOTOR CO.

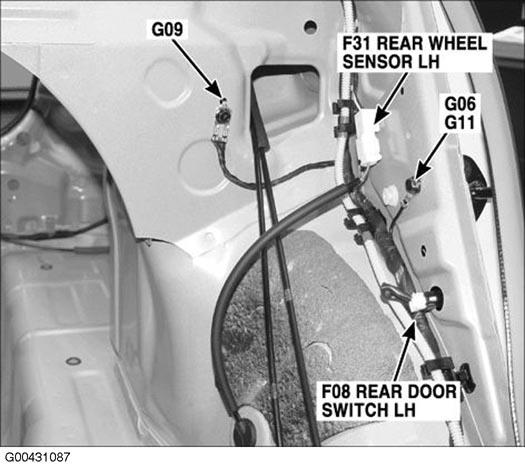

Fig 52: Lower Left "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

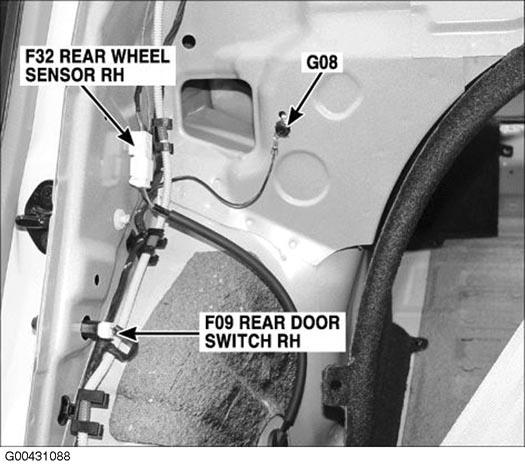

Fig 53: Lower Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

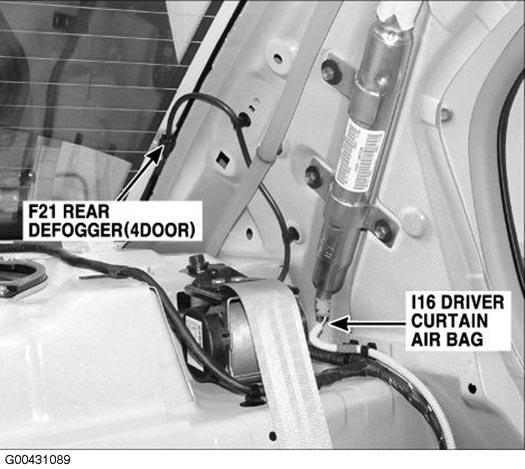

Fig 54: Left "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

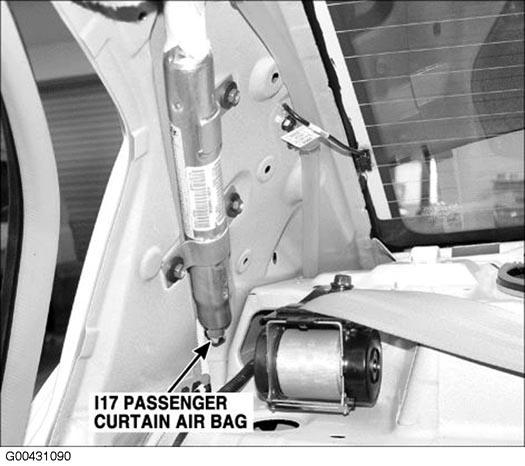

Fig 55: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

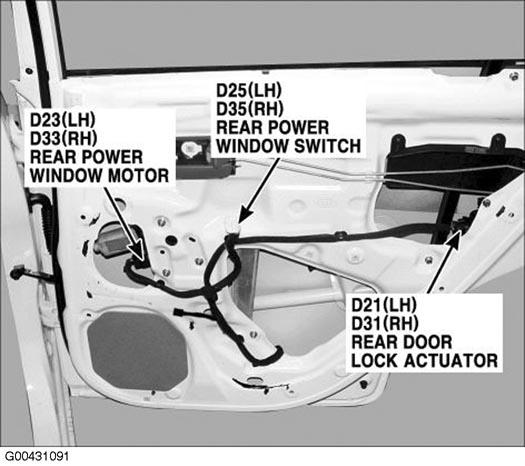

Fig 56: Right Rear Door (Left Similar)
Courtesy of HYUNDAI MOTOR CO.

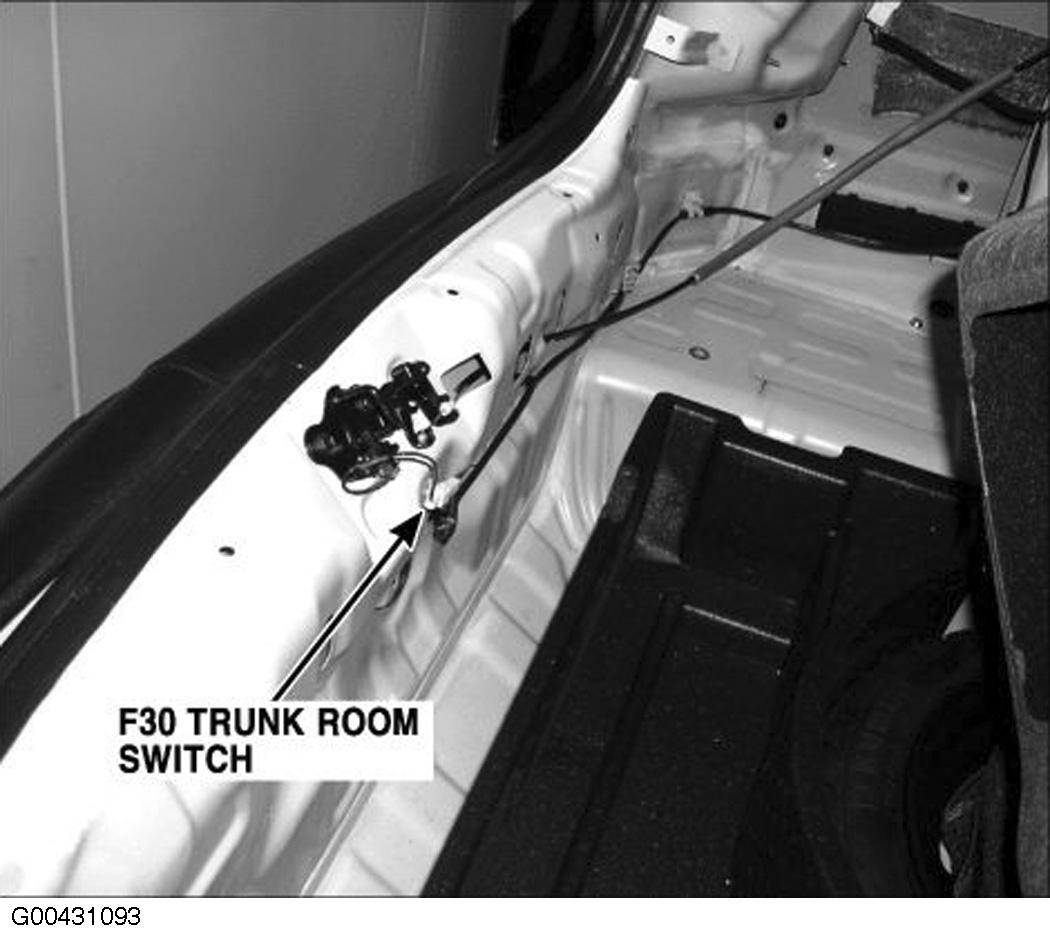

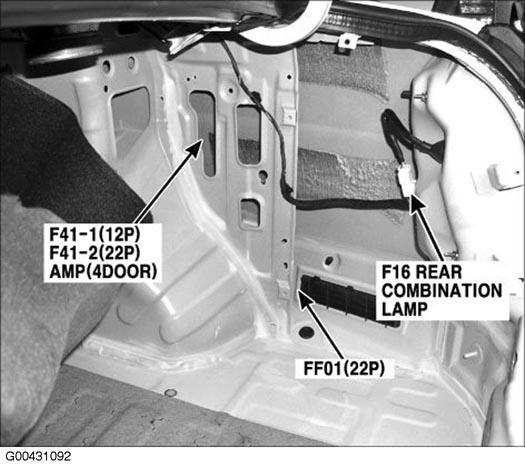

Fig 57: Right Side Of Trunk
Courtesy of HYUNDAI MOTOR CO.
Fig 58: Center Rear Of Trunk
Courtesy of HYUNDAI MOTOR CO.

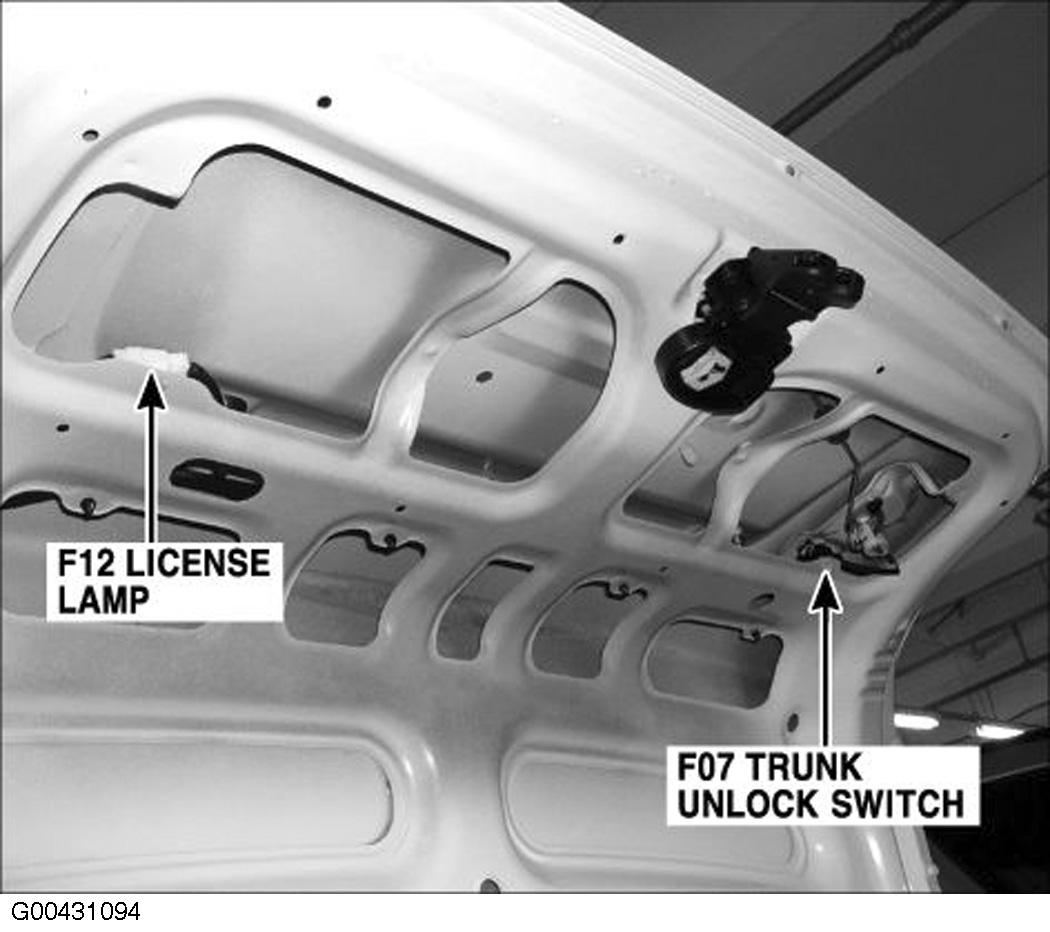

Fig 59: Trunk Lid
Courtesy of HYUNDAI MOTOR CO.

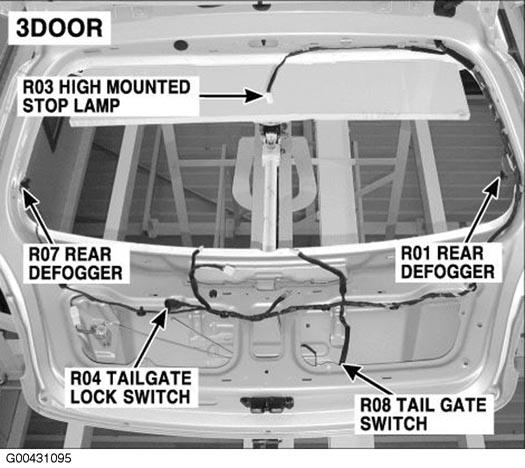

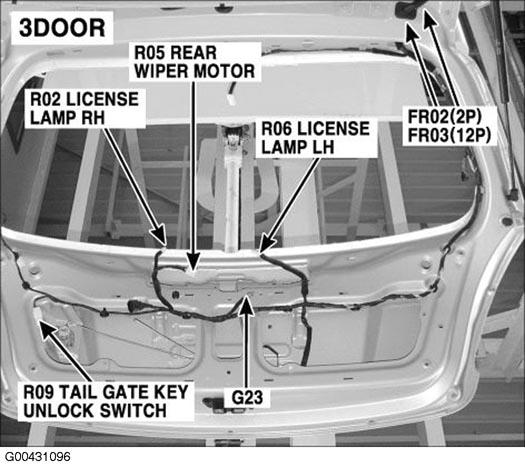

Fig 60: Tailgate
Courtesy of HYUNDAI MOTOR CO.
Fig 61: Tailgate
Courtesy of HYUNDAI MOTOR CO.

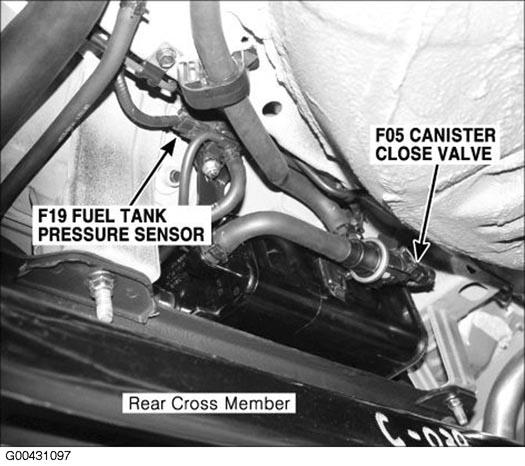

Fig 62: Rear Underside Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

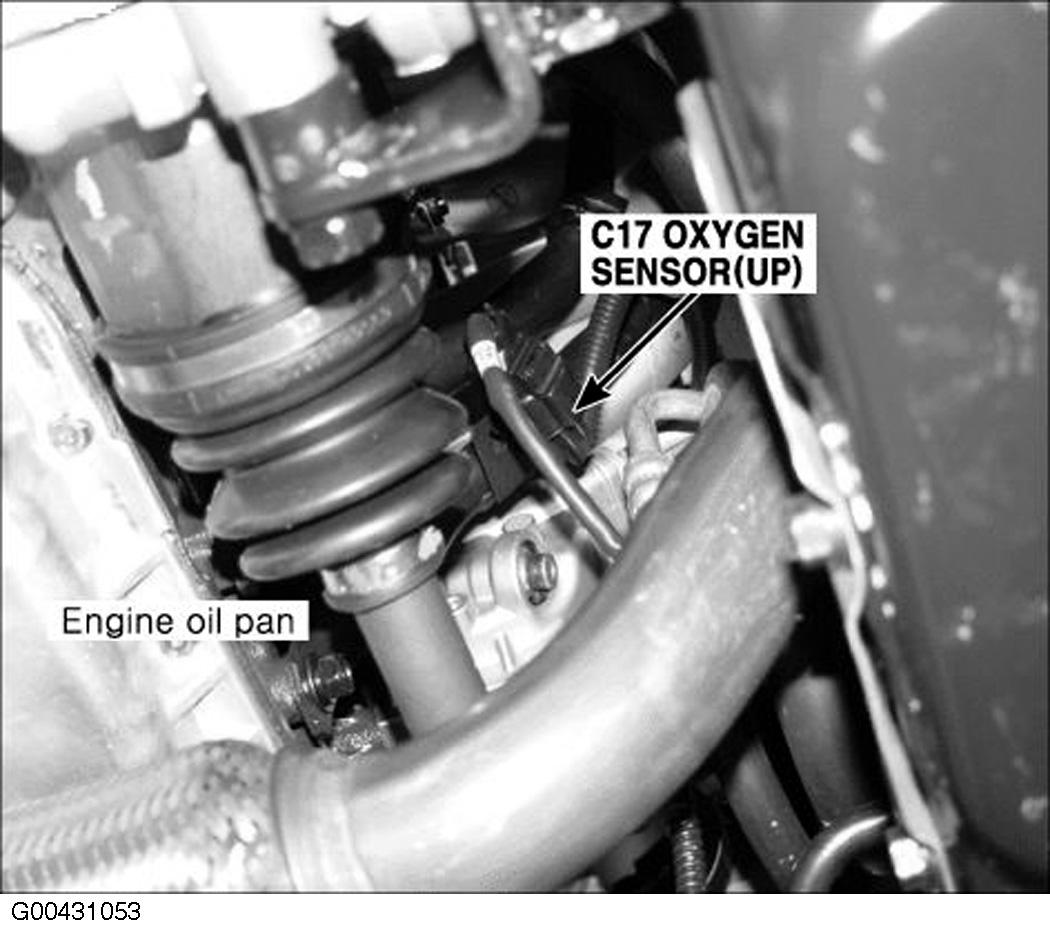

Fig 63: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
