Circuit Diagram

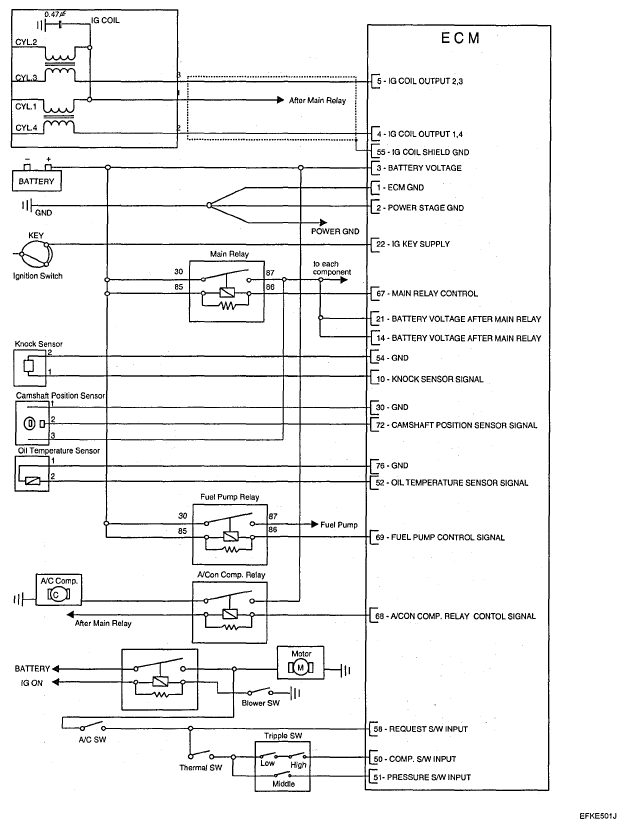

Fig 1: Engine Control System - Circuit Diagram (1 Of 3)
G04923775Courtesy of HYUNDAI MOTOR CO.

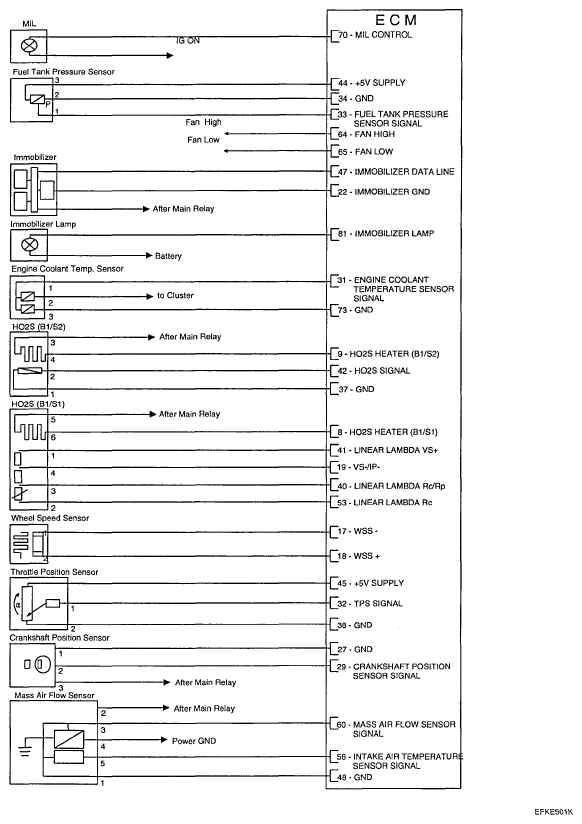

Fig 2: Engine Control System - Circuit Diagram (2 Of 3)
G04923776Courtesy of HYUNDAI MOTOR CO.

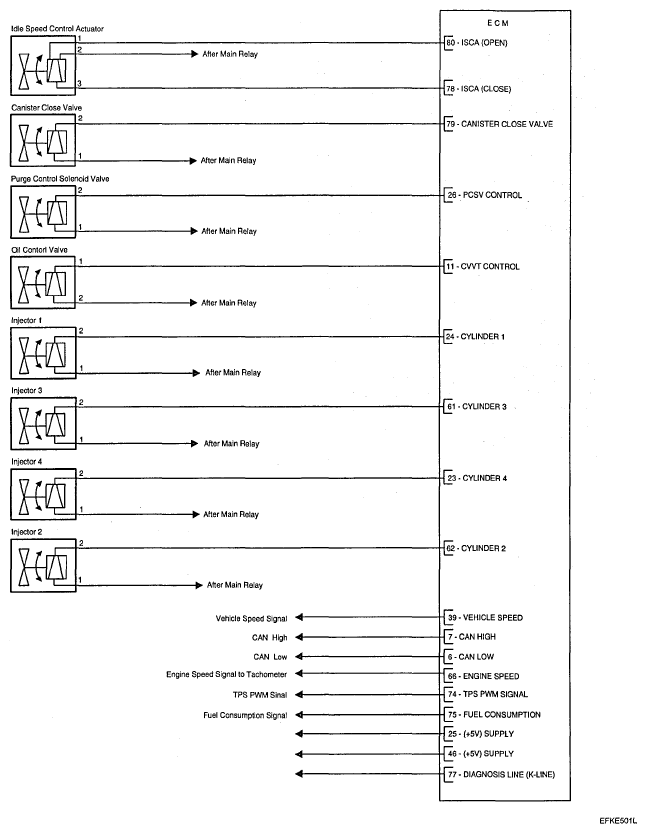

Fig 3: Engine Control System - Circuit Diagram (3 Of 3)
G04923777Courtesy of HYUNDAI MOTOR CO.
