Electric Control Location

The TCM is located below the dashboard. However, in the "BETA"-engine vehicles, there is not TCM but PCM.

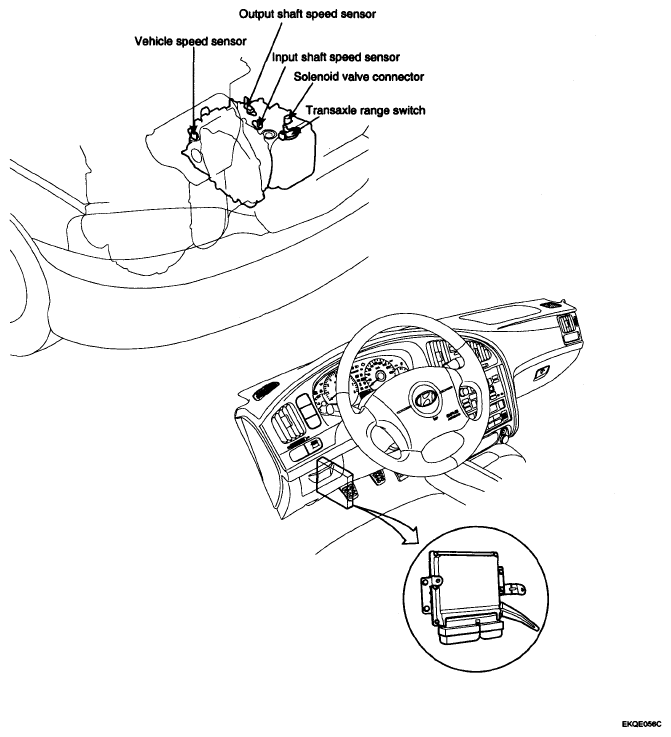

Fig 1: Identifying Dashboard Components, Vehicle Speed Sensor And Input Shaft Speed Sensor

Courtesy of HYUNDAI MOTOR CO.
