Oil Temperature Sensor: Replacement

  1. Remove the automatic transaxle assembly.
  2. Remove the valve body cover.
  3. Disconnect the oil temperature sensor connector.

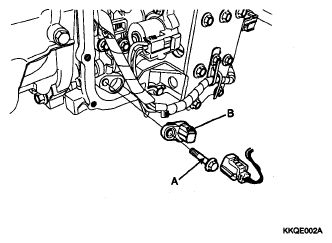

  4. Remove the oil temperature sensor (B), loosening the mounting bolt (A).
    Fig 1: Identifying Oil Temperature Sensor And Mounting Bolt
    G04811239Courtesy of HYUNDAI MOTOR CO.
  5. Replace the sensor with the new one and reassemble the rest parts.
