Body Control Module: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A) (Refer to the Body group - CRASH PAD ).
    Fig 1: Identifying Crash Pad Lower Panel
    G04802948Courtesy of HYUNDAI MOTOR CO.
  3. Remove the body control module (A) after loosening 2 nuts.

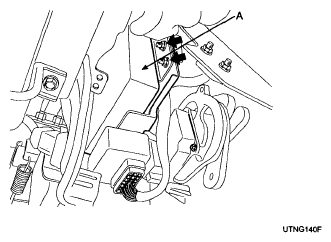

    Fig 2: Identifying Body Control Module
    G04802949Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
