Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim panel. (Refer to the REAR DOOR TRIM REPLACEMENT )
  3. Disconnect the 10P connector from the switch.
    Fig 1: Identifying Rear Power Window Switch Connector
    G04881504Courtesy of HYUNDAI MOTOR CO.
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

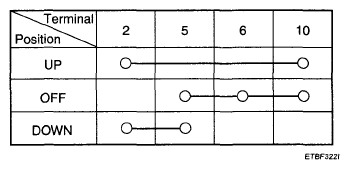

    Fig 2: Rear Power Window Switch Continuity Chart
    G04881505Courtesy of HYUNDAI MOTOR CO.
