Hi-Scan (Pro) Check: Notes

  1. Turn the ignition switch OFF.
  2. Connect the Hi-scan (pro) to the 16P data link connector located under the driver's side kick panel.

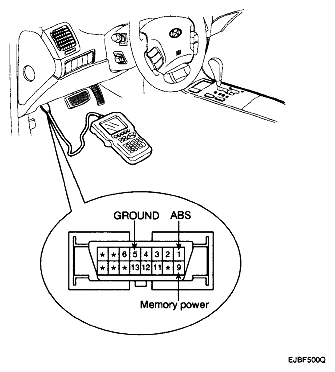

    Fig 1: Connecting Hi-Scan (Pro) To 16P Data Link Connector
    G04880924Courtesy of HYUNDAI MOTOR CO.
  3. Turn the ignition switch ON.
  4. Check for diagnostic trouble code using the Hi-scan (pro)
  5. After completion trouble of the repair or correction of the problem, erase the stored fault codes using the clear key on the Hi-scan (pro).
  6. Disconnect the Hi-scan (pro) from the 16P data link connector.
