Home >> Hyundai >> 2007 >> Azera GLS >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Alternator >> Component

Charging System: Alternator: Component

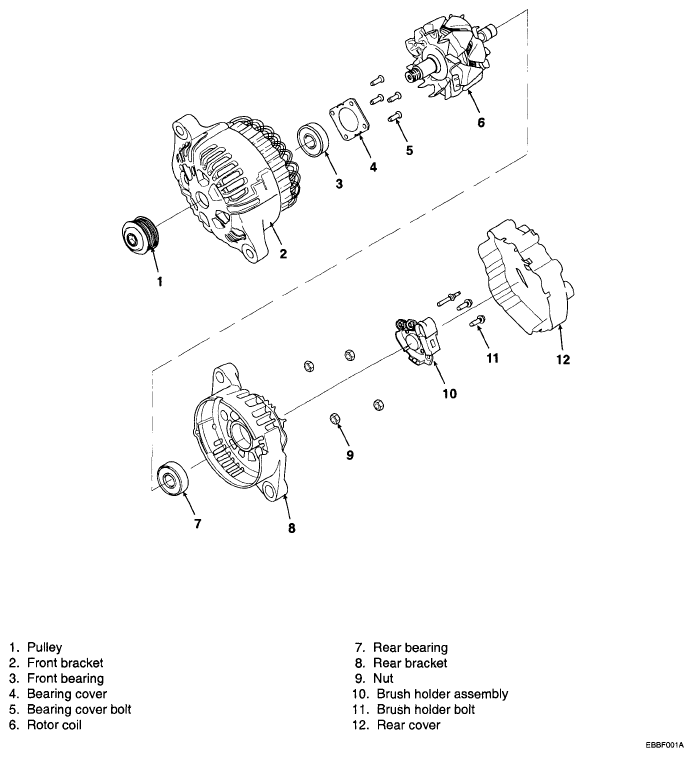

Fig 1: Exploded View Of Alternator

G04879727

Courtesy of HYUNDAI MOTOR CO.
