Front Stabilizer Bar: Installation

  1. Install the bushing (B) on the stabilizer bar (A).

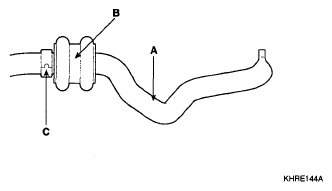

    Fig 1: Identifying Bushing On Stabilizer Bar
    G04880417Courtesy of HYUNDAI MOTOR CO.
    NOTE: Bring clamp (C) of stabilizer bar (A) into contact with bushing (B).
  2. Install the bracket on the bushing (B).
  3. After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite side.
  4. Install the stabilizer bar bracket mounting bolts (A) to the sub frame.

    Tightening torque Nm (kgf.m, lb-ft):

    45 ~ 55 (4.5 ~ 5.5, 32.5 ~ 39.8)

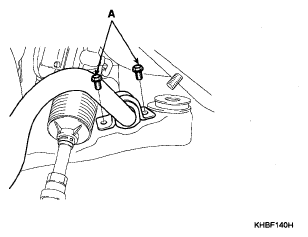

    Fig 2: Identifying Stabilizer Bar Assembly Mounting Bolts
    G04880414Courtesy of HYUNDAI MOTOR CO.
  5. After lifting the jack which supports the sub frame, install the eight bolts and nuts of the sub frame.

    Tightening torque Nm (kgf.m, lb-ft):

    140 ~ 160 (14 ~ 16, 101.2 ~ 115.7)

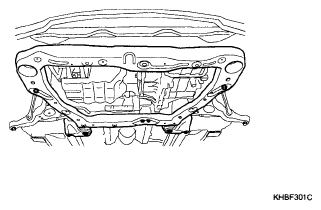

    Fig 3: Identifying Sub Frame Bolts And Nuts
    G04880413Courtesy of HYUNDAI MOTOR CO.
  6. Install the engine mounting bolts (A, B)

    Tightening torque Nm (kgf.m, lb-ft):

    50 ~ 65 (5 ~ 6.5, 36.2 ~ 47.0)

    Fig 4: Identifying Engine Mounting Bolts
    G04880412Courtesy of HYUNDAI MOTOR CO.
  7. Install the connecting bolt (A) between the steering universal joint assembly and the pinion assembly.

    Tightening torque Nm (kgf.m, lb-ft):

    15 ~ 20 (1.5 ~ 2.0, 10.8 ~ 14.5)

    Fig 5: Identifying Steering Universal Joint Assembly Connecting Bolt
    G04880411Courtesy of HYUNDAI MOTOR CO.
  8. Install both sides of the connecting bolts (A) between the lower arm and the fork.

    Tightening torque Nm (kgf.m, lb-ft):

    140 ~ 160 (14 ~ 16, 101.2 ~ 115.7)

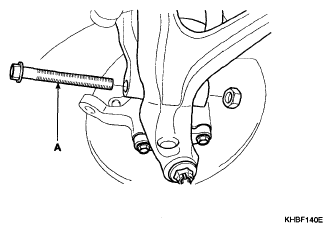

    Fig 6: Identifying Lower Arm And Fork Connecting Bolts
    G04880410Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Be careful not to damage to the aluminum lower arm.
  9. Install both sides of the lower arm mounting bolts (A).

    Tightening torque Nm (kgf.m, lb-ft):

    100 ~ 120 (10 ~ 12, 72.3 ~ 86.8)

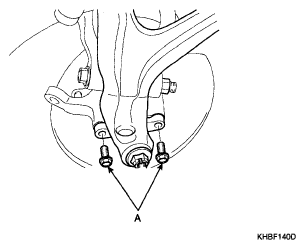

    Fig 7: Identifying Knuckle Bolts
    G04880264Courtesy of HYUNDAI MOTOR CO.
  10. Install both sides of the tie rod end self-locking nuts (A).

    Tightening torque Nm (kgf.m, lb-ft):

    50 ~ 55 (5 ~ 5.5, 36.2 ~ 39.8)

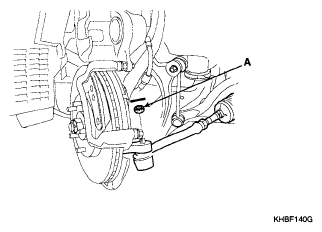

    Fig 8: Identifying Tie Rod End Self-Locking Nuts
    G04880407Courtesy of HYUNDAI MOTOR CO.
  11. Install the stabilizer link (B) to the fork (A).

    Tightening torque Nm (kgf.m, lb-ft):

    100 ~ 120 (10 ~ 12, 72.3 ~ 86.8)

    Fig 9: Identifying Stabilizer Link And Fork
    G04880425Courtesy of HYUNDAI MOTOR CO.
  12. Install the wheel and the tire (A) to the front hub (B).

    Tightening torque Nm (kgf.m, lb-ft):

    90 ~ 110 (9 ~ 11, 65.1 ~ 79.5)

    Fig 10: Identifying Front Wheel, Tire And Front Hub
    G04880366Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
