Home >> Hyundai >> 2007 >> Azera GLS >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Strut Assembly >> Components

Front Strut Assembly: Components

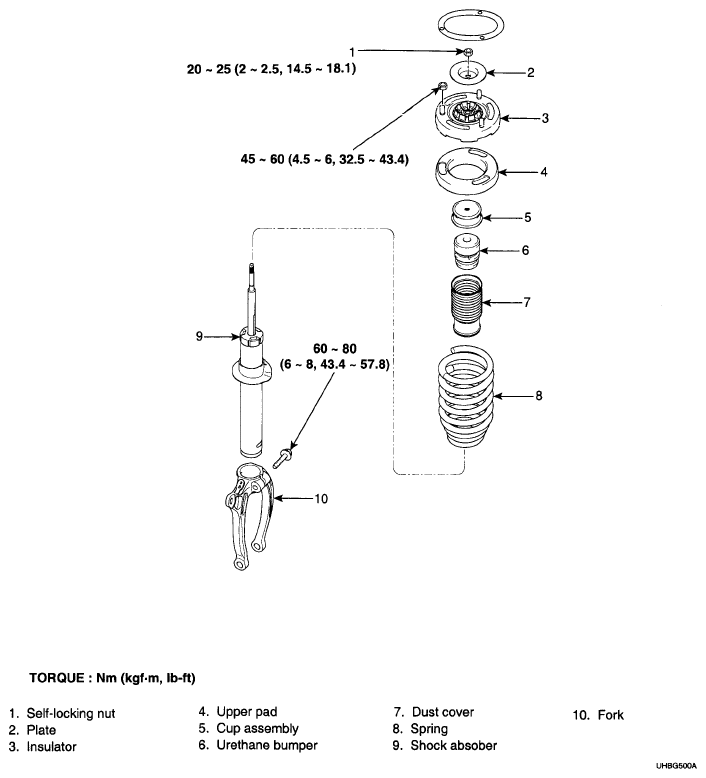

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications

G04880365

Courtesy of HYUNDAI MOTOR CO.
