Home >> Hyundai >> 2007 >> Azera GLS >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Strut Assembly >> Disposal

Front Strut Assembly: Disposal

  1. Fully extend the piston rod.
  2. Drill a hole on the A section to remove gas from the cylinder.

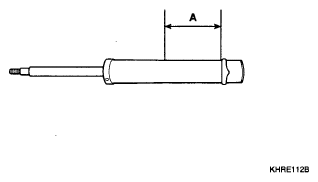

    Fig 1: Identifying Cylinder Drill Hole Location
    G04880374Courtesy of HYUNDAI MOTOR CO.
CAUTION: The gas coming out is harmless, but be careful of chips that may fly when drilling.
