Power Window Relay: Troubleshooting

  1. No windows operate from the main switch on the driver's door.
    Fig 1: No Windows Operate From Main Switch - Troubleshooting Chart
    G05365509Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.

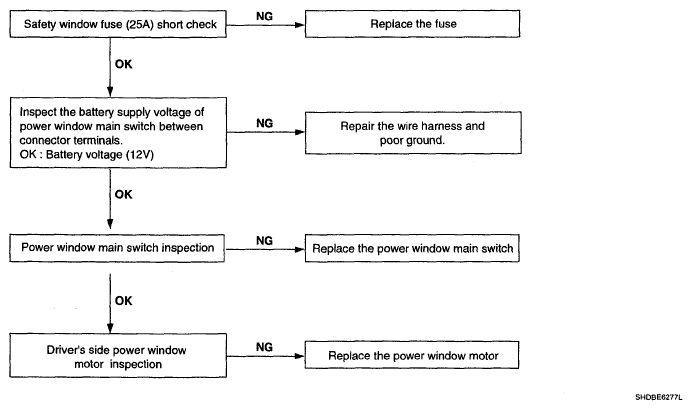

    Fig 2: Driver's Side Window Does Not Operate - Troubleshooting Chart
    G05365510Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.

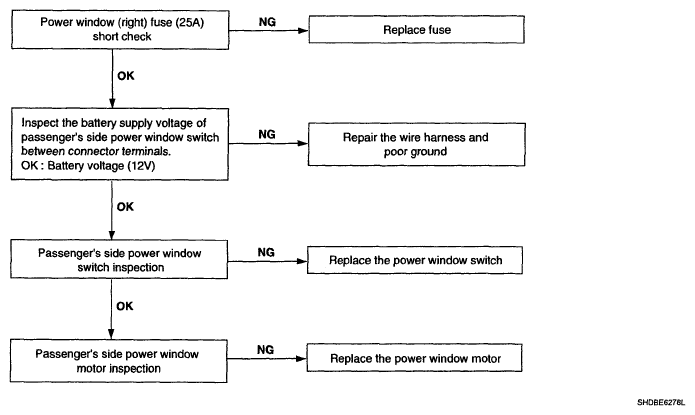

Fig 3: Passenger's Side Window Does Not Operate - Troubleshooting Chart
G05365511Courtesy of HYUNDAI MOTOR CO.
