Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

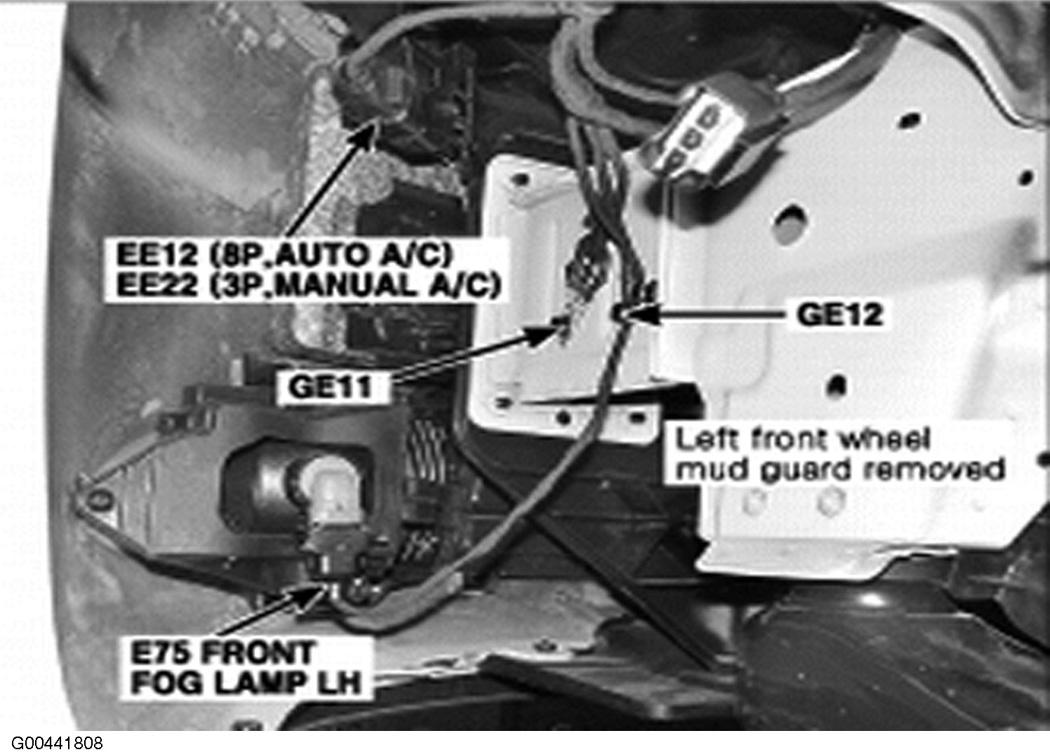

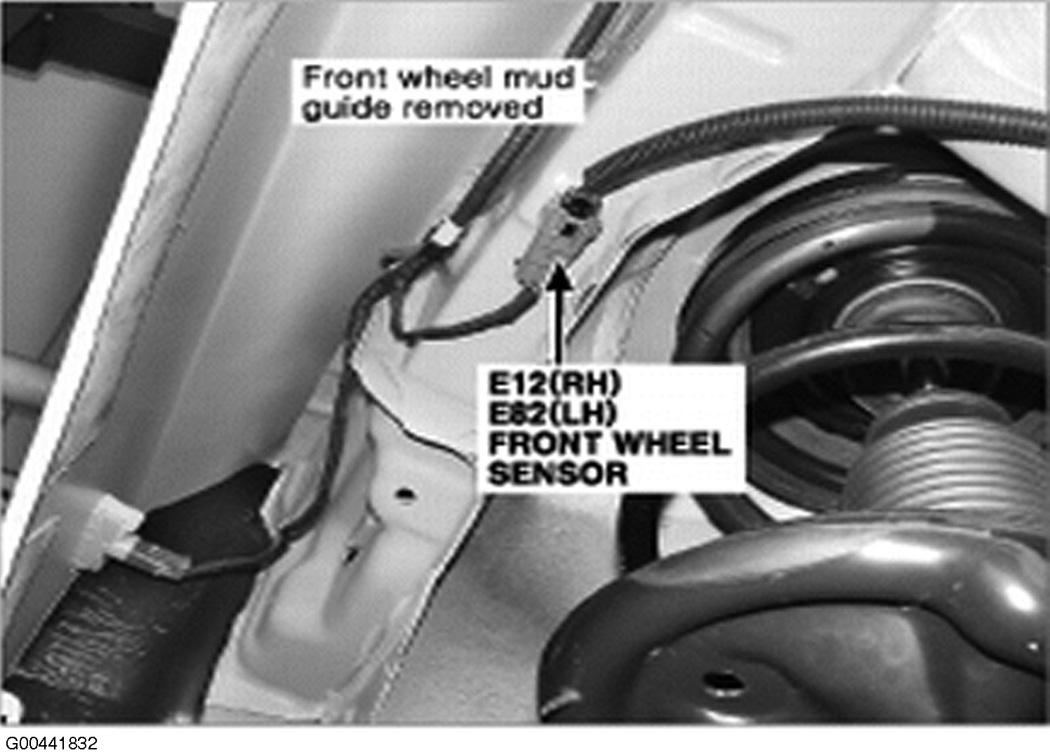

Fig 1: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

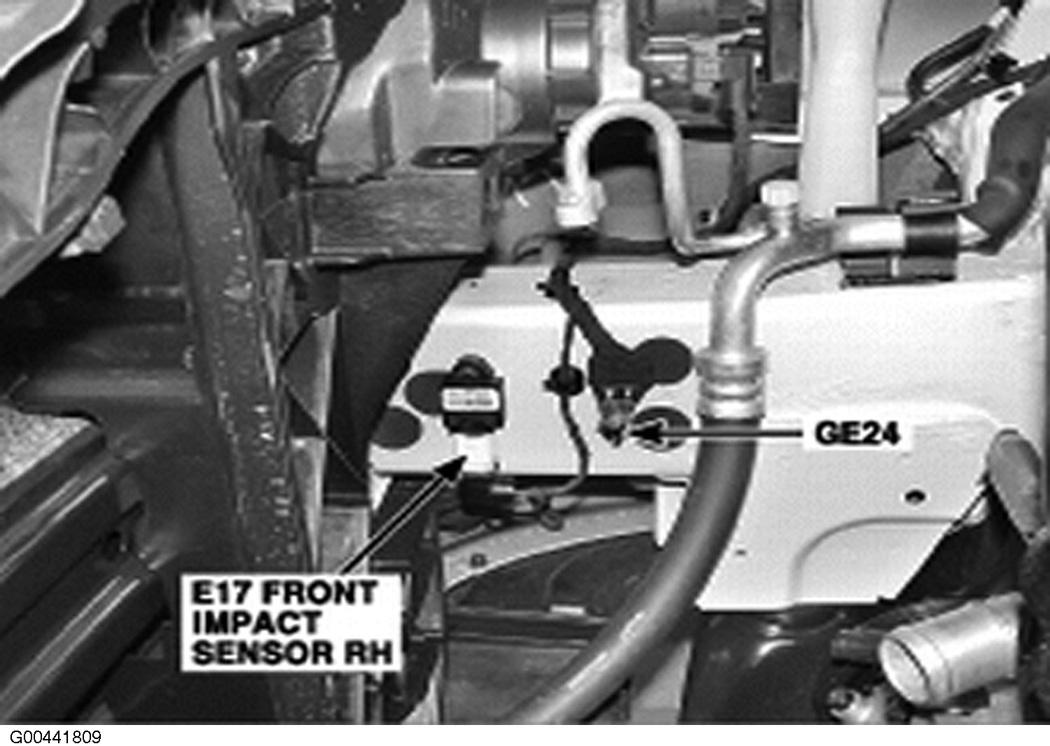

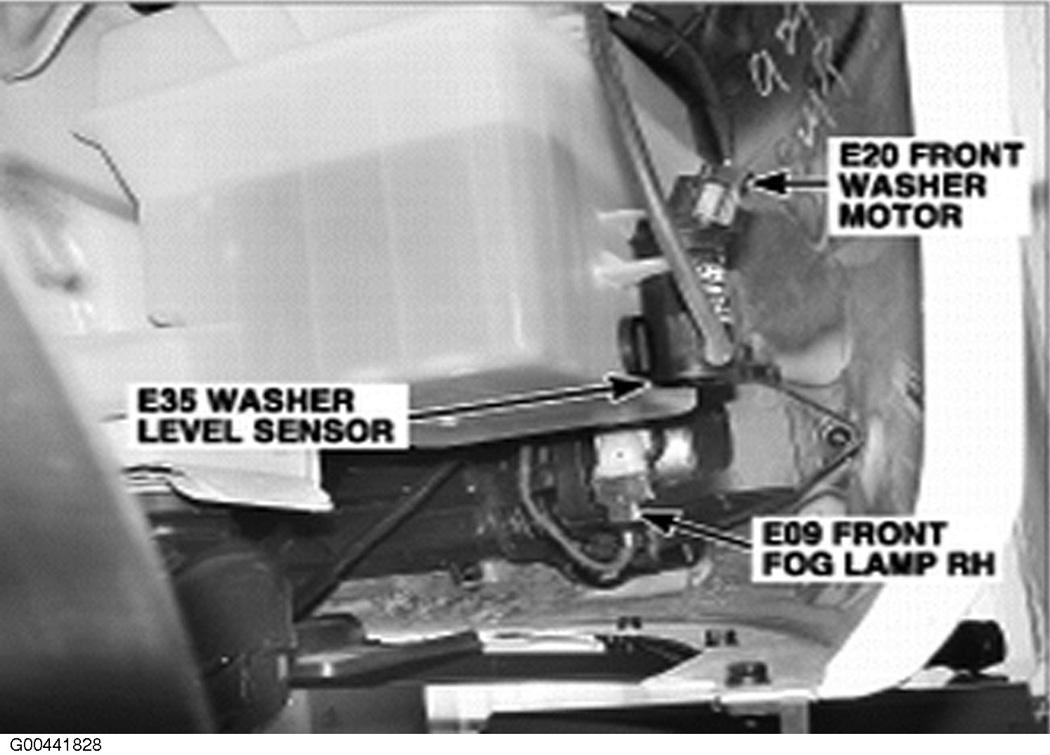

Fig 2: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

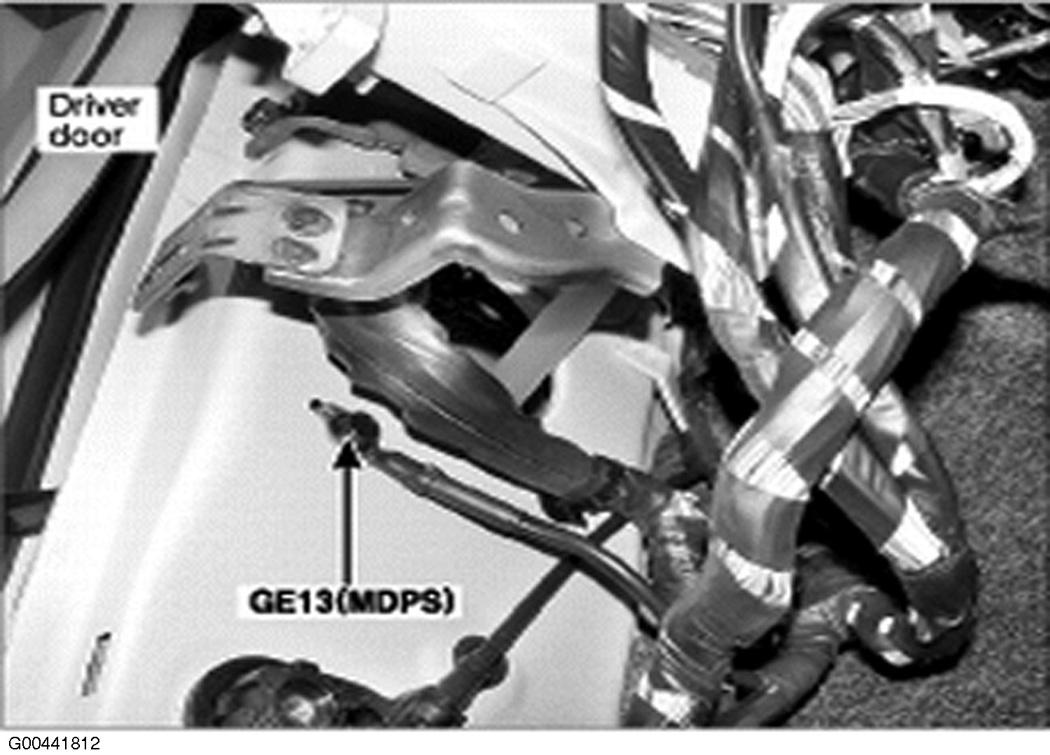

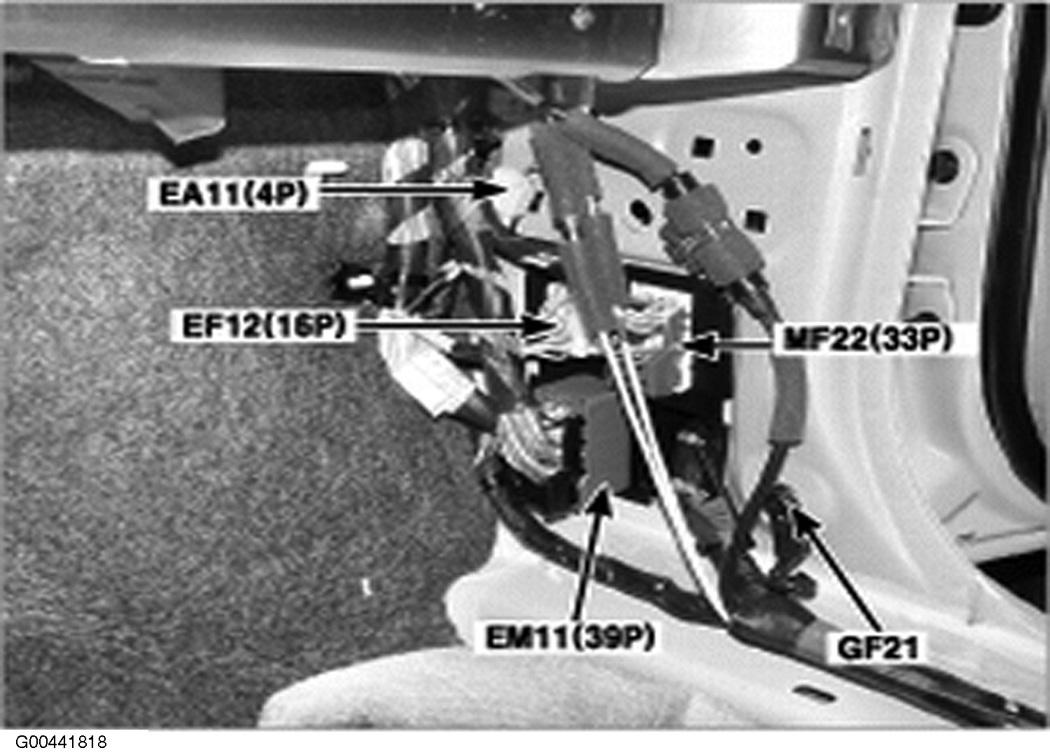

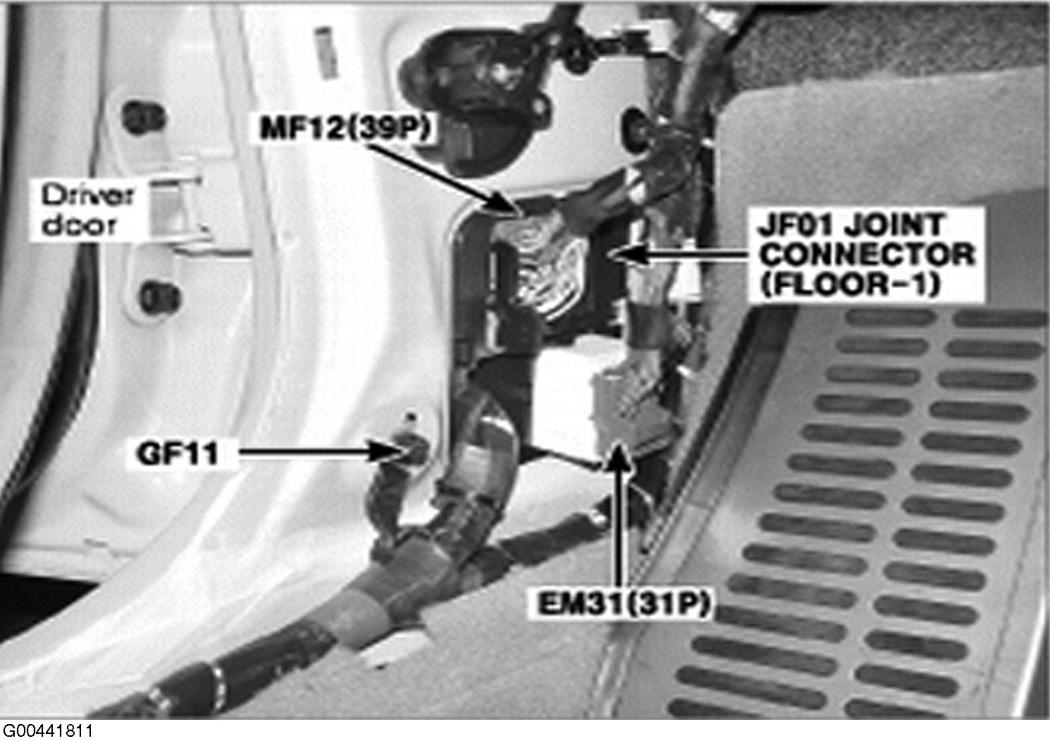

Fig 4: Lower Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 5: Upper Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 6: Behind Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

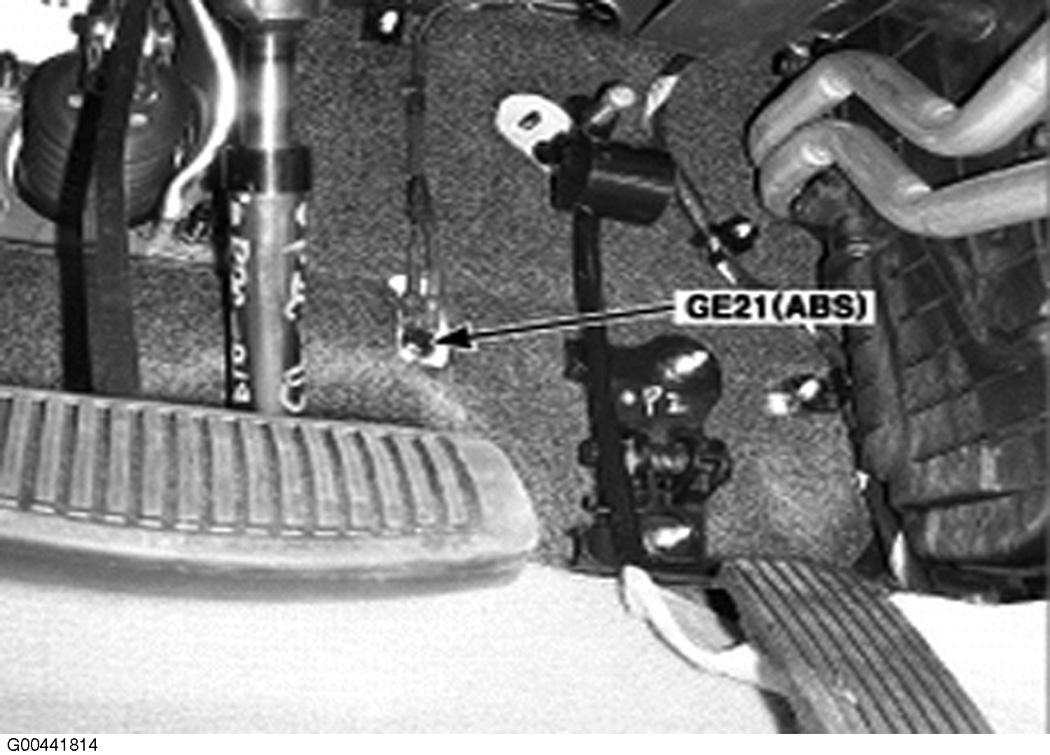

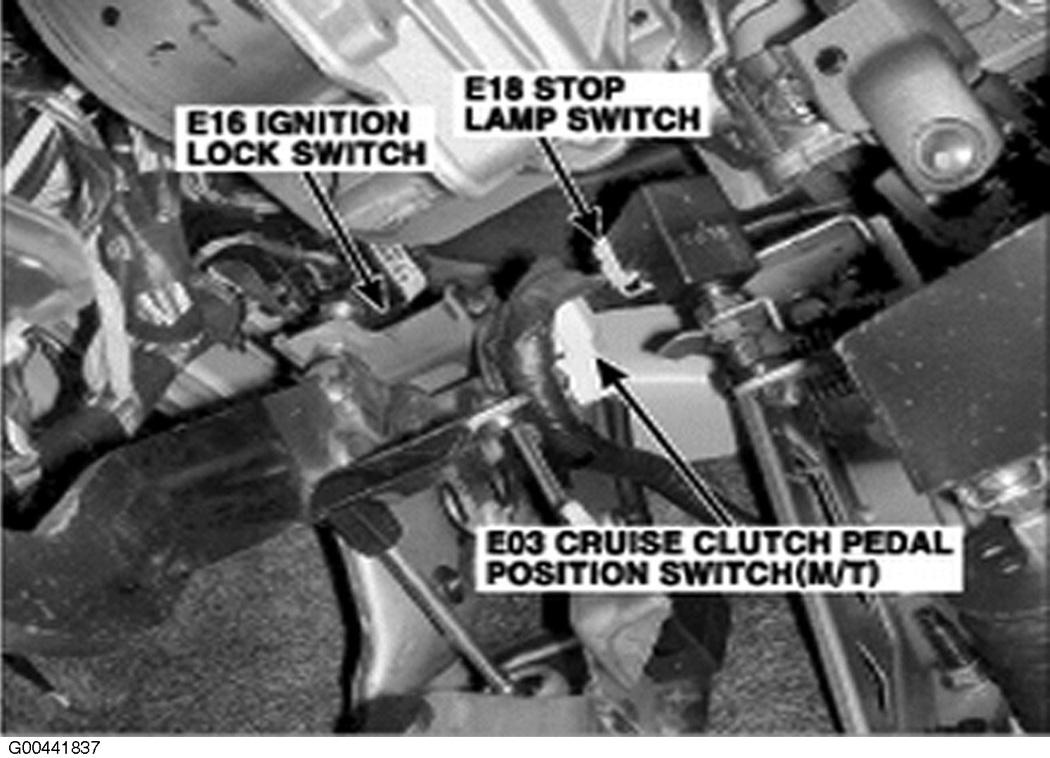

Fig 7: Front Of Driver's Footwell
Courtesy of HYUNDAI MOTOR CO.

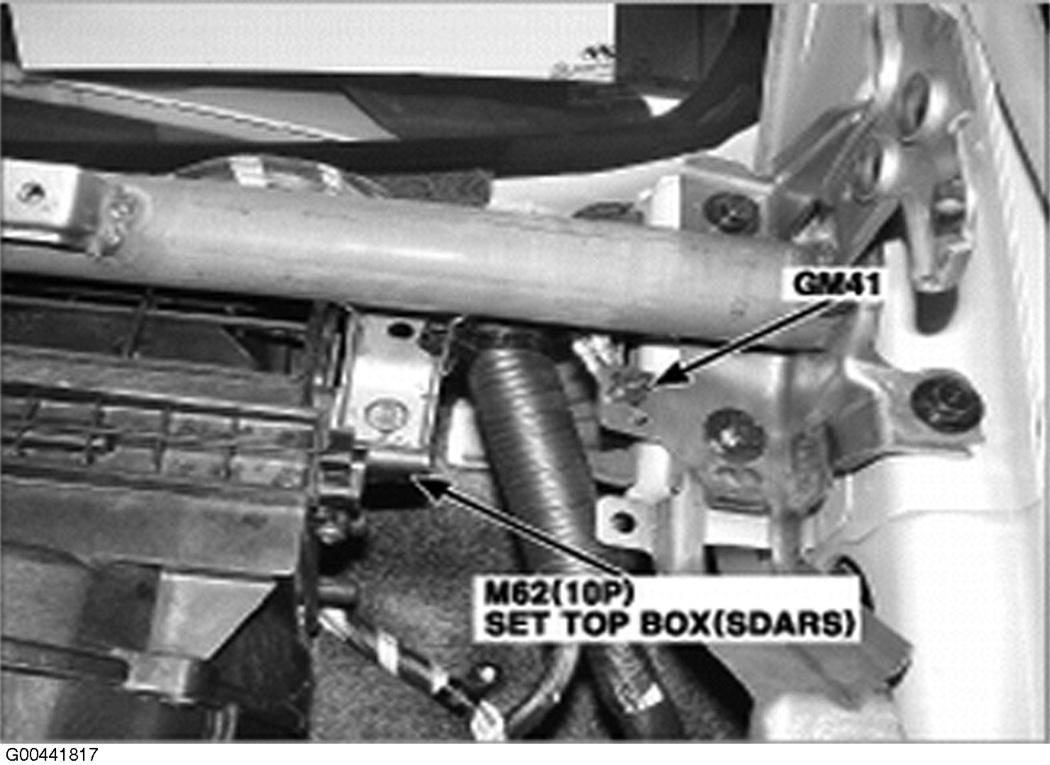

Fig 8: Behind Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 9: Under Center Console
Courtesy of HYUNDAI MOTOR CO.

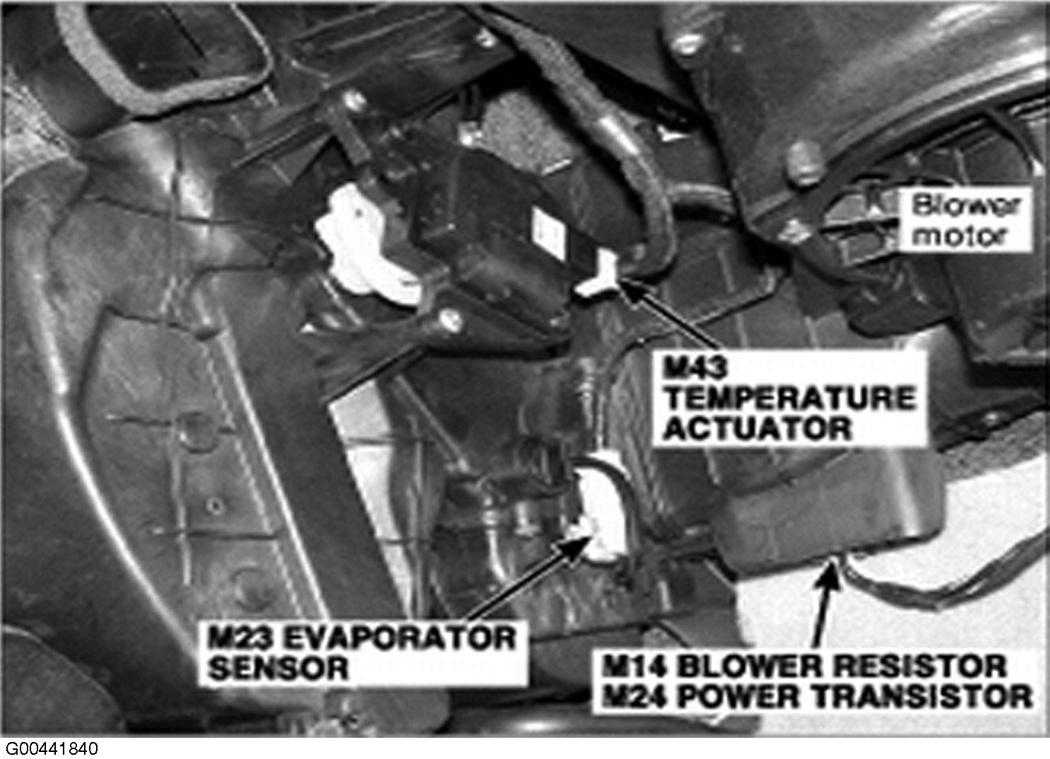

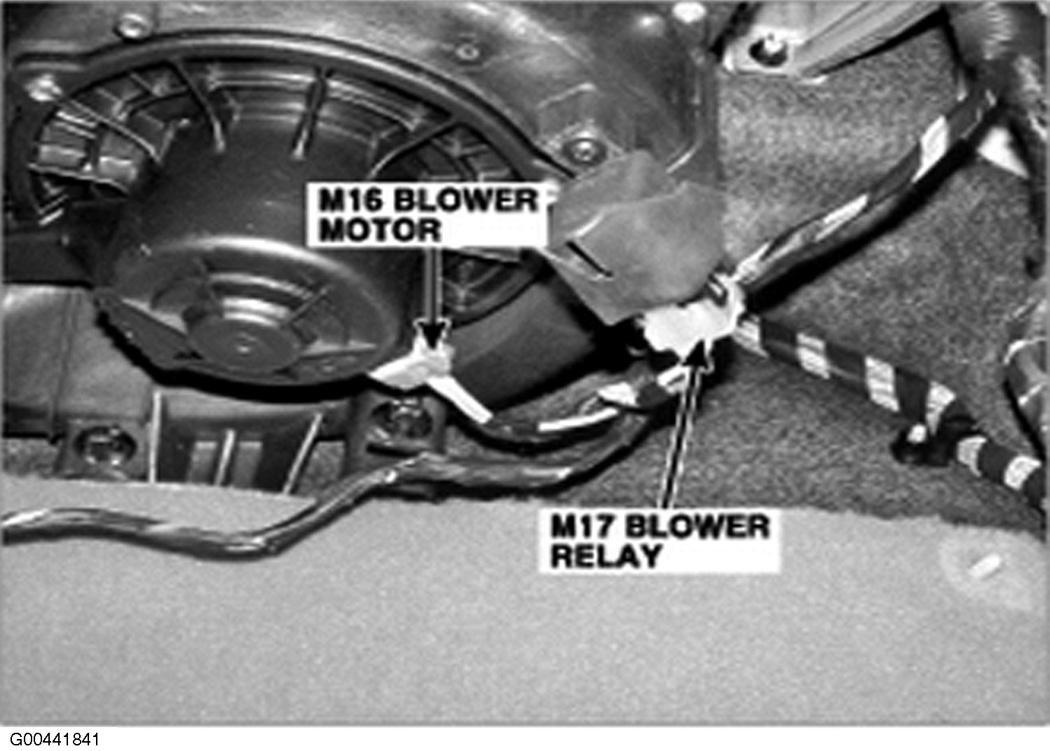

Fig 10: Below Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 11: Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.

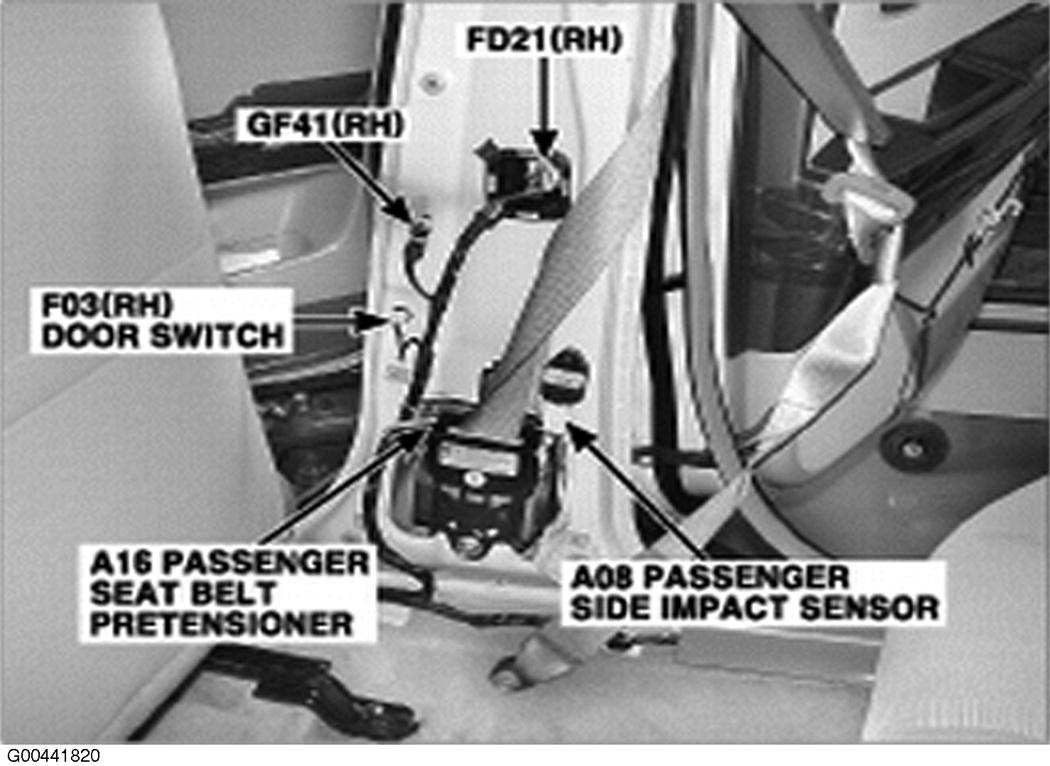

Fig 12: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

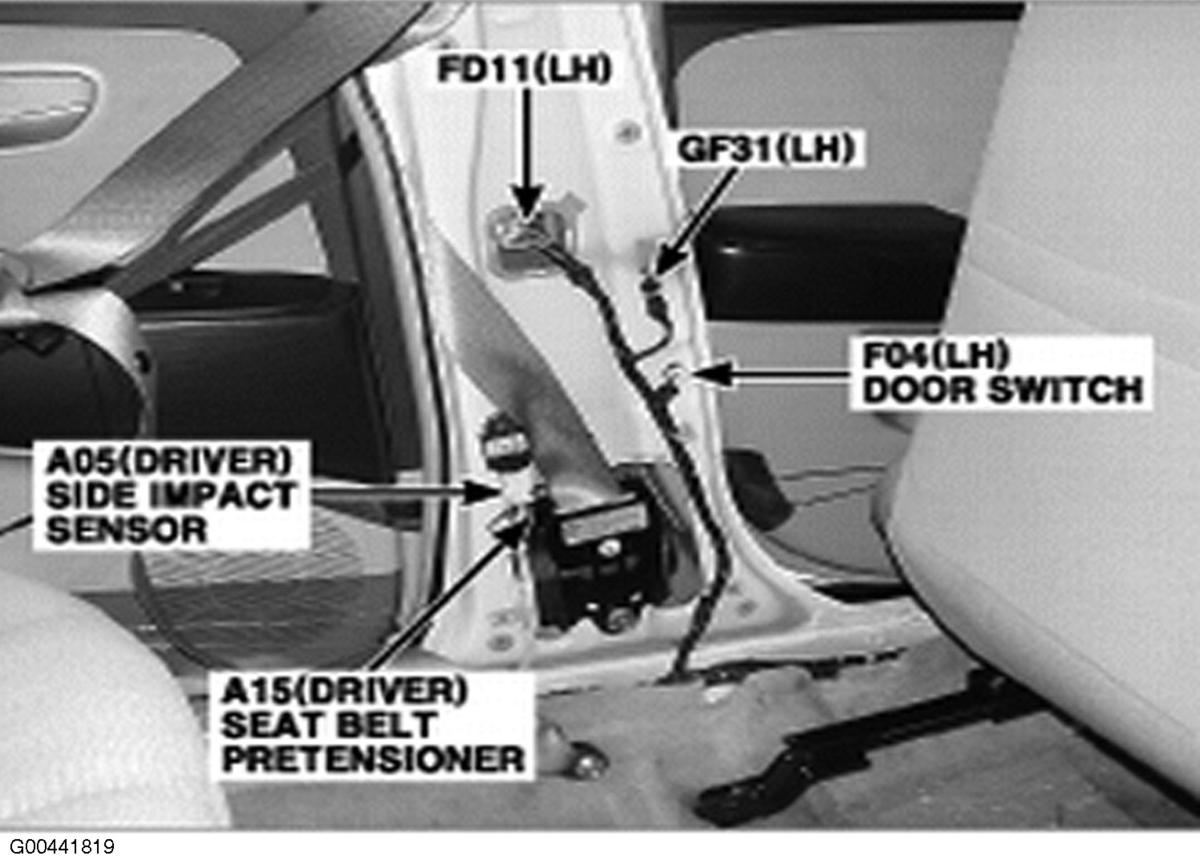

Fig 13: Left "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

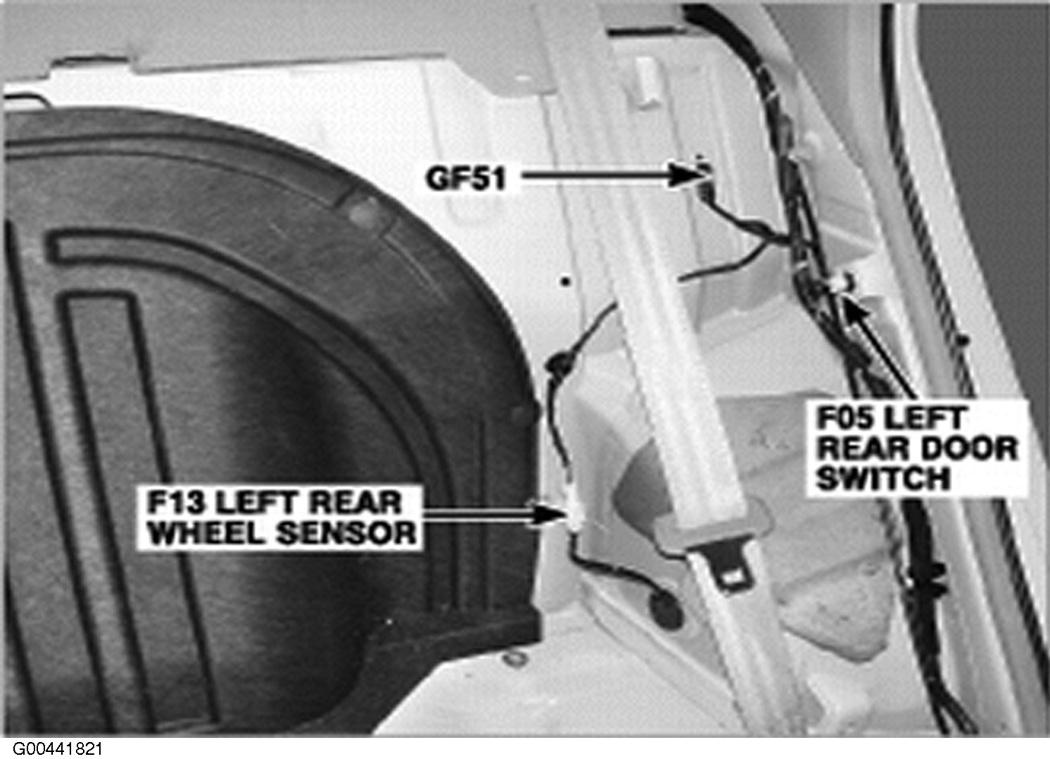

Fig 14: Left "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

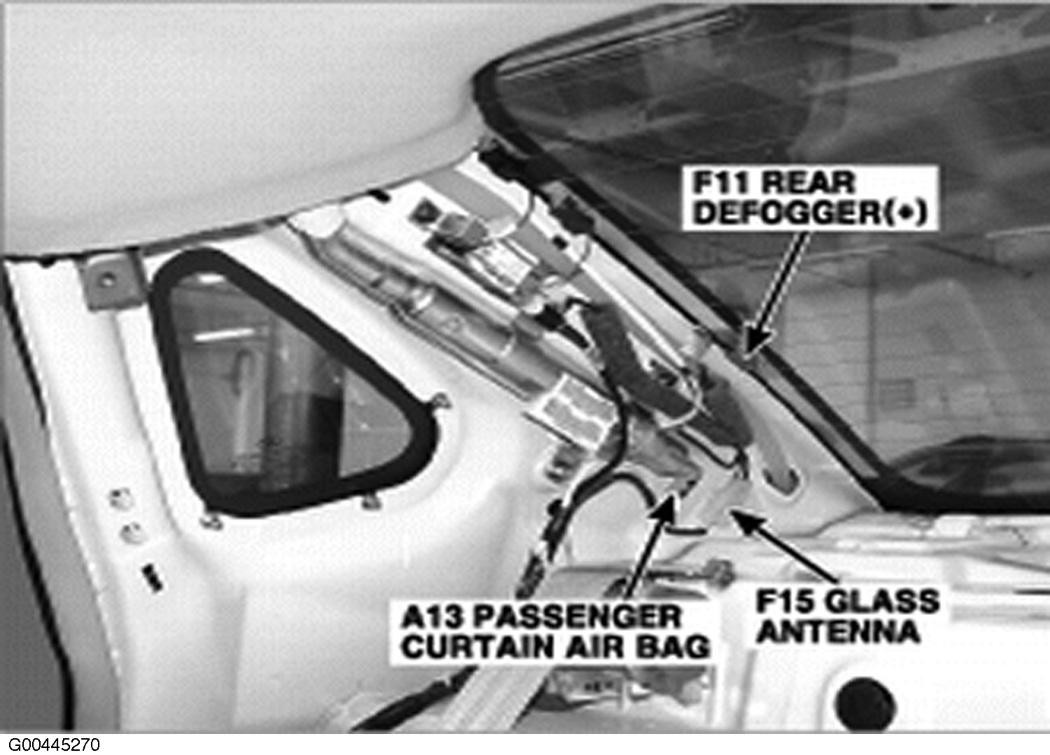

Fig 15: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

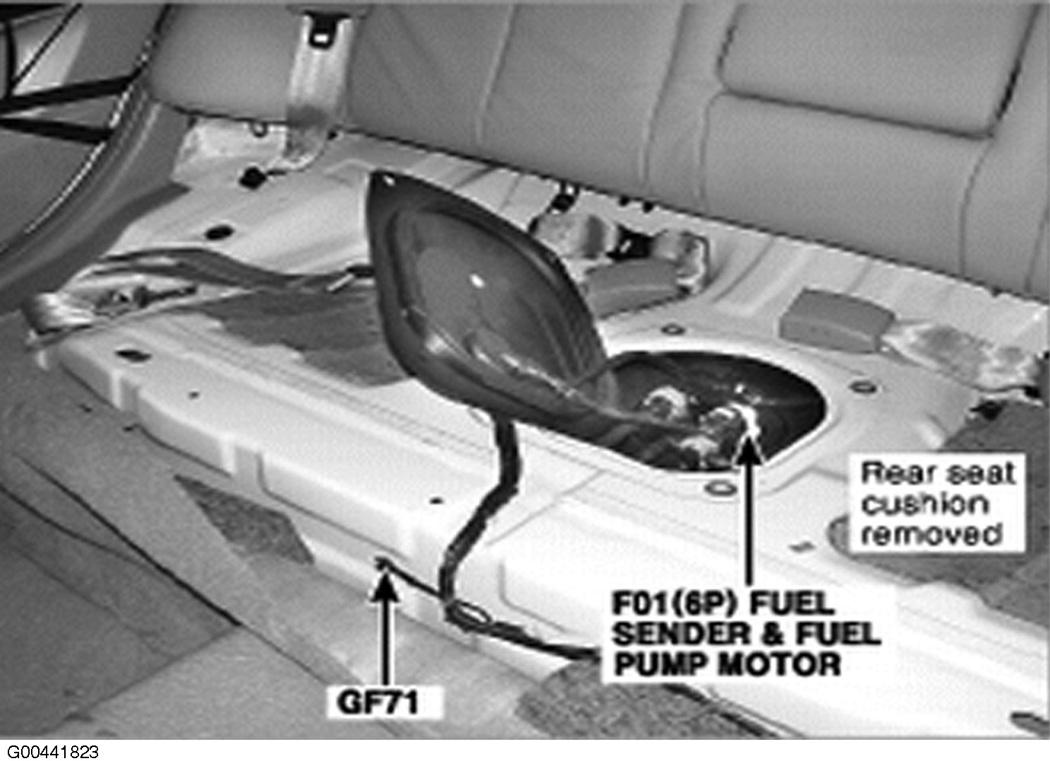

Fig 16: Below Rear Seat
Courtesy of HYUNDAI MOTOR CO.

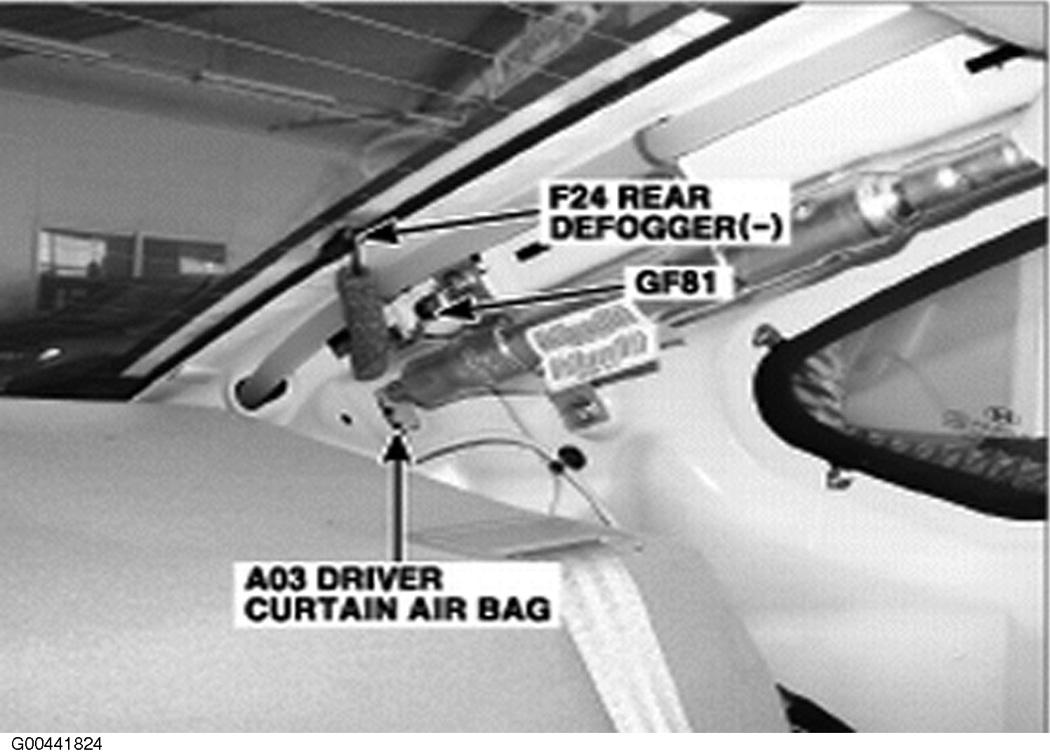

Fig 17: Top Of Left "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

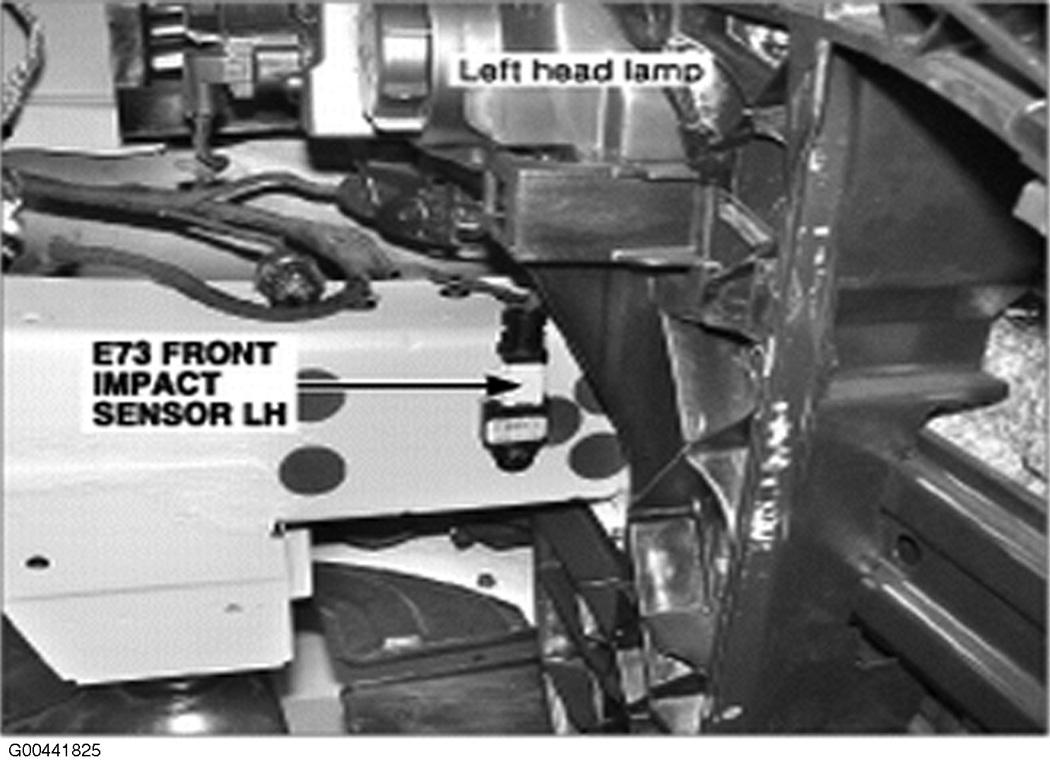

Fig 18: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

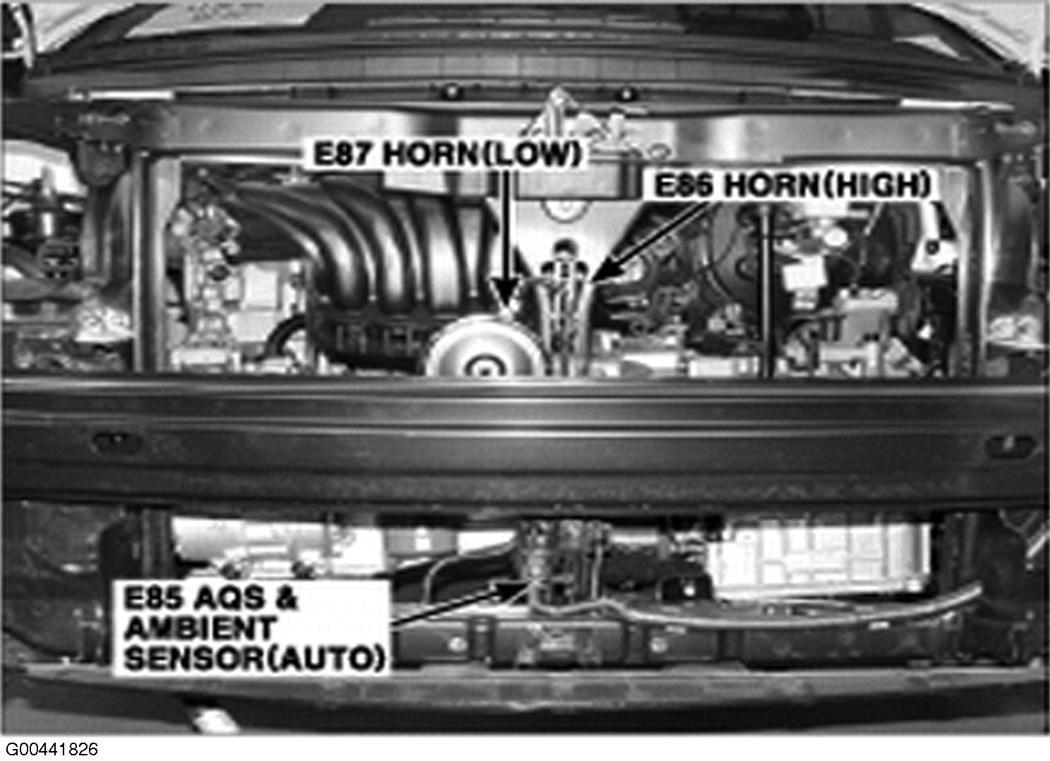

Fig 19: Behind Grille
Courtesy of HYUNDAI MOTOR CO.
Fig 20: Right Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 21: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

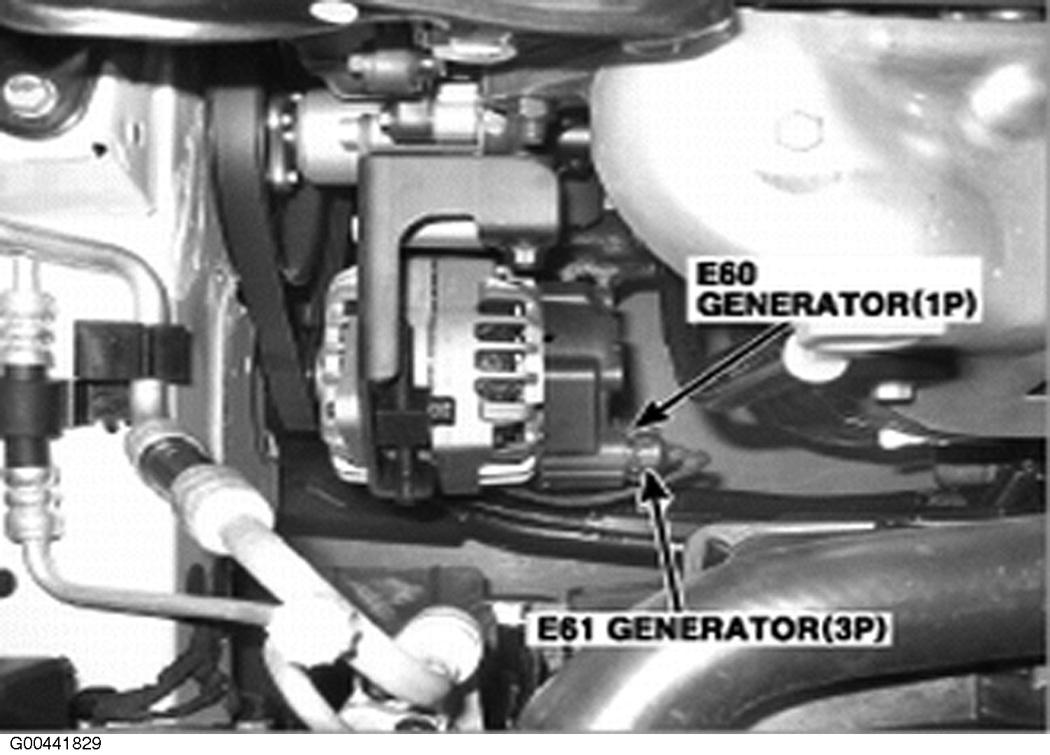

Fig 22: Front Of Engine
Courtesy of HYUNDAI MOTOR CO.

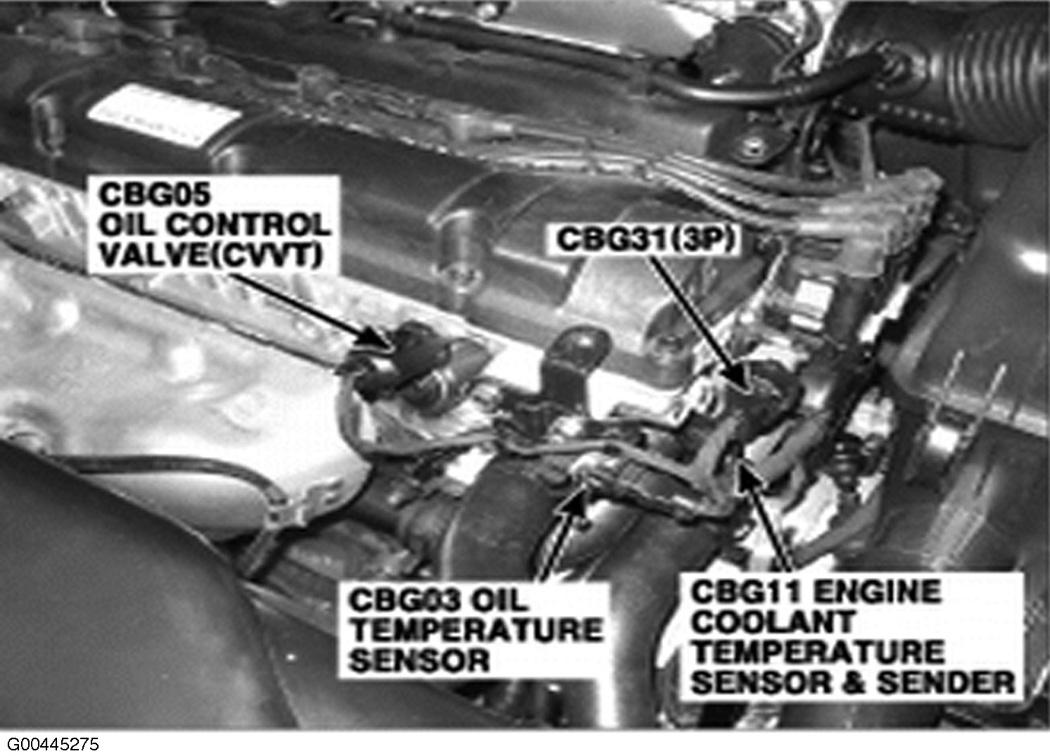

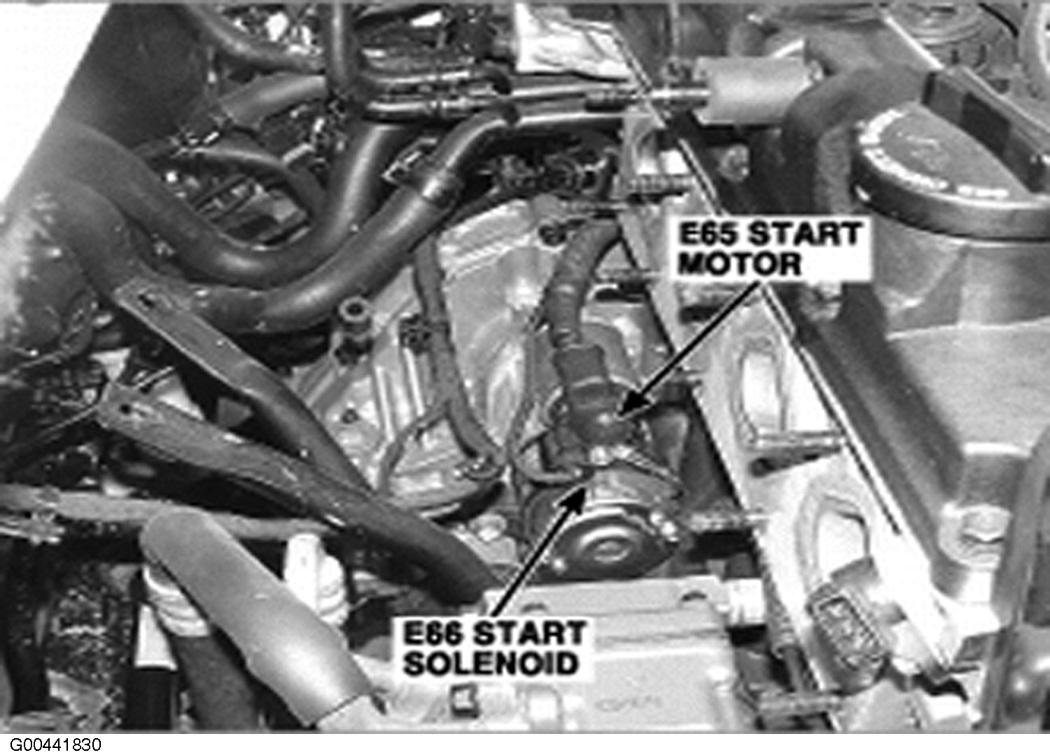

Fig 23: Left Side Of Engine
Courtesy of HYUNDAI MOTOR CO.

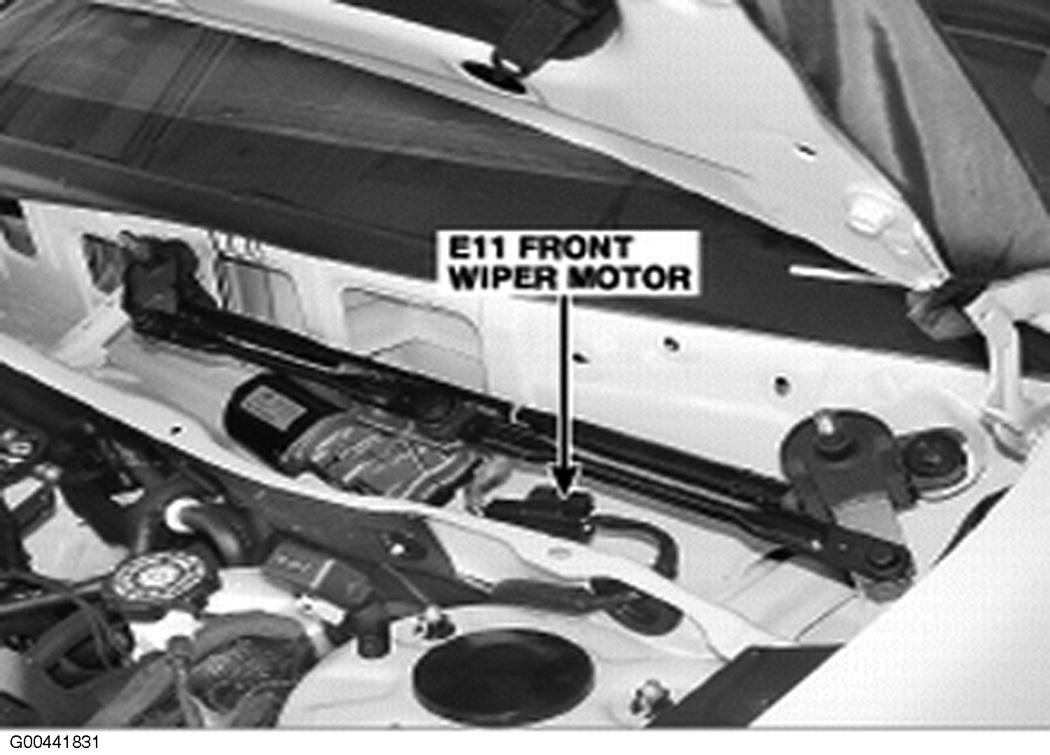

Fig 24: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 25: Top Of Strut Tower
Courtesy of HYUNDAI MOTOR CO.
Fig 26: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 27: Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.

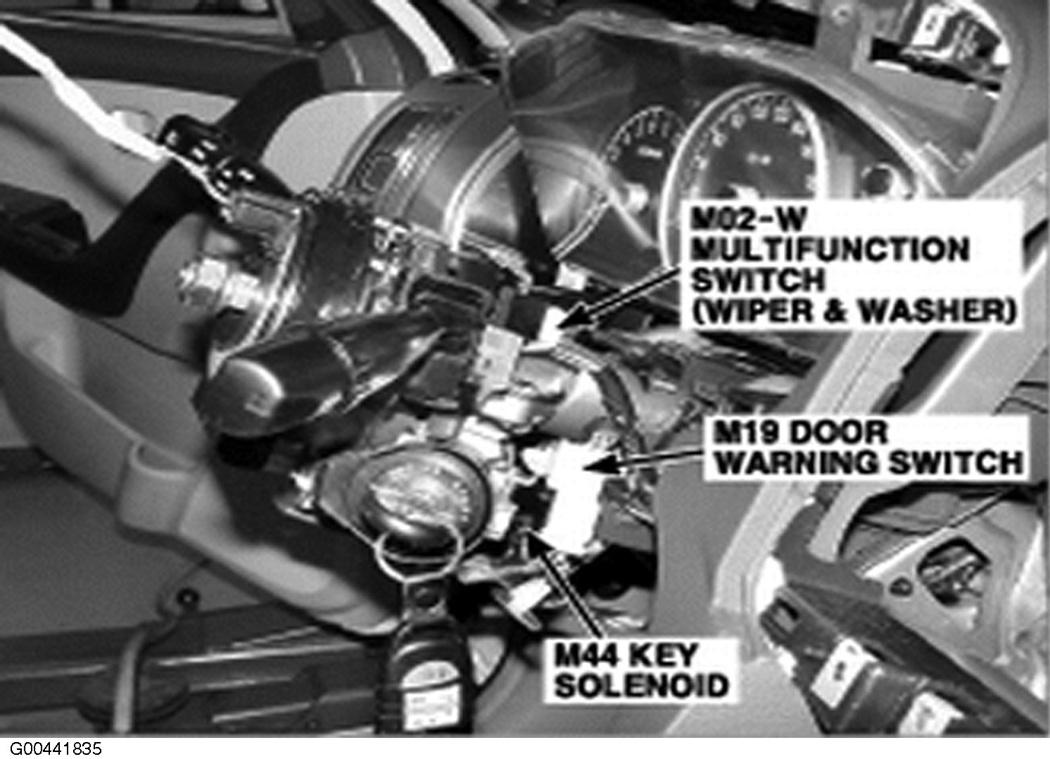

Fig 28: Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 29: Behind Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

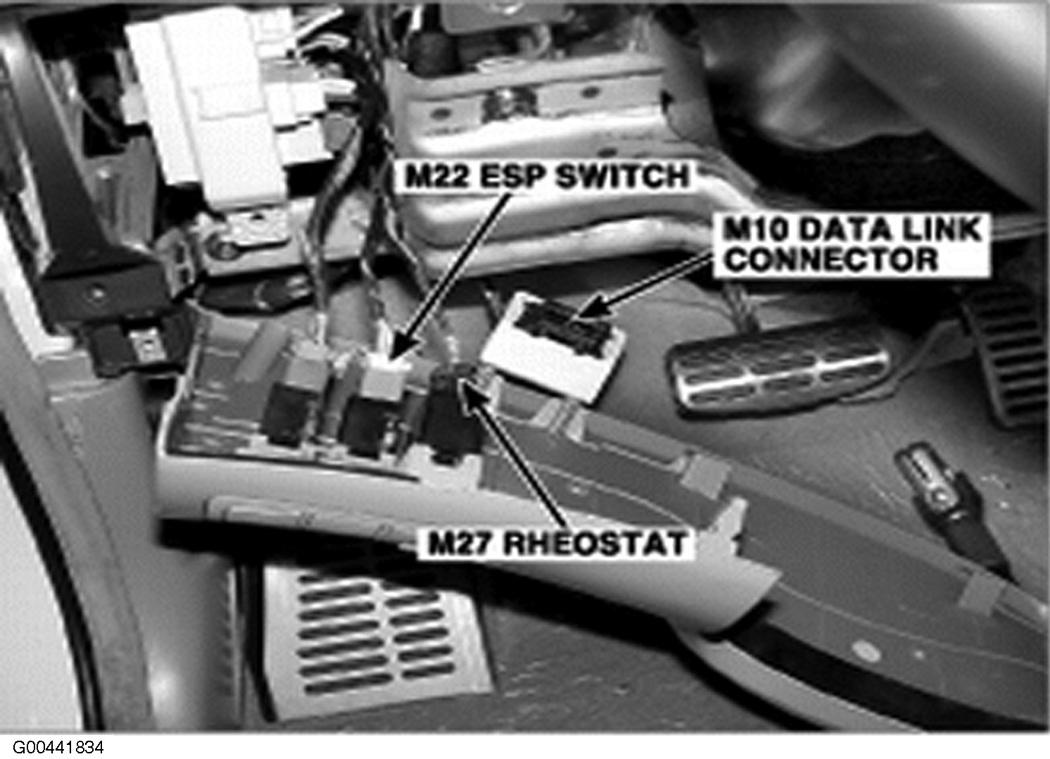

Fig 30: Below Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

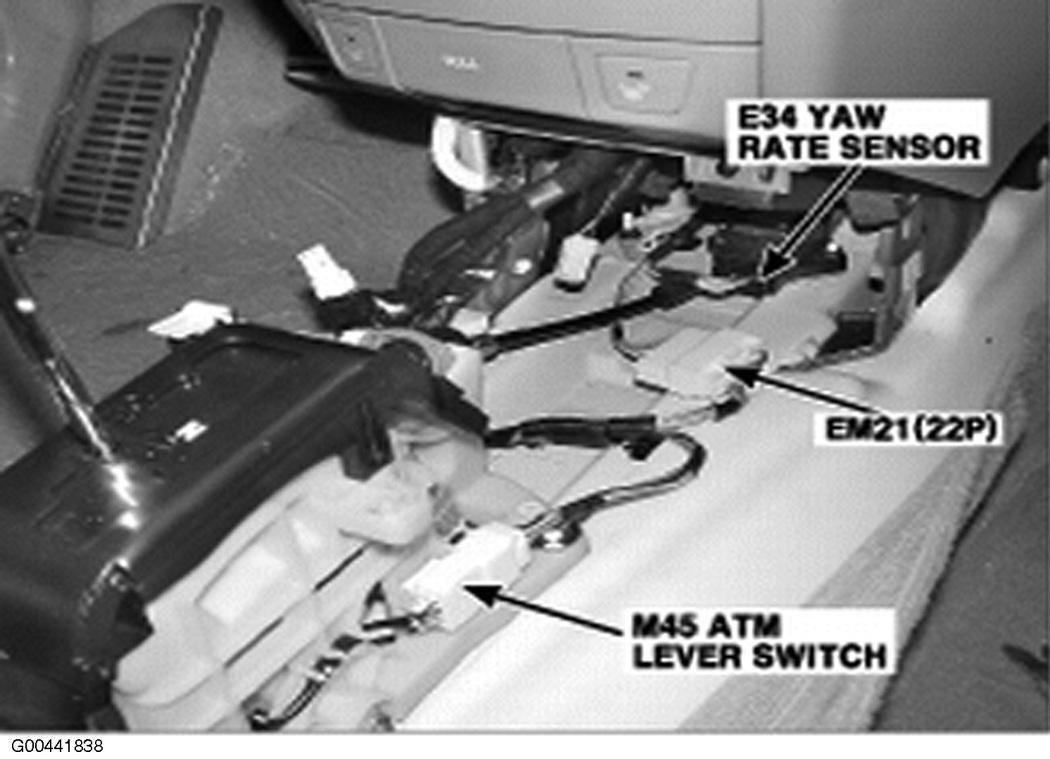

Fig 31: Below Center Console
Courtesy of HYUNDAI MOTOR CO.

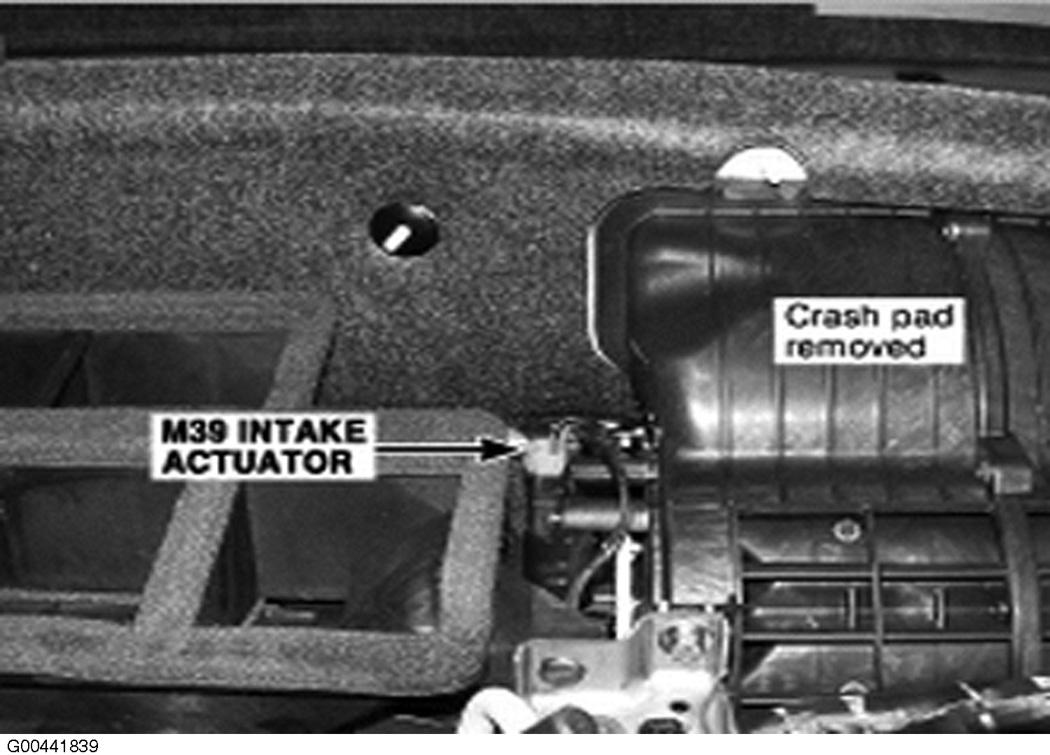

Fig 32: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 33: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 34: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

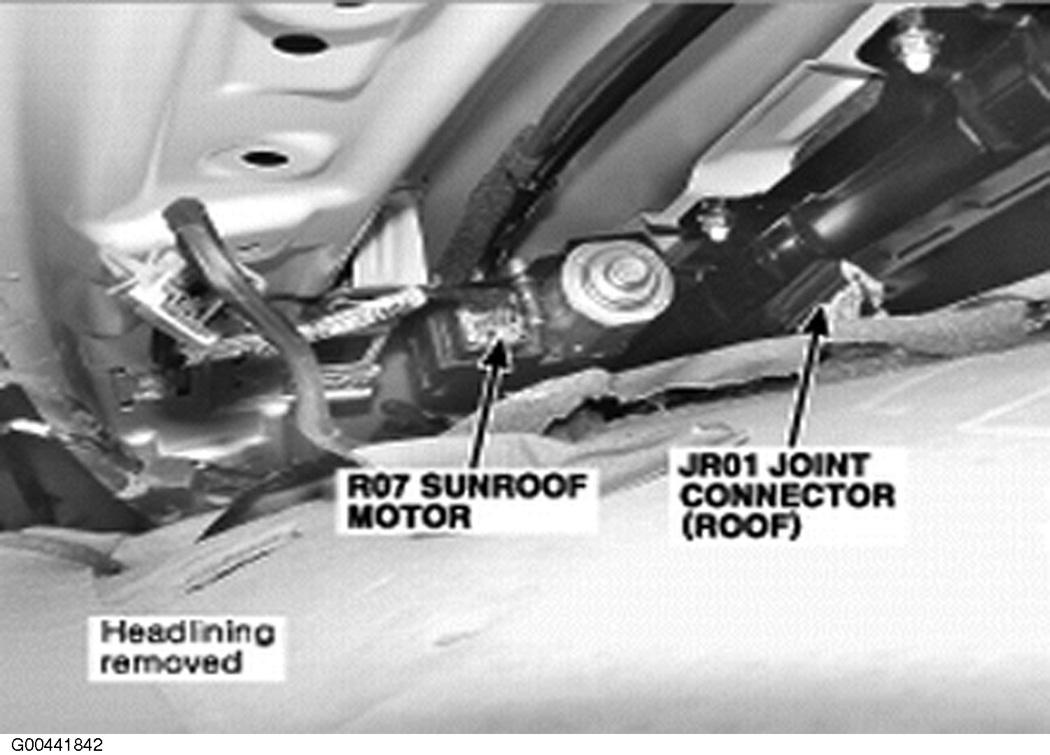

Fig 35: Inside Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Front Door
Courtesy of HYUNDAI MOTOR CO.

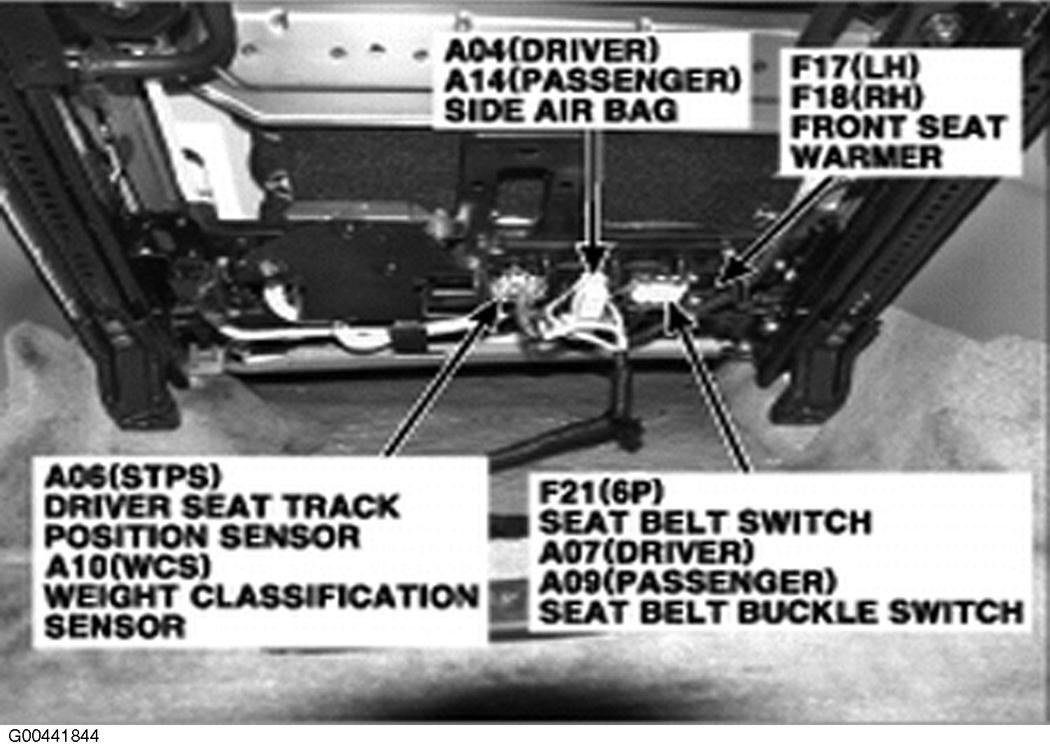

Fig 37: Under Front Seat
Courtesy of HYUNDAI MOTOR CO.

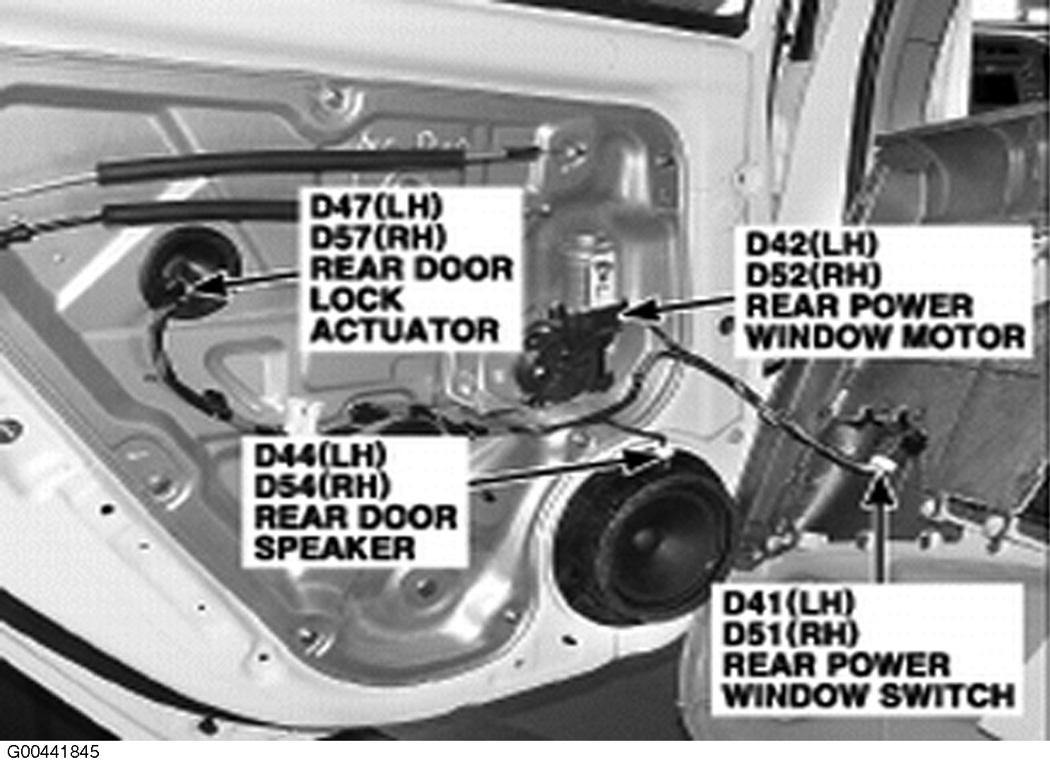

Fig 38: Rear Door
Courtesy of HYUNDAI MOTOR CO.
Fig 39: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

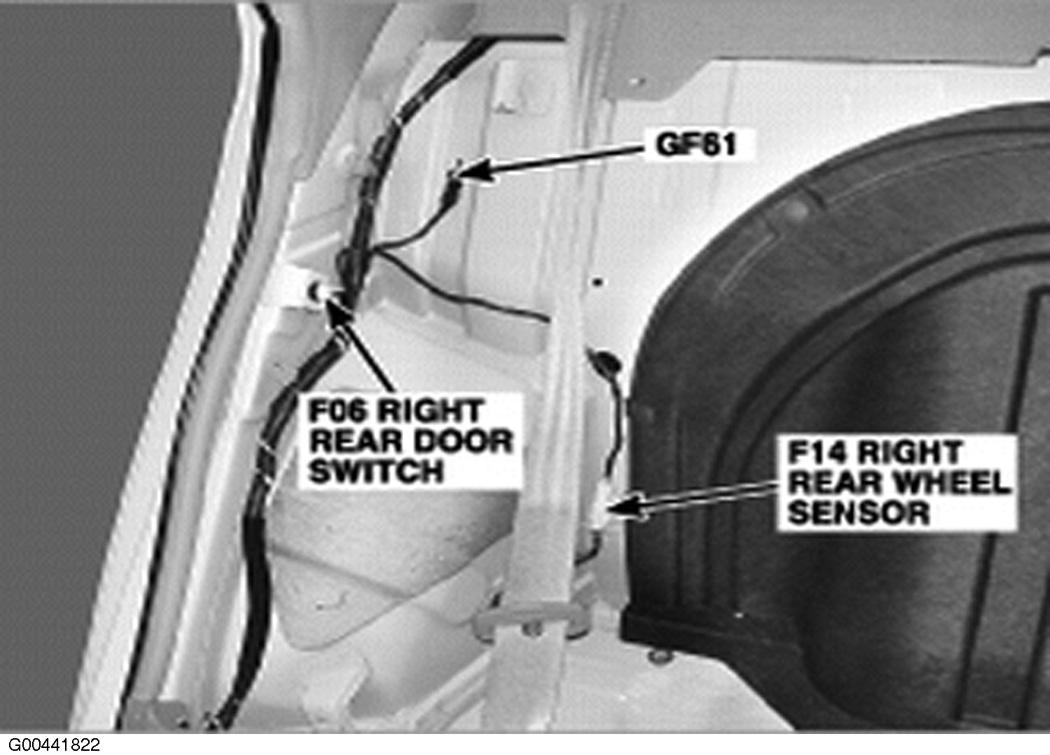

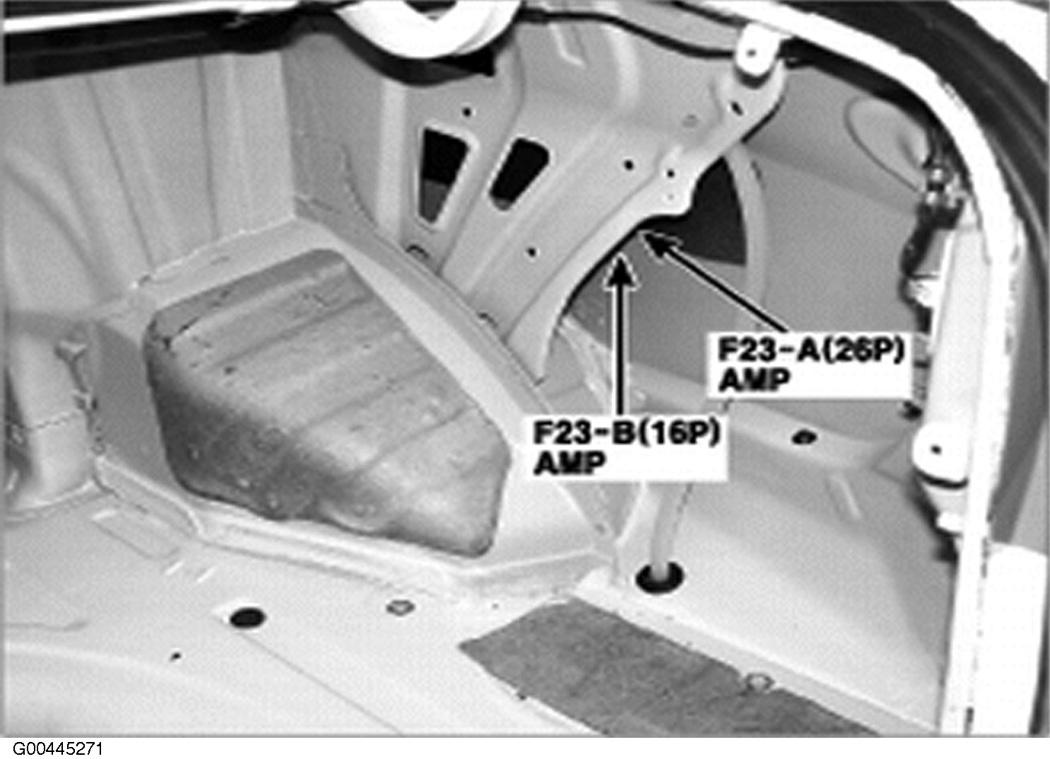

Fig 40: Right Side Of Trunk
Courtesy of HYUNDAI MOTOR CO.

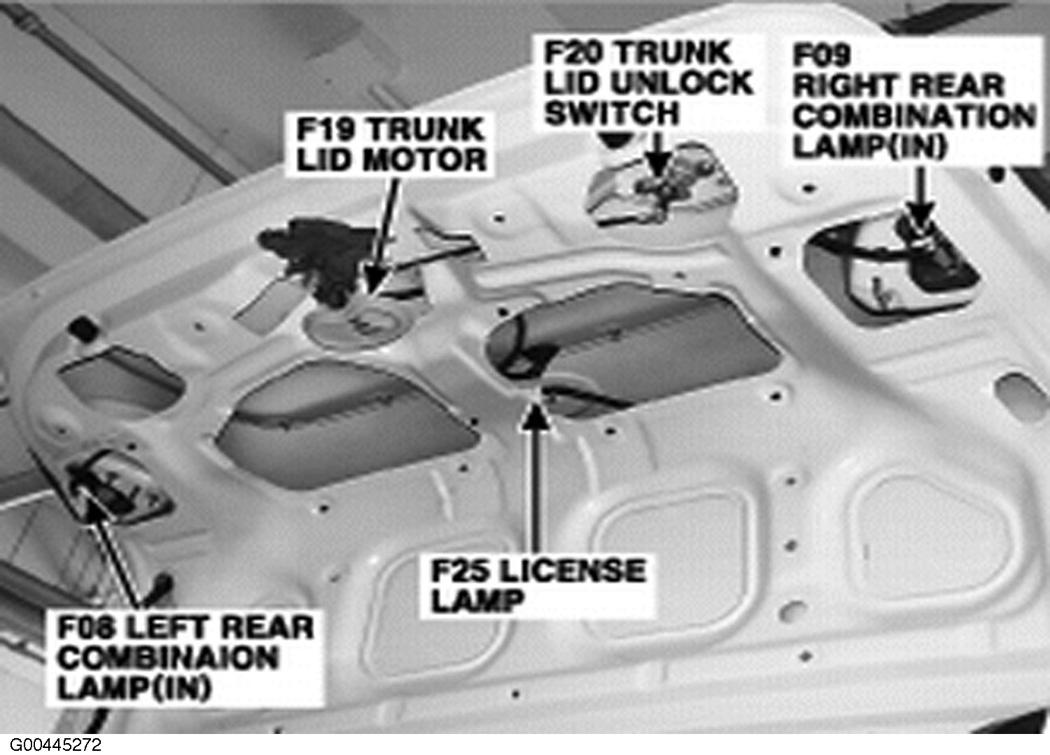

Fig 41: Trunk Lid
Courtesy of HYUNDAI MOTOR CO.

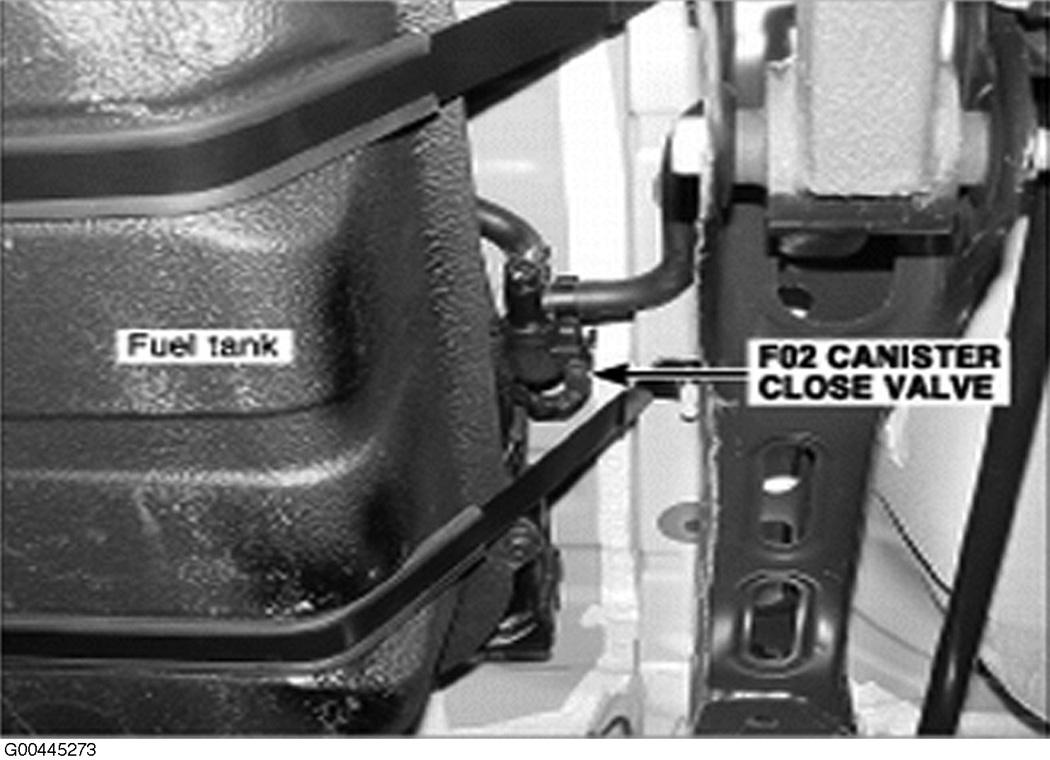

Fig 42: Under Vehicle
Courtesy of HYUNDAI MOTOR CO.
Fig 43: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

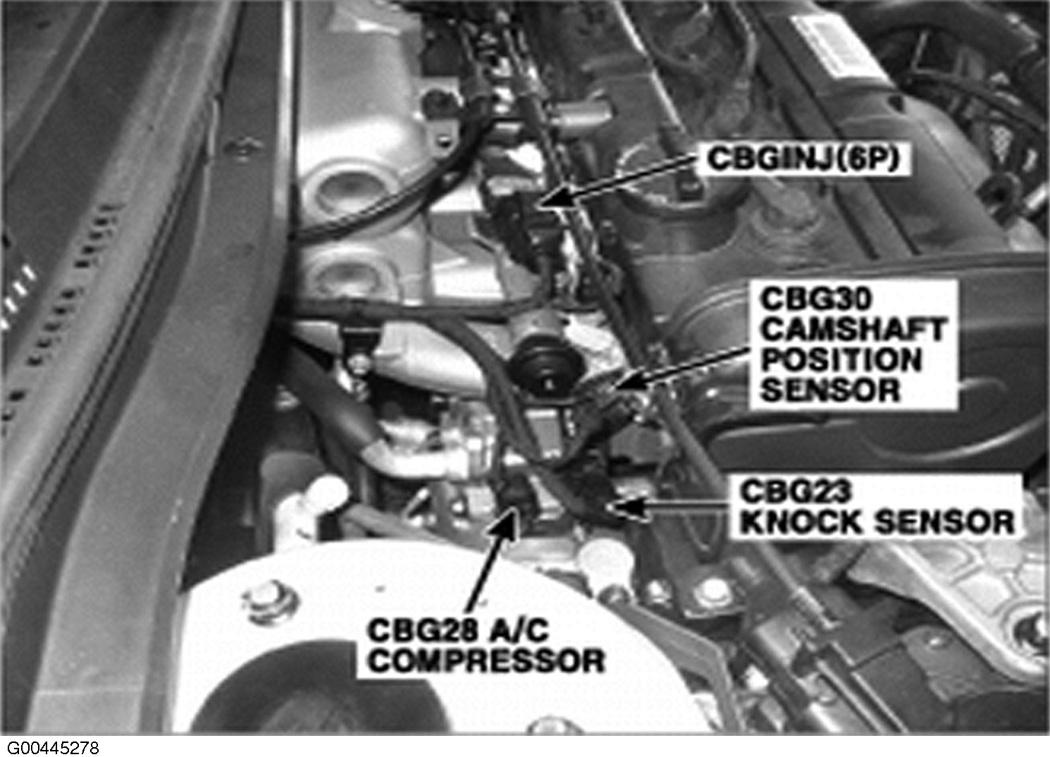

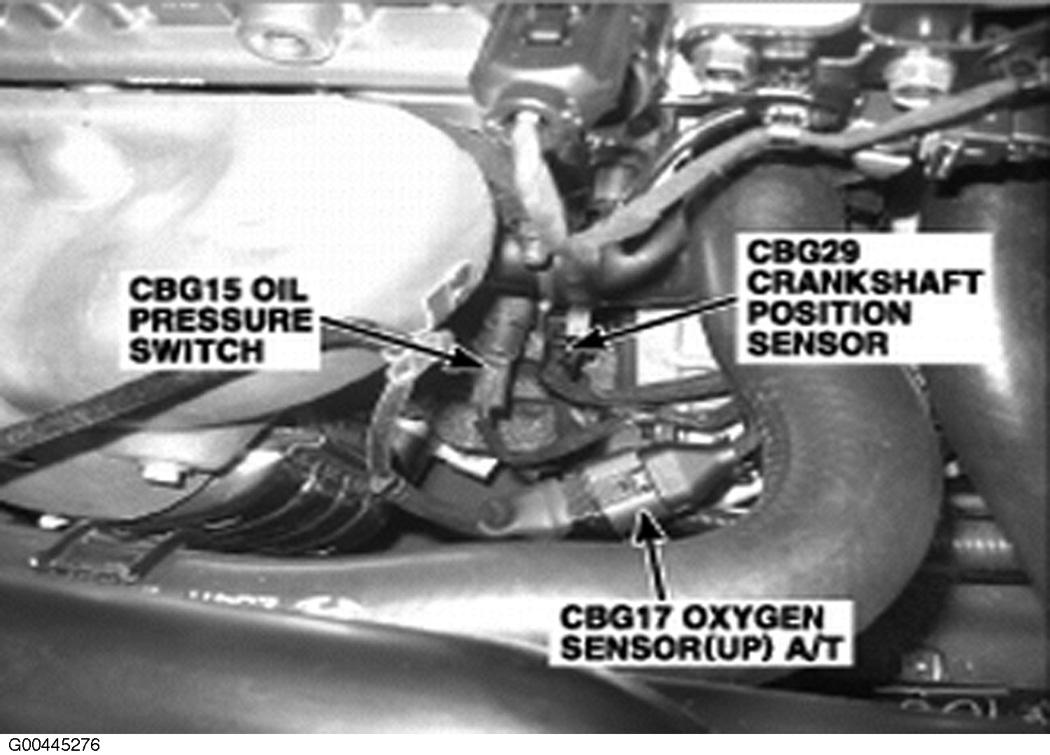

Fig 44: Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 45: Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 46: Right Side Of Engine
Courtesy of HYUNDAI MOTOR CO.

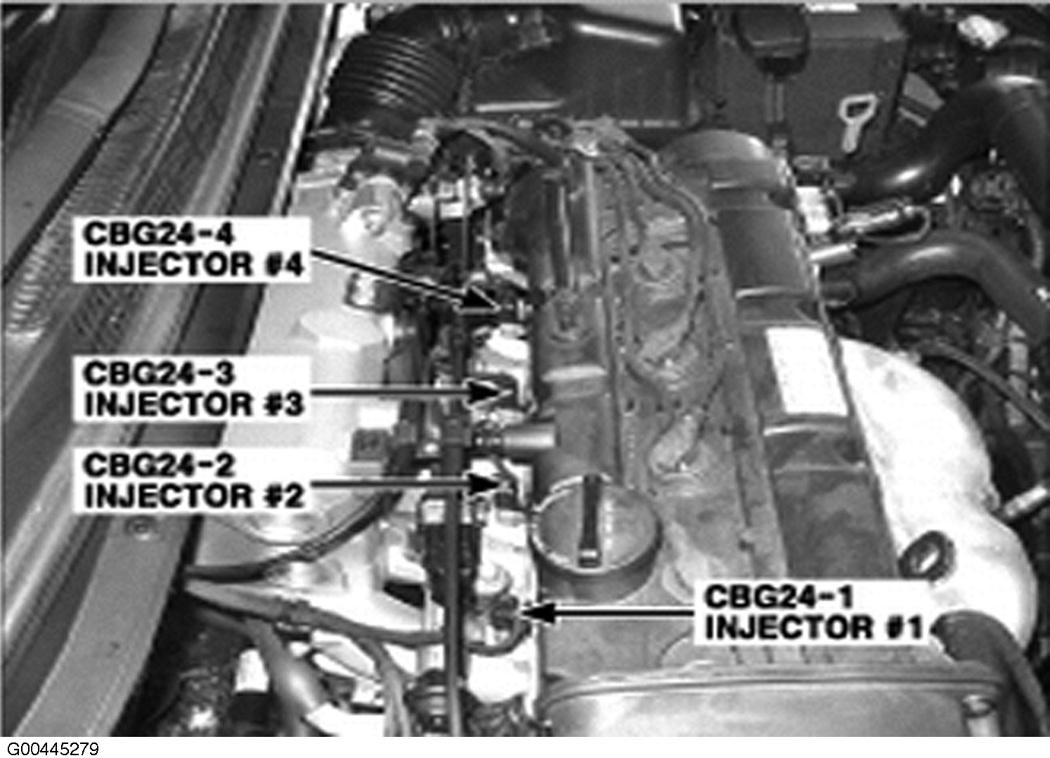

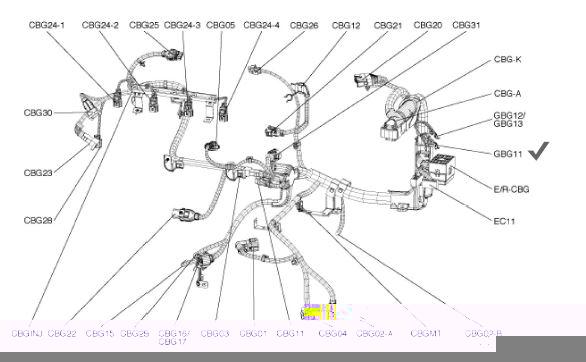

Fig 47: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.

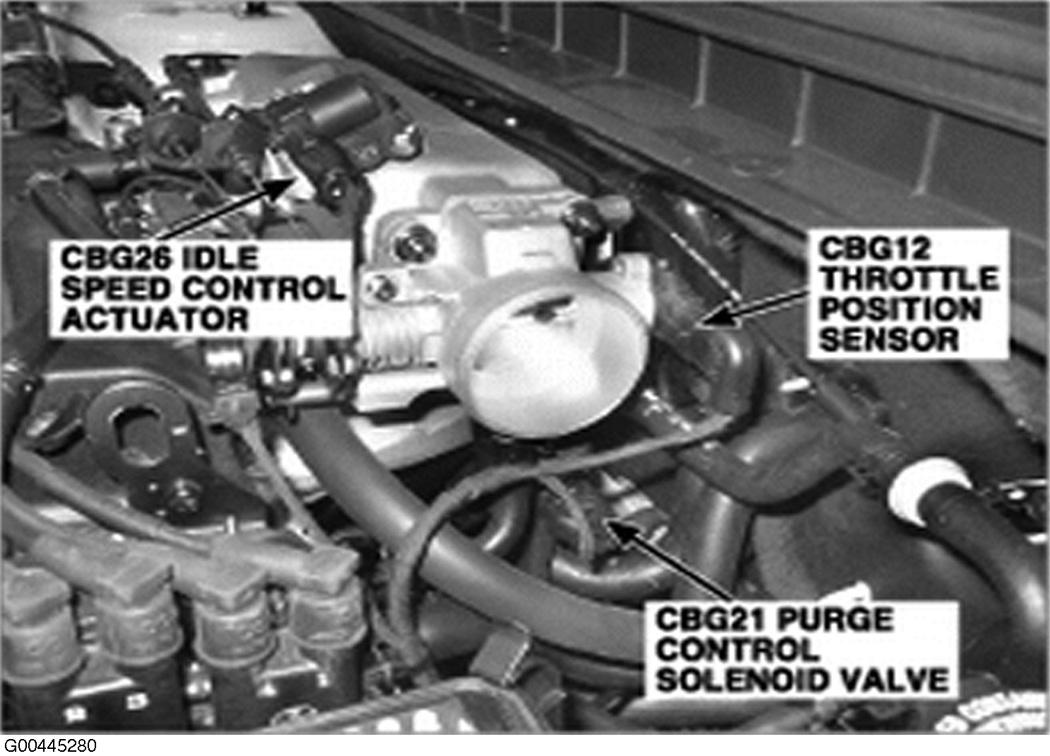

Fig 48: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.

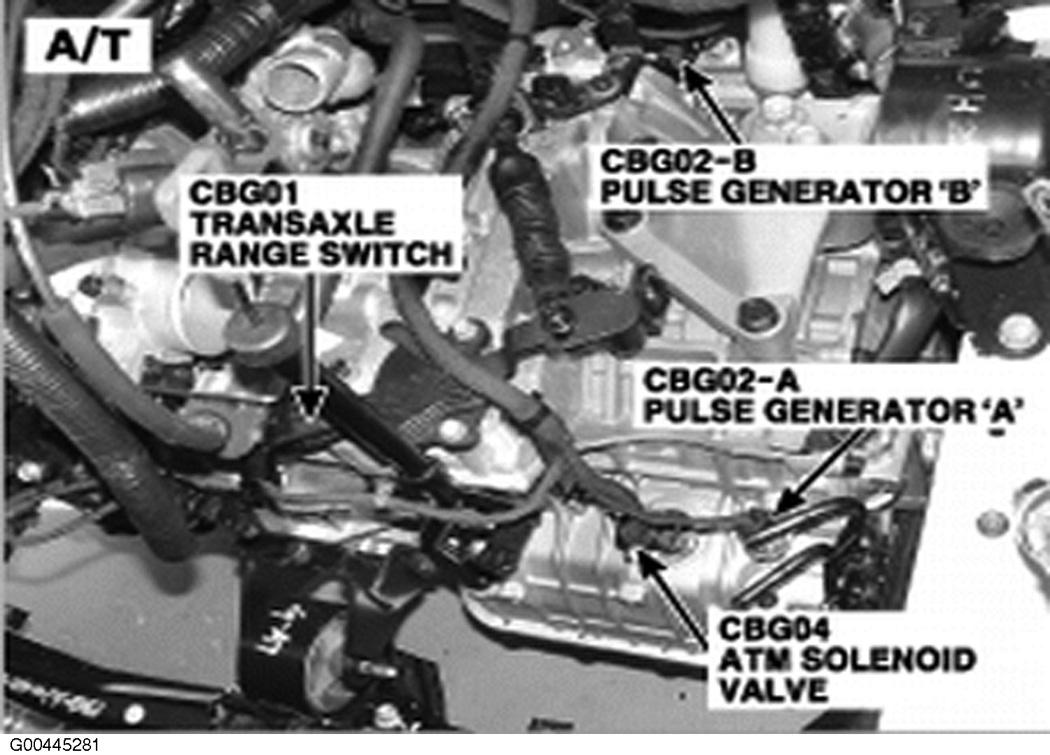

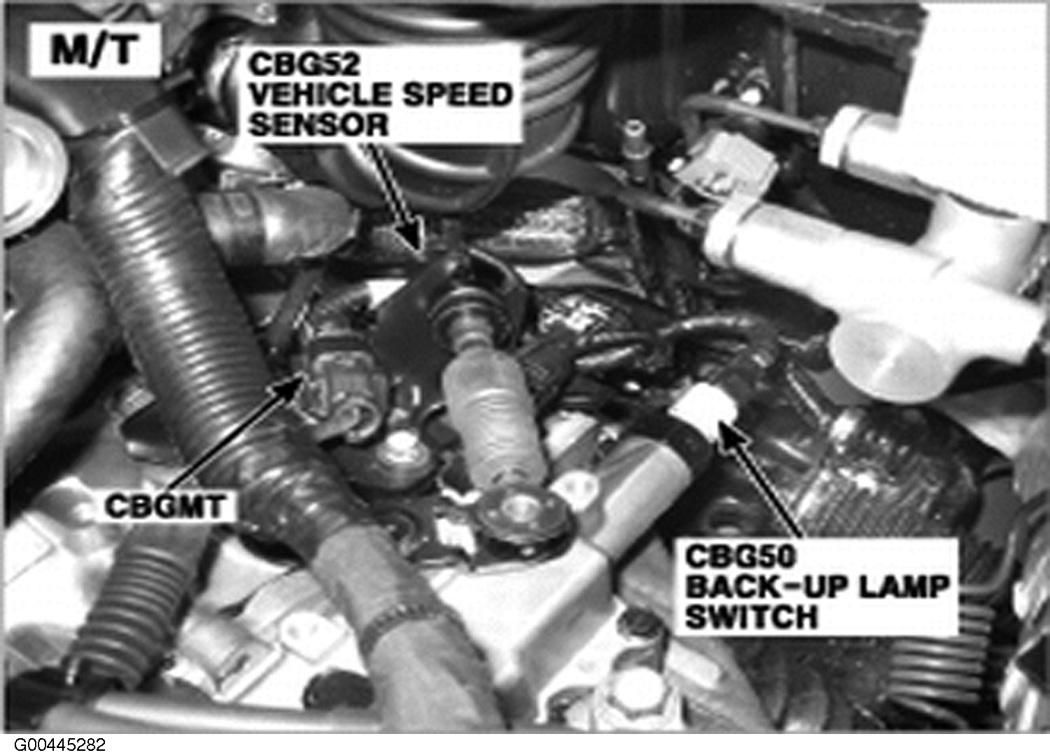

Fig 49: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 50: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 51: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 52: Under Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 53: Bottom Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

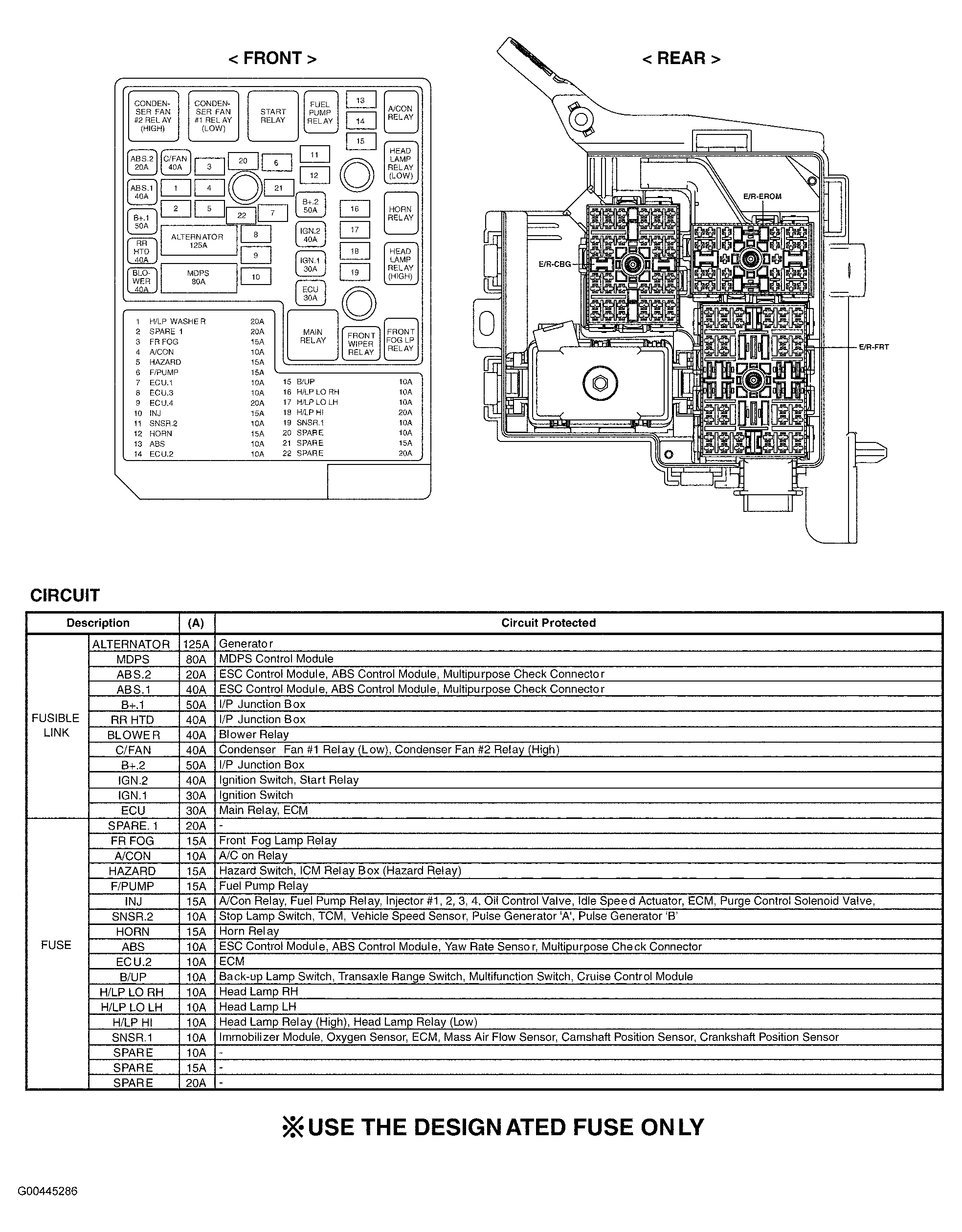

Fig 54: Engine Compartment Relay & Fuse Box
Courtesy of HYUNDAI MOTOR CO.

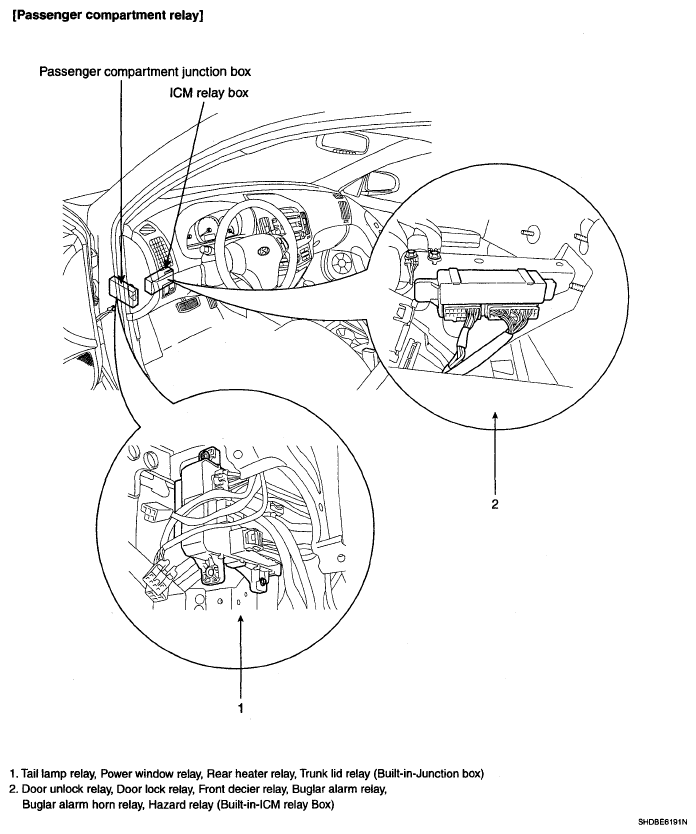

Fig 55: Passenger Compartment Junction Box And Relay Box
Courtesy of HYUNDAI MOTOR CO.
Fig 56: Upper Right Instrument Panel Wiring Harness
Courtesy of HYUNDAI MOTOR CO.
