Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

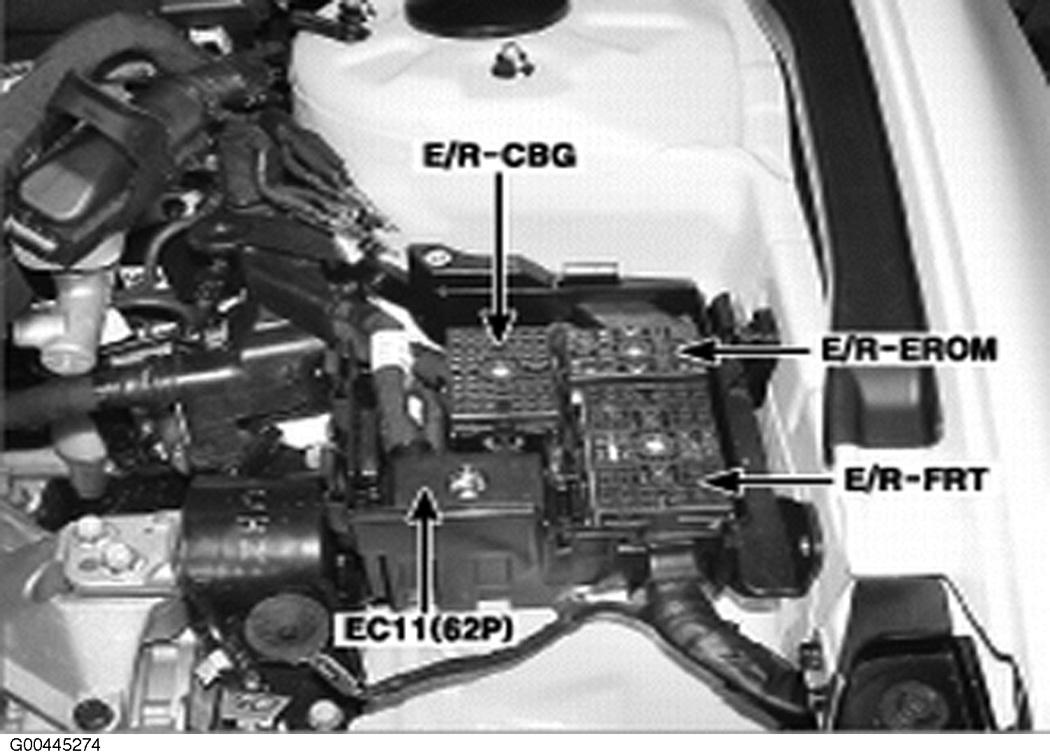

Engine Compartment Relay & Fuse Box In left front corner of engine compartment. See Figure.

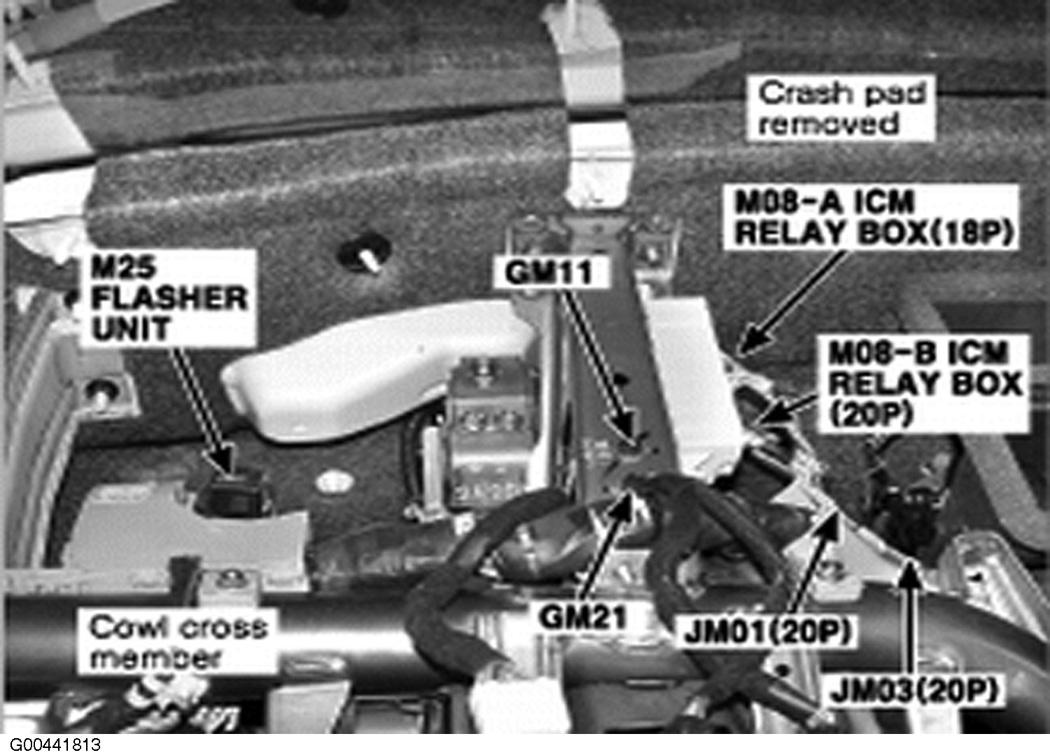

ICM Relay Box (M08-A) Under left side of dash. See Figure.
ICM Relay Box (M08-B) Under left side of dash. See Figure.

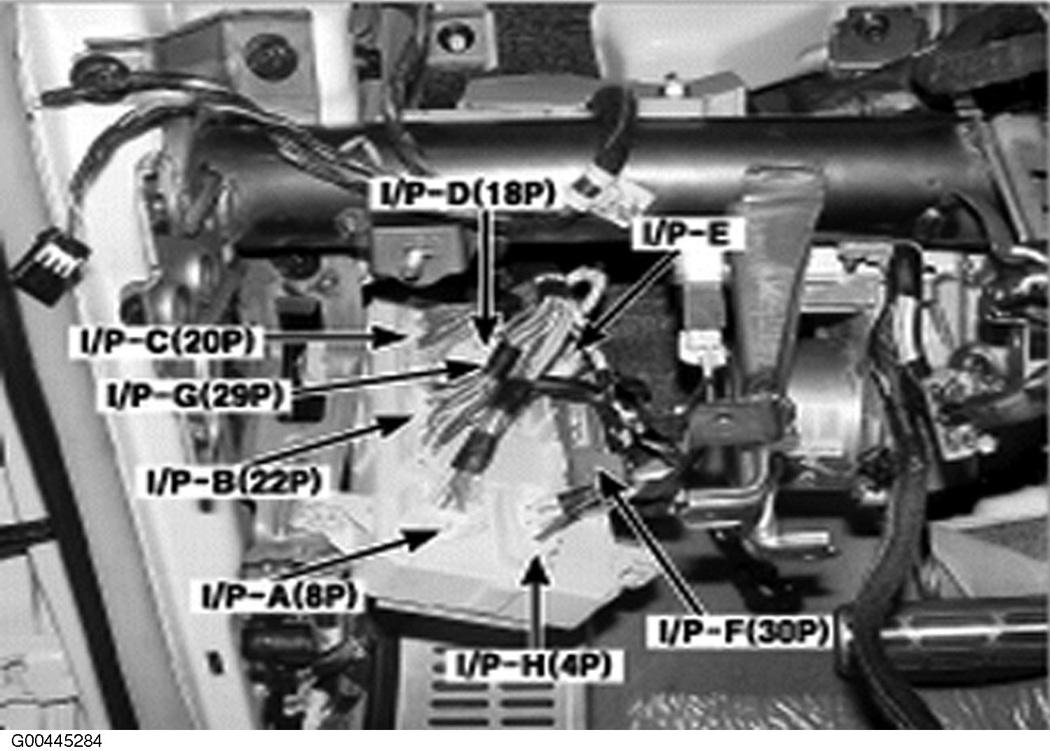

Passenger Compartment Junction Block Under left side of dash, near kick panel. See Figure.
