Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

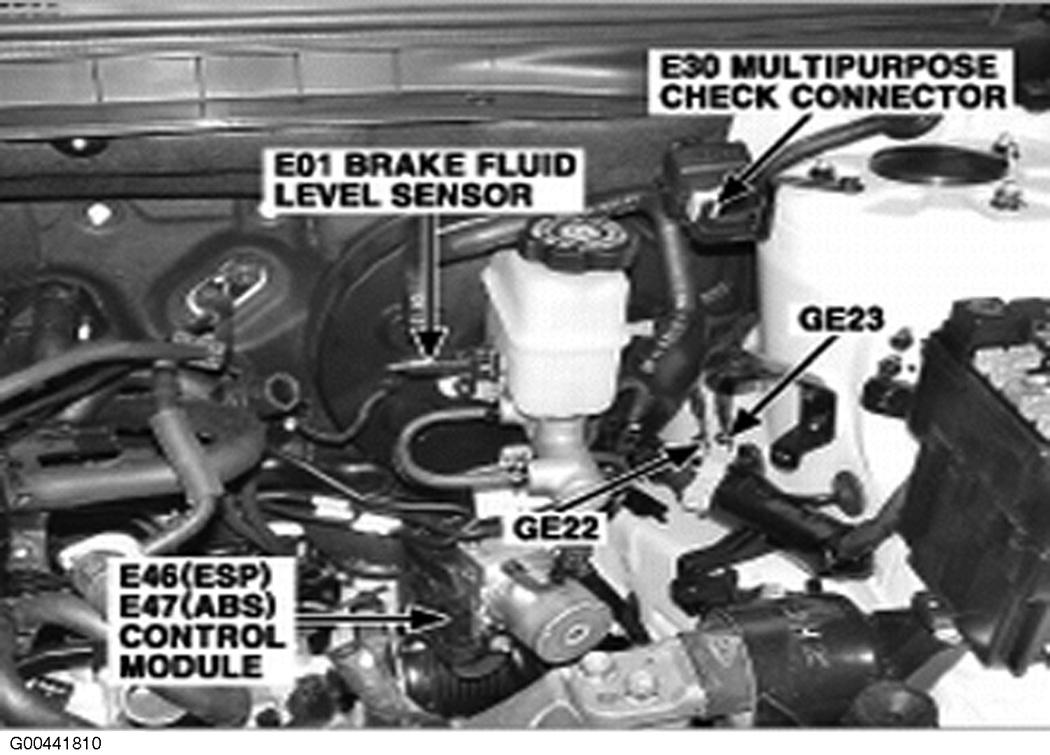

| ABS Control Module | Left rear of engine compartment. See Figure. |

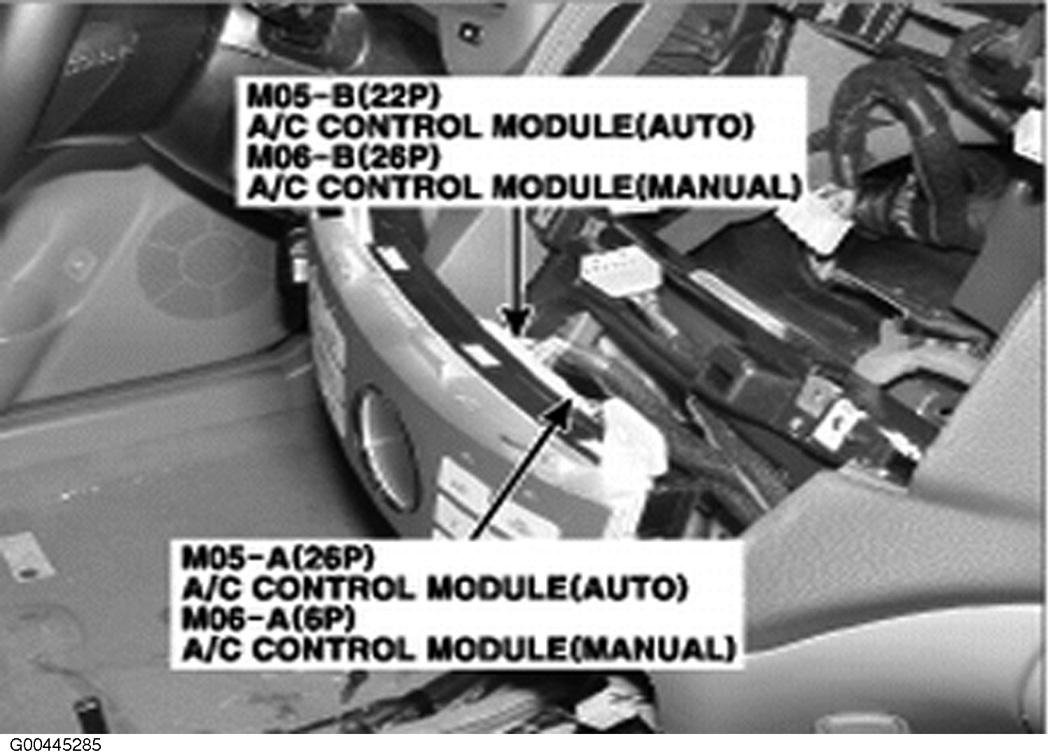

| A/C Control Module | Below center of dash, forward of shift lever. See Figure. |

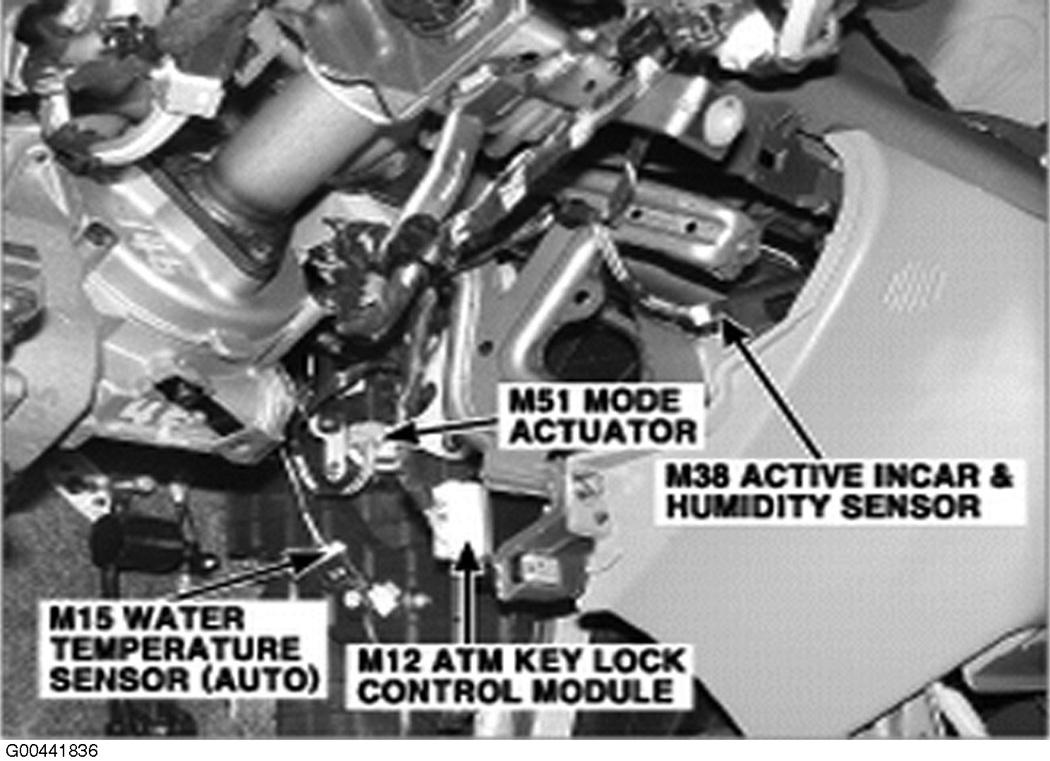

| ATM Key Lock Control Module | Behind left center of dash. See Figure. |

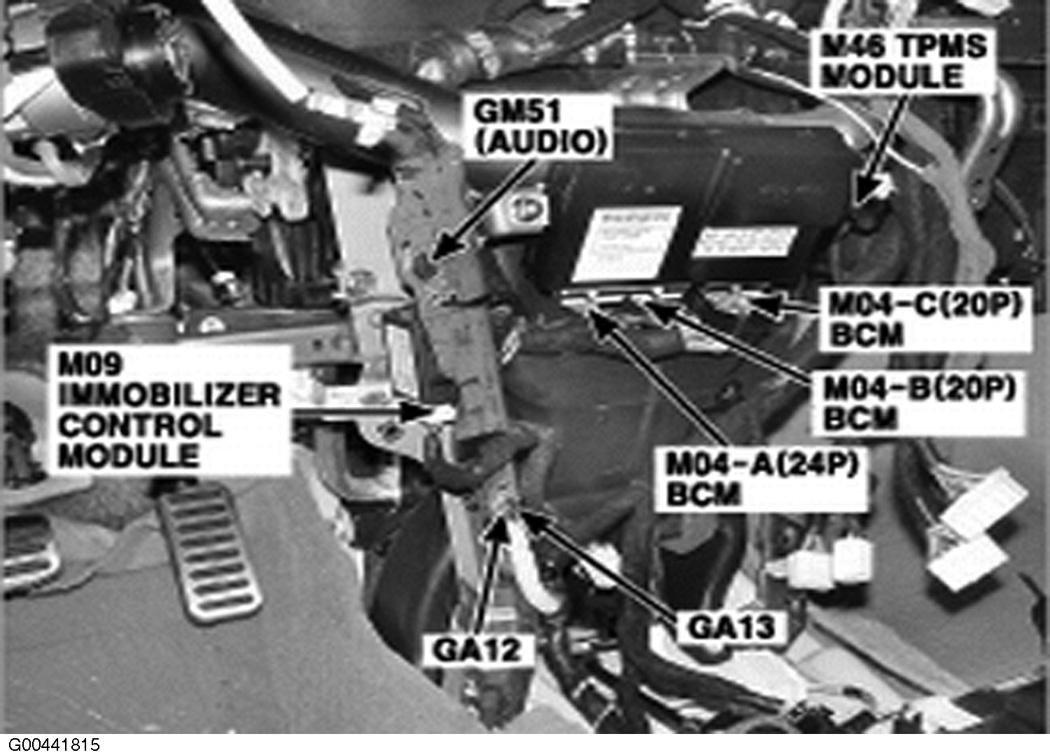

| Body Control Module (BCM) | Behind center of dash. See Figure. |

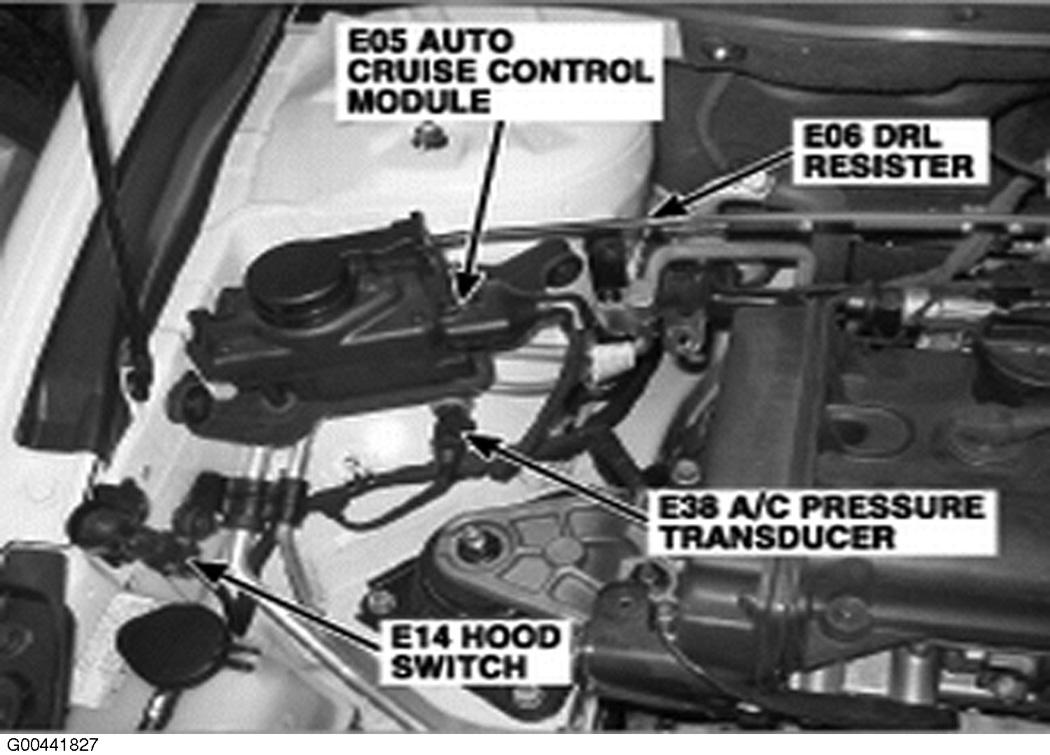

| Cruise Control Module | On right fender. See Figure. |
| ESP Control Module | Left rear of engine compartment. See Figure. |
| Immobilizer Control Module | Below center of dash. See Figure. |

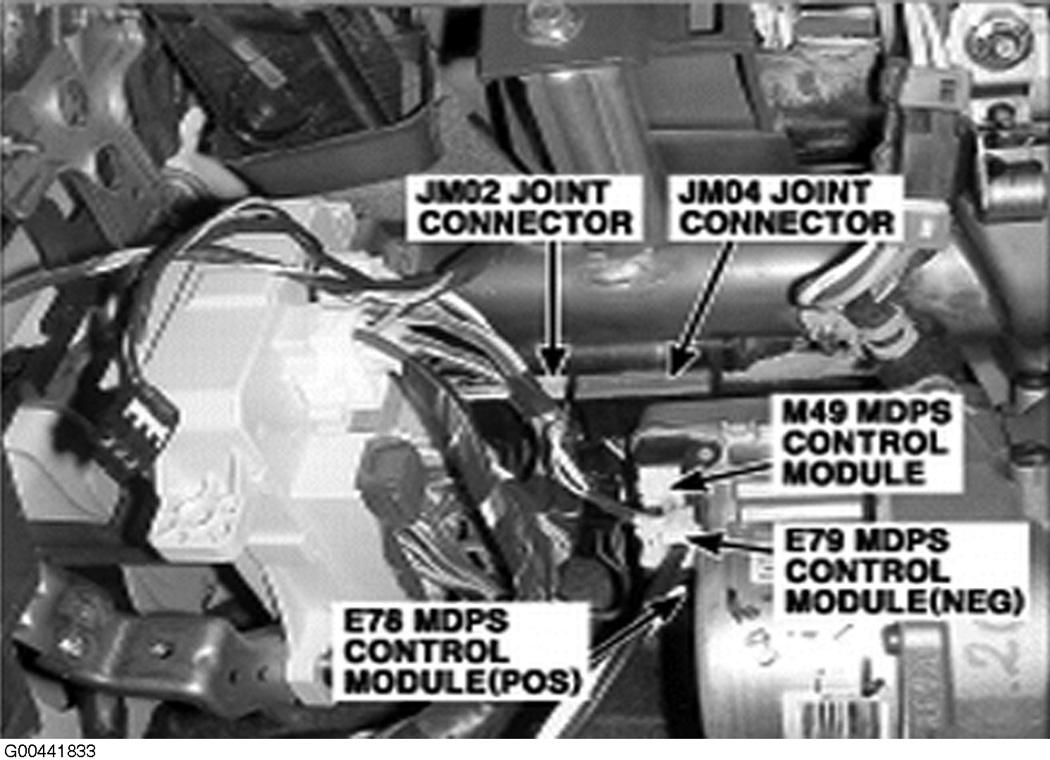

| MDPS Control Module | Below left side of dash. See Figure. |

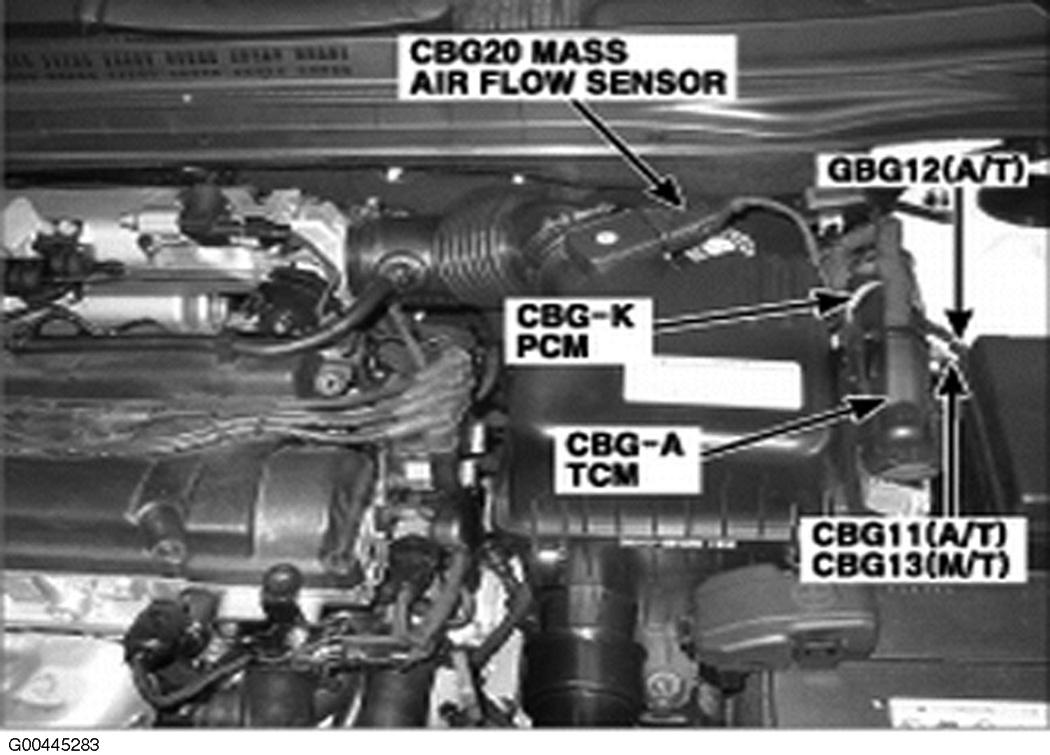

| PCM | Left rear of engine compartment. See Figure. |

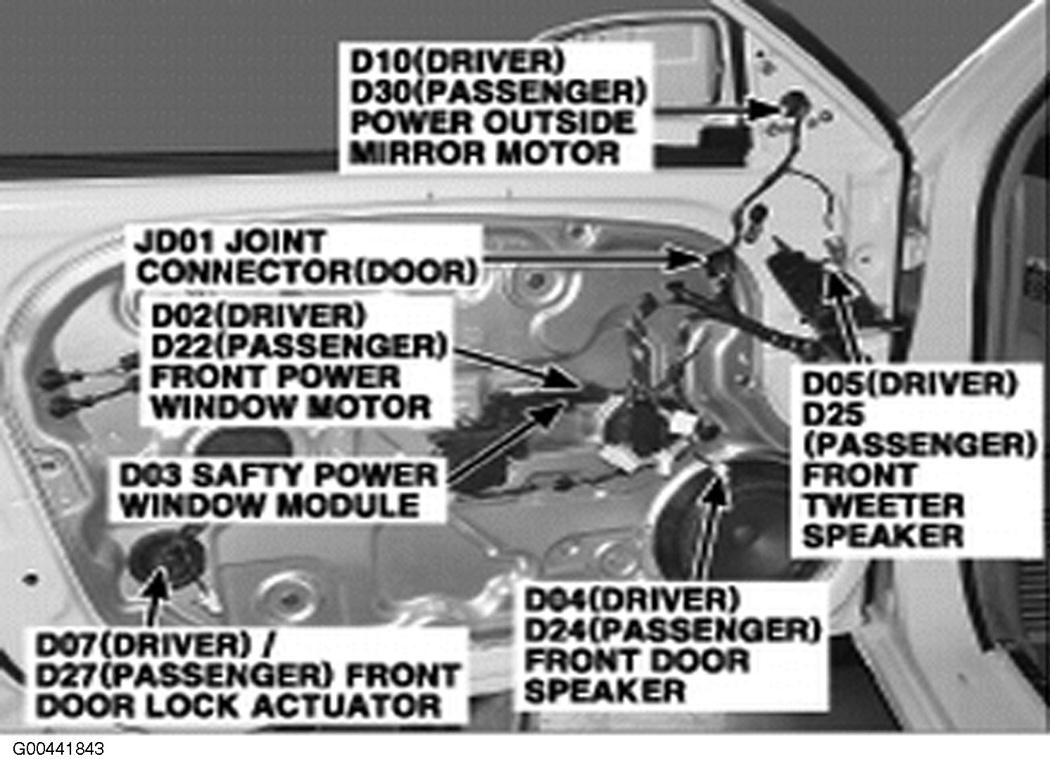

| Safety Power Window Module | In driver's door. See Figure. |

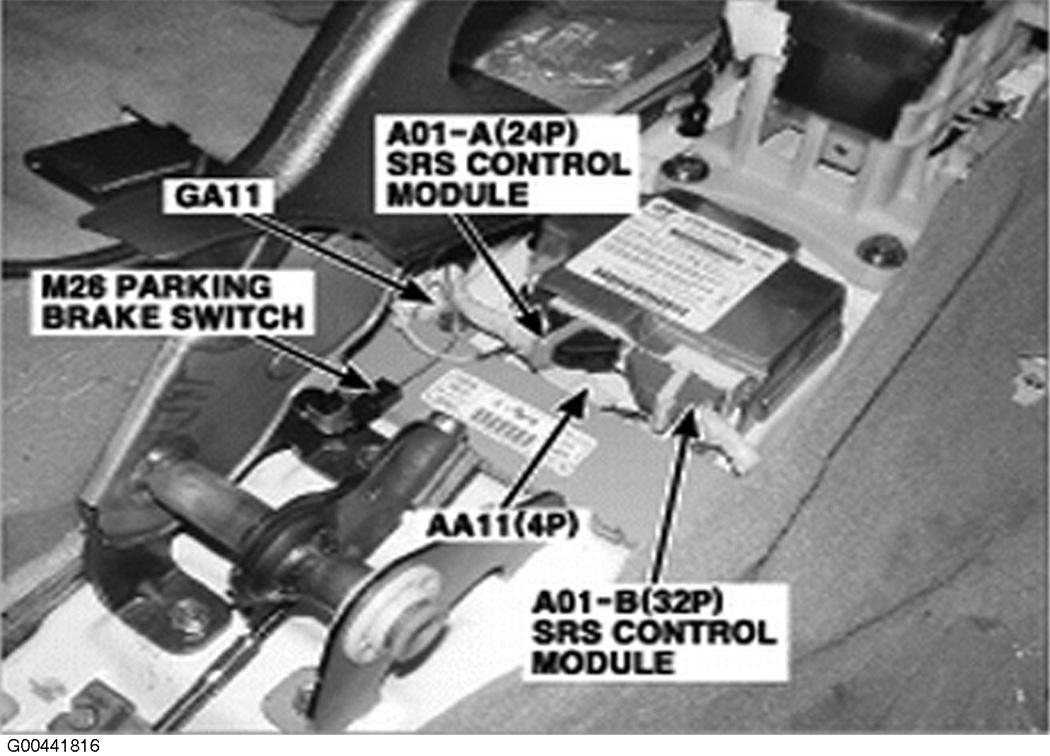

| SRS Control Module | Under center console. See Figure. |
| TCM | Left rear of engine compartment. See Figure. |
| TPMS Module | Behind center of dash. See Figure. |
