Sliding Power Window Motor Inspection

  1. Remove (-) negative battery terminal.
  2. Remove the sliding door trim panel. (Refer to REAR DOOR )
  3. Disconnect the motor connector from the motor.

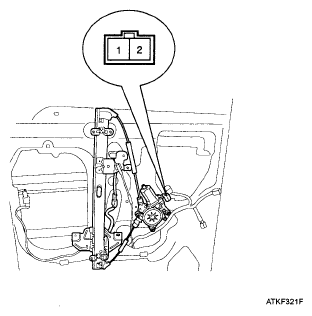

    Fig 1: Identifying Sliding Power Window Motor Connector Terminals
    G05325343Courtesy of HYUNDAI MOTOR CO.
  4. Connect the motor terminals directly to battery voltage and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
