Home >> Hyundai >> 2007 >> Entourage GLS >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs (Anti-Lock Brake System) >> Anti-Lock Braking System Control Module >> Components

Anti-Lock Braking System Control Module: Components

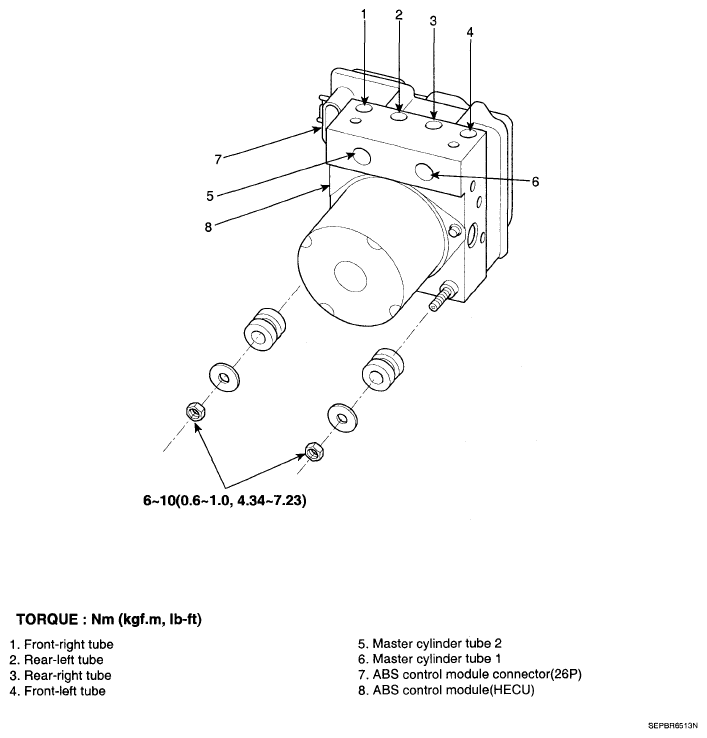

Fig 1: Anti-Lock Braking System Control Module Replacement Components With Torque Specifications

G05323206

Courtesy of HYUNDAI MOTOR CO.
