Front Wheel Speed Sensor: Removal: Notes

1. Remove the front wheel speed sensor mounting bolt (A) and the wire bracket mounting bolt (B).

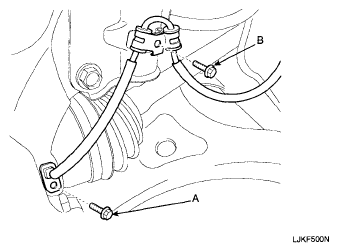

   Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt

   Courtesy of HYUNDAI MOTOR CO.
2. Remove the wire bracket bolt (A).

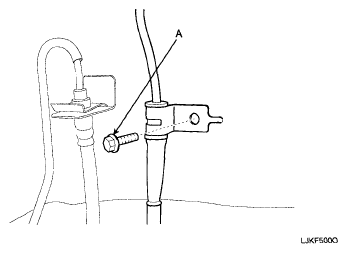

   Fig 2: Identifying Wire Bracket Bolt

   Courtesy of HYUNDAI MOTOR CO.
3. Remove the front wheel guard.
4. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).

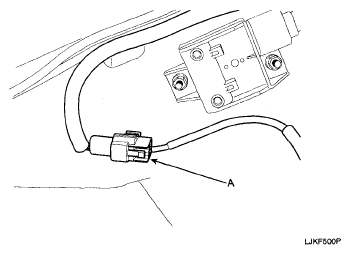

Fig 3: Identifying Wheel Speed Sensor Connector

Courtesy of HYUNDAI MOTOR CO.
