Home >> Hyundai >> 2007 >> Entourage Limited >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Windows >> Power Window Switch >> Replacement >> Sliding Power Window Switch

Sliding Power Window Switch

  1. Remove (-) negative battery terminal.
  2. Disconnect the connector (B) after removing the sliding power window switch (A) from the B pillar trim (C).

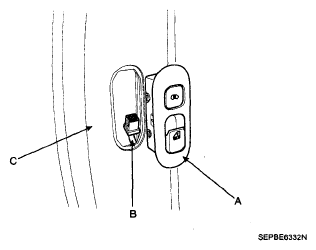

    Fig 1: Identifying Sliding Power Window Switch
    G05325347Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
