Starter Relay: Inspection

  1. Remove the fuse box cover.
  2. Remove the starter relay (A).

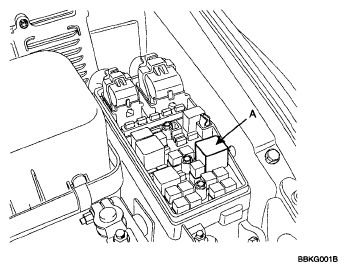

    Fig 1: Identifying Starter Relay
    G05321749Courtesy of HYUNDAI MOTOR CO.
  3. Using an ohmmeter, check that there is continuity between each terminal.
    CONTINUITY CHART

    Terminal Continuity
    30 - 87 NO
    85 - 86 YES
  4. Apply 12V to terminal 85 and ground to terminal 86. Check for continuity between terminals 30 and 87.
    Fig 2: Checking Continuity Between Relay Terminals 30 And 87
    G04801468Courtesy of HYUNDAI MOTOR CO.
  5. If there is no continuity, replace the starter relay.
  6. Install the starter relay.
  7. Install the fuse box cover.
