Trip Computer: Adjustment

CORRECTION MODE

1. The correction process is necessary for displaying correct direction of by removing the effect of magnetized car body components.
2. Push Mode button for 2 sec - 4.5 sec. And then "turn" is displayed and "DIR" is blinking with 0.5 sec intervals.

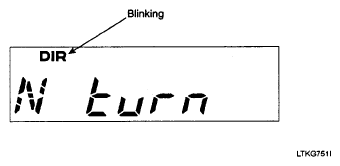

   Fig 1: Trip Computer Display - DIR BLINKING

   Courtesy of HYUNDAI MOTOR CO.
3. Automatic correction is done when the vehicle turns 720° in normal driving condition (the correction is invisible to the driver).
   NOTE:

   • The correction data is updated if the automatic correction data is better than the present correction data.
   • Turning direction is not important.
   • If the correction process is not finished after the vehicle turns 720°, turn the vehicle some more degree.
4. After finishing the correction process, the compass displays the present direction.
5. If the correction process is not finished until 5 minutes this mode is cancelled and the compass returns to normal mode with restoring the previous correction data.

DECLINATION CORRECTION (VARIANT REGION CHANGE MODE)

1. Change the "Declination Setting Value" according to the regional declination to synchronize the true north and vehicle's north.
2. Push the mode button longer than 4.5 Sec to enter the declination correction mode. ('DIR' is on)

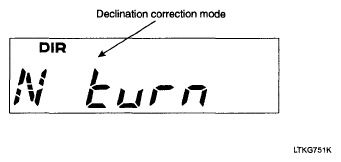

   Fig 2: Trip Computer Display - DECLINATION CORRECTION (VARIANT REGION CHANGE MODE)

   Courtesy of HYUNDAI MOTOR CO.
3. Screen after 4.5 sec.

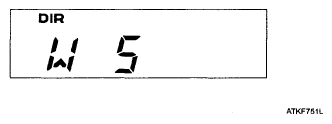

   Fig 3: Trip Computer Display - DIR SCREEN

   Courtesy of HYUNDAI MOTOR CO.
4. Push the reset button longer than 0.1 Sec to change the declination setting Value (Steps by 5° to East. After East 30, wraps to West 30)
5. Push the mode button more than 1 sec, new data is stored on EEPROM and VFD displays normal direction.
6. Without any effective input for 30 seconds, the trip computer displays the previous declination angle with blinking for 2 sec and displays normal direction.
