Power Window Relay: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the junction box.
  3. Check for continuity between the terminals.
  4. There should be continuity between the No.6 in the I/P-F and No. 14 terminal in the I/P-D when power and ground are connected to the No. 10 terminal in the I/P-E and No.2 terminal in the I/P-J.
  5. There should be no continuity between the No.6 terminal in the I/P-F and No. 14 terminal in the I/P-D when power is disconnected.

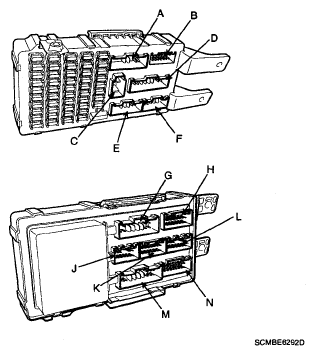

    Fig 1: Identifying Power Window Relay Connectors
    G05353427Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Power Window Relay Connector Terminals Continuity Reference Chart
    G05353428Courtesy of HYUNDAI MOTOR CO.
