Ignition System: Inspection

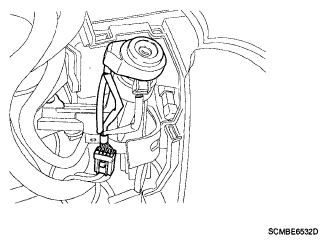

Fig 1: Identifying Ignition Switch Connector Terminal
G05353666Courtesy of HYUNDAI MOTOR CO.
  1. Disconnect the ignition switch connector and key warning switch connector from under the steering column.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    Fig 2: Connector Terminals Continuity Reference Chart
    G04881702Courtesy of HYUNDAI MOTOR CO.
