Components Location

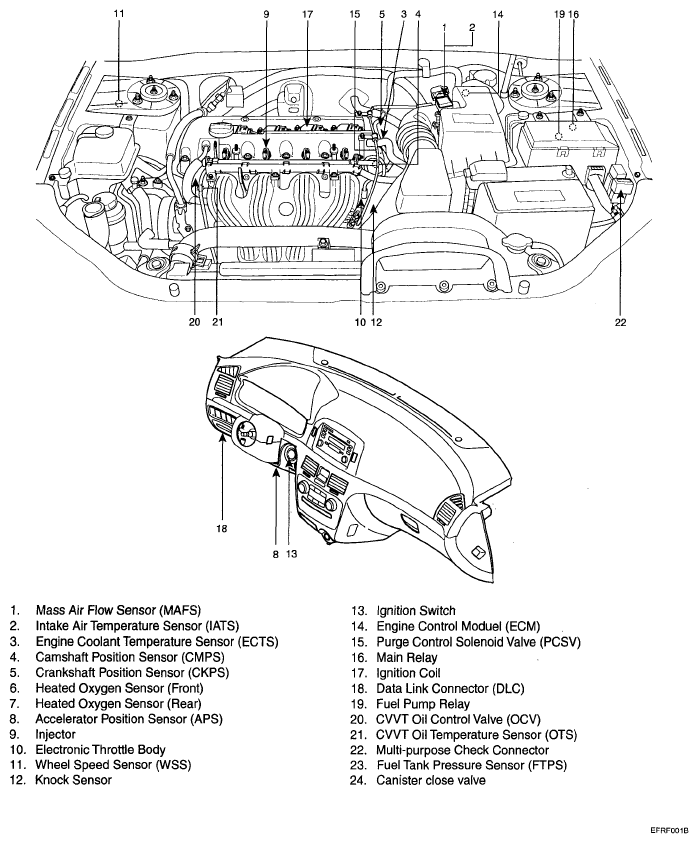

Fig 1: Identifying Gasoline Engine Control System Components (1 Of 4)
G04890824Courtesy of HYUNDAI MOTOR CO.

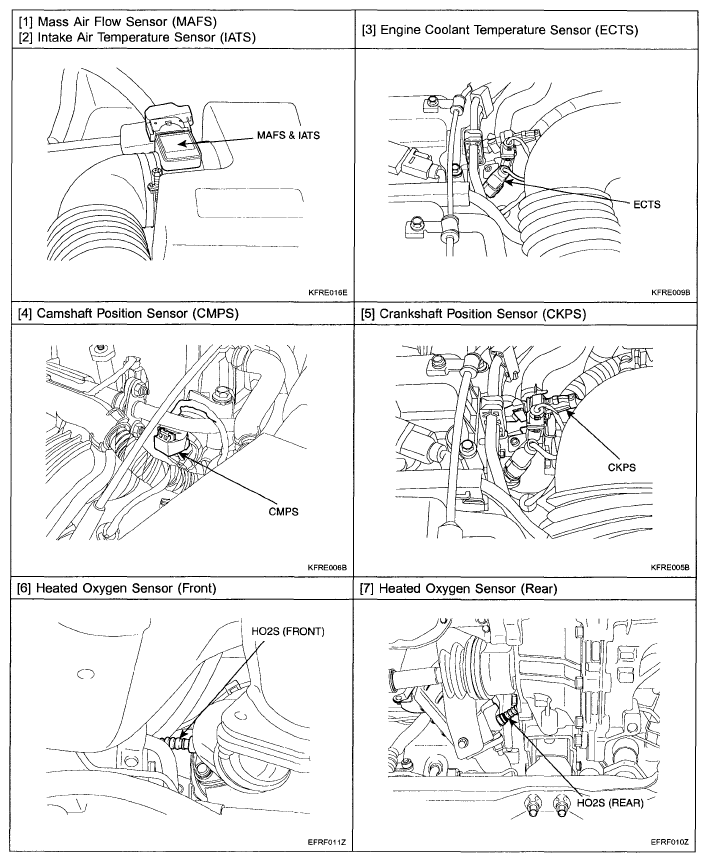

Fig 2: Identifying Gasoline Engine Control System Components (2 Of 4)
G04890825Courtesy of HYUNDAI MOTOR CO.

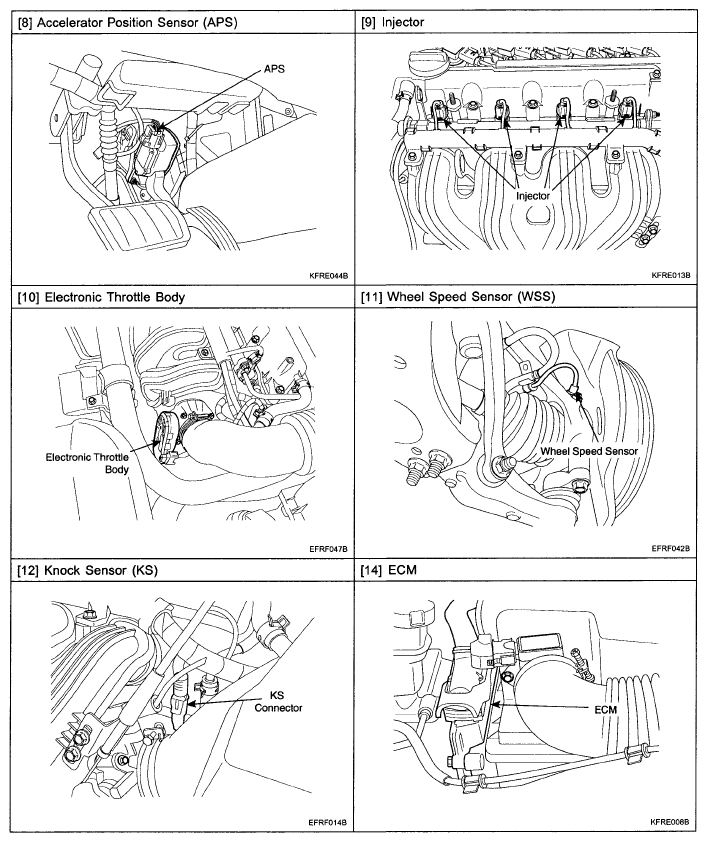

Fig 3: Identifying Gasoline Engine Control System Components (3 Of 4)
G04890826Courtesy of HYUNDAI MOTOR CO.

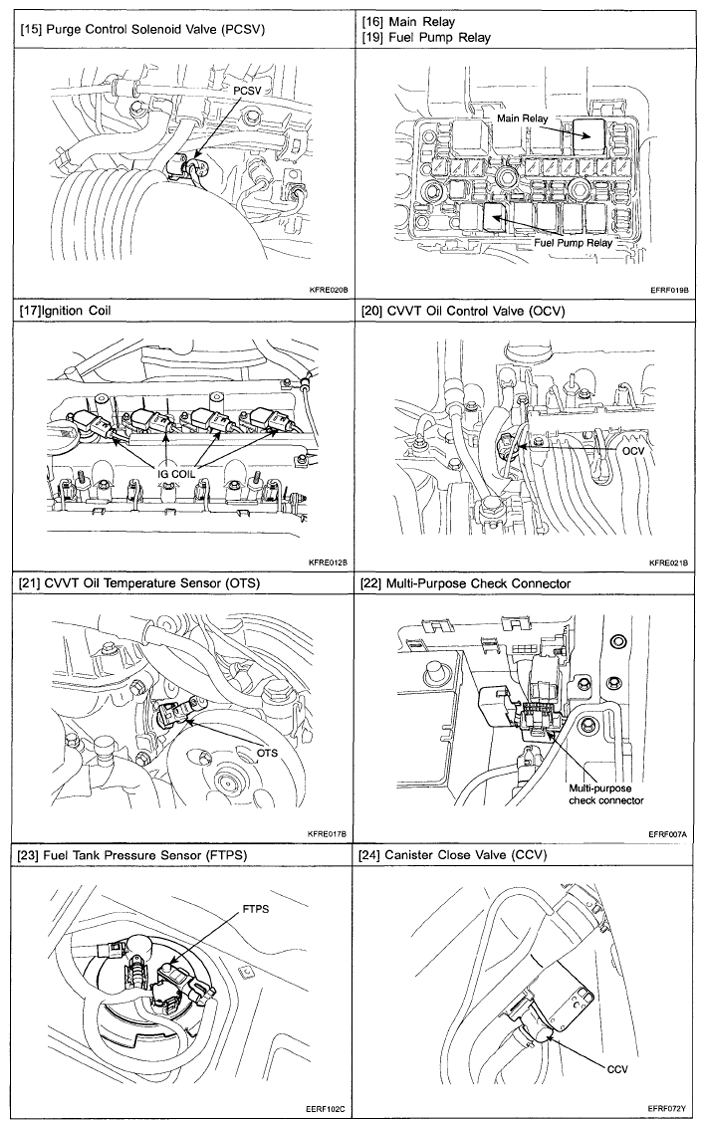

Fig 4: Identifying Gasoline Engine Control System Components (4 Of 4)
G04890827Courtesy of HYUNDAI MOTOR CO.
