Fuel System (G4KC-GSL 2.4): Injector: Inspection

Measure resistance between the terminals 1 and 2 of injector.

Specification: 13.8 ~ 15.2 (20 °C (68°F))

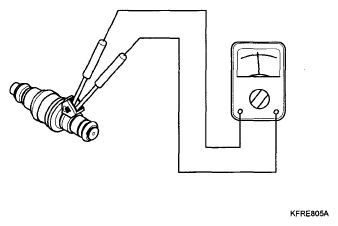

Fig 1: Measuring Resistance Between Terminals 1 And 2 Of Injector

Courtesy of HYUNDAI MOTOR CO.
