Power Window Main Switch

  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

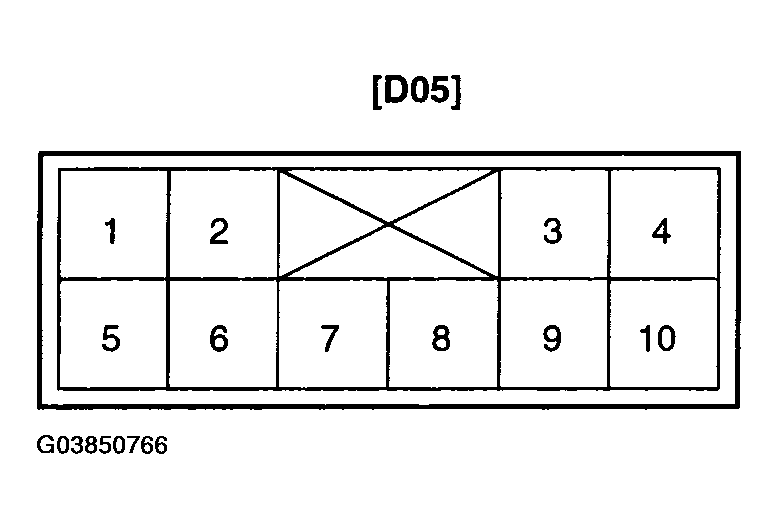

    Fig 1: Identifying Power Window Main Switch Connector Terminals
    G03850766Courtesy of HYUNDAI MOTOR CO.

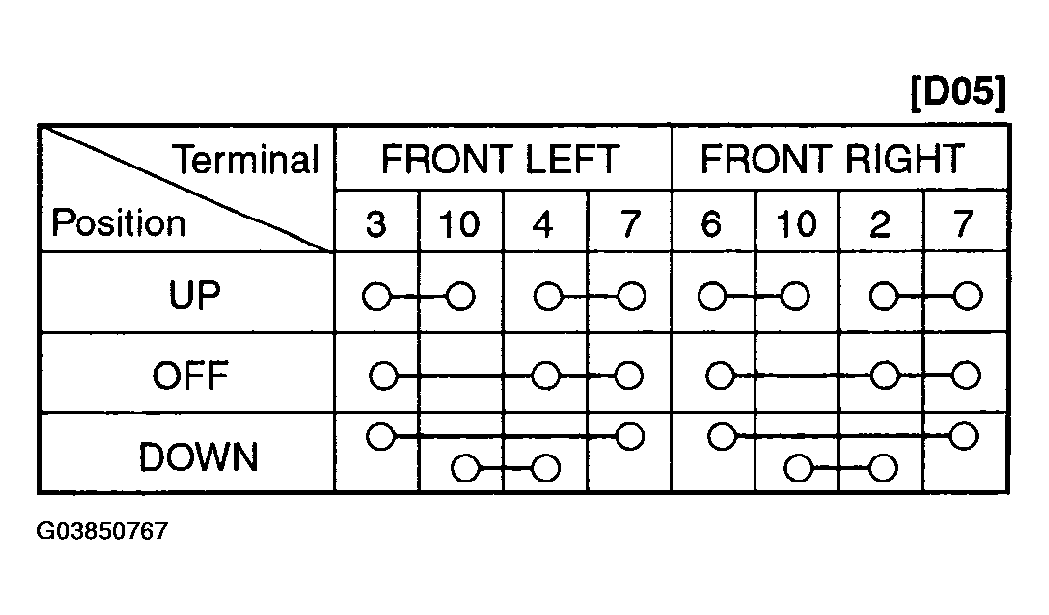

    Fig 2: Power Window Main Switch Continuity Chart
    G03850767Courtesy of HYUNDAI MOTOR CO.
