Inspection
>>
Power Window Sub Switch
Power Window Sub Switch

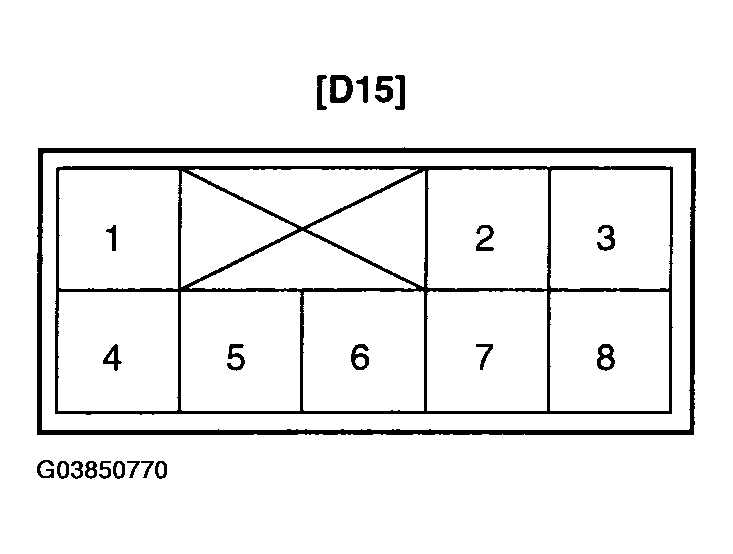

Fig 1: Identifying Power Window Sub Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.

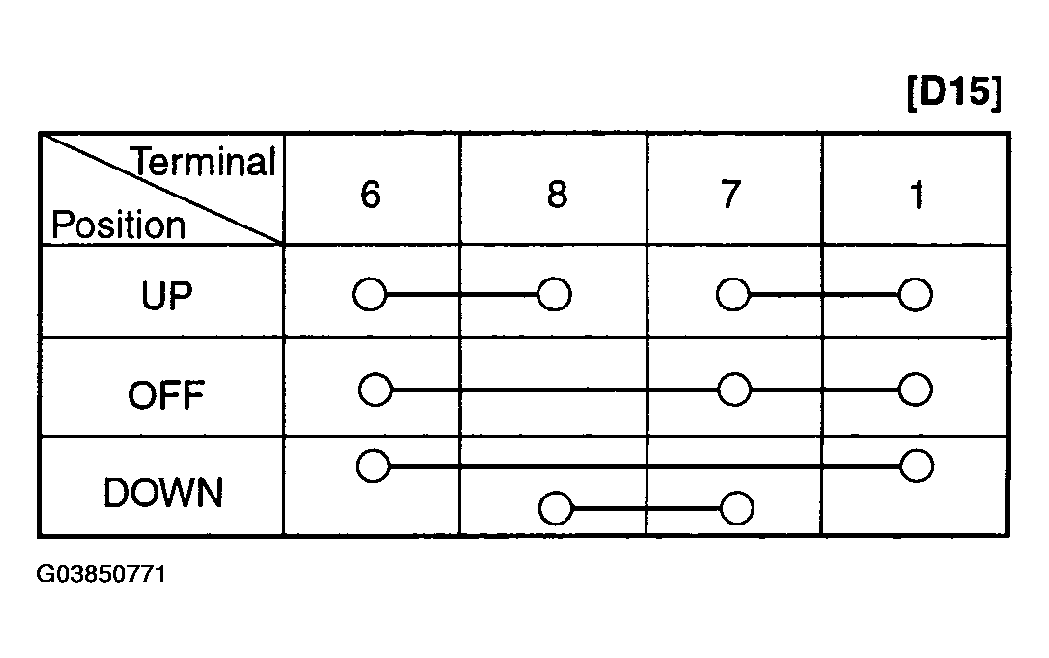

Fig 2: Power Window Sub Switch Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
