Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Side Of Dash

G00291065

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Left Side Of Dash

G00291066

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Left Side Of Dash

G00291067

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Center Of Dash

G00291060

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Top Right Side Of Dash

G00291062

Courtesy of HYUNDAI MOTOR CO.

Fig 6: Left Side Of Dash

G00291064

Courtesy of HYUNDAI MOTOR CO.

Fig 7: Top Left Side Of Dash

G00291053

Courtesy of HYUNDAI MOTOR CO.

Fig 8: Right Quarter Trim Removed

G00291057

Courtesy of HYUNDAI MOTOR CO.

Fig 9: Behind Left Quarter Trim

G00291058

Courtesy of HYUNDAI MOTOR CO.

Fig 10: Center Console Box

G00291047

Courtesy of HYUNDAI MOTOR CO.

Fig 11: Underside Of Seat

G00291048

Courtesy of HYUNDAI MOTOR CO.

Fig 12: Behind Quarter Trim

G00291050

Courtesy of HYUNDAI MOTOR CO.

Fig 13: Fuel Tank

G00291051

Courtesy of HYUNDAI MOTOR CO.

Fig 14: Left Quarter Trim Removed

G00291052

Courtesy of HYUNDAI MOTOR CO.

Fig 15: Behind Luggage Trim

G00291041

Courtesy of HYUNDAI MOTOR CO.

Fig 16: Left Rear Of Luggage Compartment

G00291045

Courtesy of HYUNDAI MOTOR CO.

Fig 17: Rear Under-Carriage

G00291046

Courtesy of HYUNDAI MOTOR CO.

Fig 18: Right Quarter Trim Removed

G00291035

Courtesy of HYUNDAI MOTOR CO.

Fig 19: Roof

G00291040

Courtesy of HYUNDAI MOTOR CO.

Fig 20: Right Side Of Dash

G00291023

Courtesy of HYUNDAI MOTOR CO.

Fig 21: Right Side Of Dash

G00291024

Courtesy of HYUNDAI MOTOR CO.

Fig 22: Left Front Wheelwell

G00291017

Courtesy of HYUNDAI MOTOR CO.

Fig 23: Front Of Engine Compartment

G00291020

Courtesy of HYUNDAI MOTOR CO.

Fig 24: Left Front Of Engine Compartment

G00291022

Courtesy of HYUNDAI MOTOR CO.

Fig 25: Front Of Engine Compartment (2.0L)

G00291011

Courtesy of HYUNDAI MOTOR CO.

Fig 26: Left Side Of Engine (2.7L)

G00291012

Courtesy of HYUNDAI MOTOR CO.

Fig 27: Right Fender (2.0L)

G00291013

Courtesy of HYUNDAI MOTOR CO.

Fig 28: Battery

G00291015

Courtesy of HYUNDAI MOTOR CO.

Fig 29: Right Fender

G00291007

Courtesy of HYUNDAI MOTOR CO.

Fig 30: Engine Room Box

G00291008

Courtesy of HYUNDAI MOTOR CO.

Fig 31: Engine Room Box

G00291009

Courtesy of HYUNDAI MOTOR CO.

Fig 32: Left Rear Of Engine Compartment

G00291010

Courtesy of HYUNDAI MOTOR CO.

Fig 33: Right Strut Housing (2.7L)

G00290999

Courtesy of HYUNDAI MOTOR CO.

Fig 34: Front Underside Of Vehicle (2.7L)

G00291000

Courtesy of HYUNDAI MOTOR CO.

Fig 35: Bottom View Of Oil Pan

G00291001

Courtesy of HYUNDAI MOTOR CO.

Fig 36: Front Bumper

G00291002

Courtesy of HYUNDAI MOTOR CO.

Fig 37: Front Bumper

G00291003

Courtesy of HYUNDAI MOTOR CO.

Fig 38: Front Bumper

G00291004

Courtesy of HYUNDAI MOTOR CO.

Fig 39: Front Of Engine Compartment (2.7L)

G00290995

Courtesy of HYUNDAI MOTOR CO.

Fig 40: Front Of Engine Compartment

G00290996

Courtesy of HYUNDAI MOTOR CO.

Fig 41: Front Of Engine Compartment

G00290997

Courtesy of HYUNDAI MOTOR CO.

Fig 42: Left Kick Panel

G00290998

Courtesy of HYUNDAI MOTOR CO.

Fig 43: Left Side Of Dash

G00290989

Courtesy of HYUNDAI MOTOR CO.

Fig 44: Right Side Of Dash

G00290990

Courtesy of HYUNDAI MOTOR CO.

Fig 45: Under Driver Seat

G00290991

Courtesy of HYUNDAI MOTOR CO.

Fig 46: Left "B" Pillar

G00290992

Courtesy of HYUNDAI MOTOR CO.

Fig 47: Left "B" Pillar (Right Similar)

G00290983

Courtesy of HYUNDAI MOTOR CO.

Fig 48: Underside Of Driver's Seat

G00290984

Courtesy of HYUNDAI MOTOR CO.

Fig 49: Underside Of Passenger's Seat

G00290986

Courtesy of HYUNDAI MOTOR CO.

Fig 50: Passenger Side Floor, Under Seat

G00290987

Courtesy of HYUNDAI MOTOR CO.

Fig 51: Right "B" Pillar

G00290988

Courtesy of HYUNDAI MOTOR CO.

Fig 52: Below Right Side Of Dash

G00290977

Courtesy of HYUNDAI MOTOR CO.

Fig 53: Right Side Of Dash

G00290978

Courtesy of HYUNDAI MOTOR CO.

Fig 54: Behind Upper Right Side Of Dash

G00290979

Courtesy of HYUNDAI MOTOR CO.

Fig 55: Behind Right Center Of Dash

G00290980

Courtesy of HYUNDAI MOTOR CO.

Fig 56: At Lower Left Side Of Dash

G00290981

Courtesy of HYUNDAI MOTOR CO.

Fig 57: Center Console

G00290982

Courtesy of HYUNDAI MOTOR CO.

Fig 58: Transaxle (2.0L)

G00289916

Courtesy of HYUNDAI MOTOR CO.

Fig 59: Transaxle (2.0L)

G00290972

Courtesy of HYUNDAI MOTOR CO.

Fig 60: On Left Side Of Firewall (2.0L)

G00290973

Courtesy of HYUNDAI MOTOR CO.

Fig 61: Top Of Transaxle (2.0L)

G00290974

Courtesy of HYUNDAI MOTOR CO.

Fig 62: Rear Of Engine (2.0L)

G00290975

Courtesy of HYUNDAI MOTOR CO.

Fig 63: Intake Manifold (2.0L)

G00290976

Courtesy of HYUNDAI MOTOR CO.

Fig 64: Rear Of Engine (2.0L)

G00289910

Courtesy of HYUNDAI MOTOR CO.

Fig 65: Right Front Of Engine (2.0L)

G00289911

Courtesy of HYUNDAI MOTOR CO.

Fig 66: Top Right Side Of Engine (2.0L)

G00289913

Courtesy of HYUNDAI MOTOR CO.

Fig 67: Exhaust Manifold

G00289914

Courtesy of HYUNDAI MOTOR CO.

Fig 68: Intake Manifold (2.0L)

G00289915

Courtesy of HYUNDAI MOTOR CO.

Fig 69: Intake Manifold (2.0L)

G00289904

Courtesy of HYUNDAI MOTOR CO.

Fig 70: Front Of Engine (2.0L)

G00289905

Courtesy of HYUNDAI MOTOR CO.

Fig 71: Right Fender (2.0L)

G00289906

Courtesy of HYUNDAI MOTOR CO.

Fig 72: Right Side Of Engine Compartment (2.0L)

G00289898

Courtesy of HYUNDAI MOTOR CO.

Fig 73: Air Intake Duct (2.0L)

G00289900

Courtesy of HYUNDAI MOTOR CO.

Fig 74: Transaxle (2.7L)

G00289902

Courtesy of HYUNDAI MOTOR CO.

Fig 75: Transaxle (2.7L)

G00289903

Courtesy of HYUNDAI MOTOR CO.

Fig 76: Left Rear Of Engine Compartment (2.7L)

G00289892

Courtesy of HYUNDAI MOTOR CO.

Fig 77: Left Side Of Engine Compartment (2.7L)

G00289893

Courtesy of HYUNDAI MOTOR CO.

Fig 78: Top Left Rear Of Cylinder Head (2.7L)

G00289894

Courtesy of HYUNDAI MOTOR CO.

Fig 79: Rear Of Engine (2.7L)

G00289895

Courtesy of HYUNDAI MOTOR CO.

Fig 80: Top Of Cylinder Head (2.7L)

G00289896

Courtesy of HYUNDAI MOTOR CO.

Fig 81: Engine Oil Pan (2.7L)

G00289897

Courtesy of HYUNDAI MOTOR CO.

Fig 82: Exhaust (2.7L)

G00289886

Courtesy of HYUNDAI MOTOR CO.

Fig 83: Left Side Of Dash (2.7L)

G00289889

Courtesy of HYUNDAI MOTOR CO.

Fig 84: Top Of Engine (2.7L)

G00289890

Courtesy of HYUNDAI MOTOR CO.

Fig 85: Exhaust (2.7L)

G00289891

Courtesy of HYUNDAI MOTOR CO.

Fig 86: Left Side Of Engine (2.7L)

G00289880

Courtesy of HYUNDAI MOTOR CO.

Fig 87: Air Box (2.7L)

G00289881

Courtesy of HYUNDAI MOTOR CO.

Fig 88: Top Of Engine (2.7L)

G00289882

Courtesy of HYUNDAI MOTOR CO.

Fig 89: Rear Of Engine Compartment (2.7L)

G00289883

Courtesy of HYUNDAI MOTOR CO.

Fig 90: Right Rear Of Engine Compartment

G00289885

Courtesy of HYUNDAI MOTOR CO.

Fig 91: Right Side Of Firewall (2.7L)

G00289878

Courtesy of HYUNDAI MOTOR CO.

Fig 92: Front Of Engine (2.7L)

G00289868

Courtesy of HYUNDAI MOTOR CO.

Fig 93: Top Rear Of Engine (2.7L)

G00289869

Courtesy of HYUNDAI MOTOR CO.

Fig 94: Top Left Of Engine (2.7L)

G00289870

Courtesy of HYUNDAI MOTOR CO.

Fig 95: Right Rear Of Engine Compartment (2.7L)

G00289871

Courtesy of HYUNDAI MOTOR CO.

Fig 96: Left Side Of Engine Compartment

G00289872

Courtesy of HYUNDAI MOTOR CO.

Fig 97: Air Cleaner

G00289873

Courtesy of HYUNDAI MOTOR CO.

Fig 98: Left Door

G00289862

Courtesy of HYUNDAI MOTOR CO.

Fig 99: Right Door Assembly (Left Similar)

G00289864

Courtesy of HYUNDAI MOTOR CO.

Fig 100: Door Assembly (Left/Right)

G00289865

Courtesy of HYUNDAI MOTOR CO.

Fig 101: Right Front Door Assembly

G00289866

Courtesy of HYUNDAI MOTOR CO.

Fig 102: Tail Gate

G00289856

Courtesy of HYUNDAI MOTOR CO.

Fig 103: Tail Gate

G00289857

Courtesy of HYUNDAI MOTOR CO.

Fig 104: Rear Window Glass

G00289858

Courtesy of HYUNDAI MOTOR CO.

Fig 105: Rear Seat Cushion

G00267776

Courtesy of HYUNDAI MOTOR CO.

Fig 106: Right Quarter Trim Removed

G00267777

Courtesy of HYUNDAI MOTOR CO.

Fig 107: Left Quarter Trim Removed

G00267778

Courtesy of HYUNDAI MOTOR CO.

Fig 108: Liftgate

G00267779

Courtesy of HYUNDAI MOTOR CO.

Fig 109: Rear Window Glass

G00289854

Courtesy of HYUNDAI MOTOR CO.

Fig 110: Right Side Of Rear Window Glass

G00289855

Courtesy of HYUNDAI MOTOR CO.

Fig 111: Under Rear Console

G00267770

Courtesy of HYUNDAI MOTOR CO.

Fig 112: Center Of Dash

G00267771

Courtesy of HYUNDAI MOTOR CO.

Fig 113: Left Side Of Dash

G00267772

Courtesy of HYUNDAI MOTOR CO.

Fig 114: Left Front Corner Of Engine Compartment

G00267773

Courtesy of HYUNDAI MOTOR CO.

Fig 115: Front Of Engine Compartment

G00267774

Courtesy of HYUNDAI MOTOR CO.

Fig 116: Left Side Of Engine Compartment

G00267759

Courtesy of HYUNDAI MOTOR CO.

Fig 117: Left Side Of Dash

G00267762

Courtesy of HYUNDAI MOTOR CO.

Fig 118: Left Side Of Dash

G00267763

Courtesy of HYUNDAI MOTOR CO.

Fig 119: Top Rear Of Cylinder Head

G00267766

Courtesy of HYUNDAI MOTOR CO.

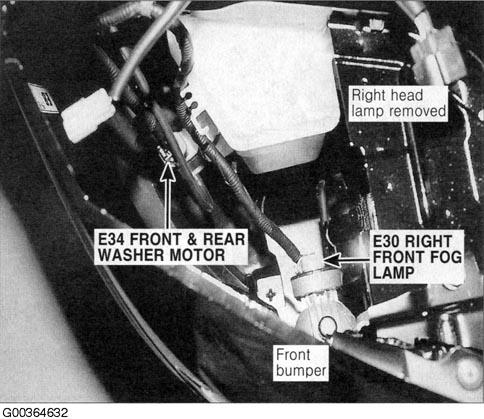

Fig 120: Right Front Fog Lamp

G00364632

Courtesy of HYUNDAI MOTOR CO.

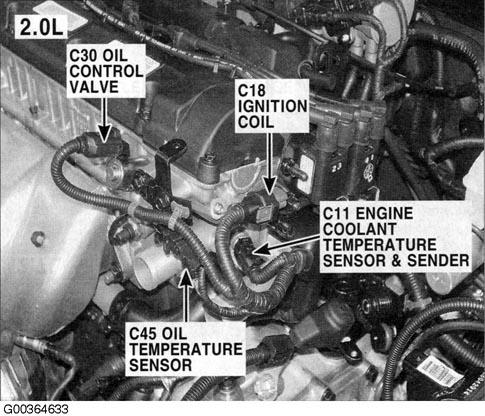

Fig 121: Rear Of Engine

G00364633

Courtesy of HYUNDAI MOTOR CO.

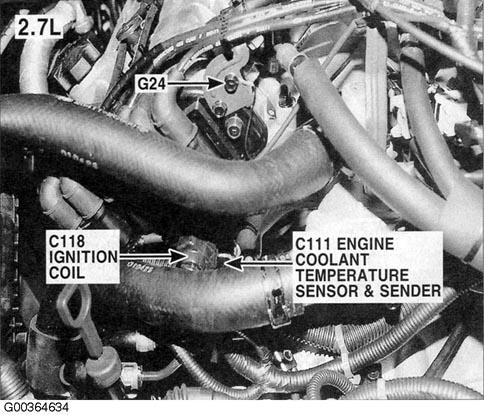

Fig 122: Left Rear Side Of Engine

G00364634

Courtesy of HYUNDAI MOTOR CO.

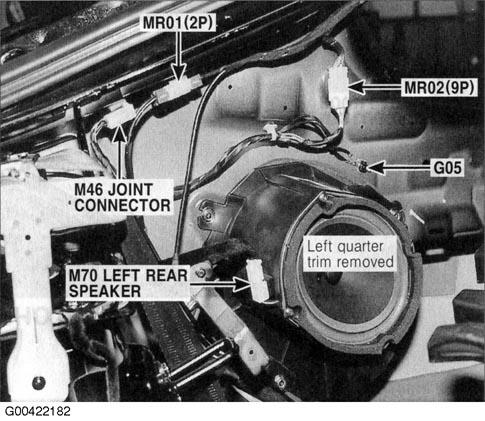

Fig 123: Left Quarterpanel

G00422182

Courtesy of HYUNDAI MOTOR CO.

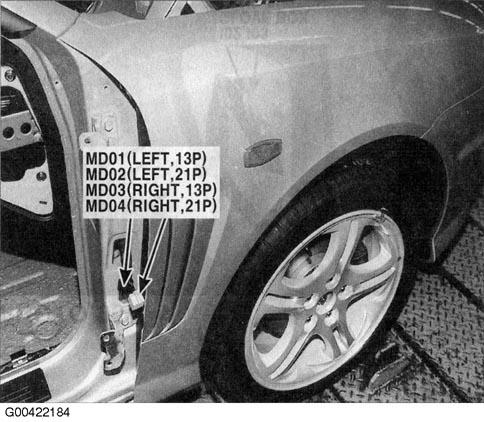

Fig 124: Left/Right Kick Panel (Right Shown)

G00422184

Courtesy of HYUNDAI MOTOR CO.

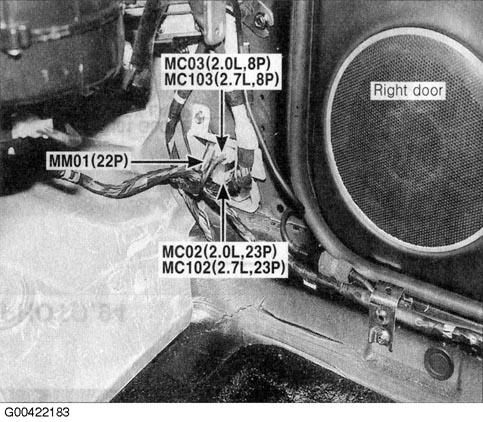

Fig 125: Right Kick Panel

G00422183

Courtesy of HYUNDAI MOTOR CO.

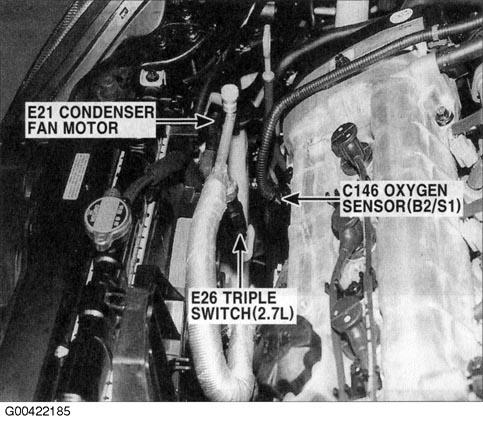

Fig 126: Front Of Engine Compartment

G00422185

Courtesy of HYUNDAI MOTOR CO.

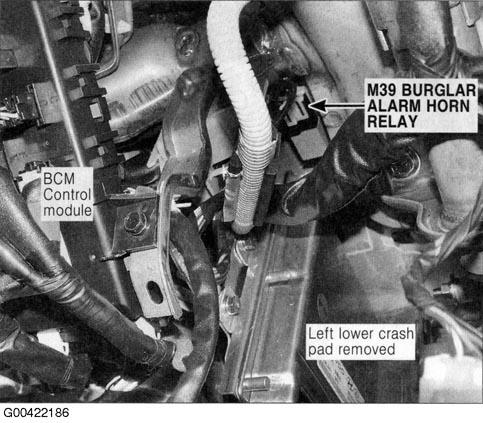

Fig 127: Under Left Side Of Dash

G00422186

Courtesy of HYUNDAI MOTOR CO.

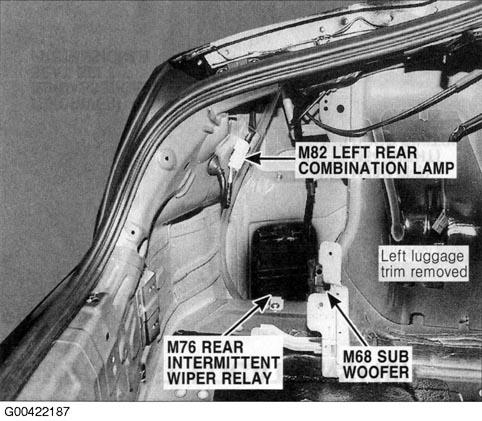

Fig 128: Left Rear Corner Of Luggage Compartment

G00422187

Courtesy of HYUNDAI MOTOR CO.

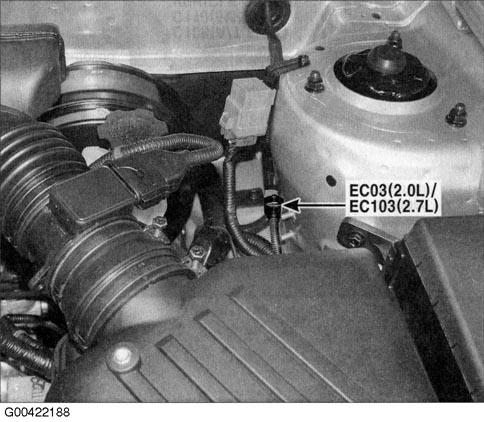

Fig 129: Left Rear Of Engine Compartment

G00422188

Courtesy of HYUNDAI MOTOR CO.

Fig 130: Right Side Of Glove Box

G00422189

Courtesy of HYUNDAI MOTOR CO.

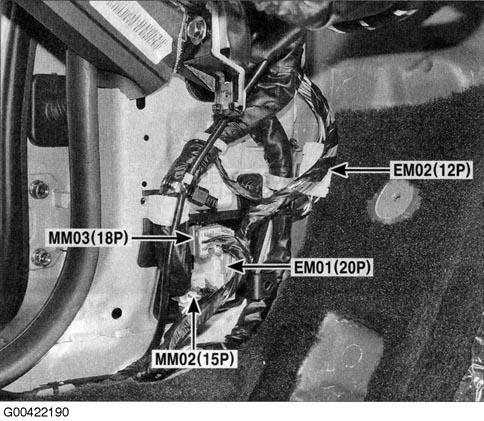

Fig 131: Left Kick Panel

G00422190

Courtesy of HYUNDAI MOTOR CO.

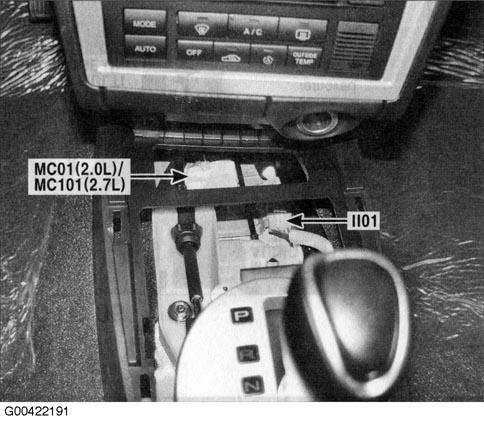

Fig 132: Front Of Center Console

G00422191

Courtesy of HYUNDAI MOTOR CO.

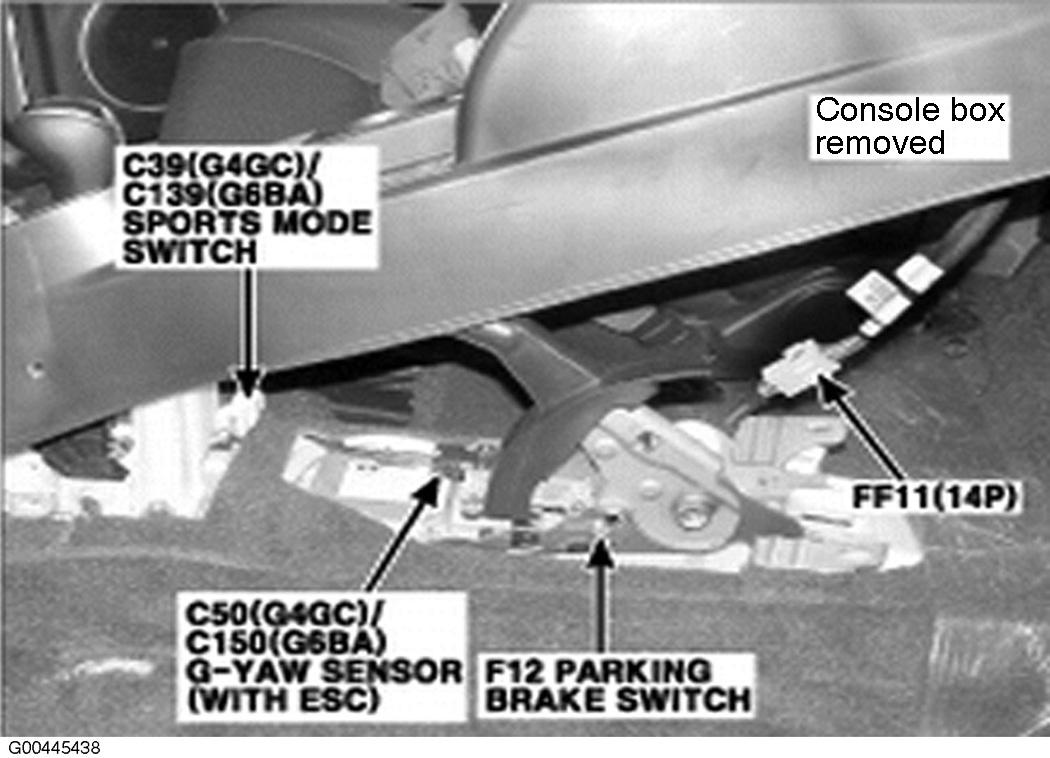

Fig 133: Center Floor Pan

G00445438

Courtesy of HYUNDAI MOTOR CO.

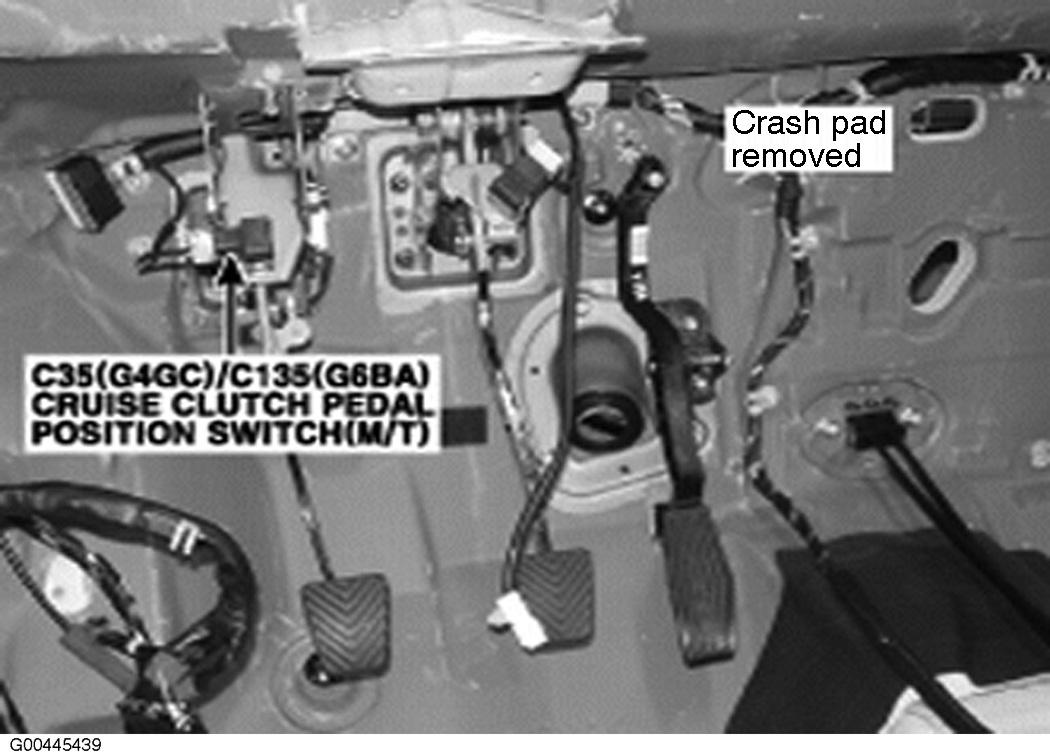

Fig 134: Under Left Side Of Dash

G00445439

Courtesy of HYUNDAI MOTOR CO.

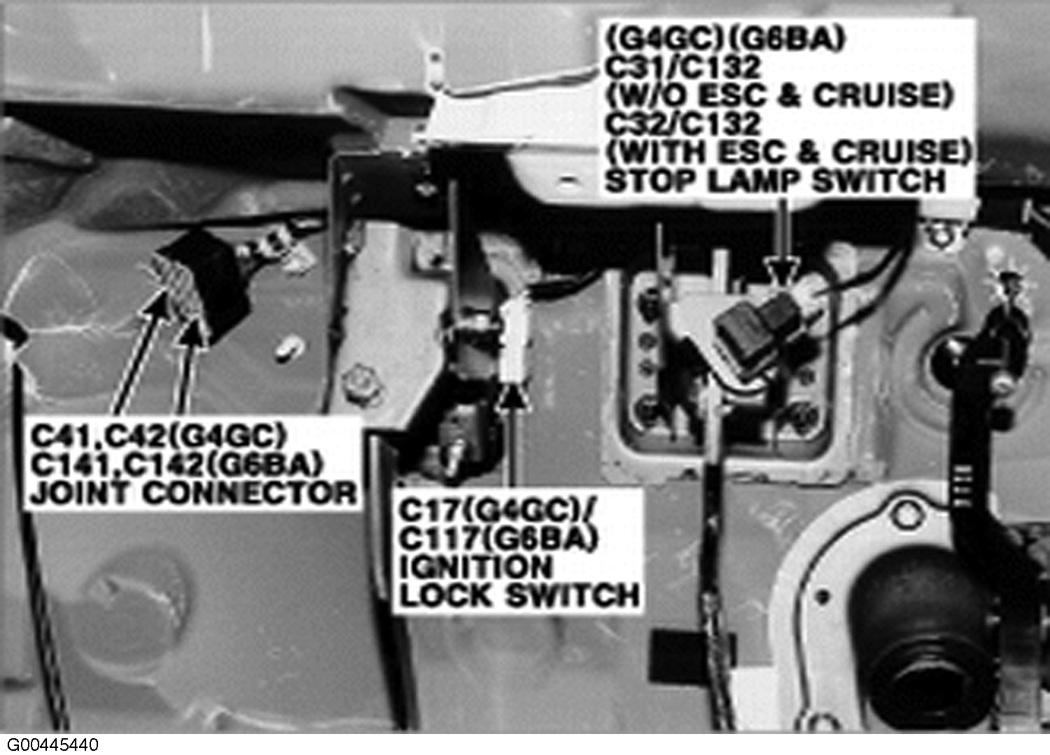

Fig 135: Under Left Side Of Dash

G00445440

Courtesy of HYUNDAI MOTOR CO.

Fig 136: Left Side Of Dash (2.7L)

G00445441

Courtesy of HYUNDAI MOTOR CO.

Fig 137: Under Left Side Of Dash (2.0L)

G00445442

Courtesy of HYUNDAI MOTOR CO.

Fig 138: Under Right Side Of Dash (2.7L)

G00445443

Courtesy of HYUNDAI MOTOR CO.

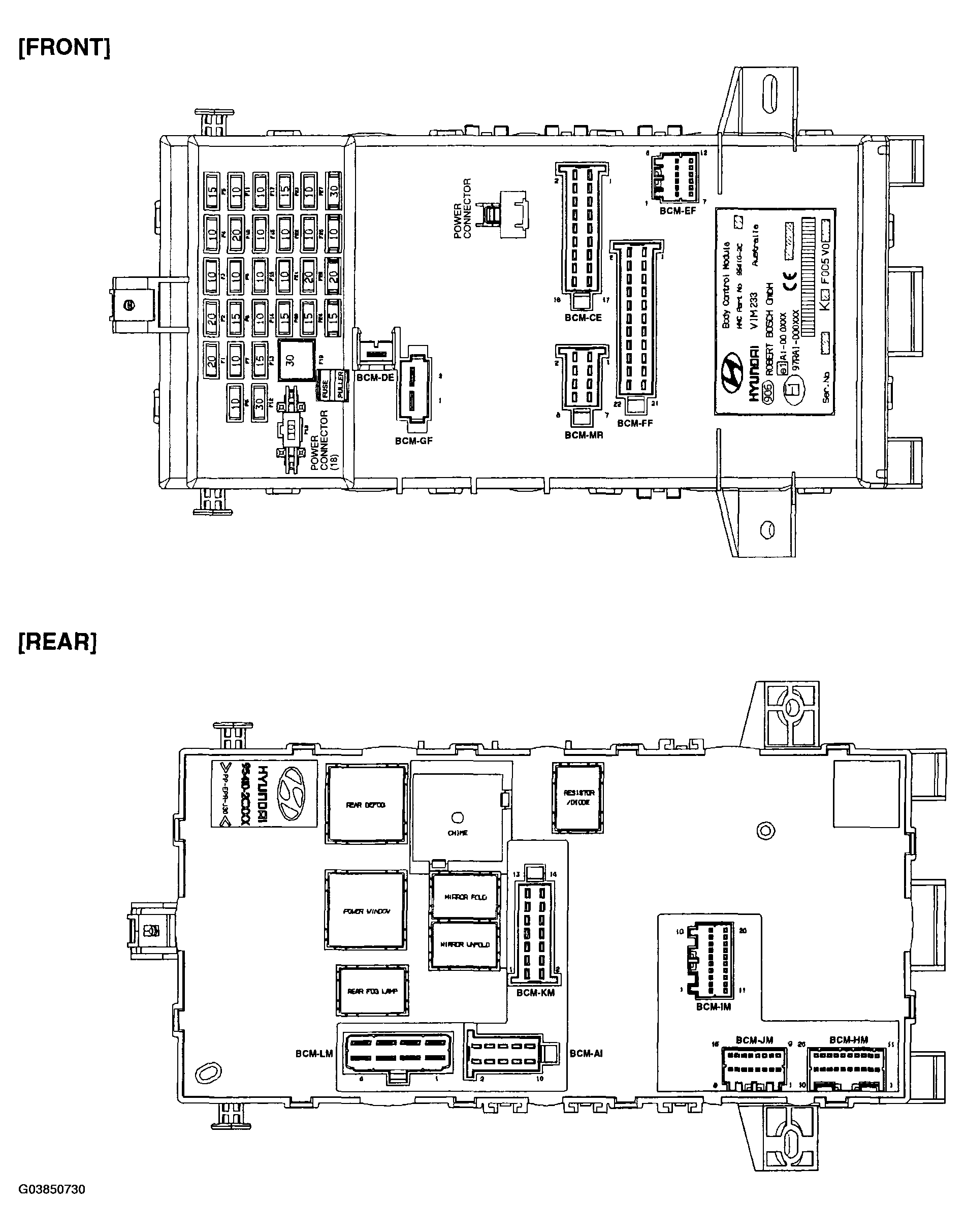

Fig 139: Passenger Compartment BCM Fuse/Relay Box

G03850730

Courtesy of HYUNDAI MOTOR CO.
